VAXIS STORM 1000S KIT, 1TX 1RXV MOUNT

  • Free transport
  • LAST PIECE
SKU: VS19-1000-TR01

The Vaxis Storm 1000S kit with a V-Mount receiver sends visually lossless 1080p60 with under 1 ms latency up to 1148 ft. SDI and HDMI inputs, cross-conversion, receiver with 2× SDI and HDMI out for monitors.

More information

3 299 € with VAT 2 726.45 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
SKU:
VS19-1000-TR01
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Vaxis Storm 1000S kit with a V-Mount receiver sends visually lossless 1080p60 with under 1 ms latency up to 1148 ft. SDI and HDMI inputs, cross-conversion, receiver with 2× SDI and HDMI out for monitors.

Storm 1000S is a compact wireless link for film and TV production. The transmitter takes the signal over 3G-SDI or HDMI, cross-converts between them and passes it on via SDI loop. The receiver with integrated V-Mount plate outputs the image on two 3G-SDI and one HDMI – with under 1 ms of delay over up to 1148 ft (350 m).

Wireless image under 1 ms

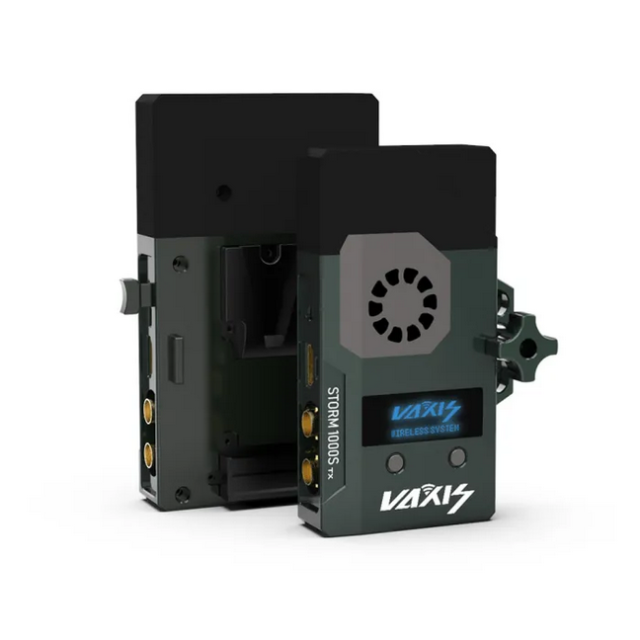

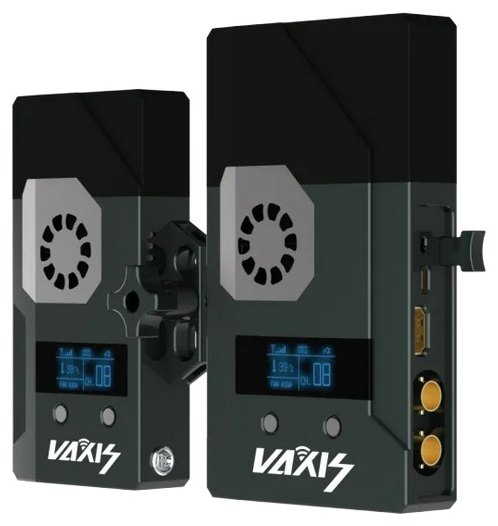

Storm 1000S transmitter and receiver with V-Mount battery plate.

Up to 1148 ft rangeUnder 1 ms latency1080p6020 channels at 5 GHzV-Mount receiver

Compatible interfaces

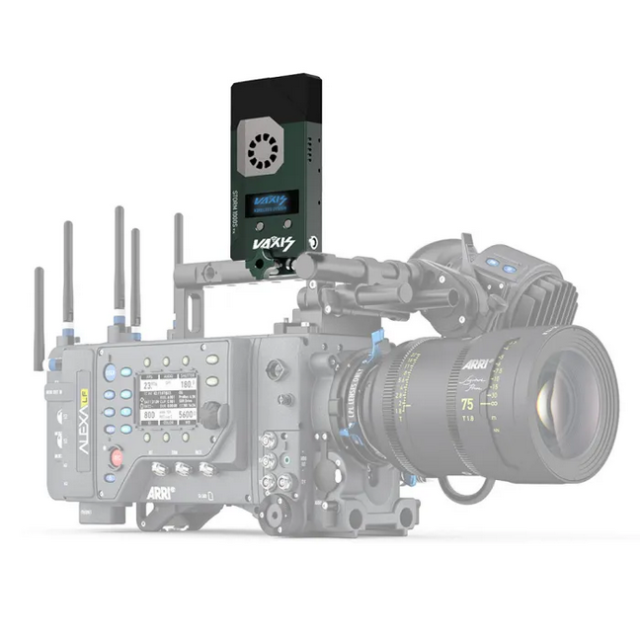

The transmitter has 3G-SDI and HDMI inputs, an SDI loop output and HDMI/SDI cross-conversion. It passes timecode and metadata, and 0′ mode supports ARRI ALEXA Mini instant playback.

Clean channels

Twenty selectable channels in the 5.1–5.9 GHz band at 20 or 40 MHz width. Bright LCD screens on every unit show status and scan results.

Reliable on set

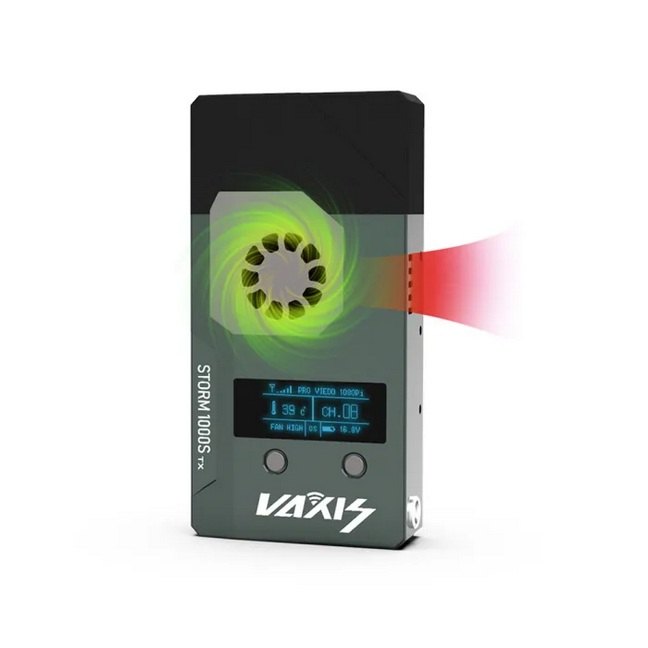

Metal bodies with internal antennas and side cooling fans are ready for full shooting days. The system is compatible with the Storm 058, 800, 2000 and 5000 series.

Multicast

One transmitter for multiple receivers.

Compatibility

Works with Vaxis Storm 058, 800, 2000 and 5000.

Power

2-pin LEMO, micro-USB and V-Mount on the receiver.

1/4″-20 mount

Thread on every unit.

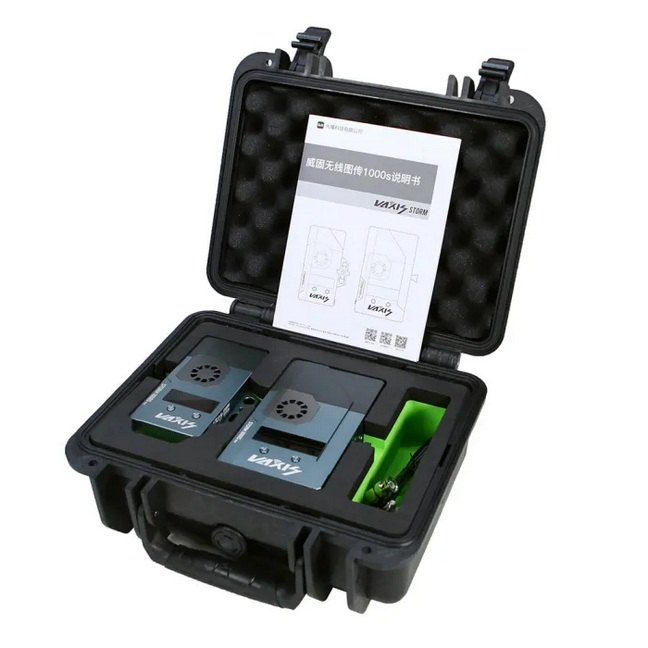

PACKAGE CONTENT

  • Storm 1000S transmitter ×1
  • Storm 1000S receiver with V-Mount plate ×1
  • Flight case ×1

SPECIFICATIONS

  • Brand: Vaxis
  • Model: Storm 1000S Kit 1TX 1RX V-Mount, VS19-1000-TR01
  • Range: up to 1148 ft / 350 m (line of sight)
  • Latency: under 1 ms
  • Resolution: 1080p60, visually lossless
  • Band: 5.1–5.9 GHz, 20 channels, 20/40 MHz width
  • Transmitter video: 3G-SDI in, HDMI in, 3G-SDI loop out, cross-conversion
  • Receiver video: 2× 3G-SDI out, 1× HDMI out
  • Power: 2-pin LEMO, micro-USB; receiver integrated V-Mount
  • Other: multicast, timecode and metadata, 0′ mode for ARRI ALEXA Mini
  • Antennas: internal
  • Mounting: 1/4″-20 thread on each unit

WE RECOMMEND

The Vaxis Storm 1000S is a professional wireless video transmission system with a range of up to 350 meters and support for SDI/HDMI interfaces, equipped with V-Mount plates. To achieve maximum image quality and flexibility during filming, it is recommended to supplement the kit with professional optical filters and robust mounting hardware for attaching the transmitter and receiver.

Optical Filters (4x5.65") - Professional standard-size filters for matte boxes that complement a camera setup using wireless transmission.

Optical Filters (95mm) - Circular filters designed for 95mm film lenses for creative work with light and exposure.

Mounting and Accessories - Components for securely attaching wireless units to rigs and additional cabling.
