Vaxis Atom A5 Wireless Monitor Professional Package

Professional package with two Vaxis Atom A5 wireless monitors: a 5.5″ Full HD touchscreen at 1000 nits that both receives and transmits up to 492 ft. HDMI, microSD recording and 3D LUTs. Tripod and case included.

More information

1 039 € with VAT 858.68 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Professional package with two Vaxis Atom A5 wireless monitors: a 5.5″ Full HD touchscreen at 1000 nits that both receives and transmits up to 492 ft. HDMI, microSD recording and 3D LUTs. Tripod and case included.

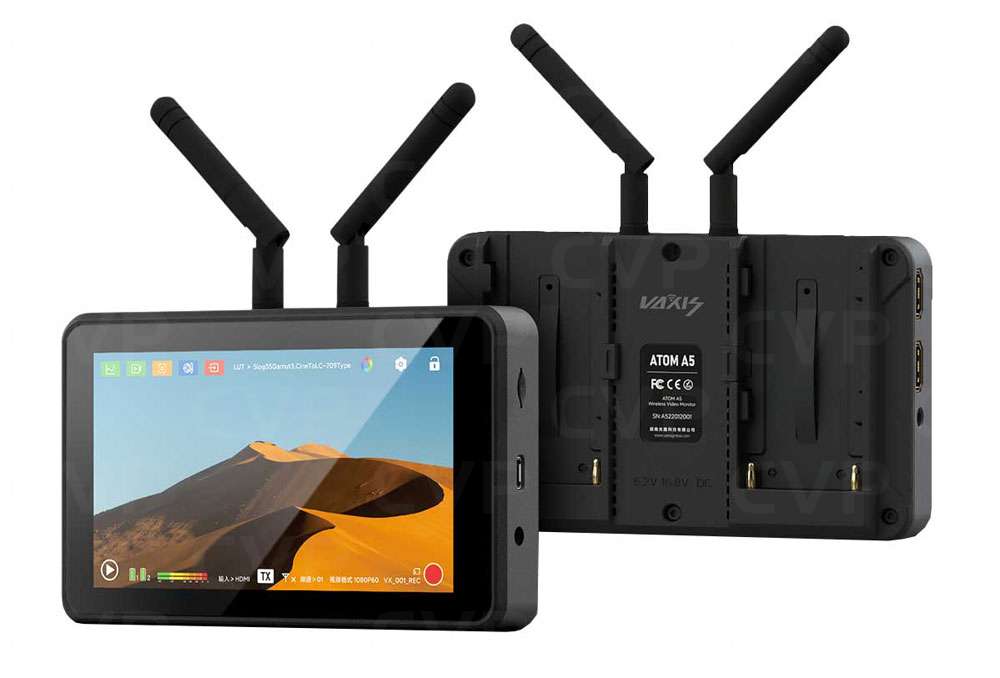

Atom A5 combines a bright on-camera monitor with a wireless transmitter and receiver in one body. By switching between TX and RX modes one monitor sends the camera image and the other receives it within the ATOM ecosystem up to 492 ft (150 m). The 1000-nit display is readable in daylight, and CINE OS offers 3D LUTs and scopes.

Two monitors, one system

Two Atom A5 monitors with tripod, strap and carrying case.

1000-nit brightnessUp to 492 ft rangeTX and RX modesmicroSD recordingHDMI with loop

Transmitter, receiver and monitor

On camera the monitor displays the image and transmits it at the same time; at video village another A5 or an ATOM receiver picks it up. The HDMI input has a loop output.

Recording and trigger

The monitor records MP4 proxies to microSD, and timecode sync with camera record trigger keeps the clips aligned.

CINE OS for precise work

Up to 50 stored 3D LUTs, waveform, vectorscope, histogram and peaking help set exposure, colour and focus right on set.

Display

5.5″, 1920 × 1080, 1200:1 contrast, touch.

Power

Dual L-series (NP-F) battery plate.

Antennas

Swappable antennas for better range.

ATOM ecosystem

Works with ATOM 500 and 600 systems.

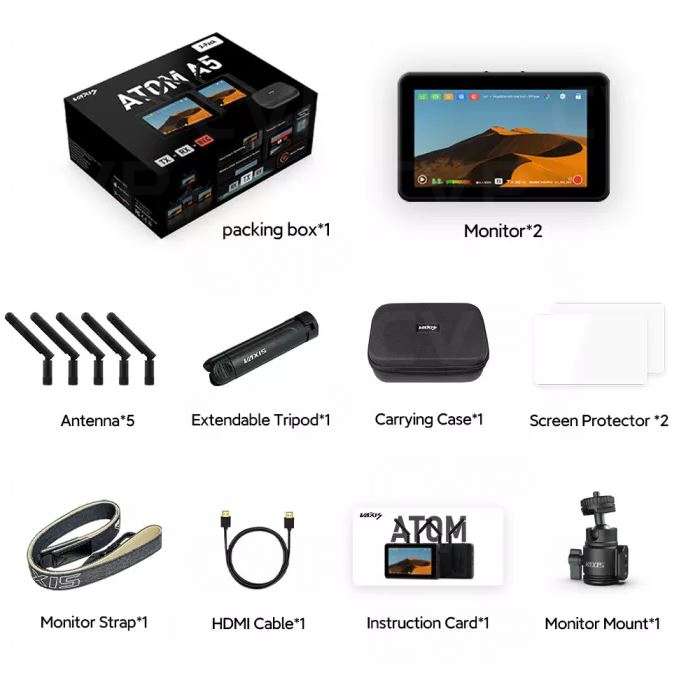

PACKAGE CONTENT

  • Atom A5 monitor ×2
  • Antennas
  • Extendable tripod ×1
  • Carrying case ×1
  • Screen protector ×2
  • Monitor strap ×1
  • HDMI cable ×1
  • Monitor mount ×1
  • Instruction card ×1

SPECIFICATIONS

  • Brand: Vaxis
  • Model: Atom A5 Professional Package, VA22-A5-TR02
  • Display: 5.5″ LCD, 1920 × 1080, touch, 1000 nits, 1200:1 contrast
  • Wireless range: 492 ft / 150 m (line of sight)
  • Video I/O: HDMI in, HDMI loop out
  • Formats: 1080p up to 60 fps, 1080i, 720p
  • Audio: 3.5 mm headphone out
  • Recording: MP4 proxy to microSD
  • LUTs and tools: up to 50 3D LUTs, waveform, vectorscope, histogram, peaking
  • RF power: 17 dBm
  • Power: dual L-series (NP-F) battery plate
  • Mounting: 1/4″-20 thread on the bottom
  • Dimensions: 151 × 92 × 30.5 mm
  • Weight: 348 g
  • Monitors: 2

WE RECOMMEND

The Vaxis Atom A5 is a highly integrated 5.5" wireless monitor and transmitter/receiver in one, featuring dual NPF battery slots and HDMI connectivity. For maximum utility in professional production, it is recommended to supplement it with high-quality mounting hardware, power cables, and optical filters for the camera system with which the monitor is used.

Mounts and Arms - Accessories for secure and flexible mounting of the monitor to a camera rig.

Power and cables - Cables for powering and charging the monitor and other system components.

Optical filters 4 x 5.65'' - Professional camera filters that enhance the visual output displayed on the monitor.

Optical Filters Φ95 - Circular filters with a diameter of 95 mm designed for modern film lenses.

Parameters

Parameters

Manufacturer: Vaxis
Category: Camera monitors

Main parameters

Size5.5"
Monitor inputsHDMI
Monitor power supplySony NP-F
