VAXIS ATOM 600 KV TX

SKU: VA20-600KV-T01

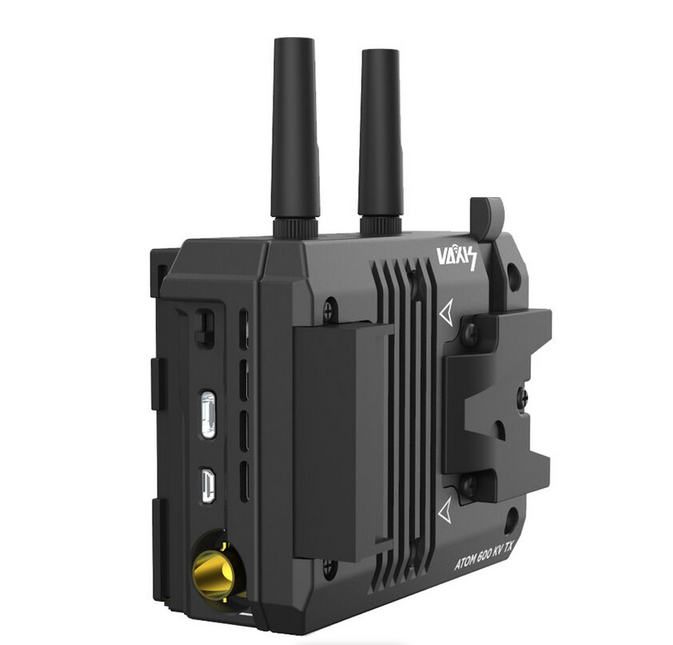

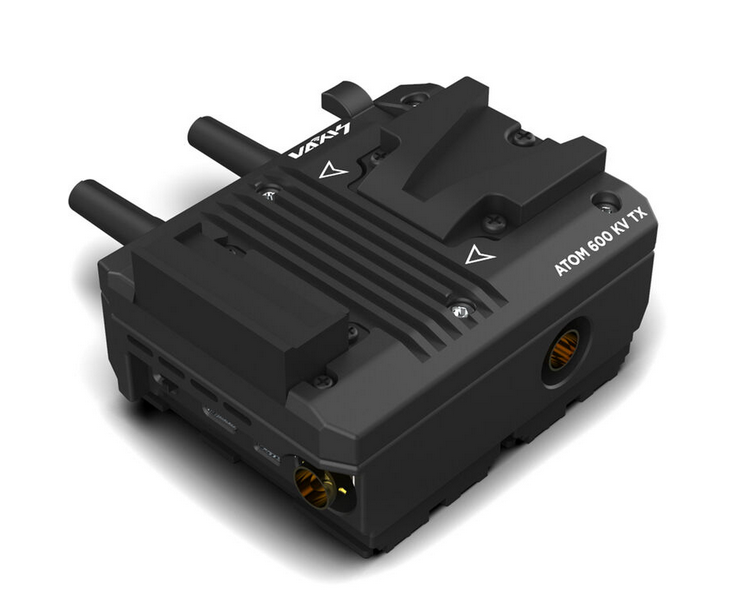

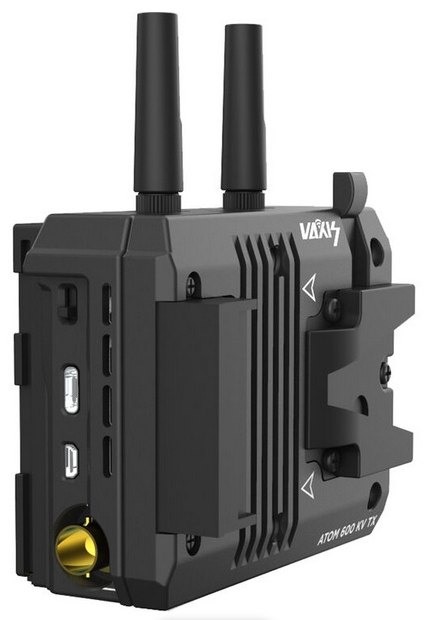

The Vaxis ATOM 600 KV transmitter mounts straight onto the RED KOMODO battery plate and powers itself and the camera from a V-Mount battery. It sends 1080p60 with under 80 ms latency up to 600 ft, with SDI in, SDI and HDMI loop.

More information

829 € with VAT 685.12 € without VAT
Add to Compare Price history
Availability
on request
SKU:
VA20-600KV-T01
Add to Compare Price history

Top accessories for VAXIS ATOM 600 KV TX

Vaxis RADAR SHORT ANTENNA

Vaxis Radar Short antennas (2 pcs) for the 5 GHz band, 5150–5850 MHz, with 3 dBi
17 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Vaxis ATOM 600 KV transmitter mounts straight onto the RED KOMODO battery plate and powers itself and the camera from a V-Mount battery. It sends 1080p60 with under 80 ms latency up to 600 ft, with SDI in, SDI and HDMI loop.

ATOM 600 KV is a wireless video system designed for the RED KOMODO. The transmitter mounts on the camera battery plate horizontally or vertically, carries a V-Mount battery and passes power through to the camera. It takes the image over SDI and loops it out on SDI and HDMI. Via Wi-Fi and the Vaxis Vision app, the image can be viewed on up to three iOS devices.

A transmitter made for KOMODO

ATOM 600 KV transmitter with V-Mount power that also powers the RED KOMODO.

For RED KOMODOUp to 600 ft rangeUnder 80 ms latency1080p60V-Mount power

One battery for camera and transmitter

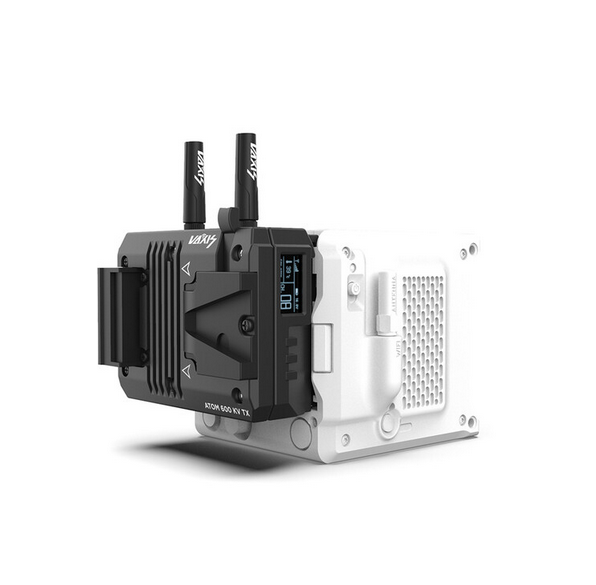

The transmitter carries a V-Mount battery and passes power to the camera. It mounts on the KOMODO battery plate horizontally or vertically.

Outputs on camera

Besides transmitting, it passes the image on via SDI and HDMI loop outputs to an on-camera monitor.

Preview on a phone too

Wi-Fi multicast sends the image to up to three iOS devices with the Vaxis Vision app. Director, client or assistant can watch the shot without another receiver.

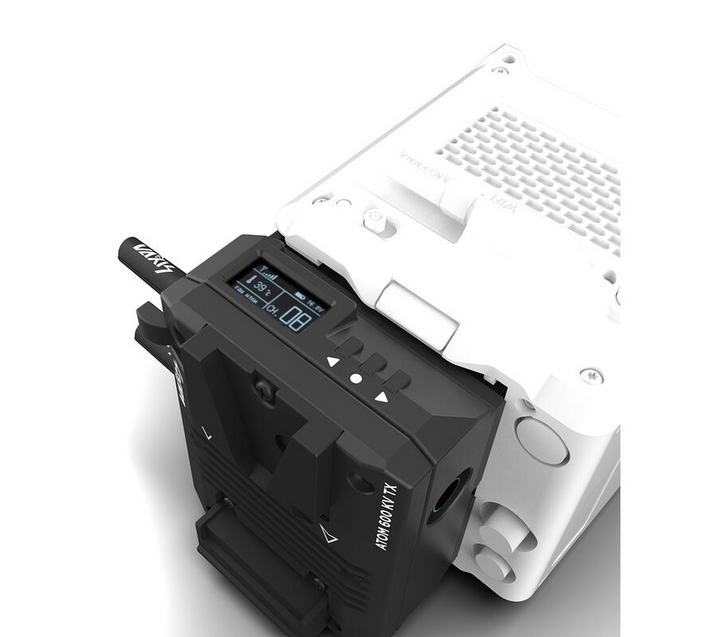

OLED display

Bright status display on every unit.

Quiet fan

Cooling can be switched on or off as needed.

13 channels

4.9–5.8 GHz band, 17 dBm output.

RP-SMA antennas

Two connectors for swappable antennas.

PACKAGE CONTENT

  • ATOM 600 KV transmitter for RED KOMODO ×1
  • Antenna ×2

SPECIFICATIONS

  • Brand: Vaxis
  • Model: ATOM 600 KV TX, VA20-600KV-T01
  • Compatibility: RED KOMODO camera
  • Resolution: up to 1080p60
  • Range: up to 600 ft / 180 m (line of sight)
  • Latency: under 80 ms
  • Transmitter video: 1× SDI in, 1× SDI loop, 1× HDMI loop
  • Band: 4.9–5.8 GHz, 13 channels, 17 dBm
  • Antennas: 2× RP-SMA
  • Transmitter power: V-Mount battery with pass-through to camera
  • Mobile monitoring: Wi-Fi, up to 3 iOS devices (Vaxis Vision)
  • Other: OLED display, switchable fan

WE RECOMMEND

The Vaxis ATOM 600 KV TX is a specialized wireless transmitter designed for direct integration with RED KOMODO cameras, utilizing a V-mount interface for both power supply and power pass-through. To achieve professional results, it is essential to equip the camera rig with high-quality optical filters and robust mounting components for additional accessories.

4x5.65" Optical Filters - Professional standard-size filters for use in matte boxes on RED KOMODO cameras.

95mm Optical Filters - Circular filters with a diameter of 95 mm, suitable for modern film lenses and compatible accessories.

Mounting and Power - Accessories for mounting monitors and powering auxiliary devices within a camera system.

Parameters

Parameters

Manufacturer: Vaxis
Category: Wireless video transmission

Main parameters

Latency80 ms
InputSDI
