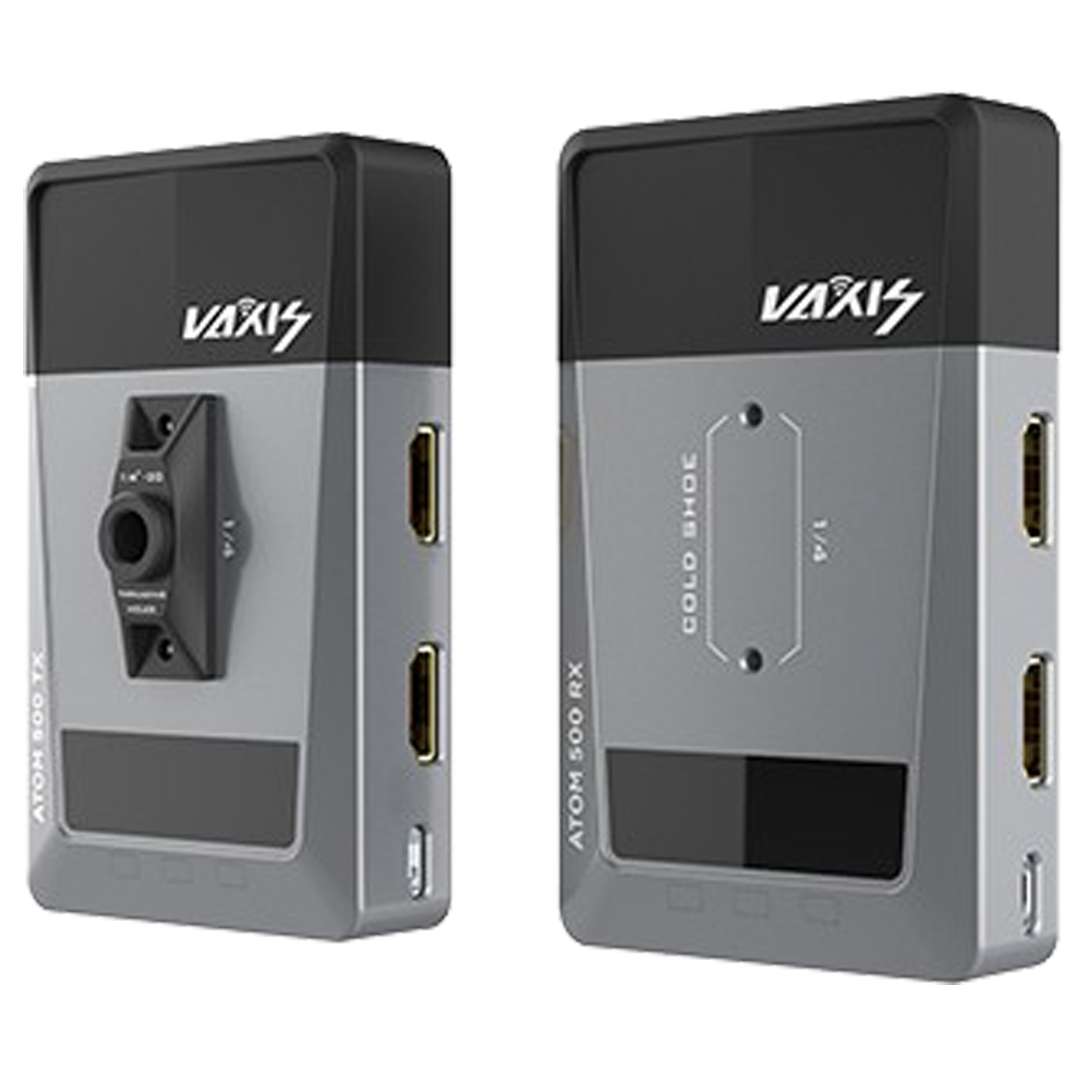

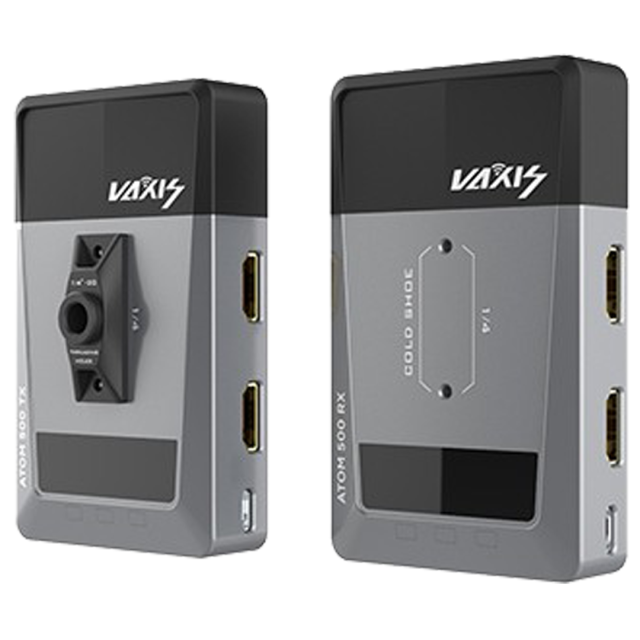

Vaxis Atom 500 HDMI

The Atom 500 HDMI wireless video TX/RX kit from Vaxis features HDMI connection, and enables transmitting visually lossless 1080p H.265 video signals in the 5GHz band with latency less than 80 ms and covering a range of up to 150 m line-of-sight. It also multicasts via Wi-Fi to up to three iOS devices for monitoring, and offers a bright OLED status display, USB-C connector for powering (Type C cable included) and upgrades, slot for an L-Series battery (battery not included), and the ability to turn the cooling fan off during production.

More information

401.54 € with VAT 331.85 € without VAT
-+
Availability
Prague > 5 pcs
Manufacturer
Free transport When purchasing this product
SKU:
vax-atom500-hdmi
Add to Compare
Product description

Product description

The Atom 500 HDMI wireless video TX/RX kit from Vaxis features HDMI connection, and enables transmitting visually lossless 1080p H.265 video signals in the 5GHz band with latency less than 80 ms and covering a range of up to 150 m line-of-sight. It also multicasts via Wi-Fi to up to three iOS devices for monitoring, and offers a bright OLED status display, USB-C connector for powering (Type C cable included) and upgrades, slot for an L-Series battery (battery not included), and the ability to turn the cooling fan off during production.

Range: ~152 m (LoS)
Number of Channels: 13
Frequency: 5 GHz
Latency: < 80 ms
RX Power: 17 dBm
TX Sensitivity: -80 dBm
Compression: H.265

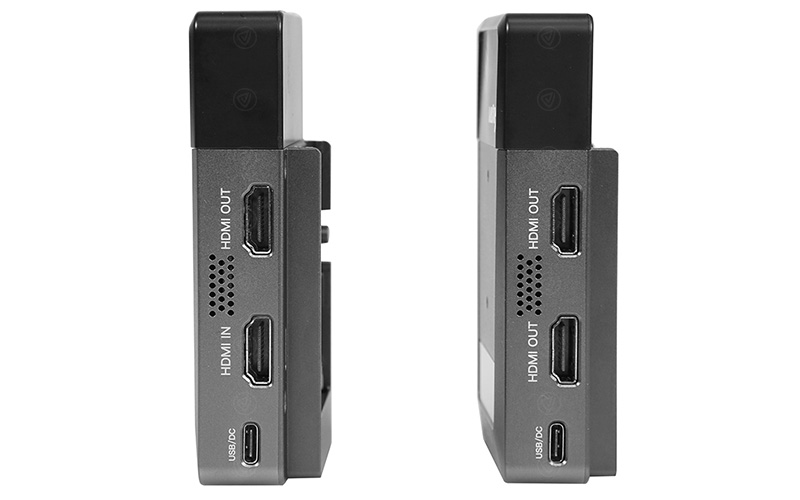

TX Video Connectors: 1x HDMI (HDMI 1.4) Input
RX Video Connectors : 1x HDMI Output
Video Format HDMI: 1080p at 24, 25, 30, 50, 60 fps, 1080i at 50, 60 fps, 720p at 60 fps,
Timecode Support: Yes
Embedded Audio: 2-Channel HDMI
Powering: 1x Sony L-Series / NP-F Type, 1x USB Type-C
TX/RX Dimensions: 10.5 x 6.35 x 2 cm
TX/RX Weight: 134 g ea.

Parameters

Parameters

Manufacturer: Vaxis
Category: Wireless video transmission

Main parameters

Latency0,08s
Input wireless videoHDMI
