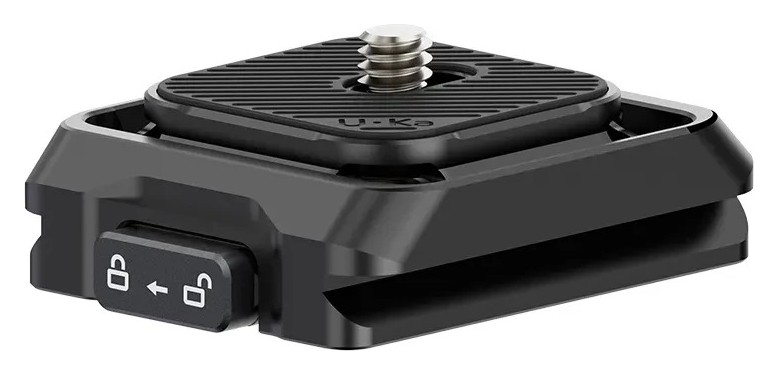

Ulanzi Uka Quick Release Plate and Base Kit

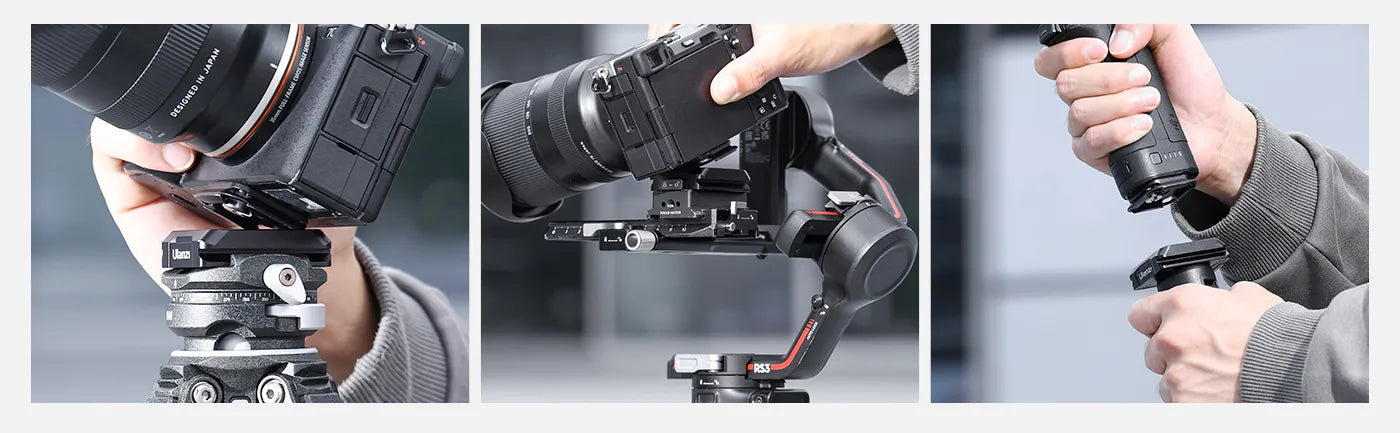

The Ulanzi Uka C007 is a 78 g CNC-machined quick-release plate kit with 85 × 60 mm Arca-Swiss/F38/Uka dovetail compatibility, 20 kg dynamic payload (25 kg static), 0.8 s angled click-lock via stainless spring latch, dual safety pins, 1/4-turn knob, 11× 1/4"-20/4× 3/8"-16 threads, 4× ARRI locating holes, and four 6 mm lanyard loops—enabling secure, tool-free swaps for gimbals, cages, and tripods.

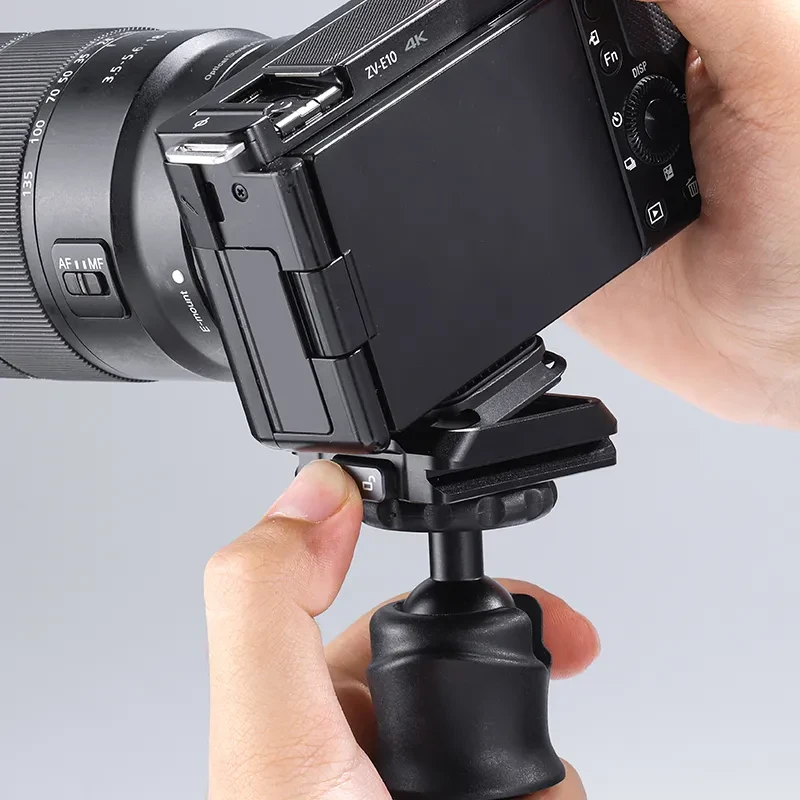

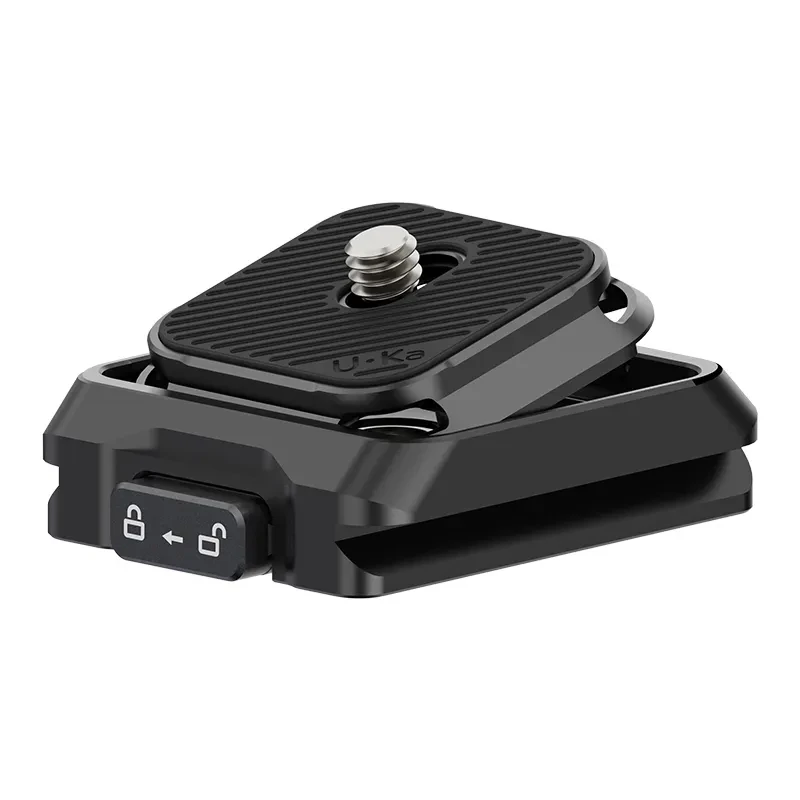

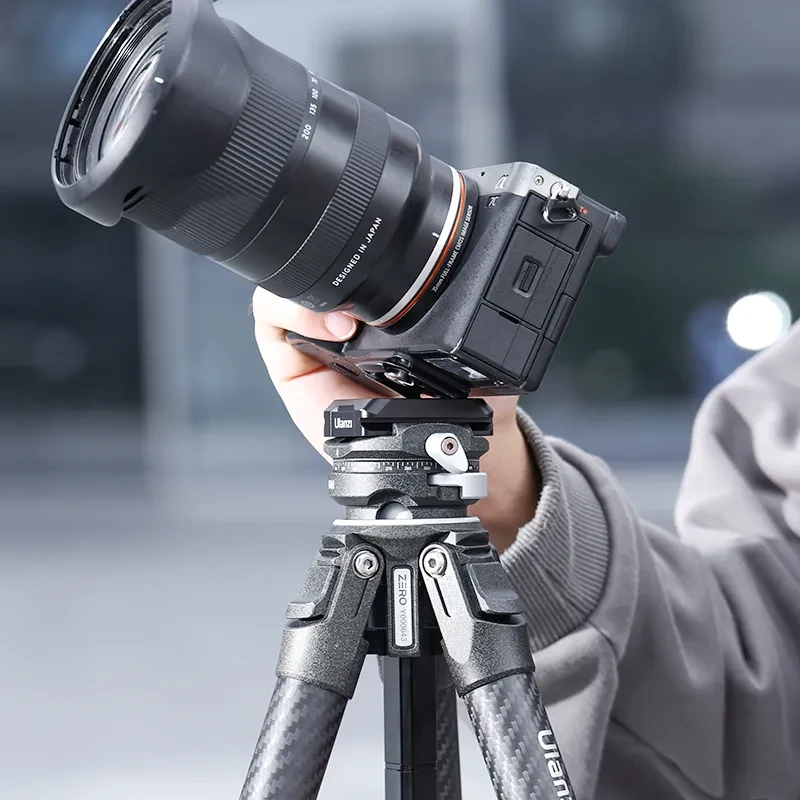

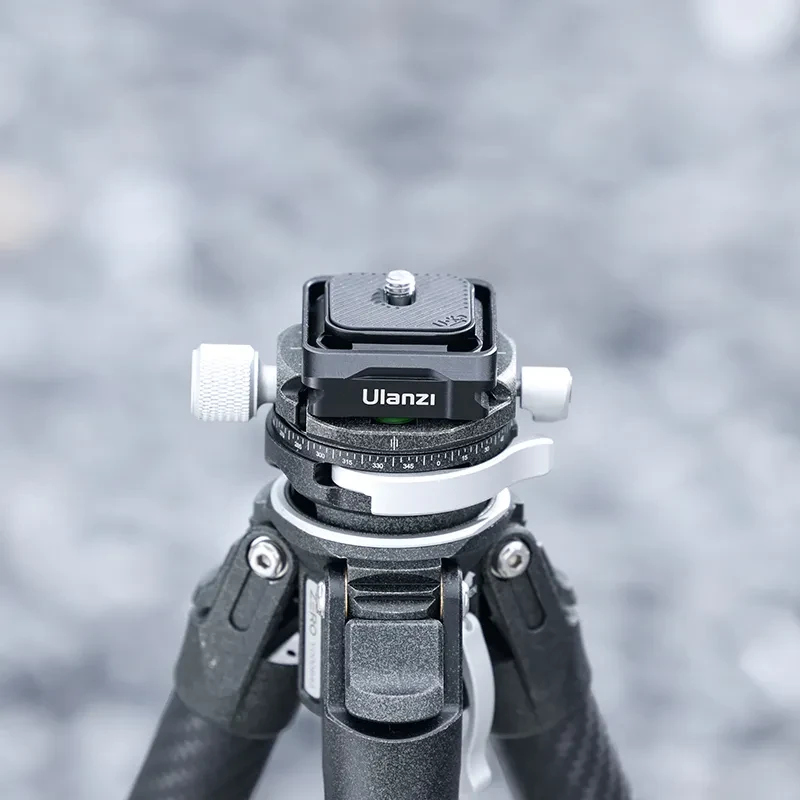

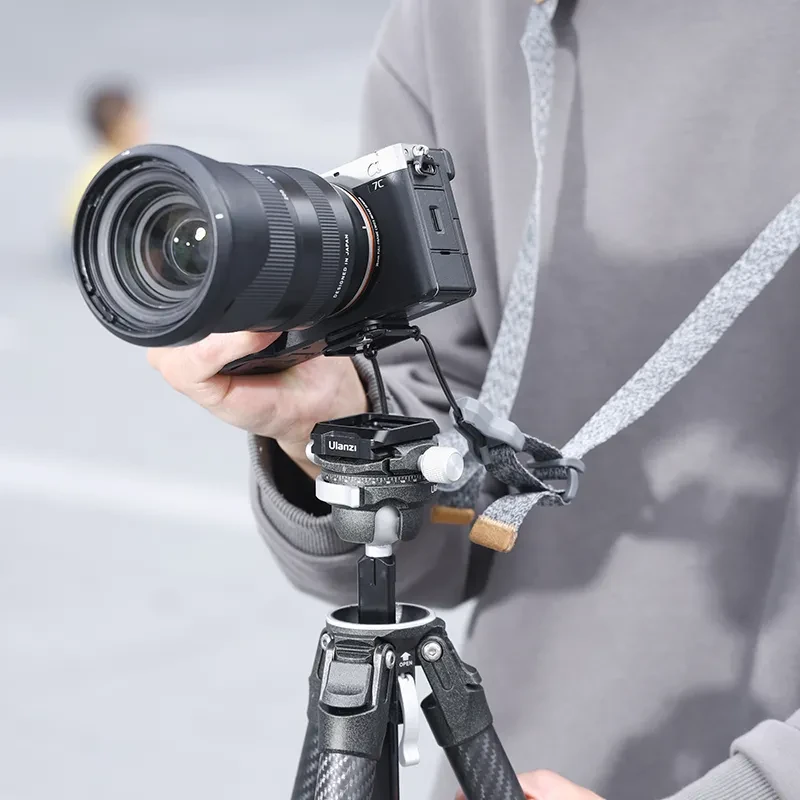

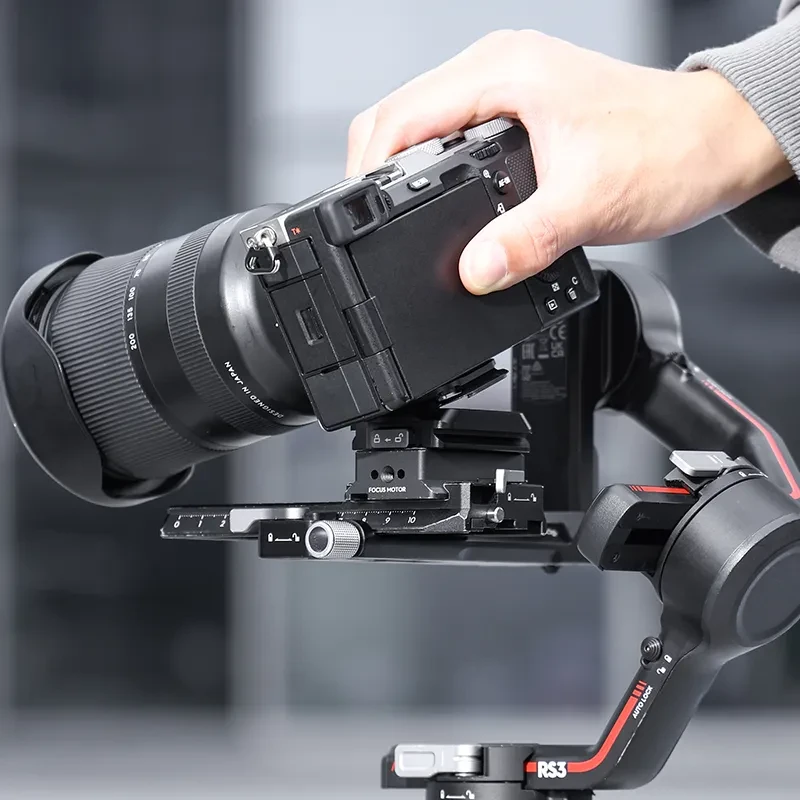

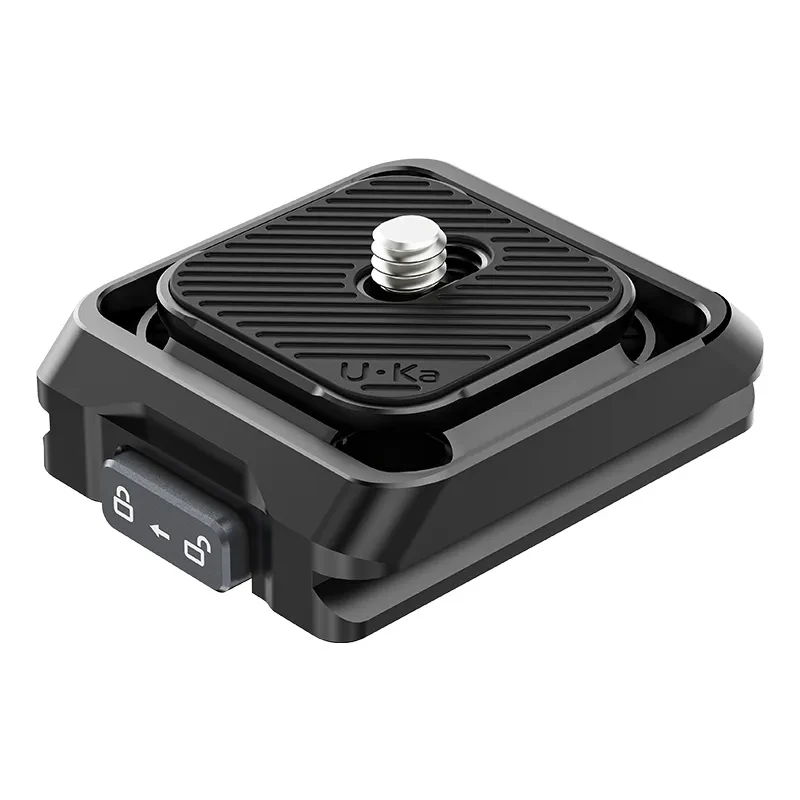

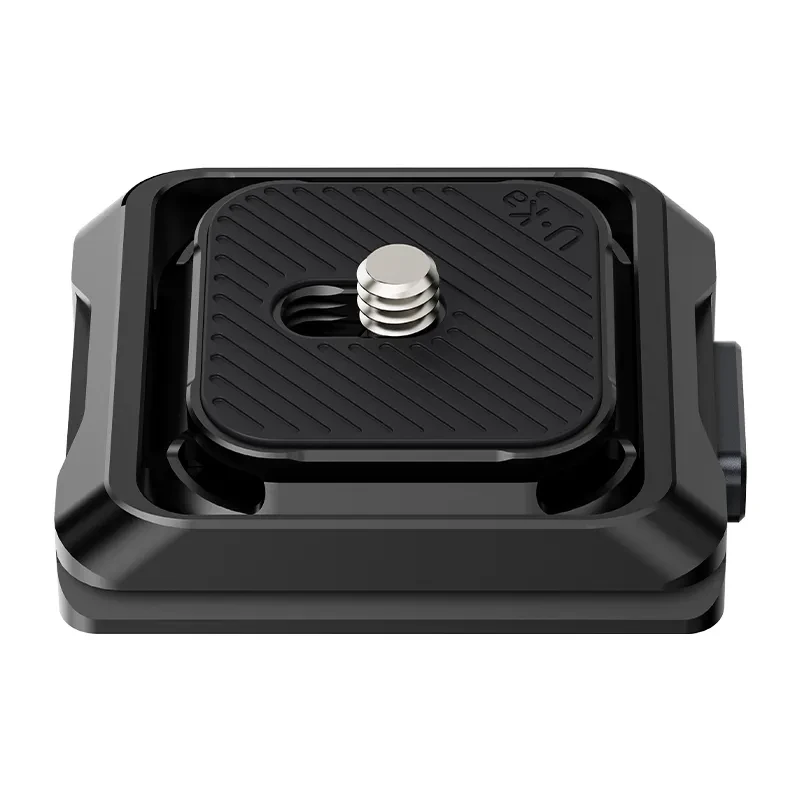

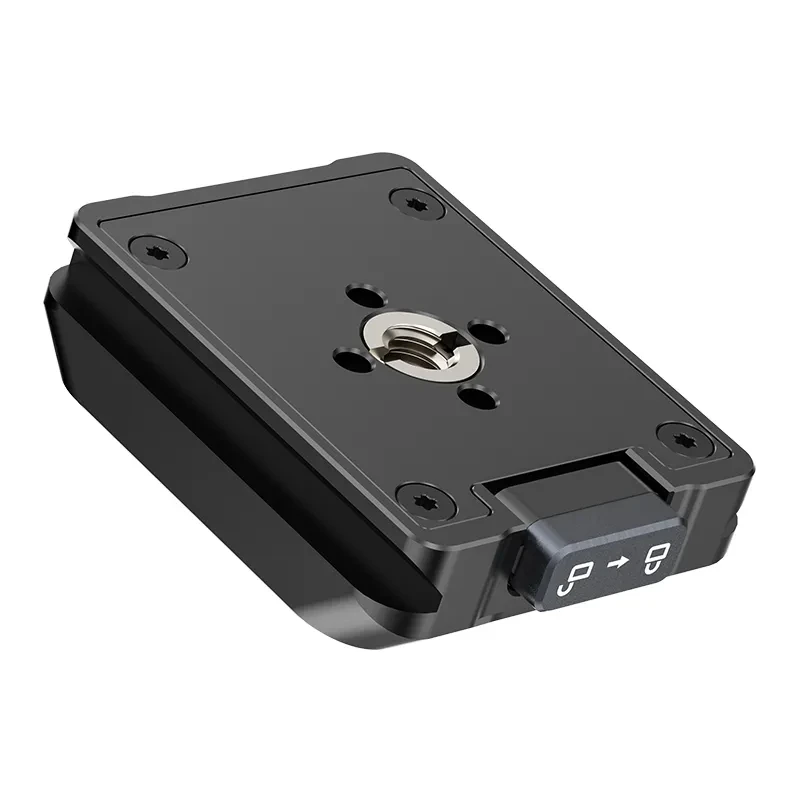

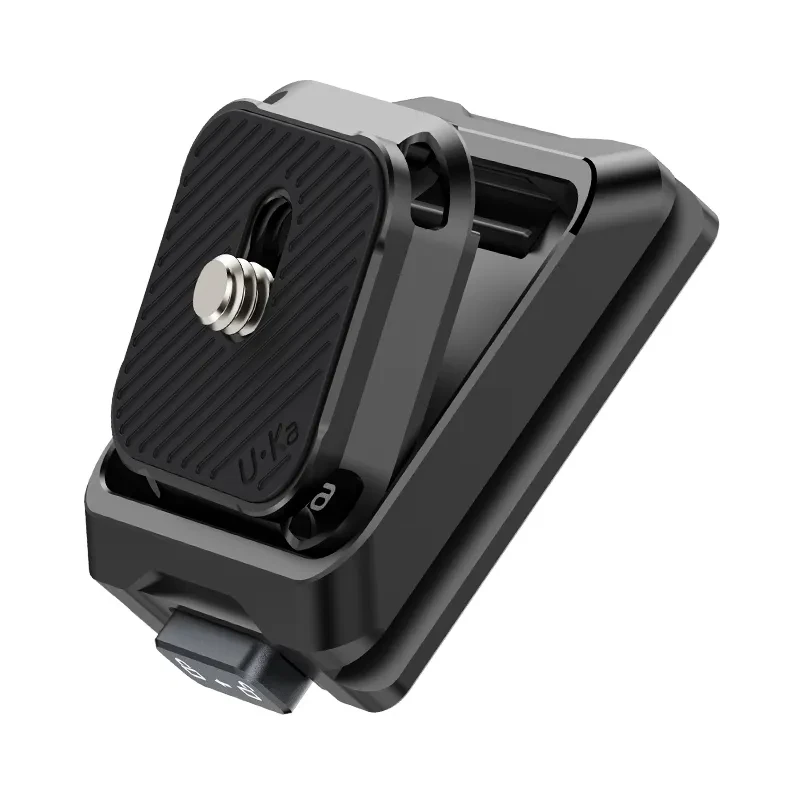

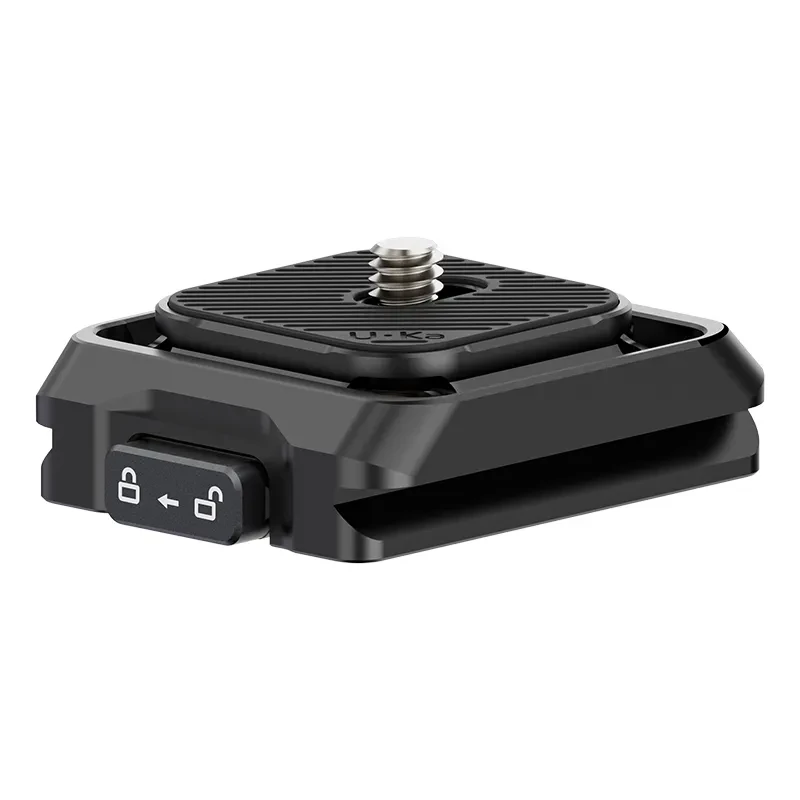

The Ulanzi Uka C007 quick-release system comprises a 85 × 60 mm dovetail plate and 15 mm base, both CNC-machined from 6061-T6 aluminum with hard-anodized black finish (Type III, 50 µm thickness, IP66 dust/water resistance), supporting a 20 kg dynamic payload (tested at 2 m/s² acceleration) and 25 kg static load via a 45° angled insertion mechanism that engages a stainless-steel spring latch (AISI 316, 50 N retention force) in under 0.8 s. The dovetail profile adheres to full Arca-Swiss (39 mm width, 10 mm depth) and F38/Uka standards, allowing multi-angle slides (0–90°) without play (<0.05 mm tolerance), secured by dual 3 mm stainless pins (shear strength 150 kg) and a 1/4-turn M4 knob (2 Nm torque). Threading includes 11× 1/4"-20 UNC (M6 equivalent) and 4× 3/8"-16 UNC holes, plus 4× 3 mm ARRI locating pins for precise alignment with Manfrotto, DJI RS, SmallRig, or Peak Design accessories. Four integrated 6 mm corner loops (nylon-reinforced) accommodate safety tethers (up to 100 kg breaking strength). Operating from –20 °C to +80 °C with zero-tool installation, the 78 g kit (plate 45 g, base 33 g) minimizes rig imbalance (CG shift <2 mm) for cinema, gimbals, or run-and-gun applications.

Key Features

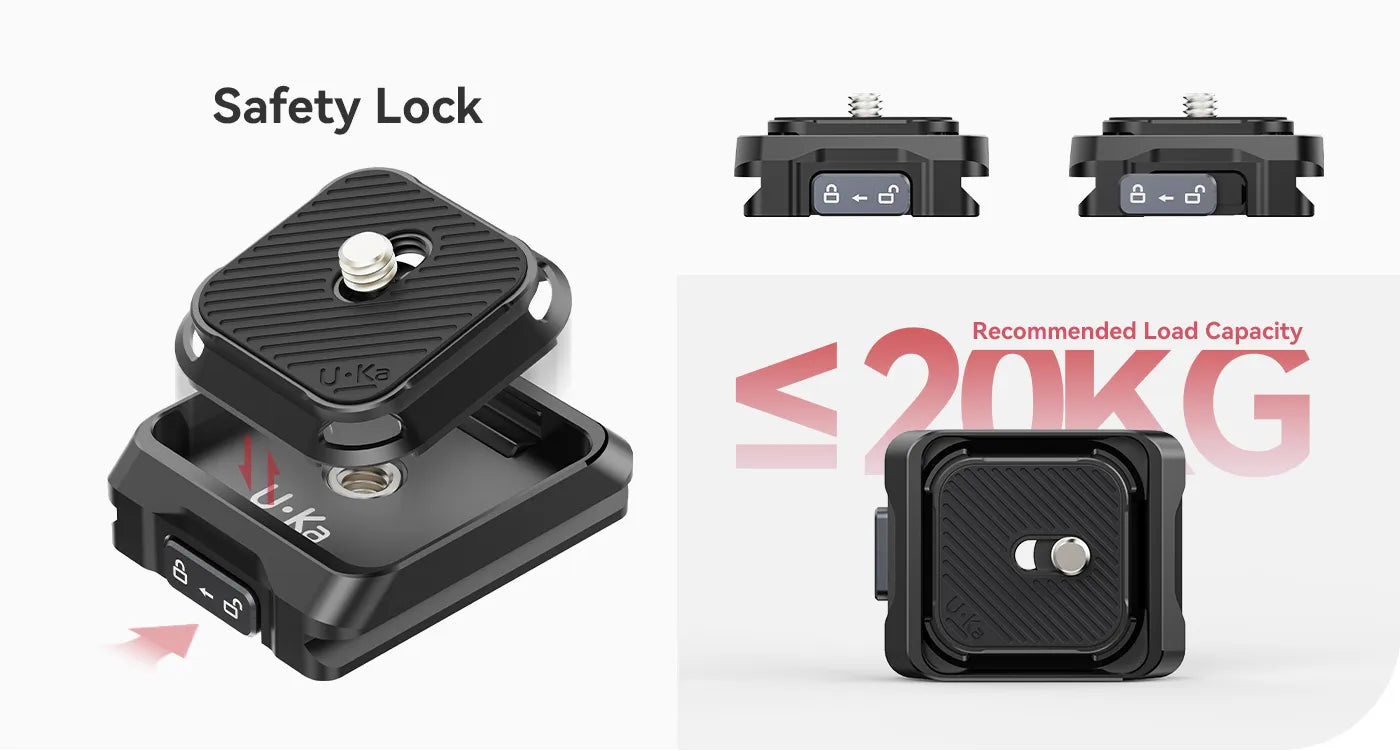

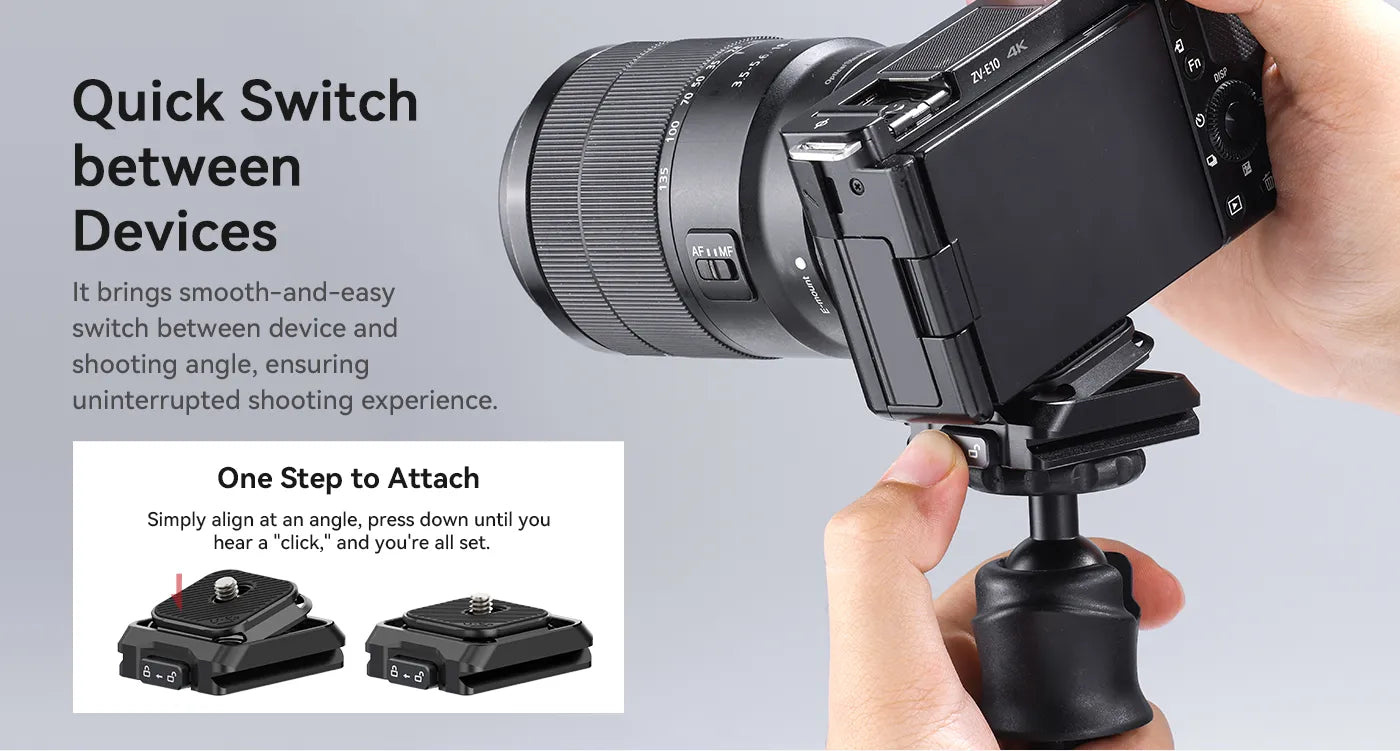

• 0.8 s angled insertion with stainless spring latch (50 N hold)

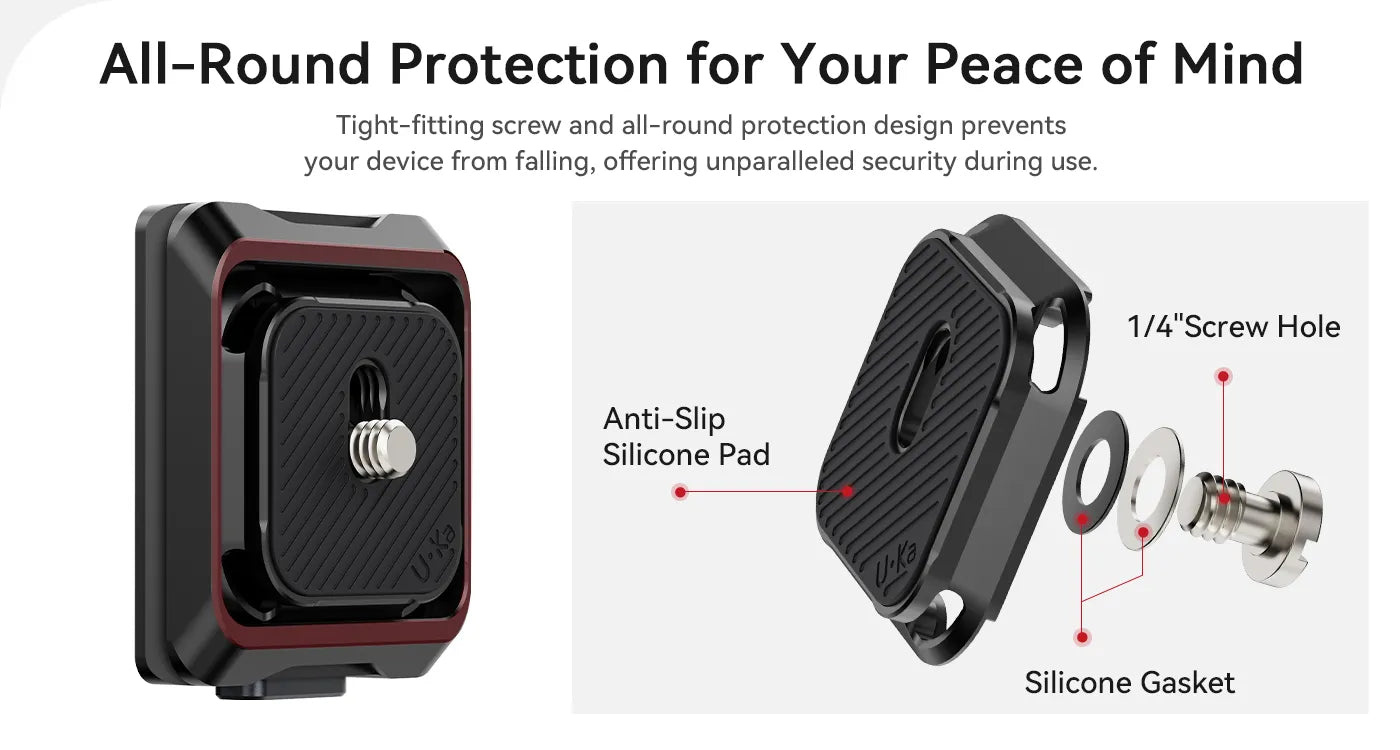

• Secondary 1/4-turn M4 knob + dual 3 mm pins for redundant security

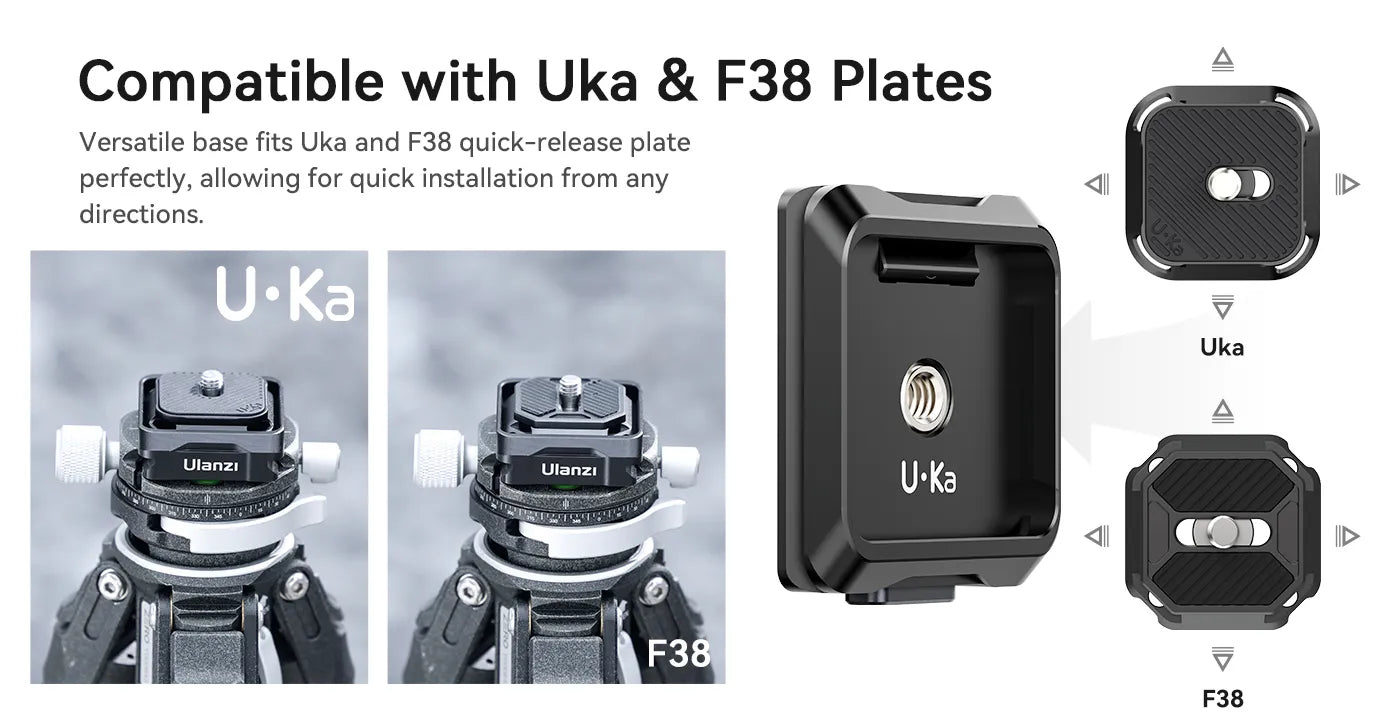

• Arca-Swiss (39 mm) + F38/Uka dovetail, 0–90° multi-angle compatible

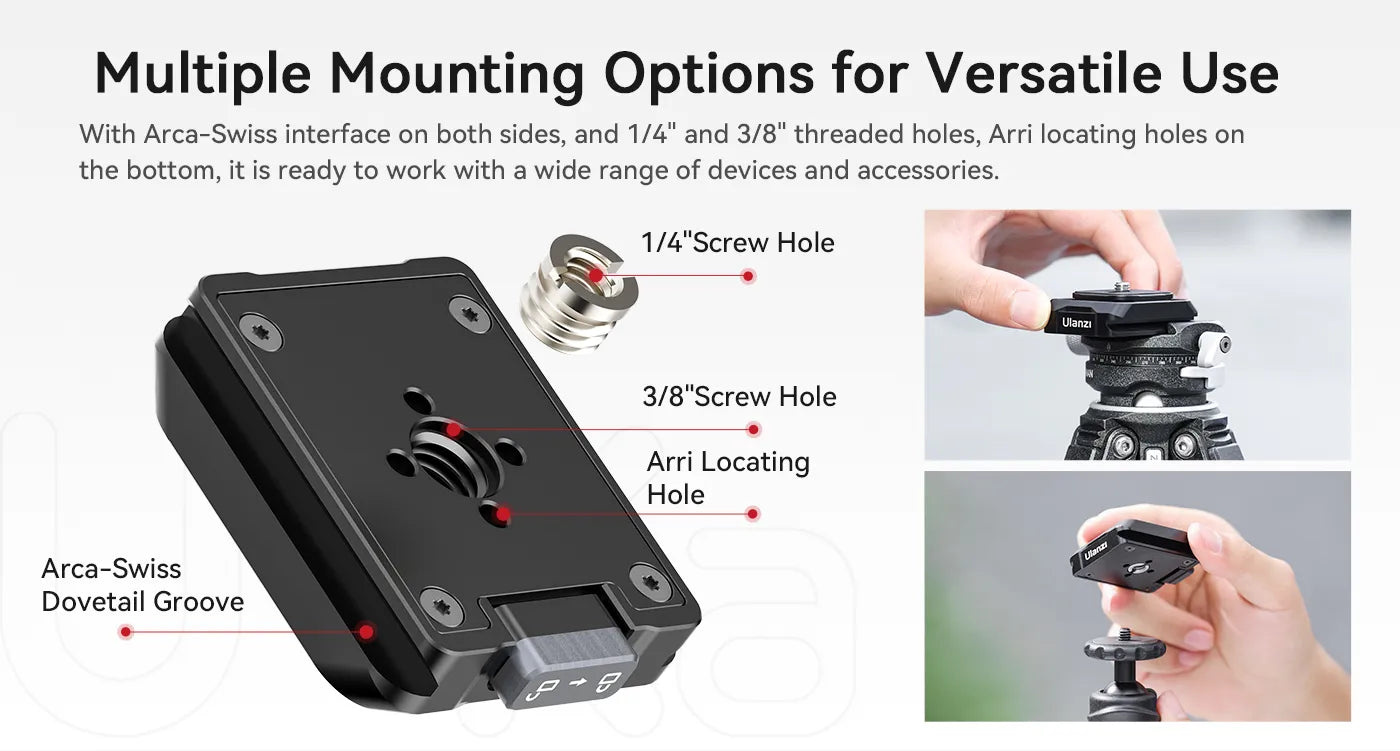

• 11× 1/4"-20 UNC + 4× 3/8"-16 UNC threads; 4× ARRI 3 mm locators

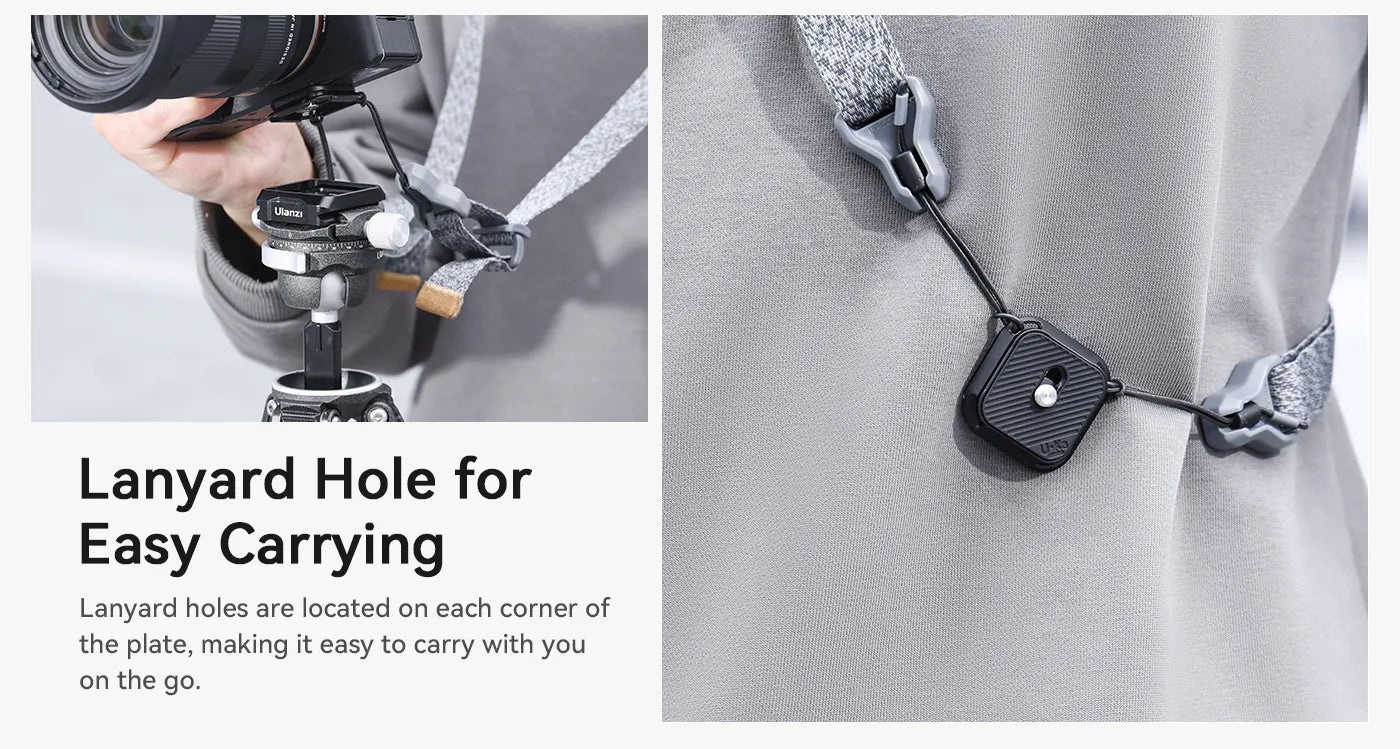

• Four 6 mm nylon-reinforced lanyard loops (100 kg tether rating)
• CNC 6061-T6 aluminum + AISI 316 stainless components
• Tool-free operation; IP66-rated anodizing
