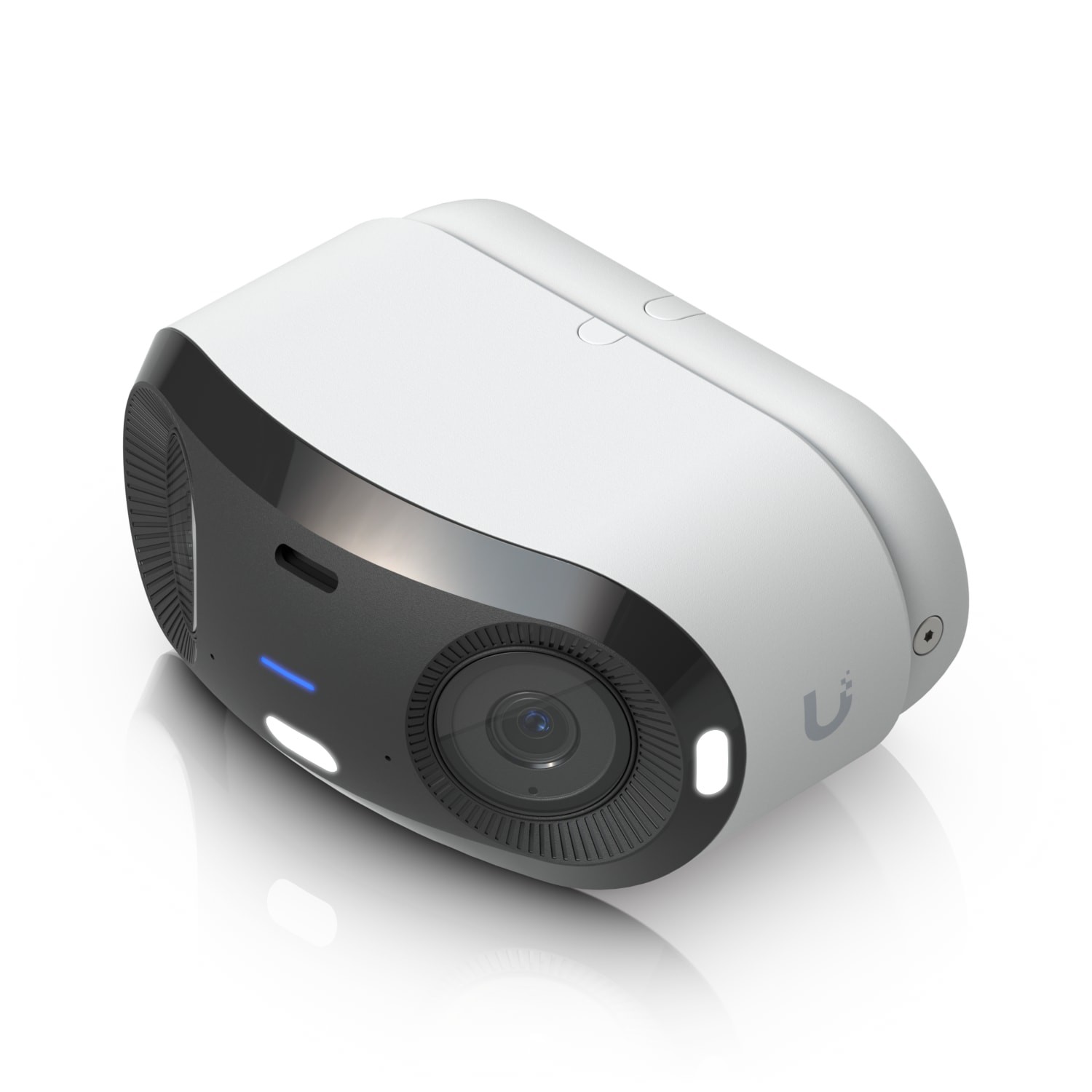

Ubiquiti UniFi Protect G6 180, white

Indoor/outdoor dual-sensor 16MP PoE+ camera at 20 FPS, with a Multi-TOPS AI engine and panoramic 180° coverage. One camera covers an area that would otherwise need two. It is IP66 weatherproof and IK04 tamper resistant, sees 20 m in the dark with its IR LEDs, offers two-way audio, runs on a single PoE+ cable and is managed in the UniFi Protect app.

Two sensors, one 180° panoramic image

The UniFi Protect G6 180 merges two sensors into one seamless 16MP view. It covers a wide area with no blind spots between two separate cameras.

16MP180°IP66IK04PoE+IR 20 m

180° panorama from two sensors

Two 1/1.8" 8MP sensors combine into one seamless 16MP image (7680 × 2160) with a field of view of 180° horizontally and 56.7° vertically. One camera watches a whole yard, car park or building front.

Outdoors in any weather

The aluminium alloy and polycarbonate enclosure is IP66 weatherproof and IK04 tamper resistant. The camera works from −20 to 50 °C, so it can be installed in exposed outdoor locations.

Sees in complete darkness

Built-in IR LEDs with an automatic IR-cut filter reach 20 m, and the camera switches to night mode on its own. The front also carries three integrated LED spotlights.

One PoE+ cable

Video, audio and power all run over a single PoE+ network cable (15 W max.). The camera connects to a PoE+ switch and is managed in the UniFi Protect app.

Two-way audio

A speaker and microphones on the front let you hear what is happening in front of the camera and talk to visitors.

Multi-TOPS AI engine

A Multi-TOPS AI engine and a quad-core Arm Cortex-A53 processor handle the image right in the camera.

microSD card slot

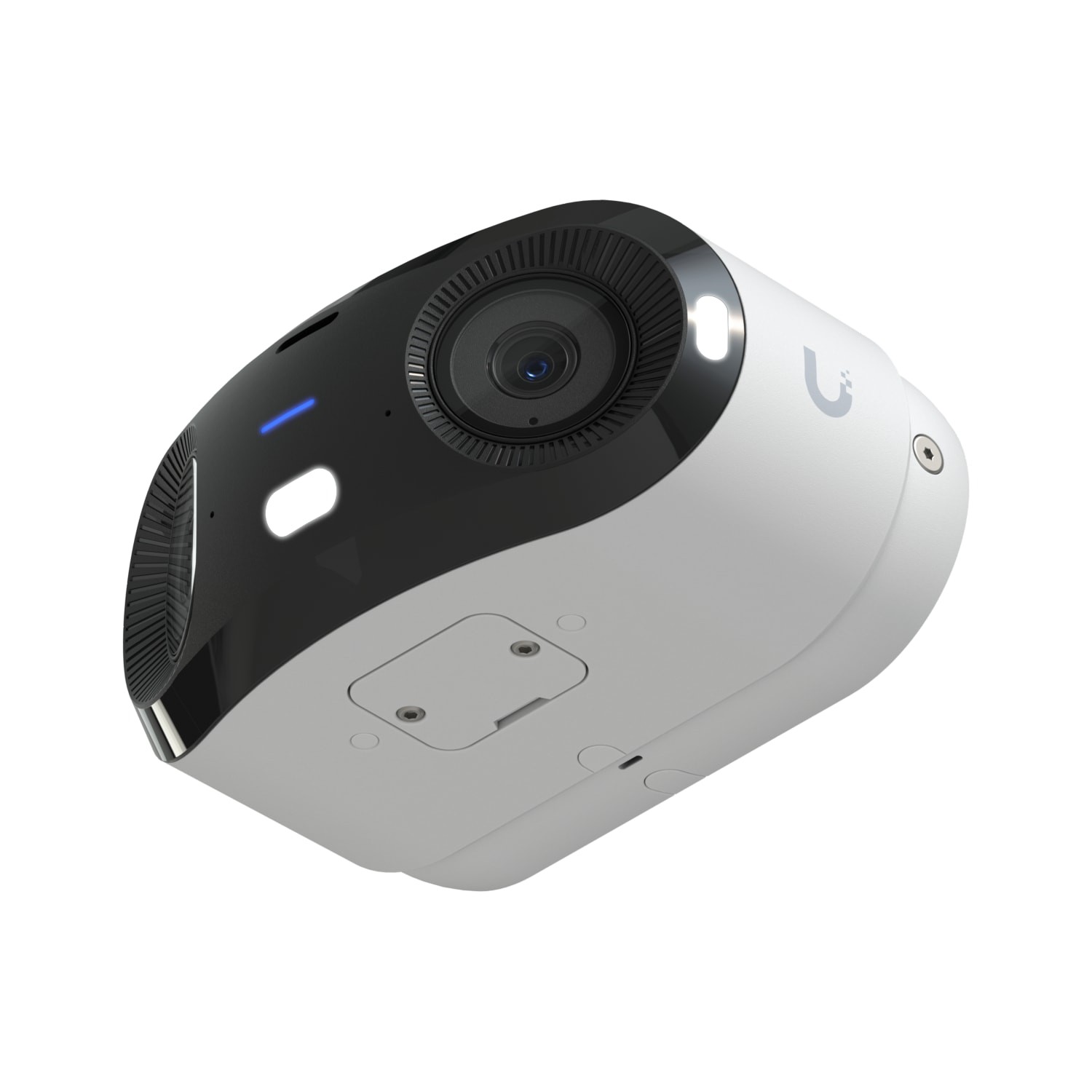

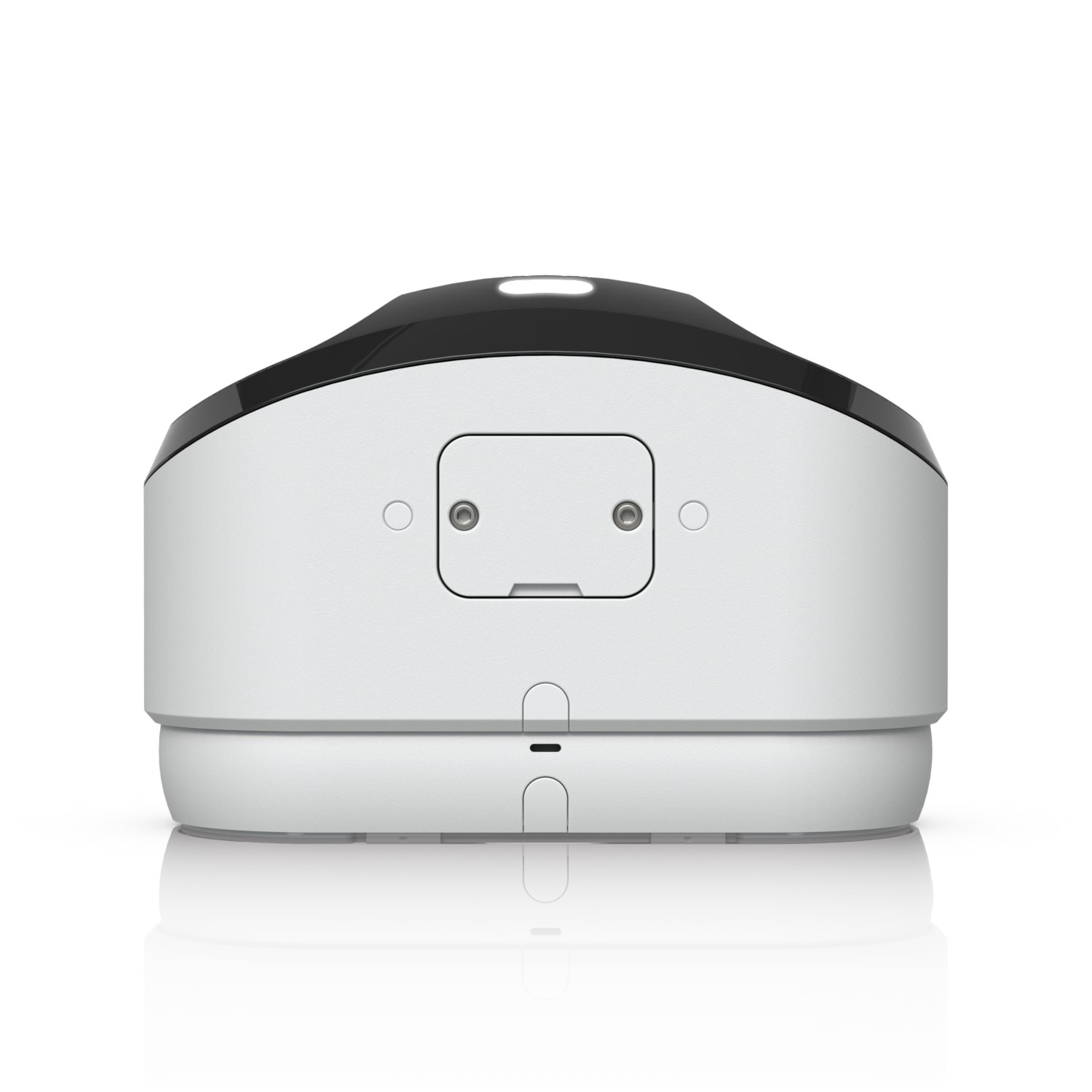

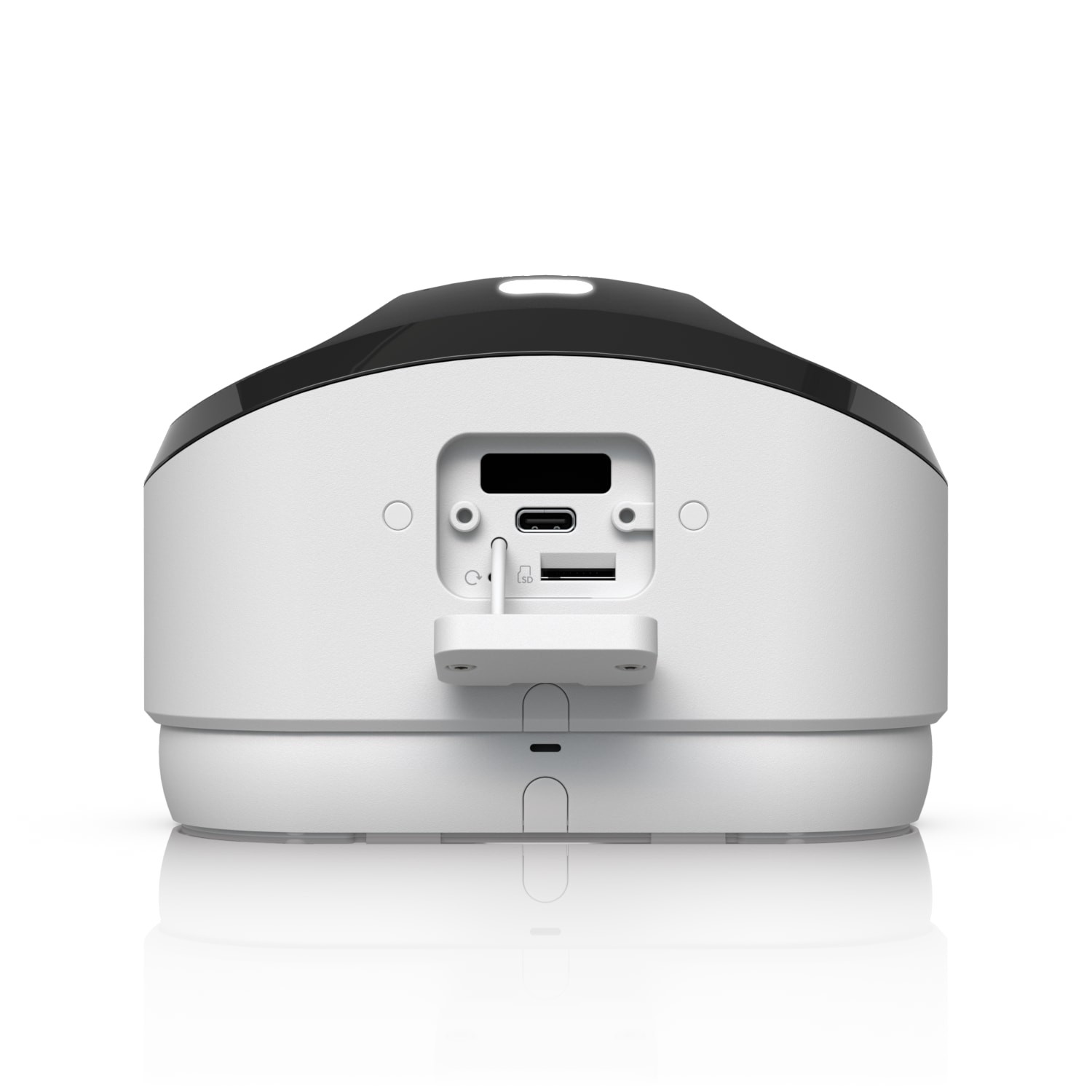

The underside holds a microSD card slot, an accessory port and a reset button.

Ceiling, wall or pole mounting

The box includes a wedge mount, a pan adapter and a pole mount with a clamp band. A junction box, arm mount or dual mount are available as options.

Installation

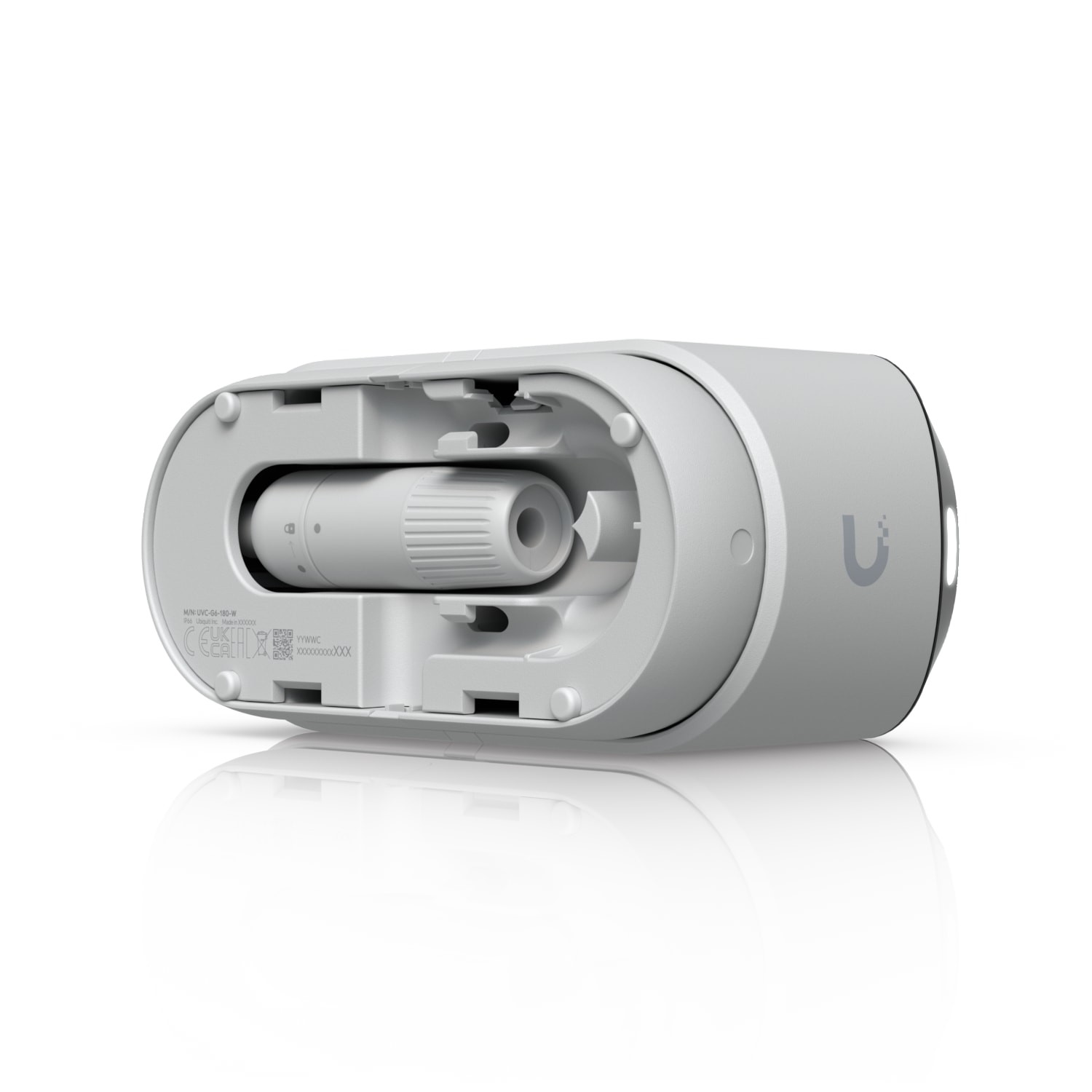

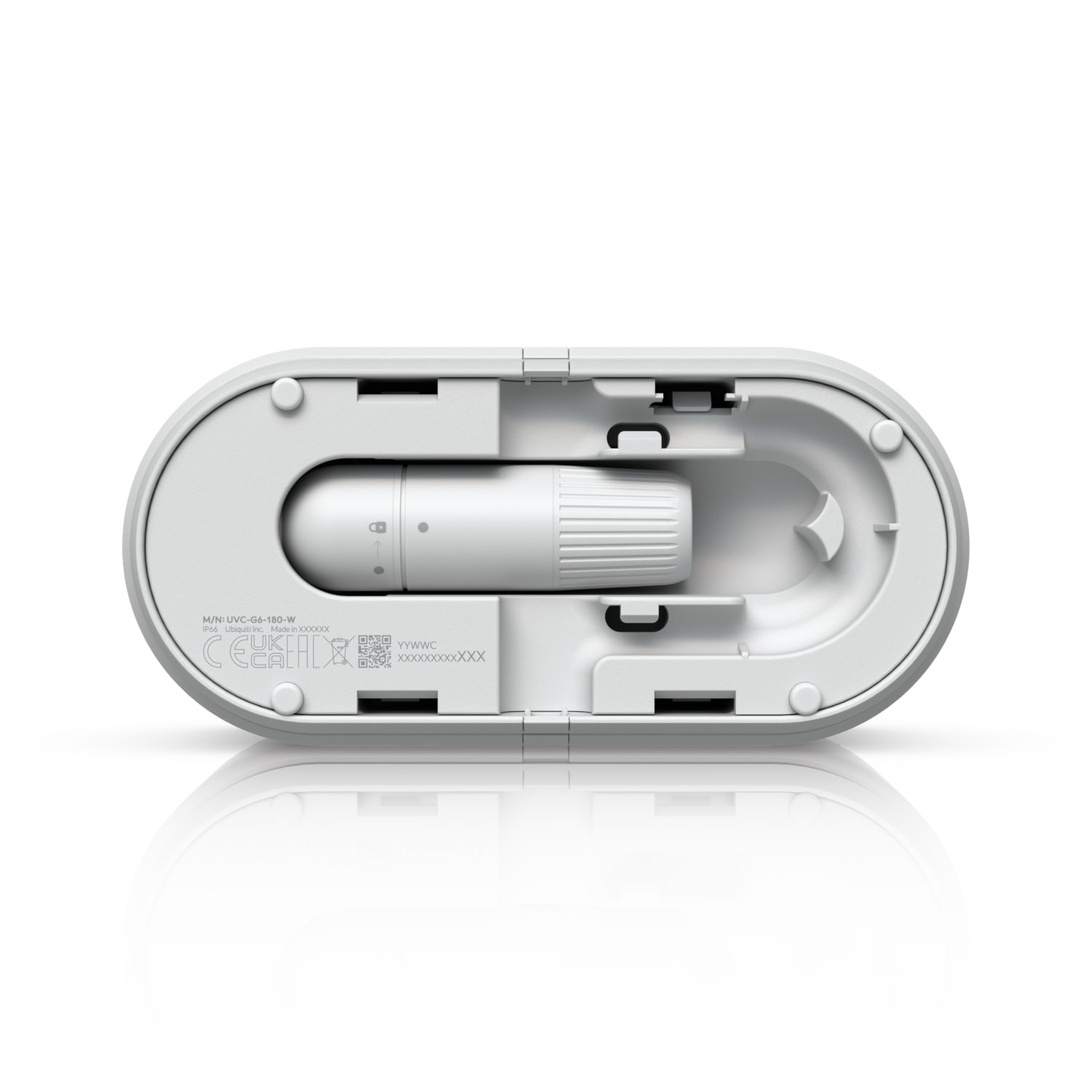

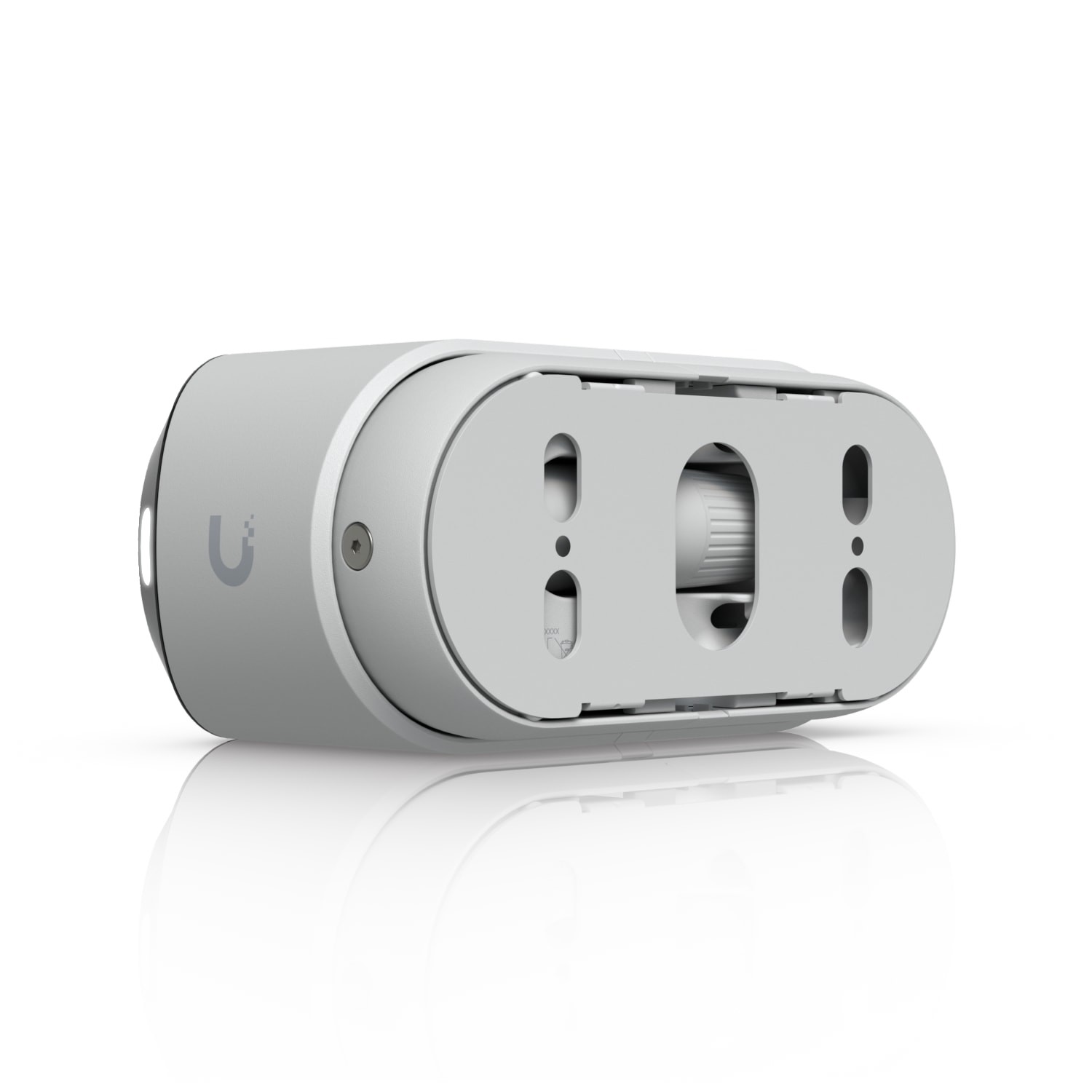

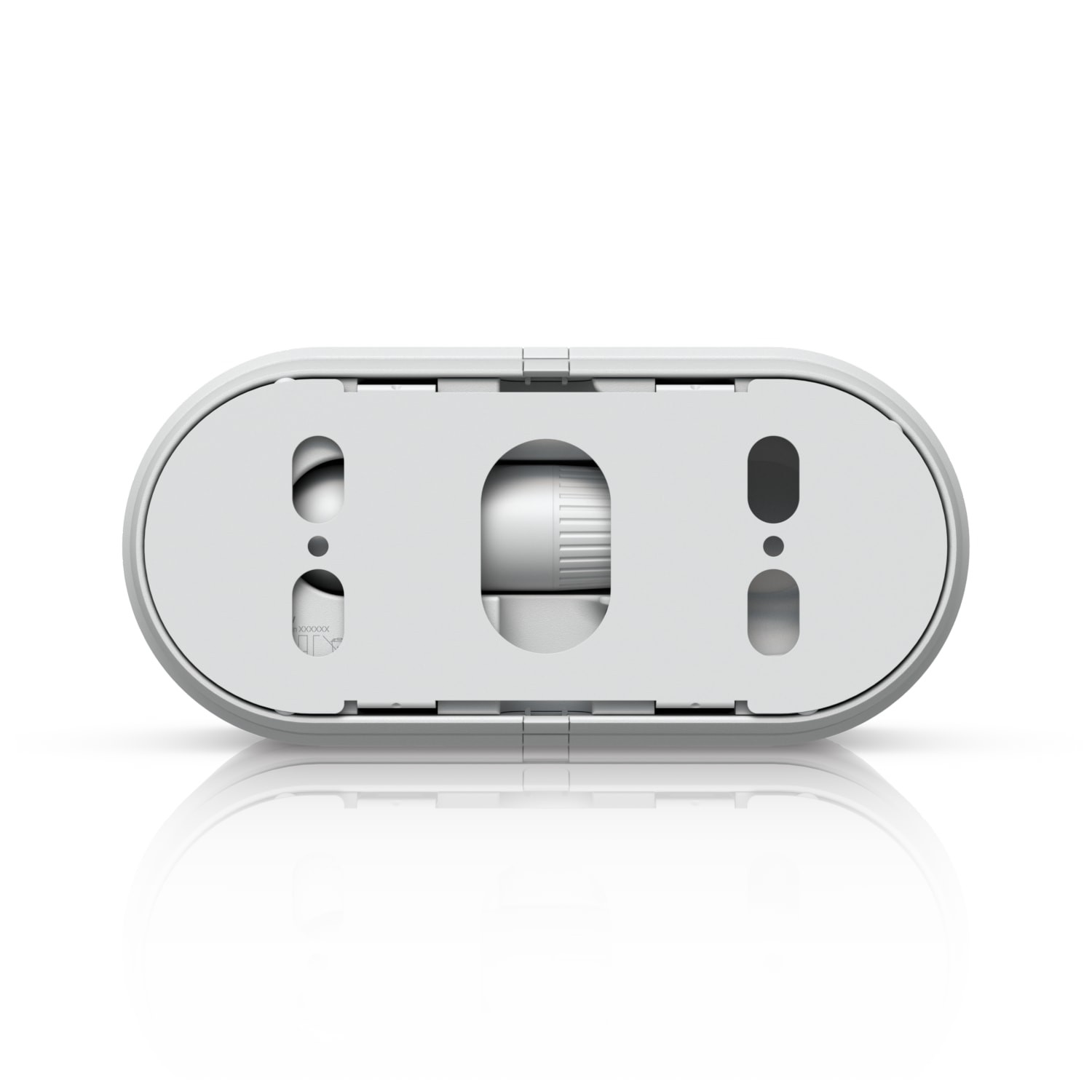

The camera slides onto its mounting plate, the cable runs through it and a cable gland with sealing inserts protects the RJ45 connector. A mounting template with a spirit level helps you drill the holes accurately and level.

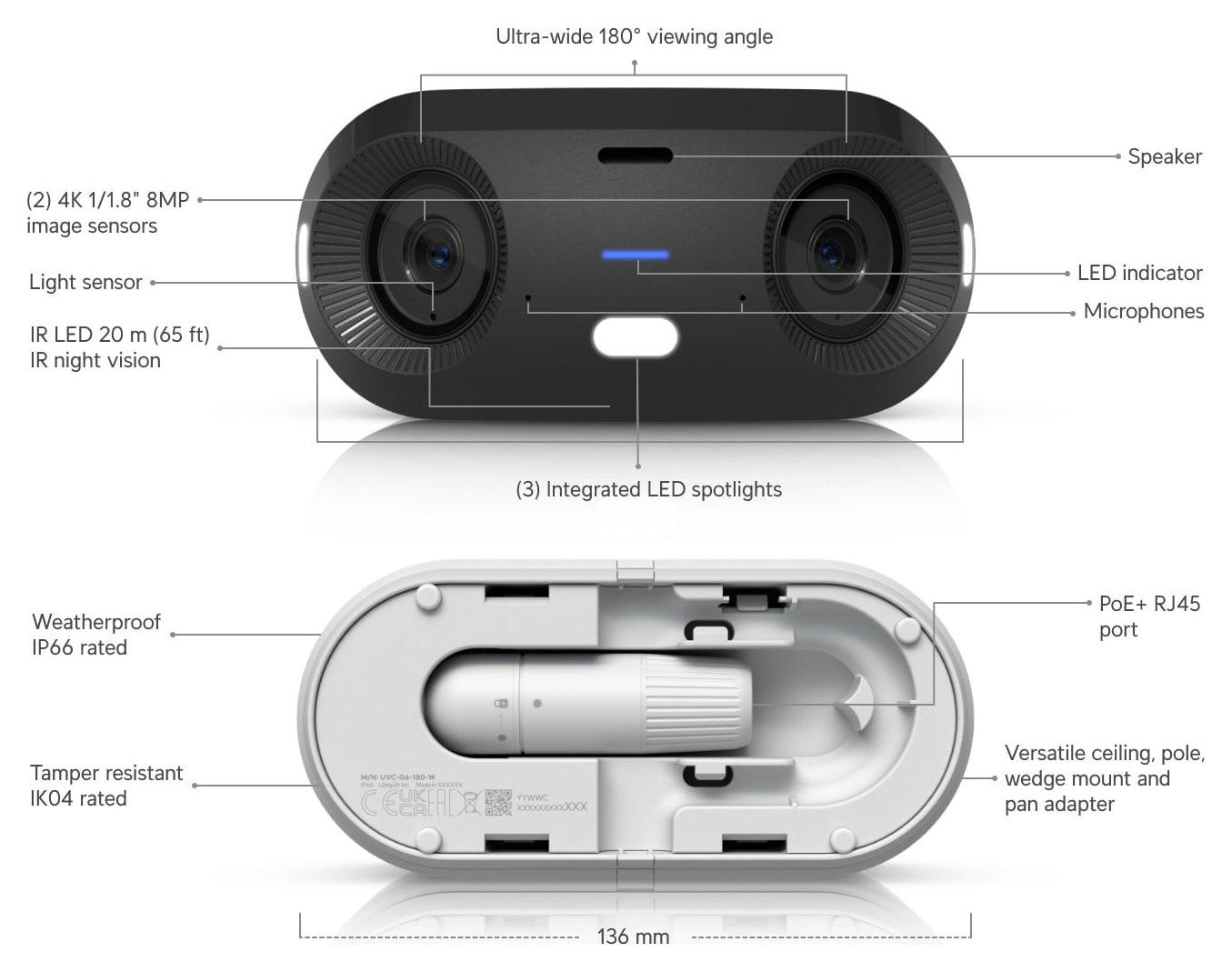

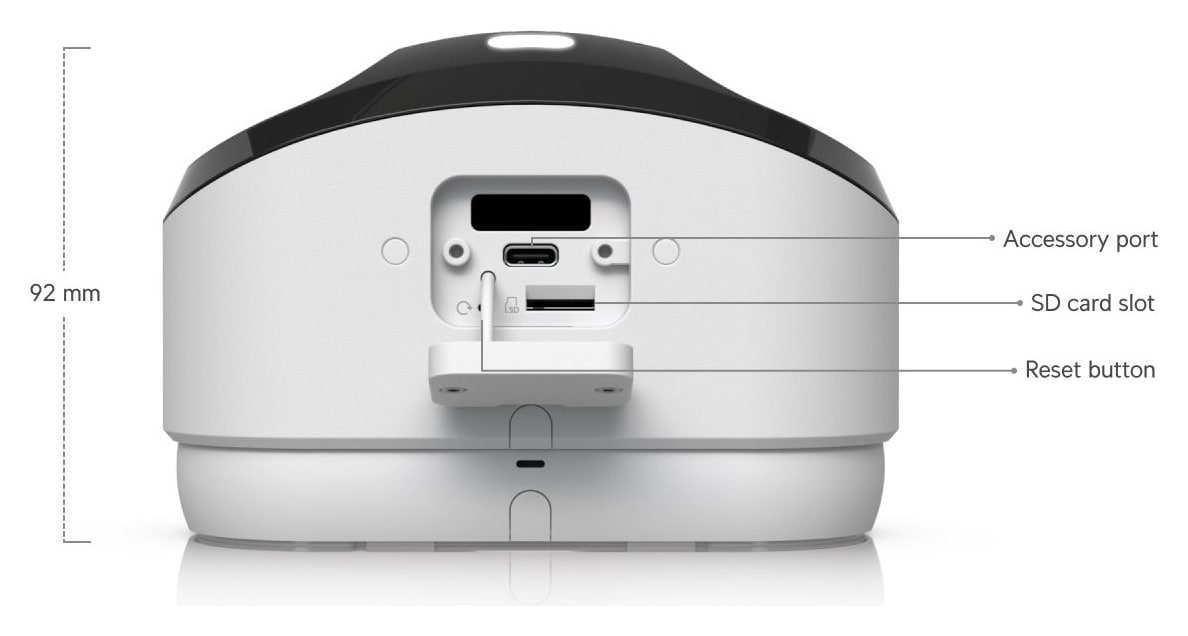

Camera layout

The front carries two sensors, a light sensor, IR LEDs, an LED indicator, microphones, a speaker and three LED spotlights. The PoE+ RJ45 port sits under the rear cover; the underside has an accessory port, a microSD card slot and a reset button.
