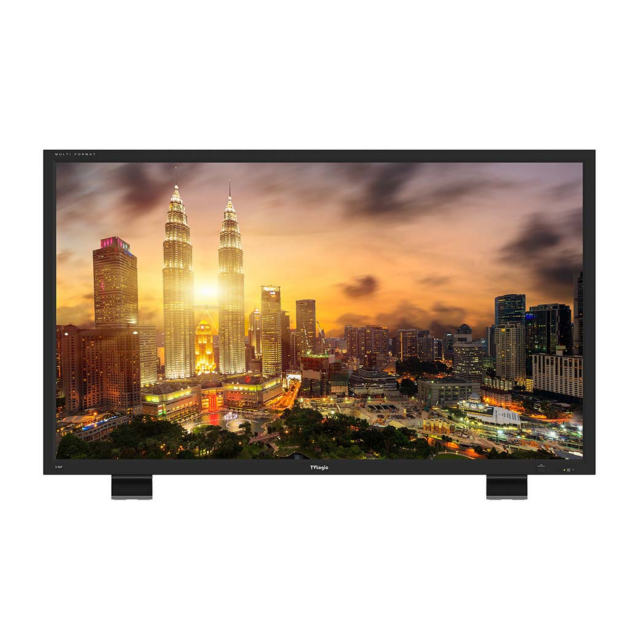

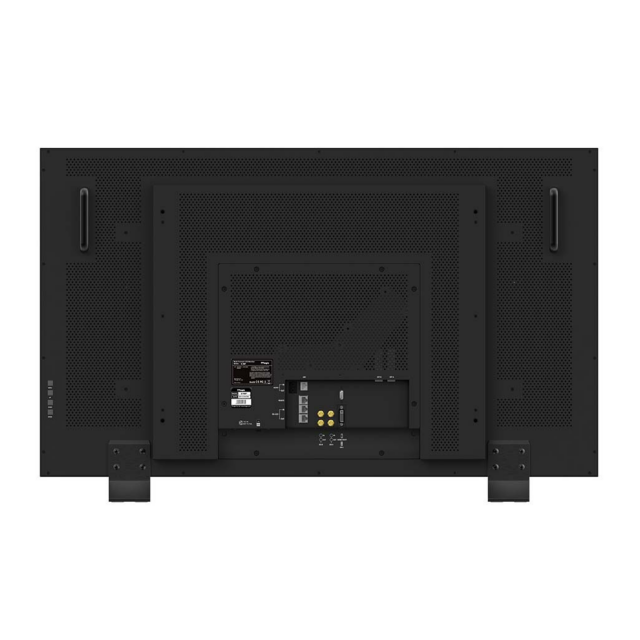

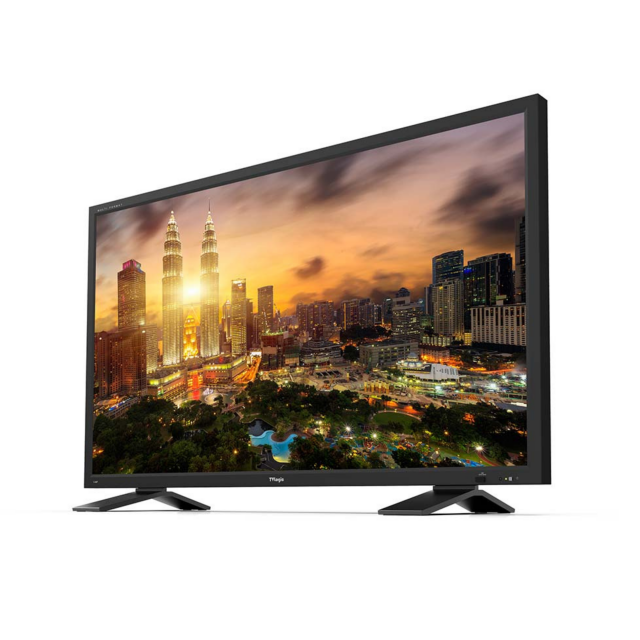

TVLogic 46" FHD Studio Wall Monitor with SFP module & Ember Protocol

The S-46P is 46 inch Full HD Studio Wall monitor with high contrast ratio of 4,000:1 and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-46P provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

More information

8 100.95 € with VAT 6 695 € without VAT
-+
Availability
14-30 days

Show all accessories

Product description

Product description

The S-46P is 46 inch Full HD Studio Wall monitor with high contrast ratio of 4,000:1 and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-46P provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.

Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform. Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Parameters

Parameters

Manufacturer: TVLogic
Category: Studio Monitors

Main parameters

Monitor inputsHDMI
Monitor inputsSDI
Monitor inputs3G-SDI
Monitor inputsDVI
Monitor inputsHD-SDI
