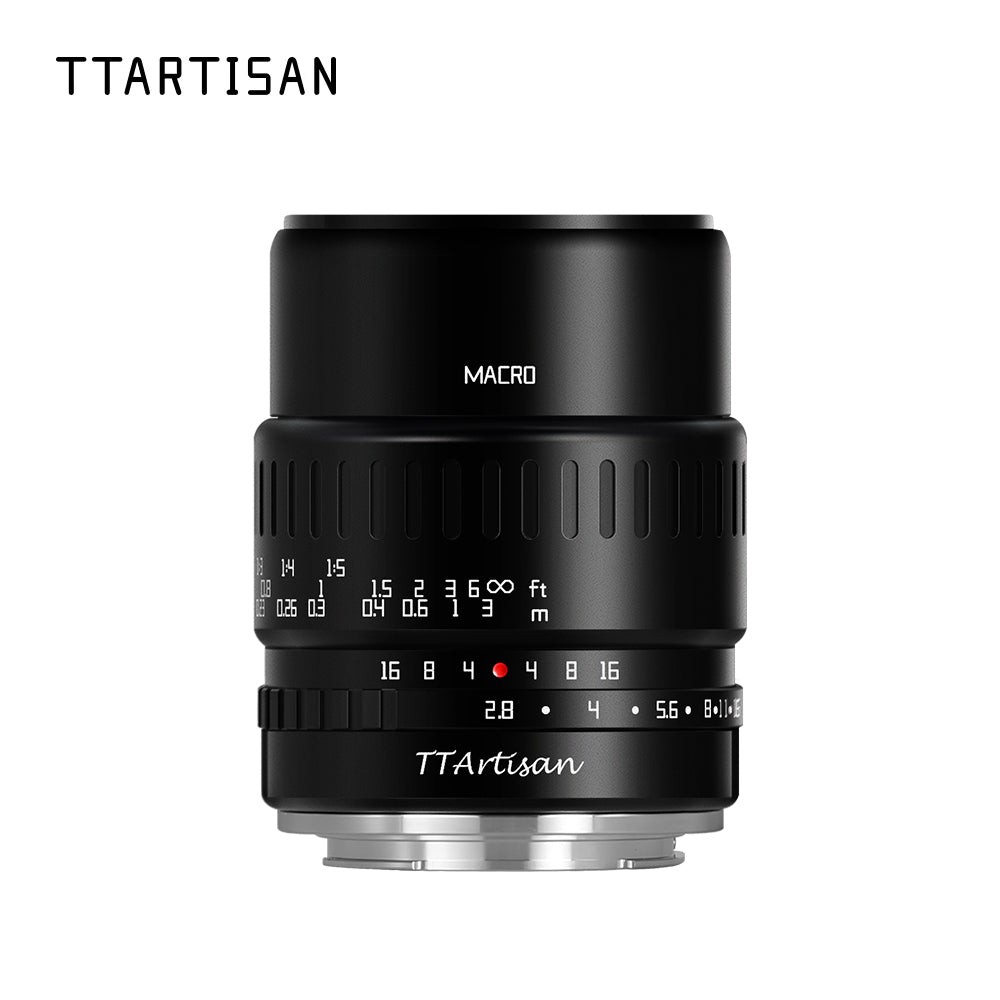

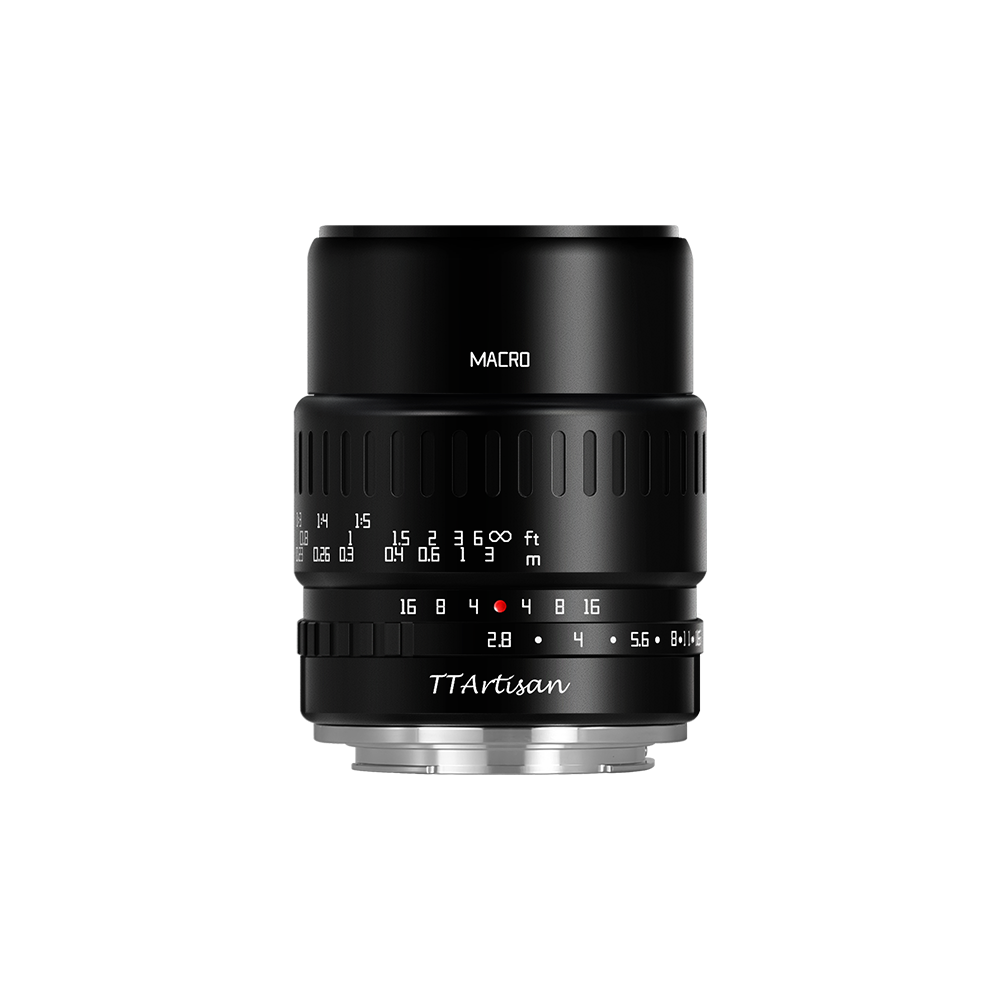

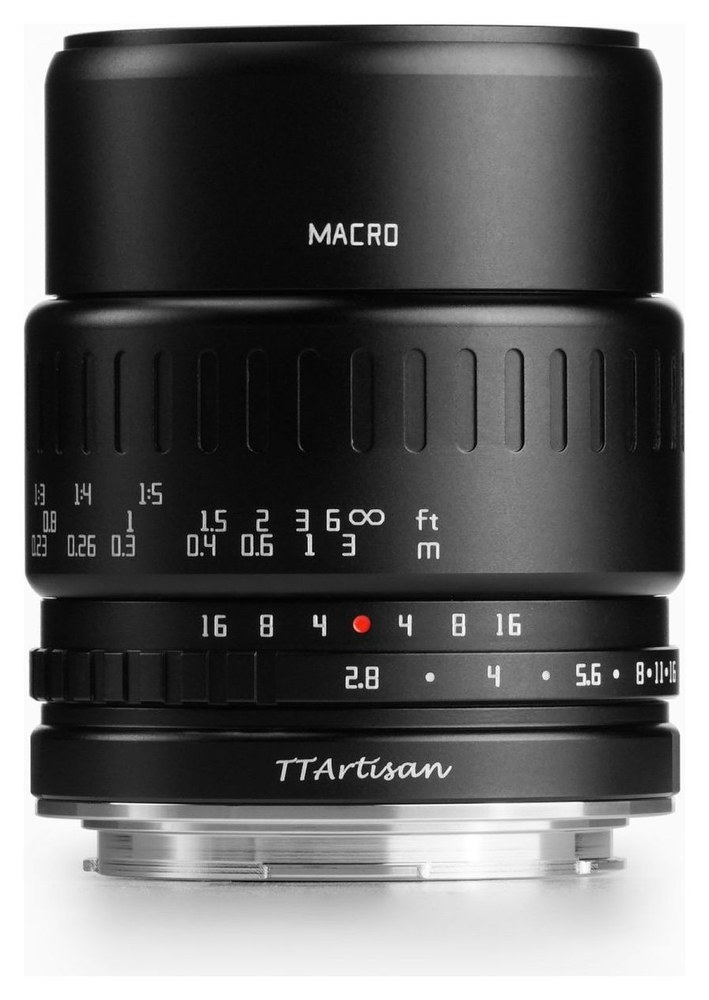

TTArtisan APS-C Macro 40mm F2.8 Canon RF mount Black

+3
  • New
SKU: C4028-RF-B

TTArtisan 40mm F2.8 Macro for Canon RF is a fully manual APS-C macro lens with true 1:1 reproduction. It combines a 0.17m minimum focusing distance, an F2.8 maximum aperture, an eleven-blade diaphragm and an all-metal body for precise close-up, product-detail and creative photography.

More information

119 € with VAT 98.35 € without VAT
Add to Compare Price history
Availability
Backordered 2 pcs - 26.10.2026
SKU:
C4028-RF-B
Add to Compare Price history

TTArtisan APS-C Macro 40mm F2.8 Fuji X mount Black

Backordered 2 pcs119 €without VAT 98.35 €

TTArtisan APS-C Macro 40mm F2.8 Nikon Z mount Black

119 €without VAT 98.35 €

TTArtisan APS-C Macro 40mm F2.8 Sony E mount Black

119 €without VAT 98.35 €

TTArtisan APS-C Macro 40mm F2.8 M43 mount Black

119 €without VAT 98.35 €

TTArtisan APS-C Macro 40mm F2.8 L mount Black

In stock 1 pcs119 €without VAT 98.35 €

Top accessories for TTArtisan APS-C Macro 40mm F2.8 Canon RF mount Black

TTArtisan Slim PRO UV Filter (52mm)

The Slim PRO UV filter from TTArtisan is a UV filter with a thin frame that can also
19 €
In stock > 5 pcs

K&F Concept 52mm Variable ND Filter ND2-ND400 (9 Stop)

  • -12 %
Promotion: -12%
Nano-X — variable ND filter 52 mm, changes the amount of light steplessly as you
53.2 €
60.49 €
In stock 2 pcs

K&F Concept A Series CPL polarising filter 52 mm

  • LAST PIECE
A Series — polarising filter 52 mm, cuts reflections and deepens colour. It earns
23 €
In stock 1 pcs

K&F Concept Nano-C Black Mist filter 1/8 52 mm

  • -12 %
Promotion: -12%
Nano-C Black Mist filter 1/8 52 mm, softens the highlights and takes off digital
21.37 €
24.19 €
To be sent 1 pcs

K&F Concept 52MM Classic Series, Blue-Coated, HMC UV Filter, Japan Optics

C Series — UV filter 52 mm, protects the front element and filters ultraviolet light.Screws
7.7 €
14-30 days

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

TTArtisan 40mm F2.8 Macro for Canon RF is a fully manual APS-C macro lens with true 1:1 reproduction. It combines a 0.17m minimum focusing distance, an F2.8 maximum aperture, an eleven-blade diaphragm and an all-metal body for precise close-up, product-detail and creative photography.

1:1 macro at 40 mm for APS-C

The manual 40 mm macro lens for cameras with an APS-C sensor is made for insects, plants, product details and small originals. Its F2.8 aperture separates the subject from the background.

TTArtisan APS-C Macro 40mm F2.8
APS-CCanon RF mount1:1 macroFocus from 0.17 mF2.8 – F1652 mm filter

Life size without extension tubes

A 1:1 reproduction ratio shows a small subject on the sensor at its actual size. The lens reaches it without extension tubes at its 0.17 m minimum focus distance.

8 elements in 7 groups

Optics with two ultra-low-dispersion elements.

11 aperture blades

F2.8 to F16 aperture for a softly blurred background.

40° angle of view

40 mm focal length on an APS-C sensor.

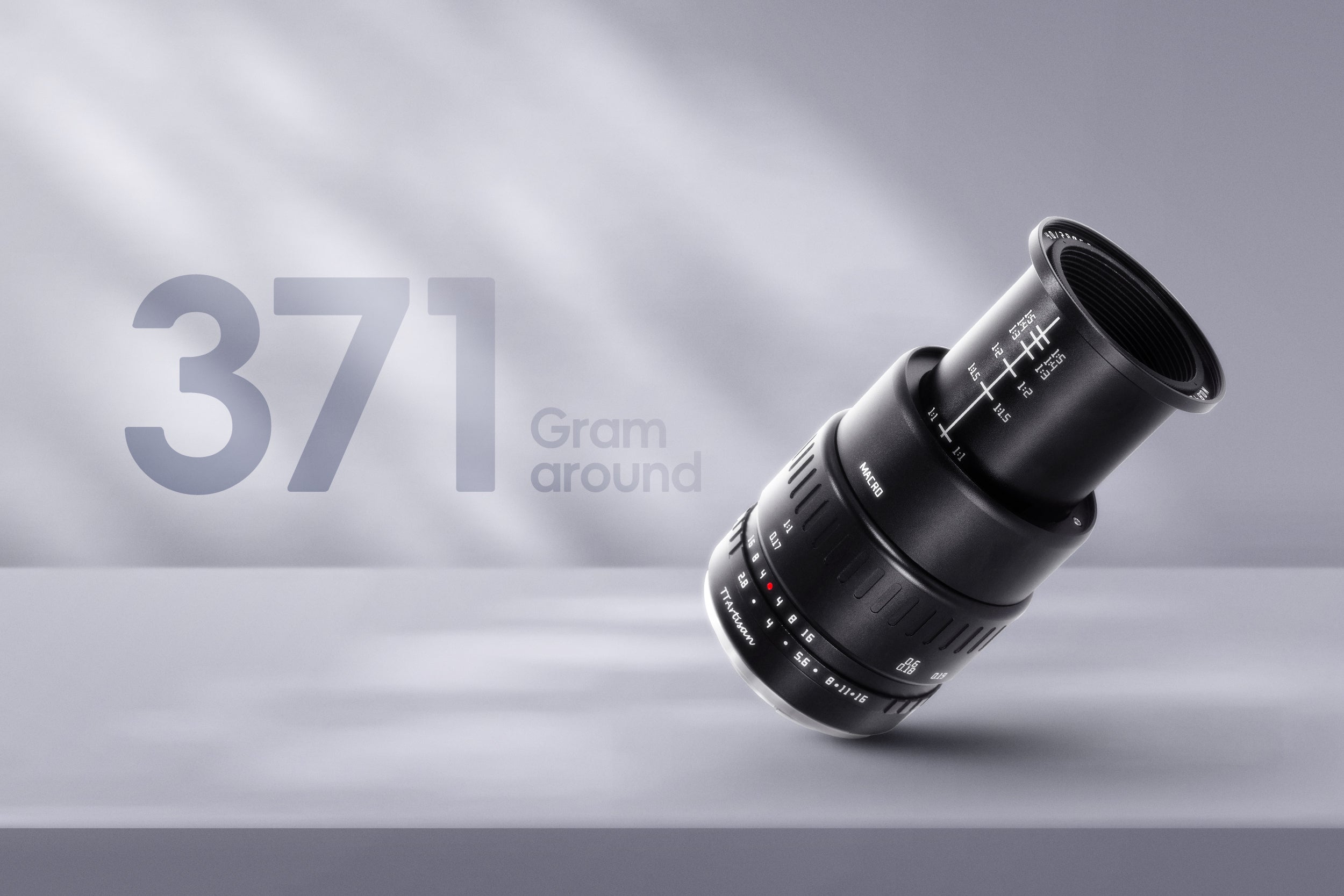

371–403 g

Weight of the all-metal lens depending on the mount.

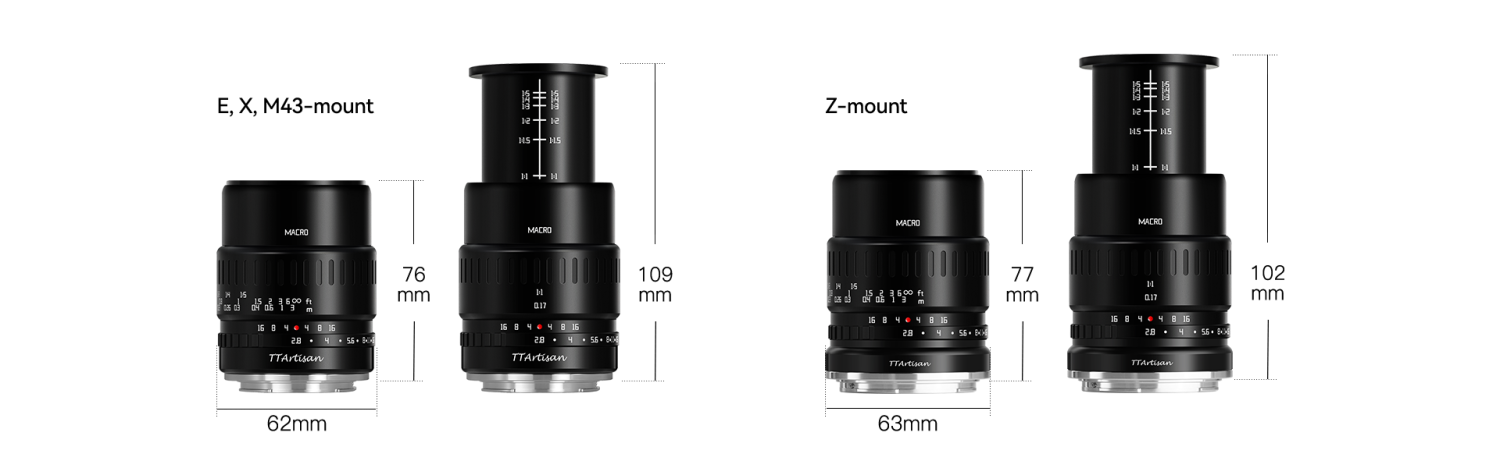

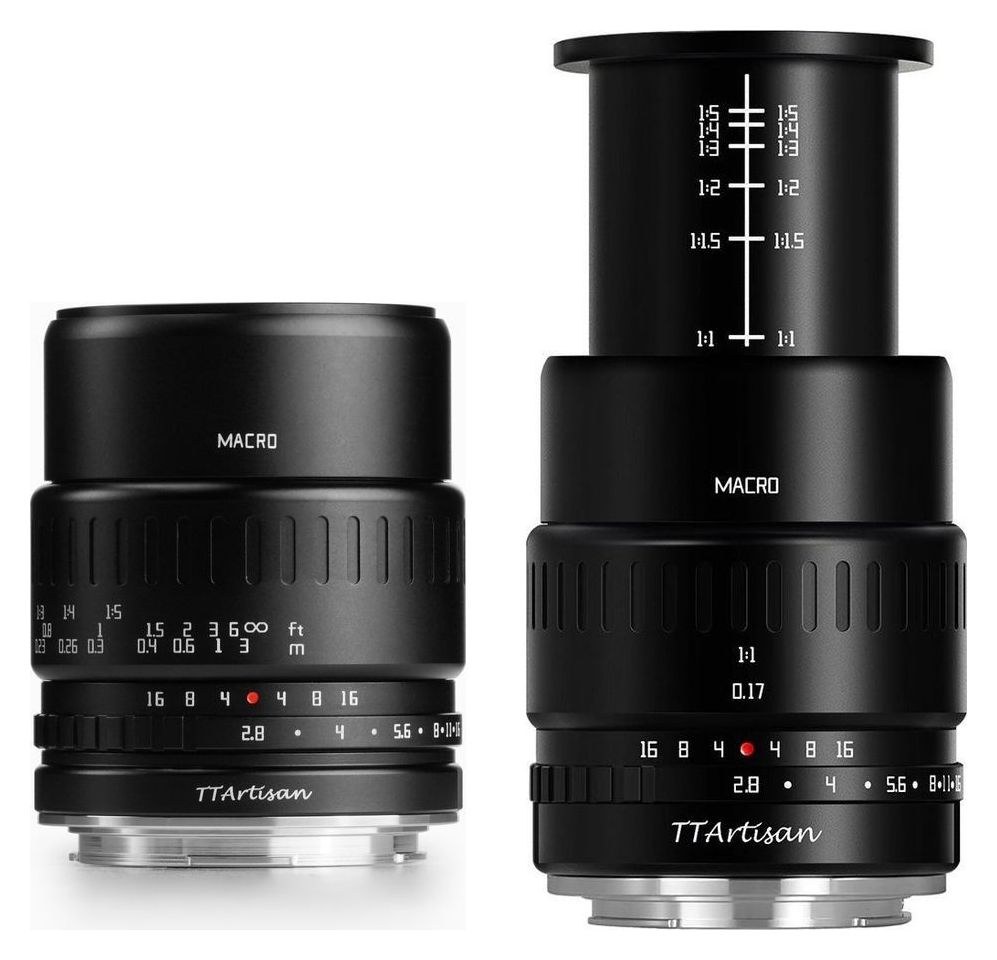

Extending barrel with magnification scale

When focusing, the barrel extends and its scale shows the magnification reached, up to 1:1. The long, smooth focus ring travel helps place the plane of focus precisely.

TTArtisan APS-C Macro 40mm F2.8 – Extending barrel with magnification scale

Sample shots

Mushrooms, insects and small details in nature – the lens captures them up close with a softly blurred background.

TTArtisan APS-C Macro 40mm F2.8 – Sample shots TTArtisan APS-C Macro 40mm F2.8 – Sample shots TTArtisan APS-C Macro 40mm F2.8 – Sample shots

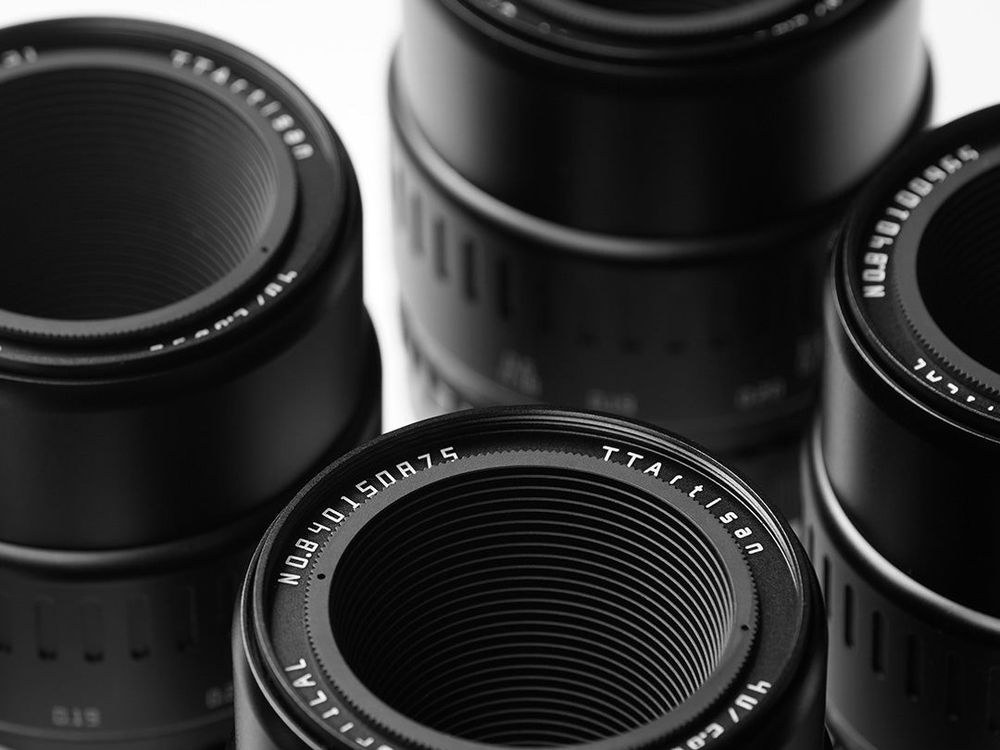

All-metal body

The lens has an all-metal body and a clicked aperture ring. The 52 mm front thread takes common screw-in filters.

TTArtisan APS-C Macro 40mm F2.8 – All-metal body

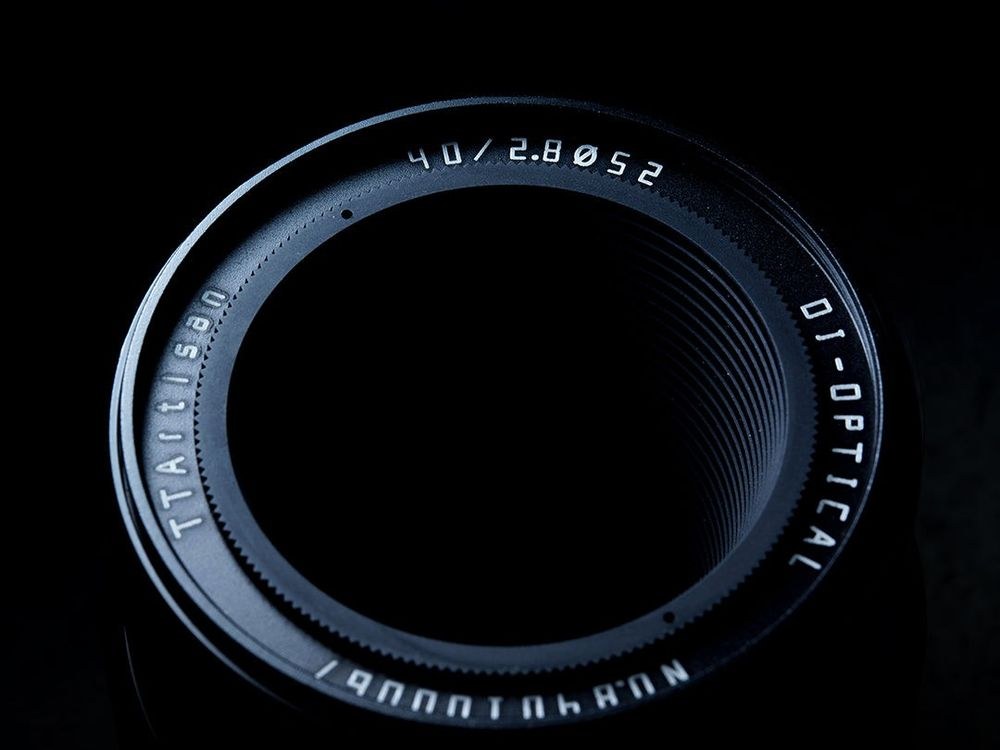

Optics with 8 elements in 7 groups

The optical design of 8 elements in 7 groups includes two ultra-low-dispersion elements. The 11-blade aperture renders out-of-focus areas smoothly.

TTArtisan APS-C Macro 40mm F2.8 – Optics with 8 elements in 7 groups

More information

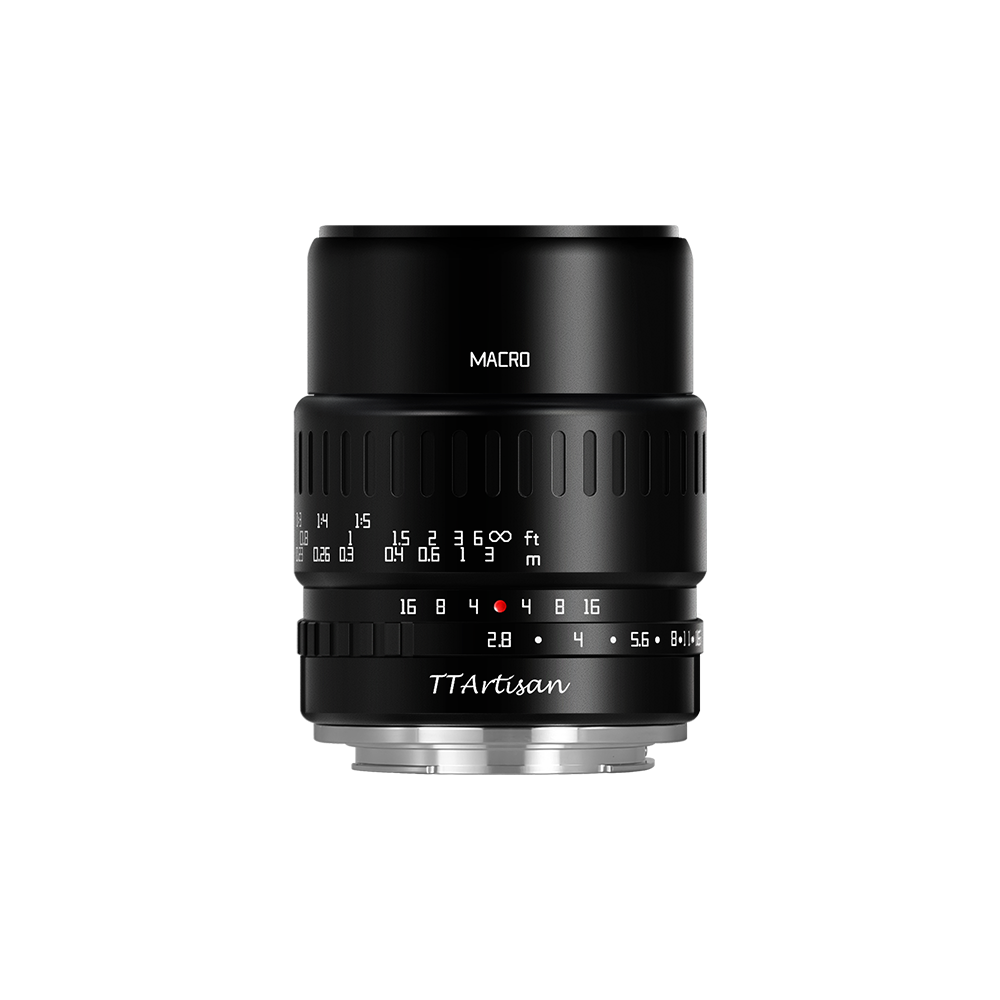

Manual macro lens for Canon RF

Reveal detail at true 1:1 scale

TTArtisan 40mm F2.8 Macro reproduces the subject life-size on the sensor. Designed for APS-C Canon RF cameras, it combines precise mechanical focusing with a durable all-metal body.

  • 40 mm Focal length
  • 1:1 Maximum magnification
  • 0.17 m Minimum focus
  • 52 mm Filter thread

True 1:1 macro without extension tubes

A 0.17m minimum focusing distance and the long, smooth focus-ring travel help place the focus plane precisely. The lens suits insects, plants, product details, textures and digitising small originals.

Refined optics and smooth bokeh

The 8-element, 7-group optical design includes two ultra-low-dispersion elements. Eleven aperture blades support smooth out-of-focus rendering, while the F2.8–F16 range provides control over depth of field.

PACKAGE CONTENT

  • TTArtisan 40mm F2.8 Macro lens ×1
  • Front lens cap ×1
  • Rear lens cap ×1
  • User manual ×1
  • Retail packaging ×1

SPECIFICATIONS

  • Lens mount: Canon RF
  • Sensor format: APS-C
  • Focal length: 40mm
  • Aperture range: F2.8–F16
  • Maximum magnification: 1:1
  • Minimum focus: 0.17m
  • Angle of view: 40°
  • Optical design: 8 elements in 7 groups; 2× UD
  • Aperture blades: 11
  • Focusing: manual
  • Stabilisation: no
  • Weight: approximately 371–403g depending on mount
  • Filter thread: Ø52mm
Parameters

Parameters

Manufacturer: TTArtisan
Category: Lenses

Main parameters

Filter thread52mm
Minimum Focusing Distance170mm
Maximum magnification1x
Number of aperture blades11
Lens mountRF
Tilt ShiftNo
Lens colorBlack
Lens typePrime lens
ExtenderNo
Lens suitable forAPS-C
Aperture (f)2.8
Focal length40mm
Optical stabilisationNo
Auto focusNo
ZoomNo
AnamorphicNo
MacroYes
Weight400g
