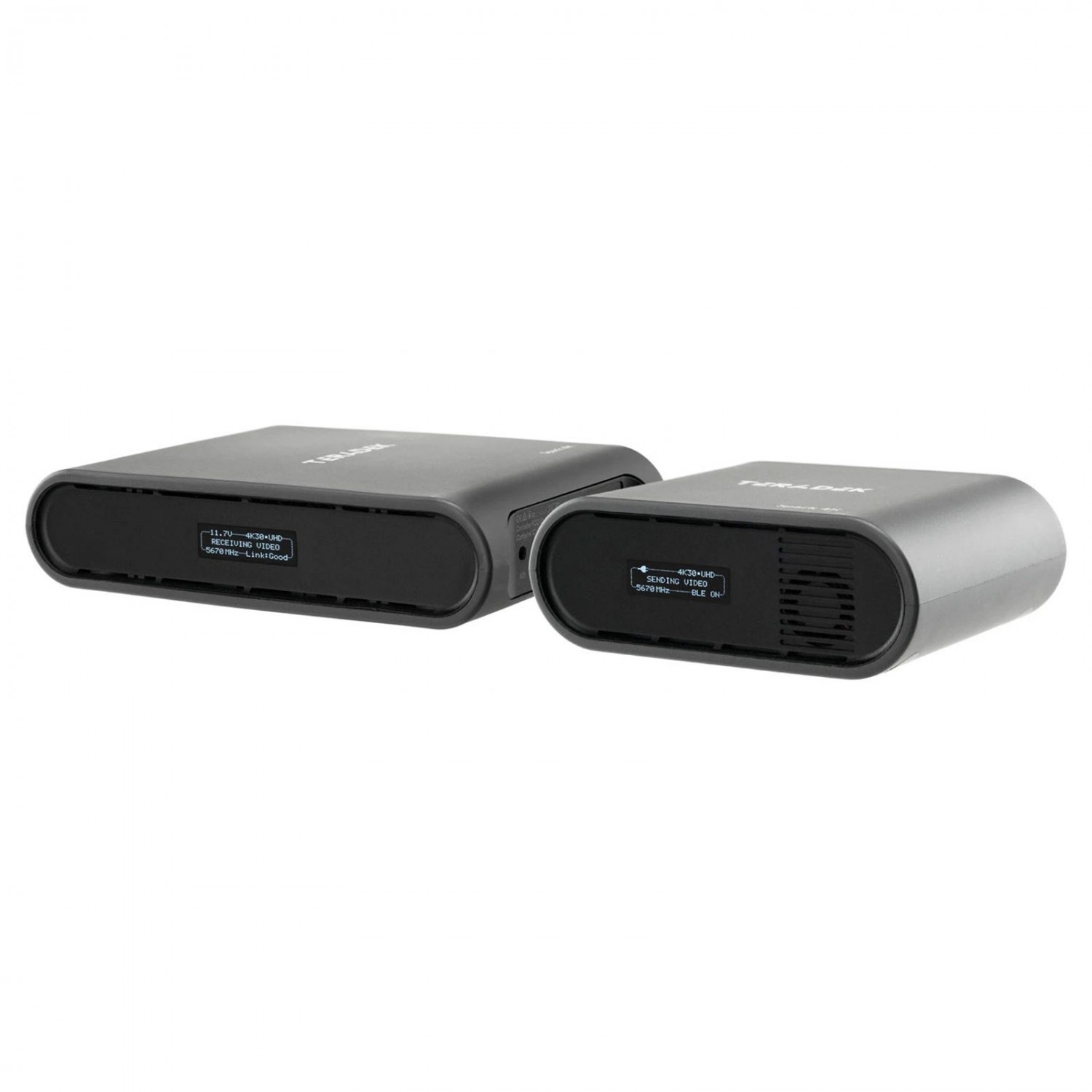

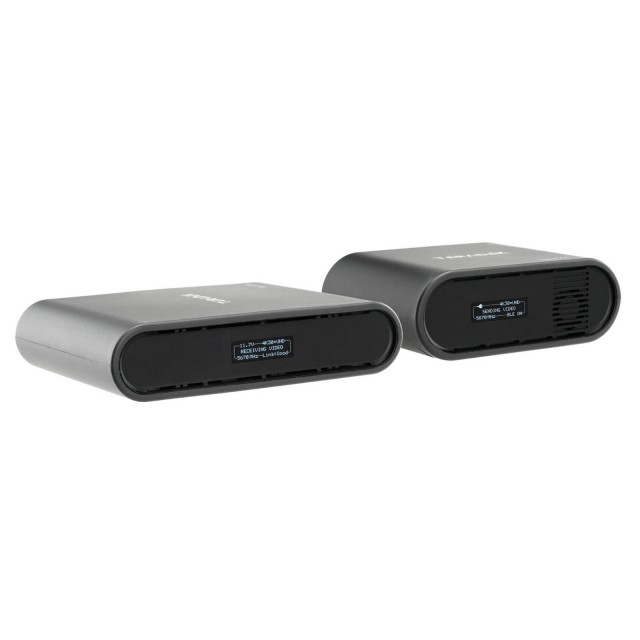

Teradek Spark 4K Transmitter/Receiver Set

Spark 4K is Teradek’s latest consumer-level wireless video system that is capable of transmitting untethered local 4K HDR video at a range of up to 150 m line-of-sight over the unlicensed 5GHz band for less sensitivity to line-of-sight obstructions. Spark 4K can multicast to up to two Spark 4K receivers simultaneously, has portable power, internal antennas and a compact tabletop design (doesn’t have to be mounted on camera) making it truly wireless. Smart frequency hopping automatically finds clear channels, and Teradek’s patented wireless Joint Source Channel Coding (JSCC) technology allows for zero-delay transmission while delivering picture-perfect image quality. Desktop and mobile Launchpad App can be used for pairing and firmware updates. TX+RX.

More information

1 662.2 € with VAT 1 385.17 € without VAT
-+
Availability
3-5 days
Manufacturer
Free transport when purchasing this product
SKU:
TE-10-1855
Add to Compare
Product description

Product description

Spark 4K is Teradek’s latest consumer-level wireless video system that is capable of transmitting untethered local 4K HDR video at a range of up to 150 m line-of-sight over the unlicensed 5GHz band for less sensitivity to line-of-sight obstructions. Spark 4K can multicast to up to two Spark 4K receivers simultaneously, has portable power, internal antennas and a compact tabletop design (doesn’t have to be mounted on camera) making it truly wireless. Smart frequency hopping automatically finds clear channels, and Teradek’s patented wireless Joint Source Channel Coding (JSCC) technology allows for zero-delay transmission while delivering picture-perfect image quality. Desktop and mobile Launchpad App can be used for pairing and firmware updates. TX+RX.

Zero-delay 4K wireless video (<0.001sec)
4K HDR with 10-bit 4:2:2
Wireless range of up to 150 m line of sight
Internal TX battery allows quick deployments and fewer power accessories
USB-C and Barrel Connector for power
Third party power solutions

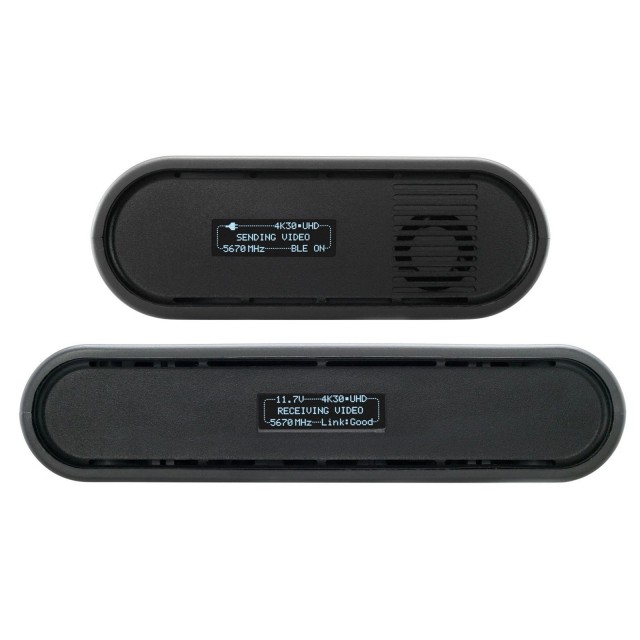

OLED display for status and troubleshooting
Supports up to 4Kp30 with HDMI
Multicast transmission: 1:2 TX:RX

  • Bezlatenční přenos 4K videa (latence <0,001 s)
  • 4K HDR video, 10 bitů, vzorkování 4:2:2
  • Vizuálně bezeztrátová komprese
  • Dosah až 150 m (přímá viditelnost)
  • Interní akumulátor u TX (9,5 Wh výdrž cca 1,5 h)
  • Napájení pomocí USB-C nebo externího adaptéru
  • OLED displej pro zobrazení stavu přenosu
  • Podpora rozlišení až 4Kp30 (HDMI)
  • Podporovaná rozlišení 4Kp23,98/24/25/29,97/30, 1080p23,98/24/25/29,97/30/50/59,94/60 1080i50/59,94/60, 720p50/59,94/60, 480p50, 576p59,94/60
  • Dálkové ovládání pomocí aplikace pro macOS/Windows a mobilní verze (Bluetooth)
  • Pracovní frekvence 5,270 ~ 5,670 GHz, 5,190 ~ 5,230 GHz a 5,755 ~ 5,795 GHz
  • Vysílací výkon TX 19 dbm EIRP (<80 mW)
  • Šířka pásma 40 MHz s automatickou selekcí kanálů
  • Šifrování AES-128, RSA-1024
  • Multicasting 1:2 TX:RX
  • Rozměry TX 87 x 68 x 31 mm, váha 158 g; RX 112 x 81 x 25 mm, 187 g



Parameters

Parameters

Manufacturer: Teradek
Category: Wireless video transmission

Main parameters

Delay0.001s
Input wireless videoHDMI
