Teradek RT MDR.X External Antenna Cap (11-1495)

  • New
SKU: TE-11-1495

Teradek MDR.X External Antenna Cap (11-1495) converts the internal antenna of a Teradek RT MDR.X receiver to an external RP-SMA solution. It lets you relocate the antenna outside the receiver body or attach a suitable antenna of your choice, for example on gimbal and drone rigs.

More information

80 € with VAT 66.12 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TE-11-1495
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Teradek MDR.X External Antenna Cap (11-1495) converts the internal antenna of a Teradek RT MDR.X receiver to an external RP-SMA solution. It lets you relocate the antenna outside the receiver body or attach a suitable antenna of your choice, for example on gimbal and drone rigs.

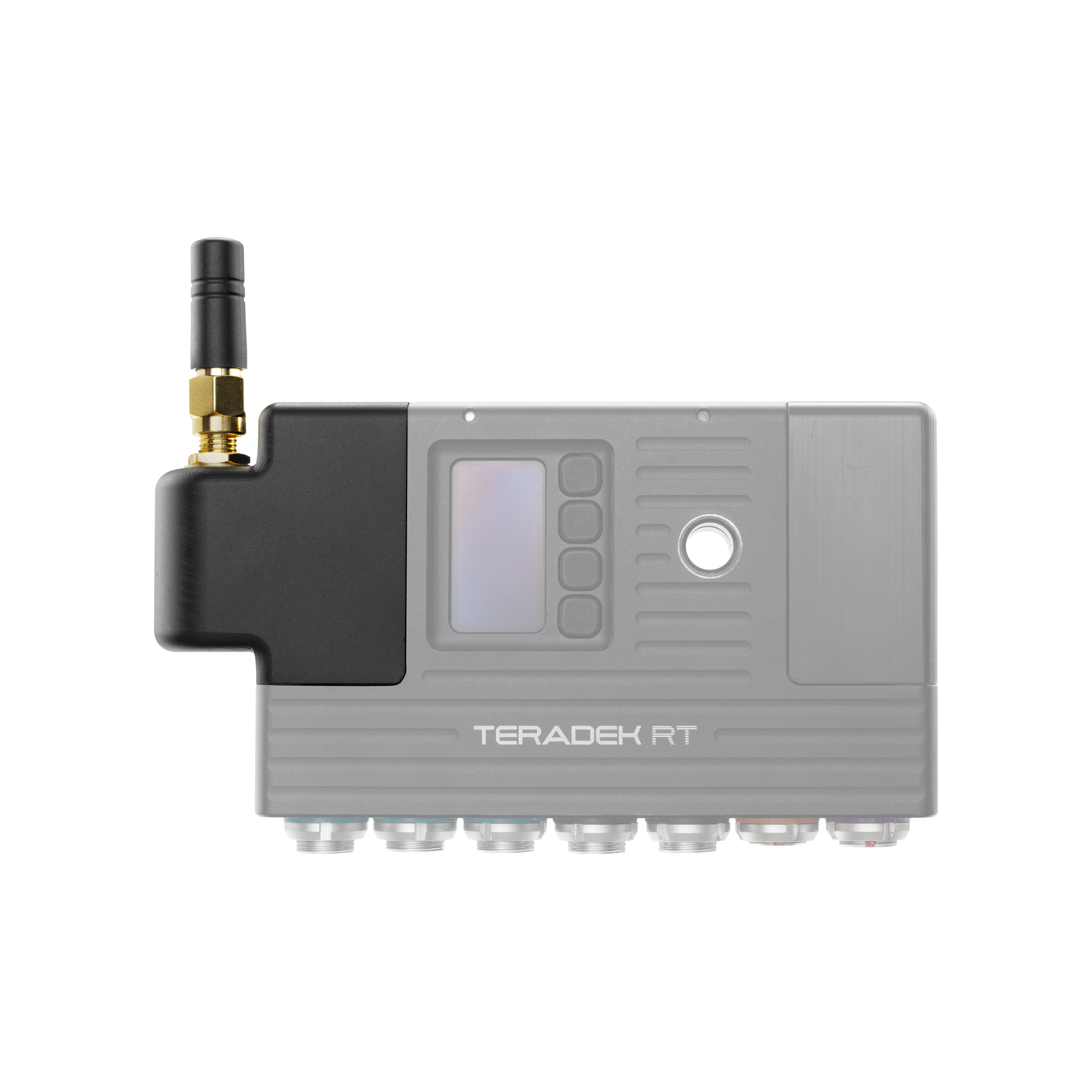

Teradek MDR.X External Antenna Cap

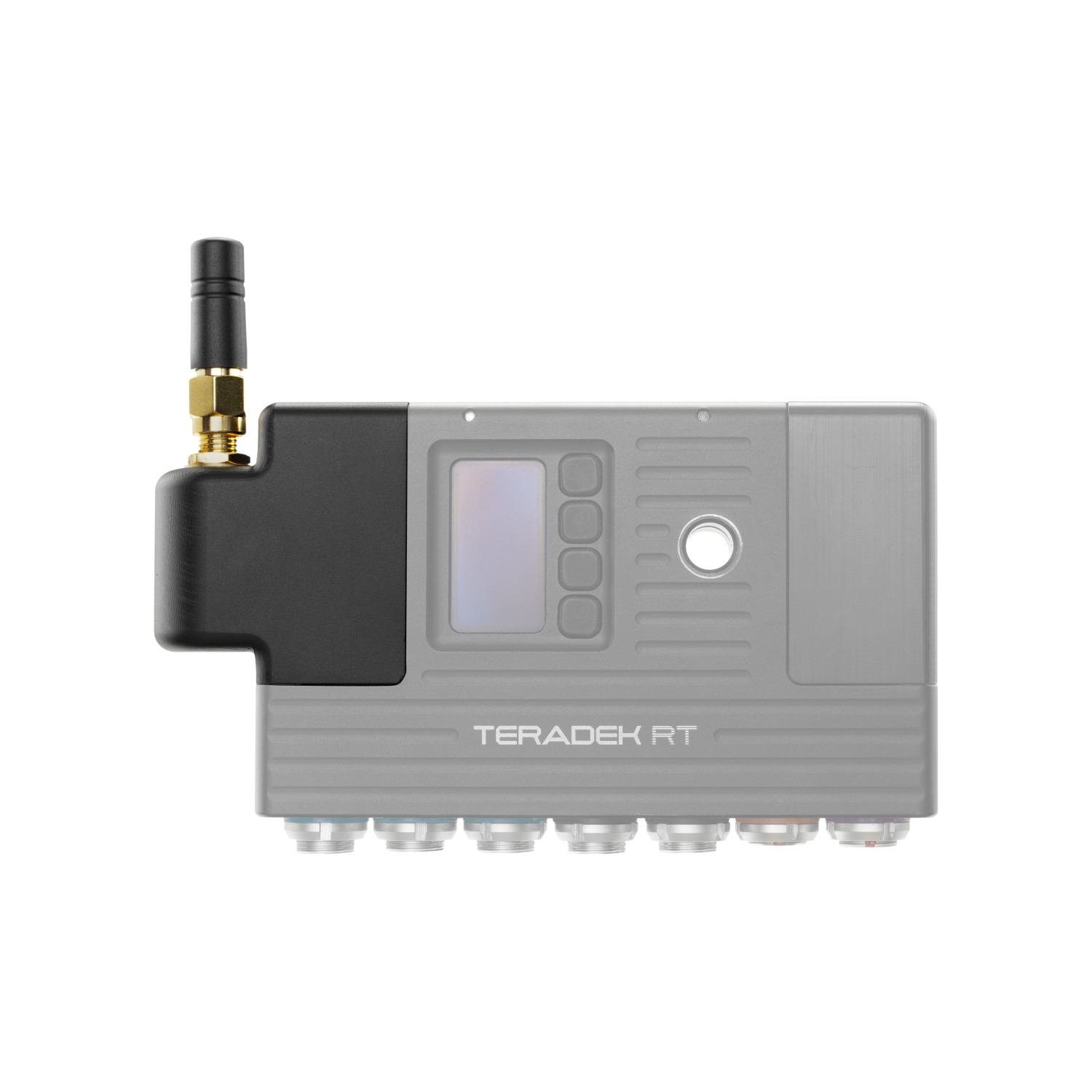

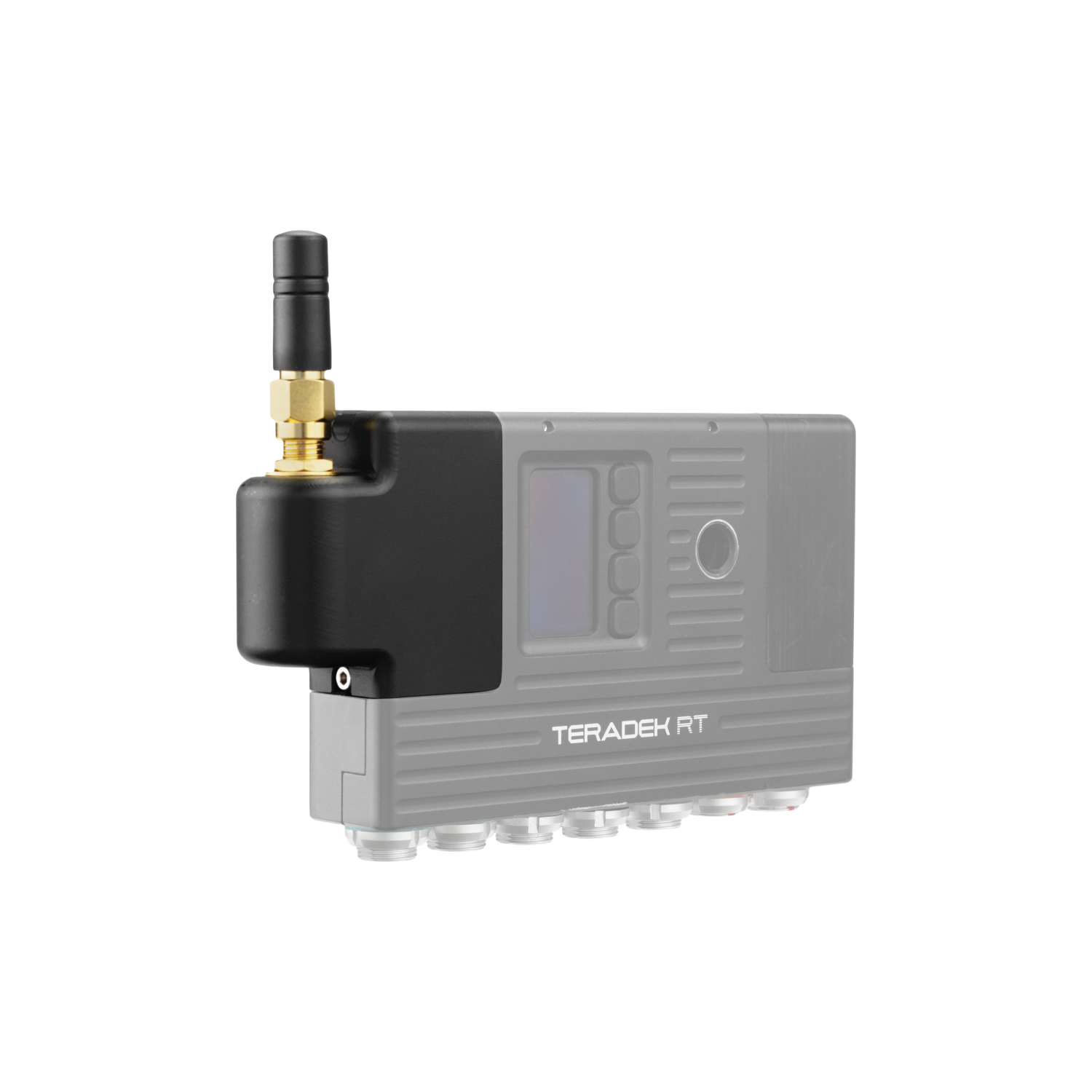

Antenna outside the MDR.X receiver body

The side cap converts the internal antenna to an external RP-SMA connection. It helps place the antenna more advantageously when the MDR.X is concealed in a compact rig or among elements that may affect reception.

For gimbals, drones and tight rigs

Included are a short UFL to female RP-SMA cable, 2.4 GHz RP-SMA antenna and 1.5 mm hex key. For greater distance, use a compatible SMA extension and suitable antenna.

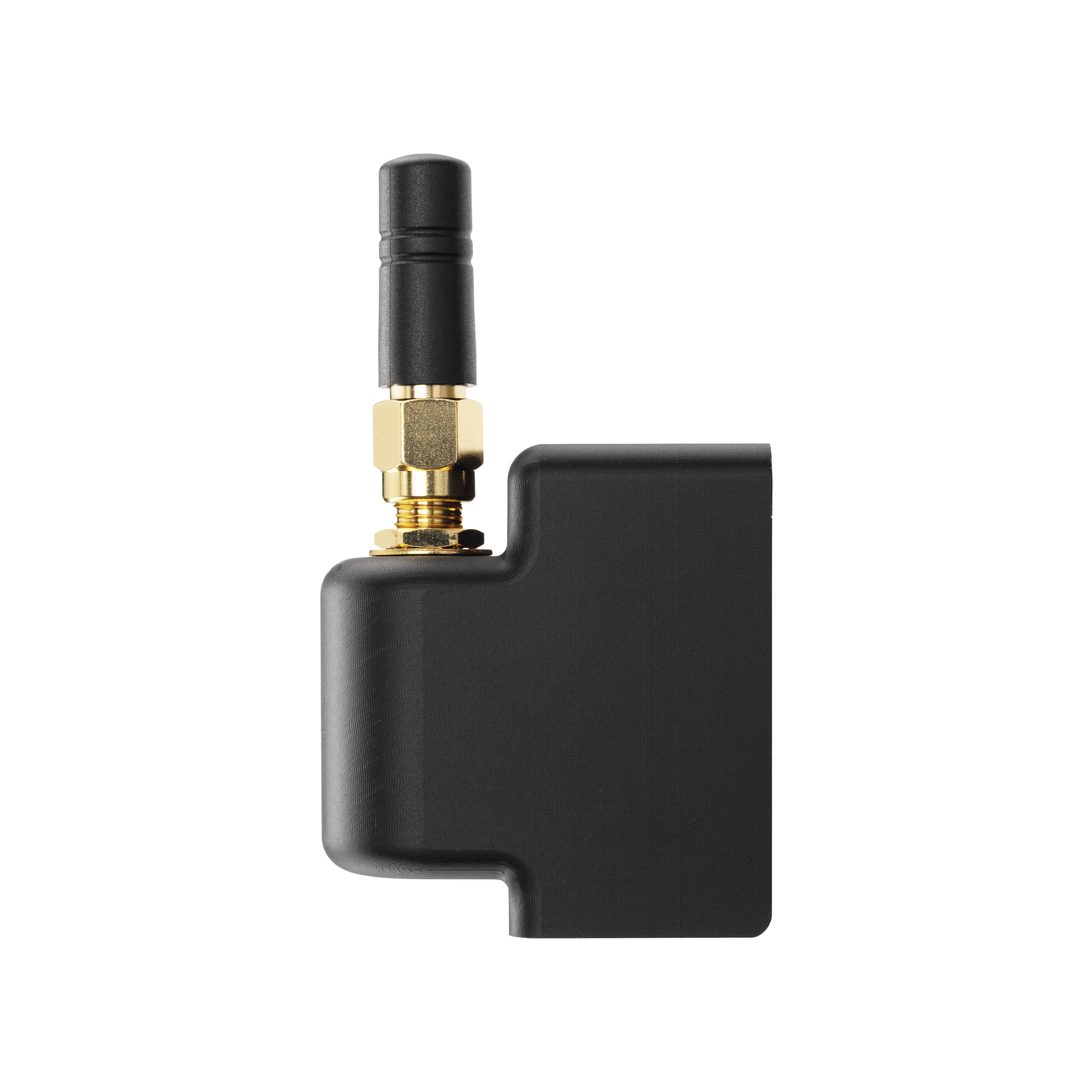

Detail Teradek MDR.X External Antenna Cap

PACKAGE CONTENT

  • 1 × MDR.X External Antenna Cap
  • 1 × kabel UFL – RP‑SMA samice, 76,2 mm
  • 1 × RP‑SMA anténa 2,4 GHz, 28,4 mm, 0,56 dB
  • 1 × imbusový klíč 1,5 mm

SPECIFICATIONS

  • Compatibility: Teradek RT MDR.X Receiver
  • Connector: RP‑SMA
  • Antenna: 2,4 GHz Wi‑Fi, RP‑SMA, délka 25,4 mm
  • Cable length: 76,2 mm / 3″
  • Function: converts the MDR.X internal antenna to external placement
Parameters

Parameters

Manufacturer: Teradek
Category: Accessories
