Teradek Live Ranger Micro 2500 3G-SDI/HDMI - Wireless TX No Mount

The Teradek Ranger Micro 2500 3G-SDI/HDMI TX No Mount (10-2541) is a standalone wireless transmitter for transmitting HD video up to 1080p60. It accepts input via 3G-SDI or HDMI, offers an SDI loop-through output for local monitoring, and transmits the signal with virtually zero latency.

The 2500 version is designed for a range of up to 2,500 feet / approximately 762 m in line-of-sight conditions and operates in the 4.9–6.4 GHz band. It supports 10-bit HDR, AES-256 encryption, and 7–28 V DC power via a 2-pin LEMO connector. The “No Mount” variant is shipped without a mounting adapter.

TERADEK · STANDALONE TRANSMITTER

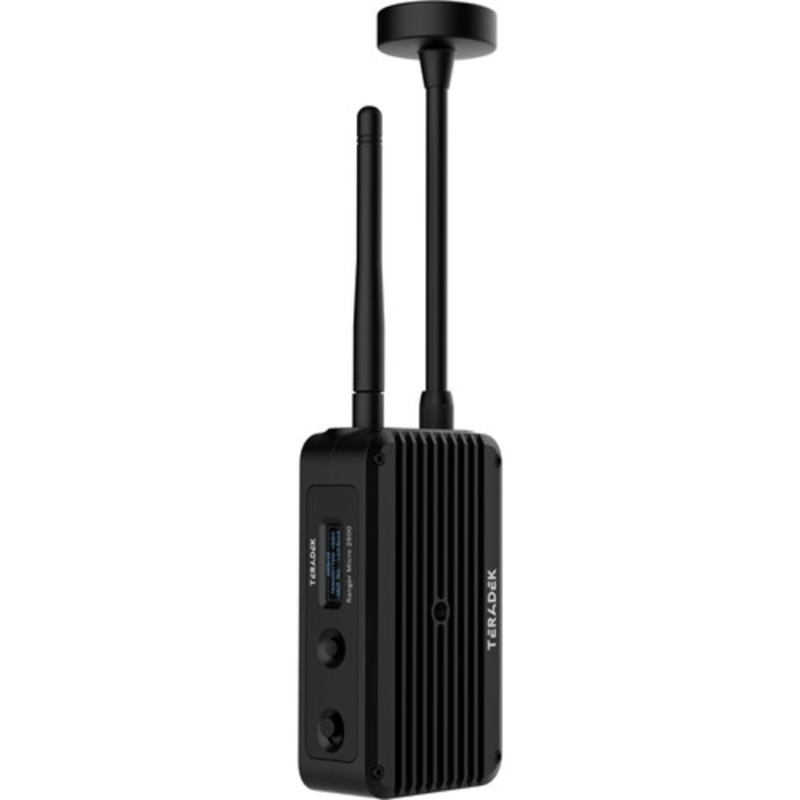

RANGER MICRO 2500 TX

Add an HD camera feed to a Ranger wireless setup. This transmitter accepts 3G-SDI or HDMI and sends visually lossless 1080p60 video up to 2,500 ft (762 m) in line of sight with less than 1 ms link delay.

1080p60 HDR3G-SDI + HDMI

ONE CAMERA, MORE SCREENS

Pair the transmitter with compatible Ranger receivers. One TX can feed up to six receivers for production monitoring.

ROOM TO FIND A CLEAR CHANNEL

The Ranger Micro radio supports licensed and unlicensed operation from 4.9 to 6.4 GHz, subject to local regulation and firmware.

SECURE LIVE SIGNAL

AES-256 encryption and near-zero delay suit live events, broadcast and other time-sensitive monitoring.

COMPACT PRODUCTION HARDWARE

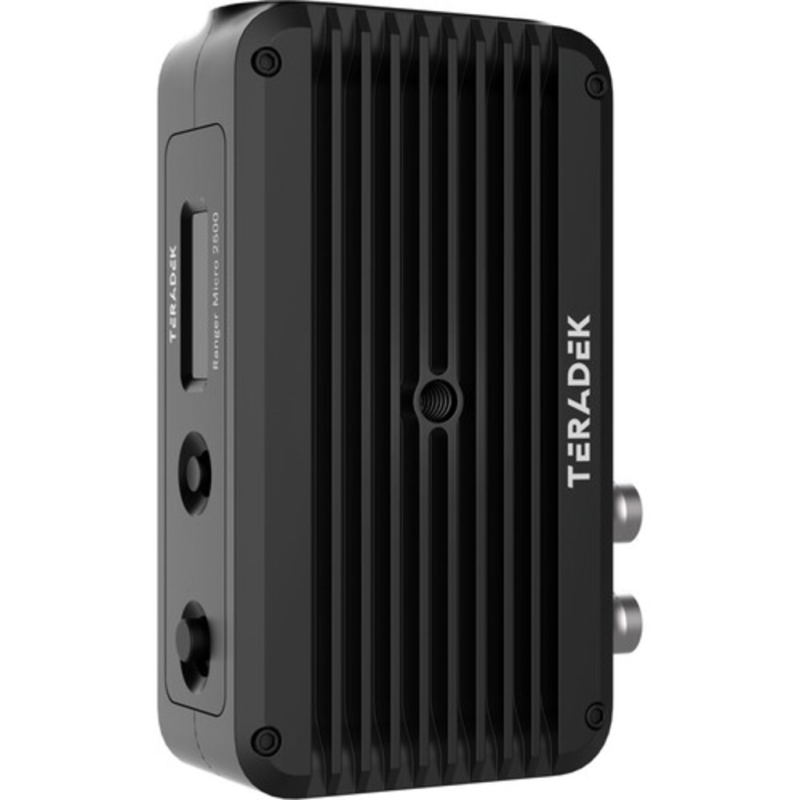

The milled aluminum chassis measures 59 × 108 × 32 mm and weighs 300 g. Its built-in display and controls simplify setup at the camera, while standard mounting threads let you choose a rigging solution for the job. This No Mount package does not include a mounting adapter.
