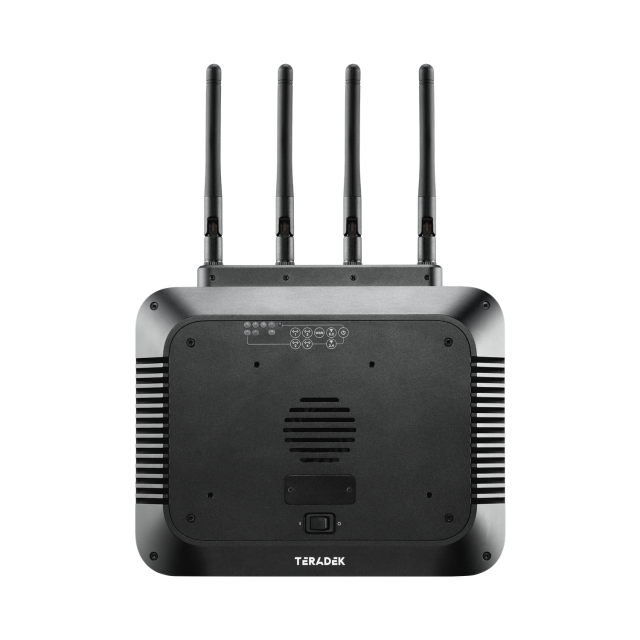

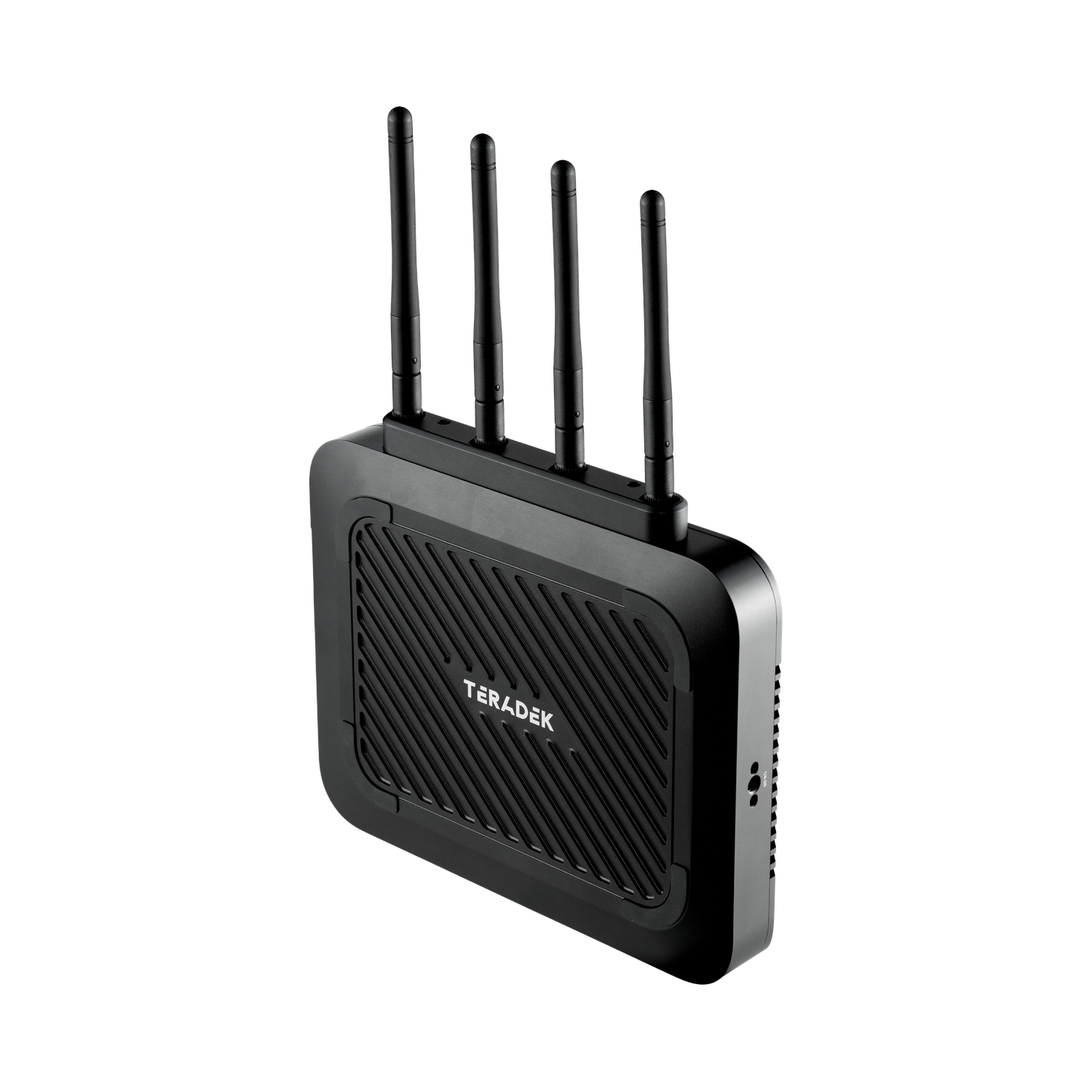

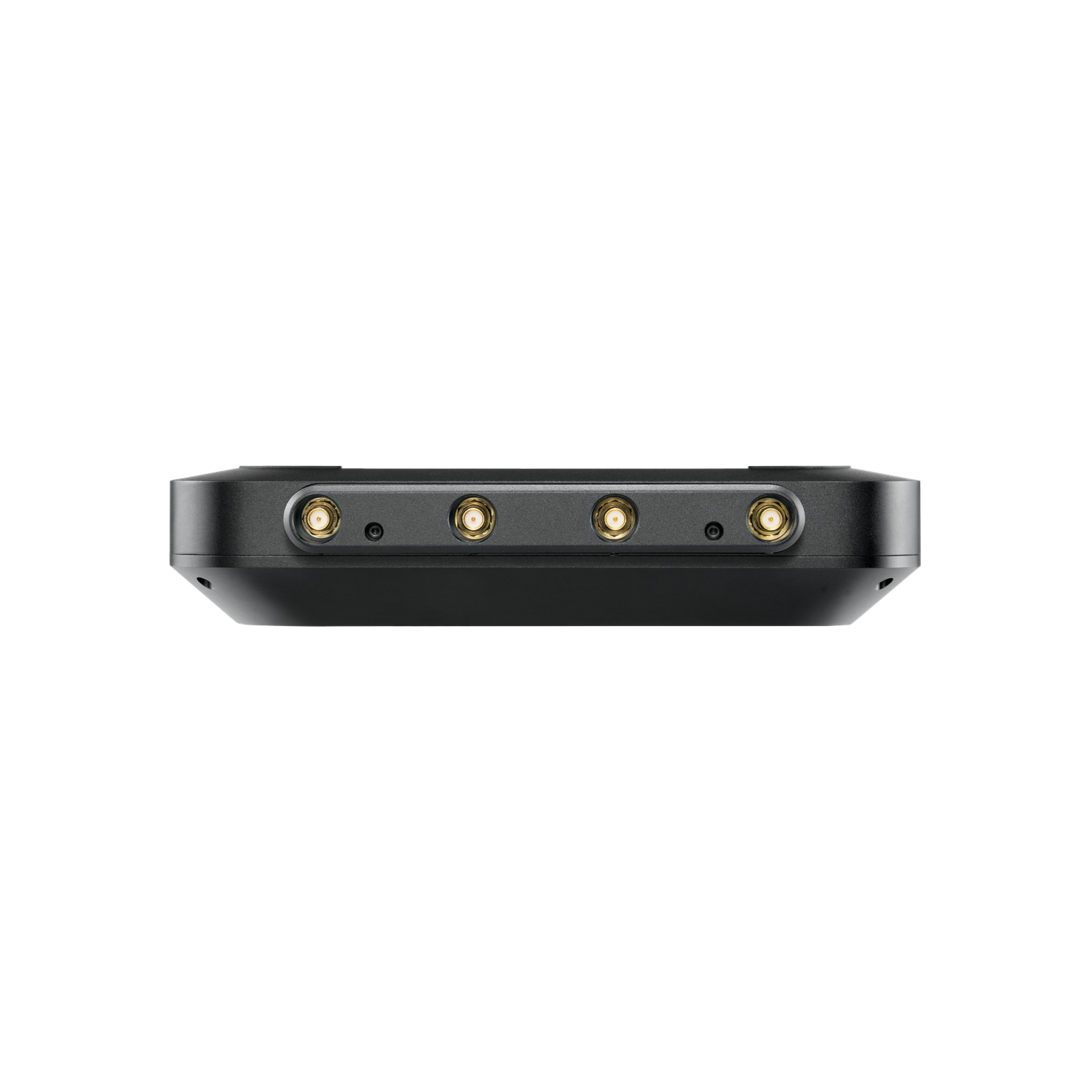

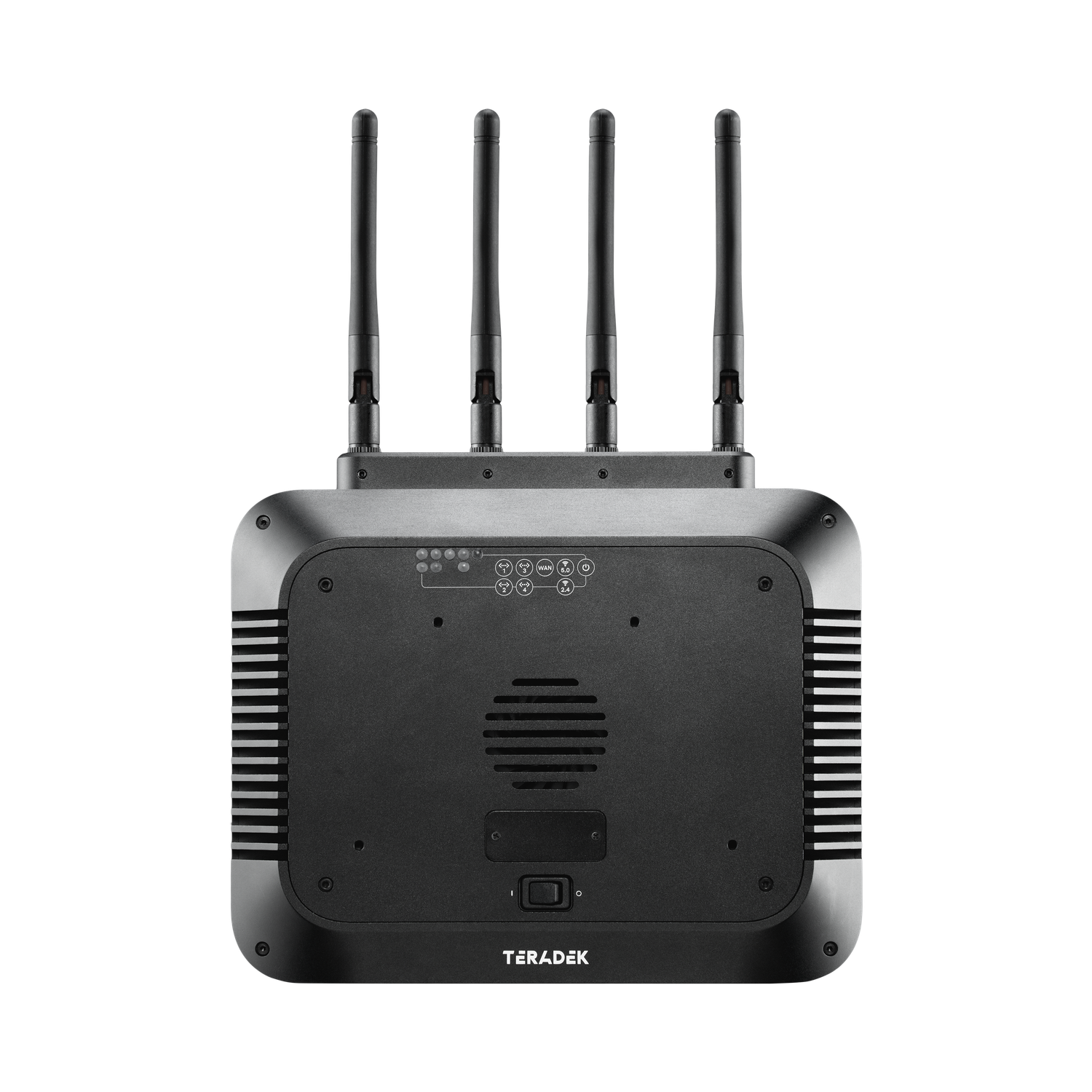

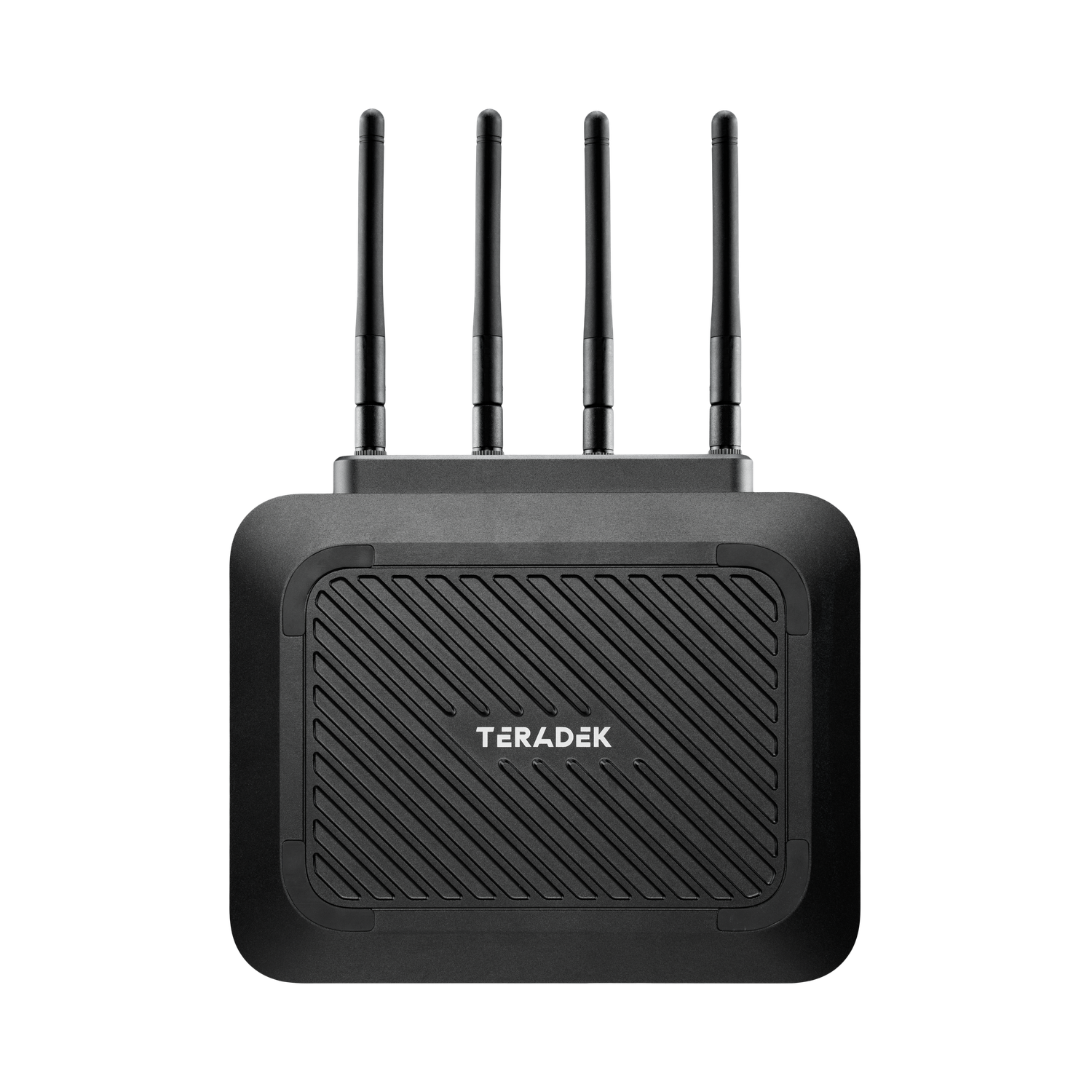

Teradek Link AX Gold Mount – Wi‑Fi 6 access point and router

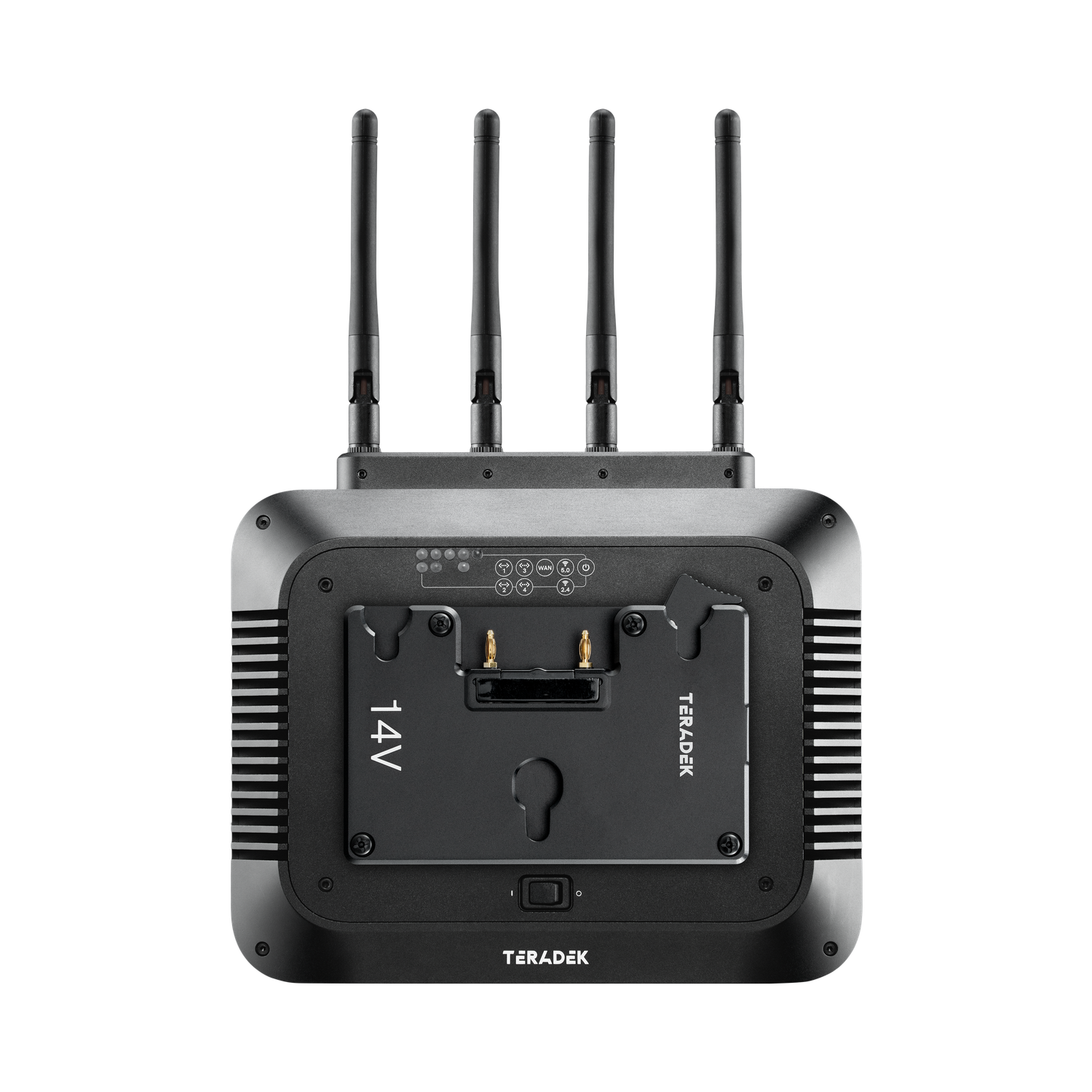

The Teradek Link AX Gold Mount is a rugged production access point and router with Wi-Fi 6 (802.11ax), designed for film and television setups. The integrated Gold Mount adapter allows for powering from a compatible 14V battery; the metal chassis features 3/8″ and 1/4–20 threads for secure mounting on a rig, dolly, or tripod.

Five configurable Ethernet ports connect cameras, receivers, and other network devices. The USB-A port supports the Node II mobile modem (sold separately). The Link AX can provide internet access for remote monitoring and cloud workflows, enables simultaneous camera control, and offers up to 20 independent live views via the Teradek TV app; a separate Serv Micro, Serv 4K, or Serv Pro device is required for Wi-Fi monitoring.

Wi-Fi 6 for Production Networks

The Link AX combines a Wi‑Fi 6 access point, router, and network hub into a compact metal device. The Gold‑Mount version is designed for mobile use on a camera rig or production cart.

Configurable Ethernet ports provide a clear structure for the local network and allow monitoring, control, and data devices to be used together.

5× Ethernet

Five configurable ports for devices on the production network.

Node II via USB-A

The USB-A port is ready for the Node II mobile modem, which is sold separately.

Monitoring and Control

Supports network access for remote monitoring, cloud workflows, and simultaneous camera control; requirements depend on the connected services and devices.
