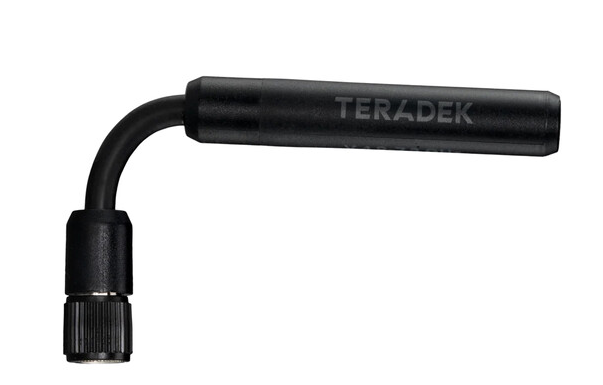

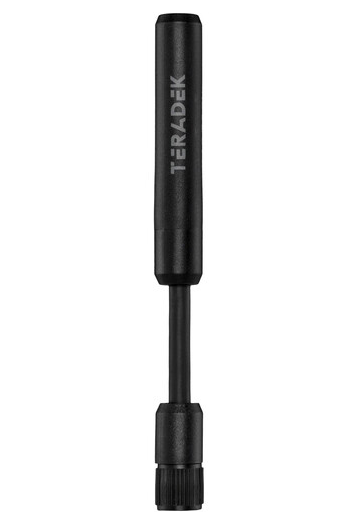

Teradek Flexible 5/6GHz V-Antenna (7 Antenna Set)

Teradek Flexible 5/6 GHz V-Antenna 7-Pack is a durable, flexible replacement antenna designed for Teradek Bolt 4K and Bolt 6 wireless video systems. Featuring an RP-SMA connector, 4.9–7.3 GHz frequency range, and 2 dBi gain, its flexible design helps reduce the risk of antenna breakage during use.

More information

287 € with VAT 237.19 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Teradek Flexible 5/6 GHz V-Antenna 7-Pack is a durable, flexible replacement antenna designed for Teradek Bolt 4K and Bolt 6 wireless video systems. Featuring an RP-SMA connector, 4.9–7.3 GHz frequency range, and 2 dBi gain, its flexible design helps reduce the risk of antenna breakage during use.

The Teradek Flexible 5/6 GHz V-Antenna (7-Antenna Set) is designed for use with Teradek Bolt 4K and Bolt 6 transmitter and receiver systems. Operating across a broad 4.9 to 7.3 GHz frequency range, the antenna provides 2 dBi gain and uses a standard RP-SMA connector for compatibility with supported Teradek equipment. Its flexible construction allows the antenna to move freely, helping prevent damage or breakage during handling, setup, and operation. With its compact design and lightweight construction, it is well suited as a replacement or spare antenna set for professional wireless video applications.

Key Features

  • Designed for Teradek Bolt 4K and Bolt 6 systems
  • Flexible antenna design helps prevent breakage
  • 4.9–7.3 GHz operating frequency range
  • 2 dBi gain

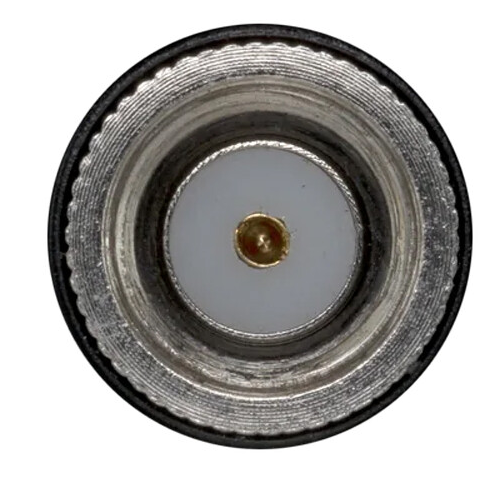

  • Standard RP-SMA coaxial connector
  • Compact and lightweight construction

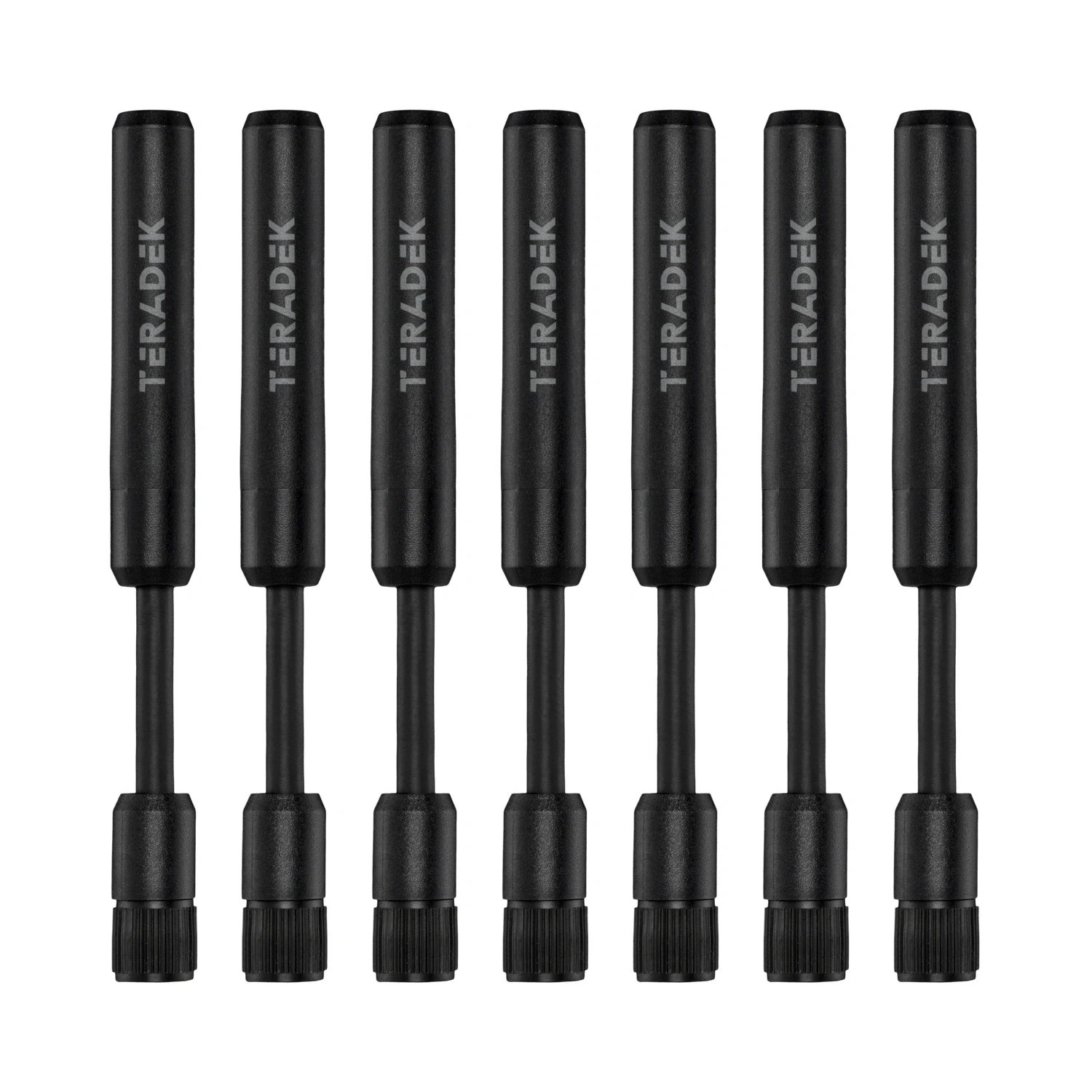

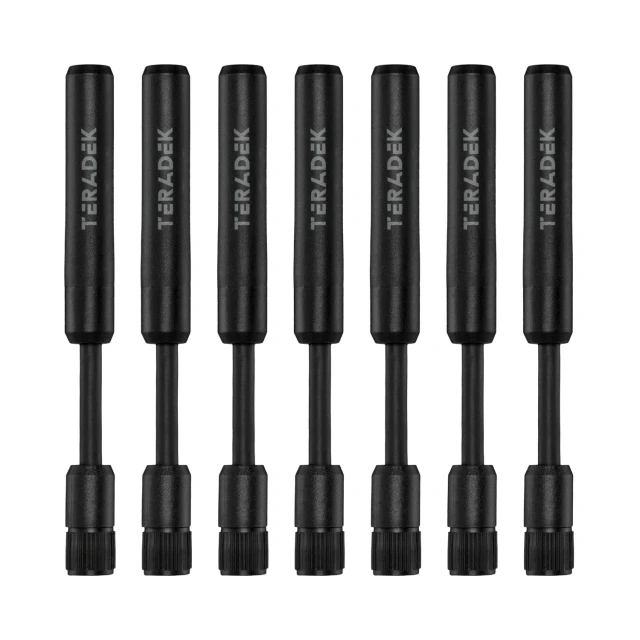

  • 7-antenna set

PACKAGE CONTENT

  • 7 × Teradek Flexible 5/6 GHz V-Antennas

SPECIFICATIONS

  • Antenna Type: Standard
  • Operating Frequency: 4.9–7.3 GHz
  • Gain: 2 dBi
  • Input/Output: 1 × Coaxial RP-SMA
  • Antenna Mounting/Connector: RP-SMA
  • Dimensions: 3.87 × 0.38 × 0.38 in (98.26 × 9.59 × 9.59 mm)
  • Weight: 0.2 oz (5.68 g)
  • Compatibility: Teradek Bolt 4K, Teradek Bolt 6
Parameters

Parameters

Manufacturer: Teradek
Category: Accessories
