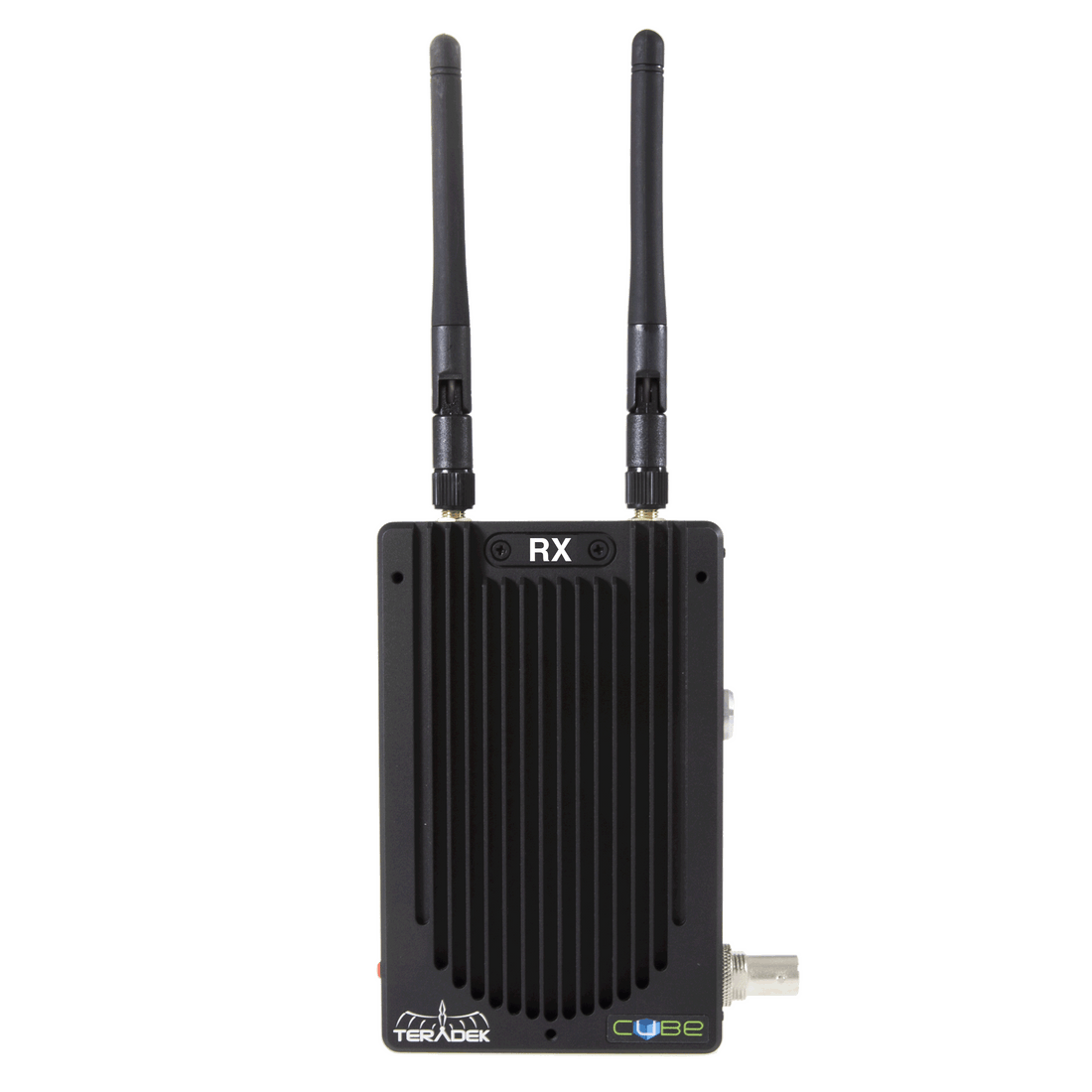

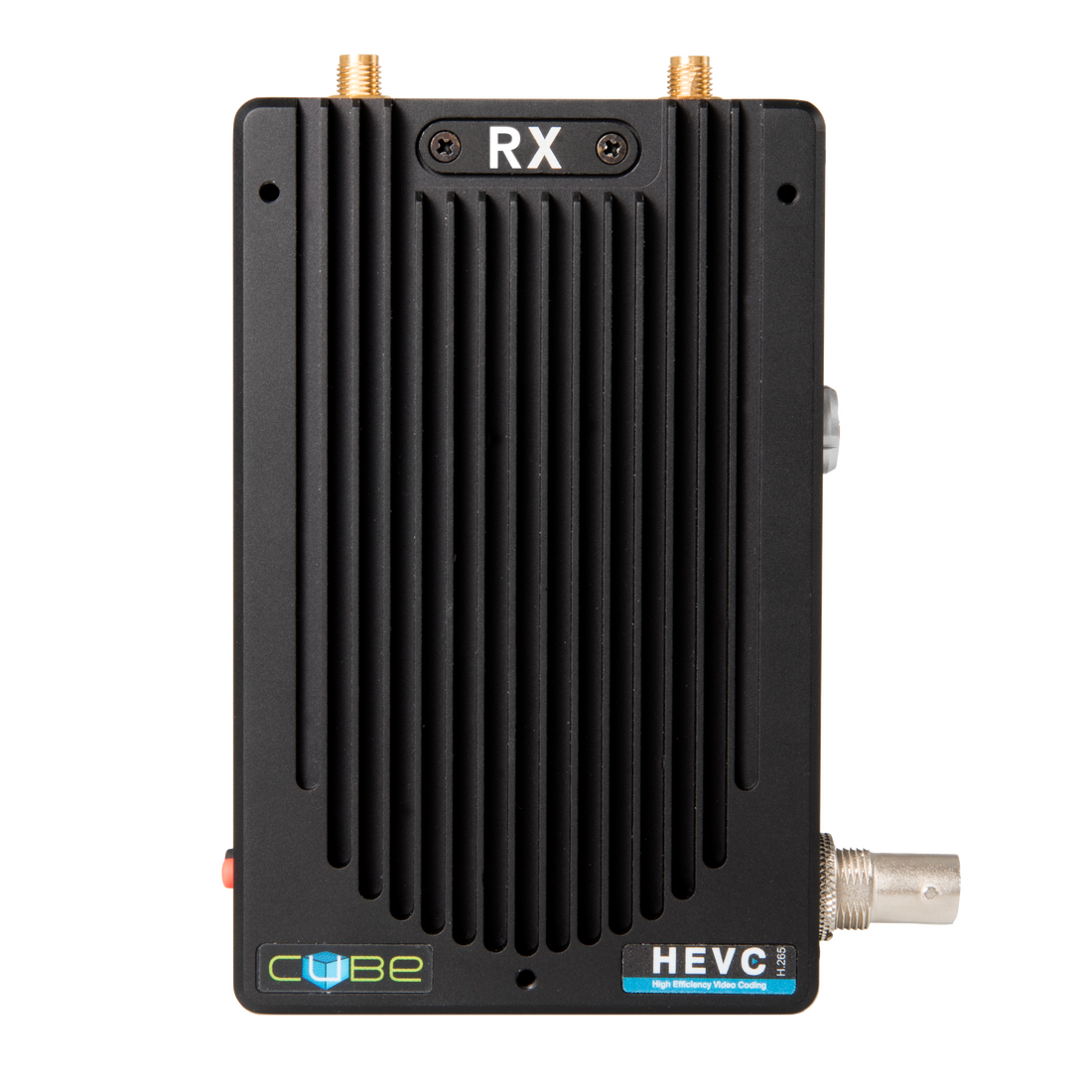

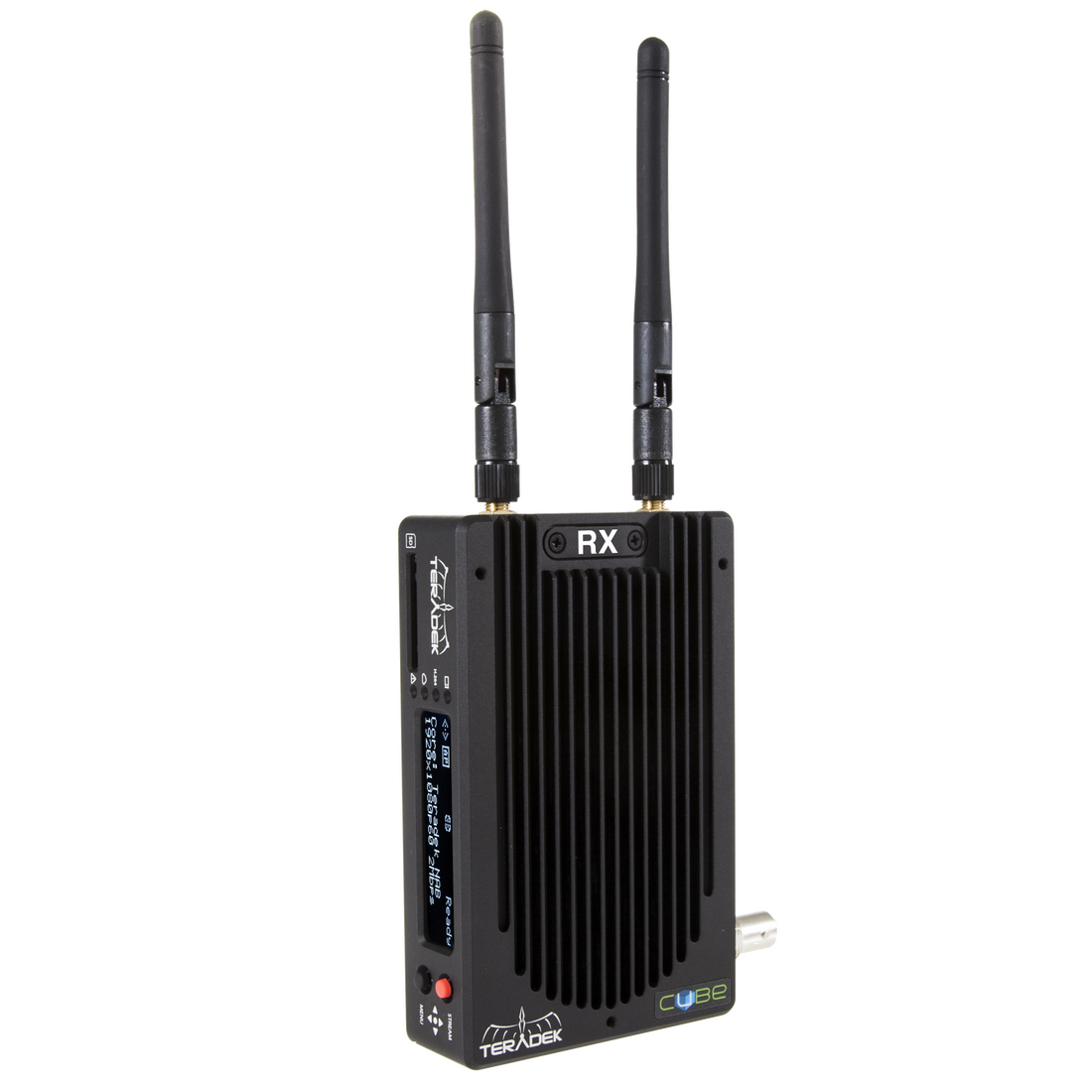

Teradek CUBE 775

Teradek CUBE 775 is a professional network decoder for reliable IP video delivery. It decodes SD and HD H.264/AVC and H.265/HEVC streams and is designed for point-to-point transmission with compatible Cube encoders, broadcast workstations, and integrated video systems.

Simultaneous HDMI and 3G-SDI outputs support up to 1080p60, making it easy to integrate into monitoring, production, and distribution chains. Ethernet, dual-band 2.4/5.8 GHz Wi-Fi, and USB connectivity for mobile links provide deployment flexibility, while the built-in scaler adapts the output to the connected display.

The compact body combines an OLED display, a 1/4-inch mounting point, and power from the supplied AC adapter or a 2-pin battery connector for fixed installations and mobile camera setups. The box includes Cube 775, an Ethernet cable, an 18-inch HDMI cable, a 10-inch BNC-to-BNC SDI cable, and an 18W 2-pin AC adapter.

IP DECODER FOR PROFESSIONAL DISTRIBUTION

The Cube 775 converts IP video to modern HDMI and 3G-SDI outputs up to 1080p60. It is designed for stable point-to-point transmissions with compatible Cube encoders and for workflows requiring a reliable HD decoder in a compact form factor.

It supports H.264/AVC and H.265/HEVC decoding in both SD and HD resolutions. The built-in scaler makes it easy to connect a monitor or other device with a different required output format.

OUTPUTS

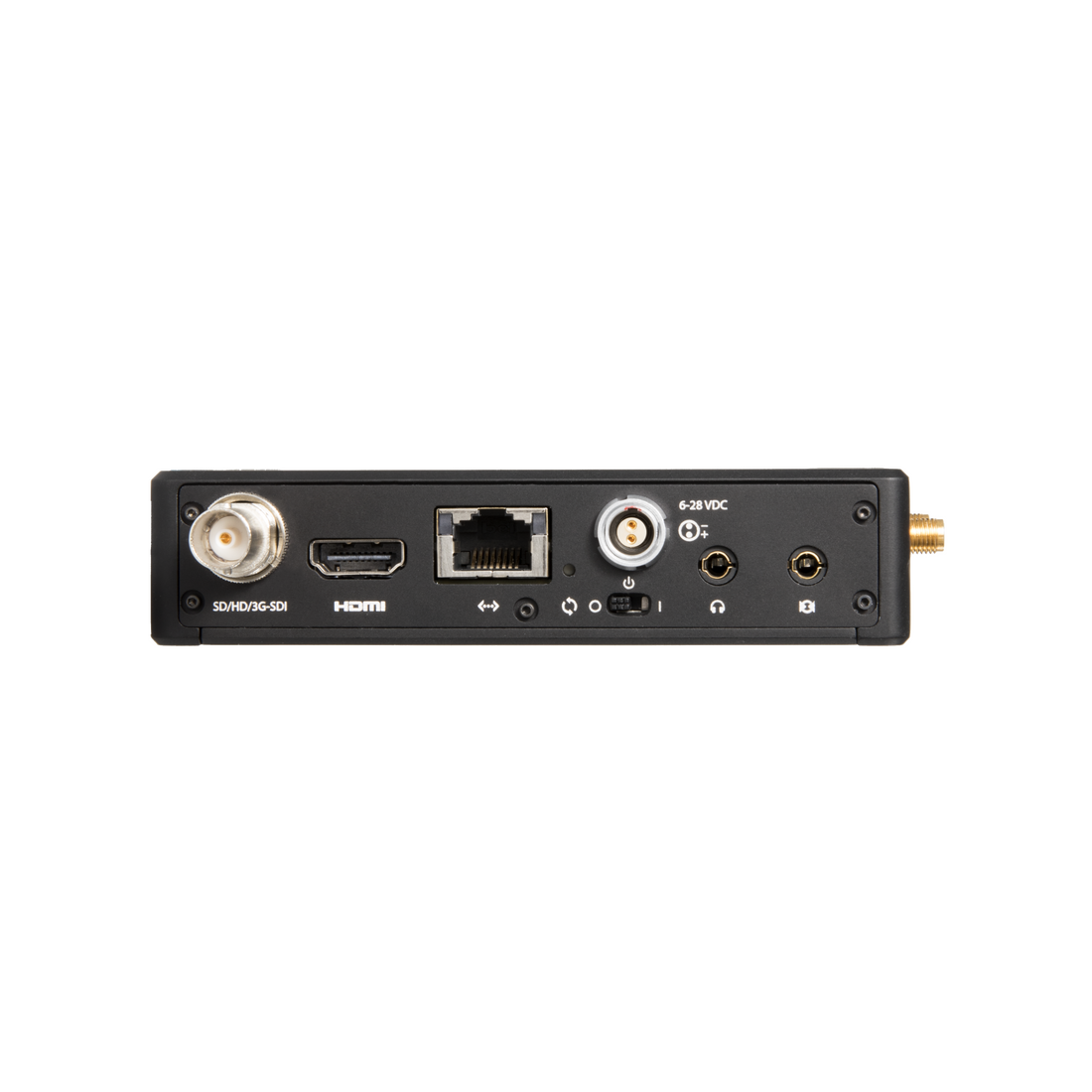

HDMI and 3G-SDI can operate simultaneously; the maximum output is 1080p60.

NETWORK

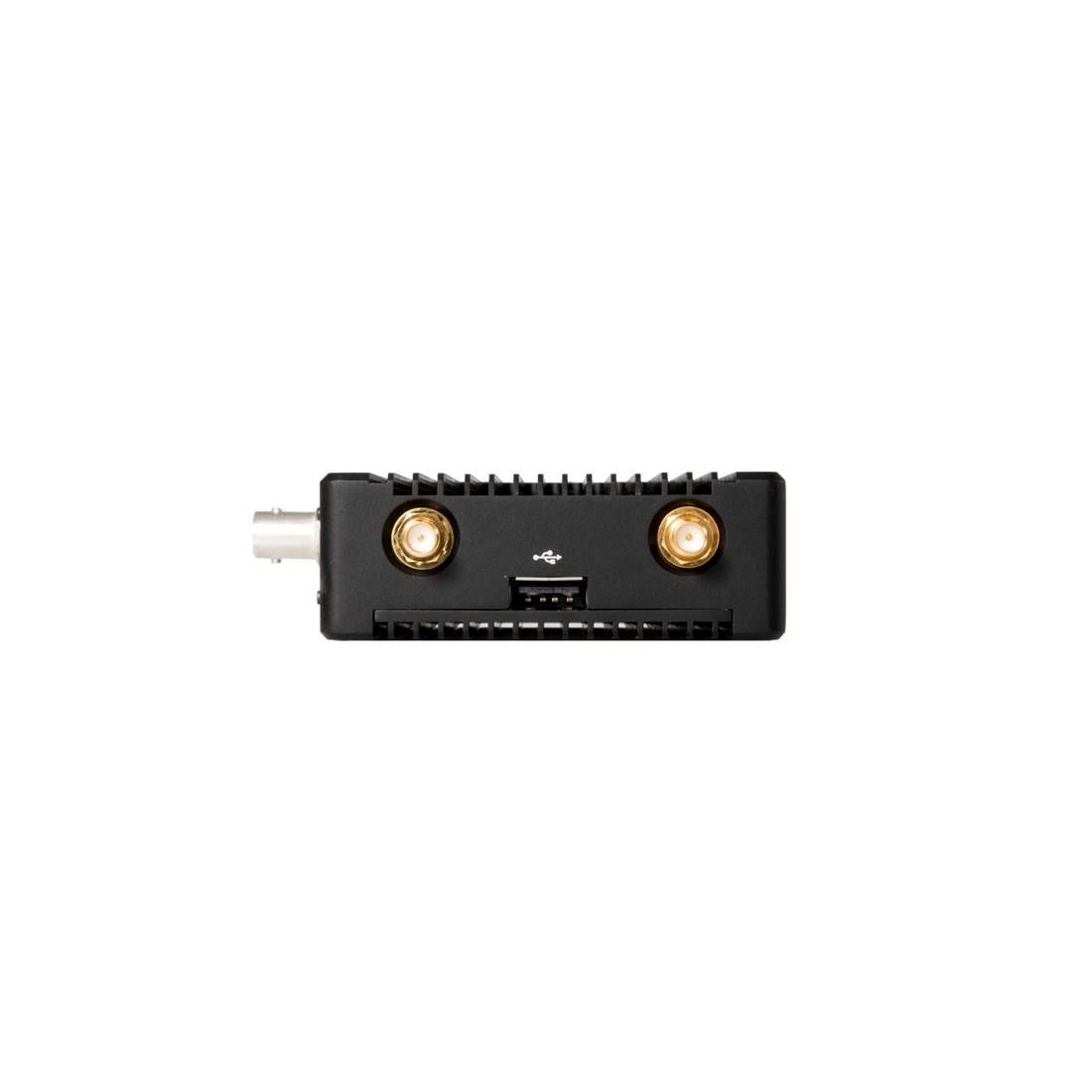

Ethernet, dual-band Wi-Fi (2.4/5.8 GHz), and USB for mobile data connectivity provide the system with more deployment options.

INSTALLATION

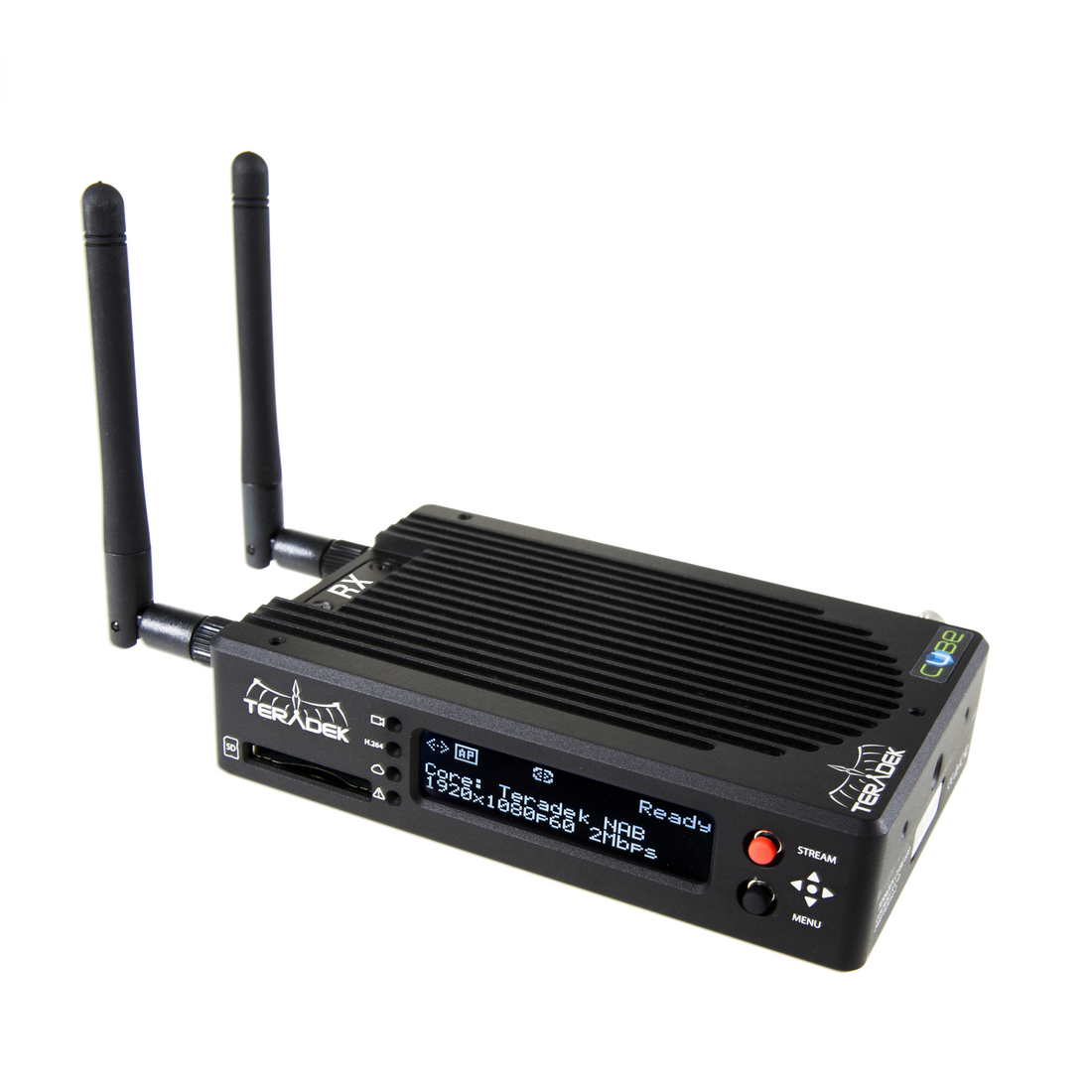

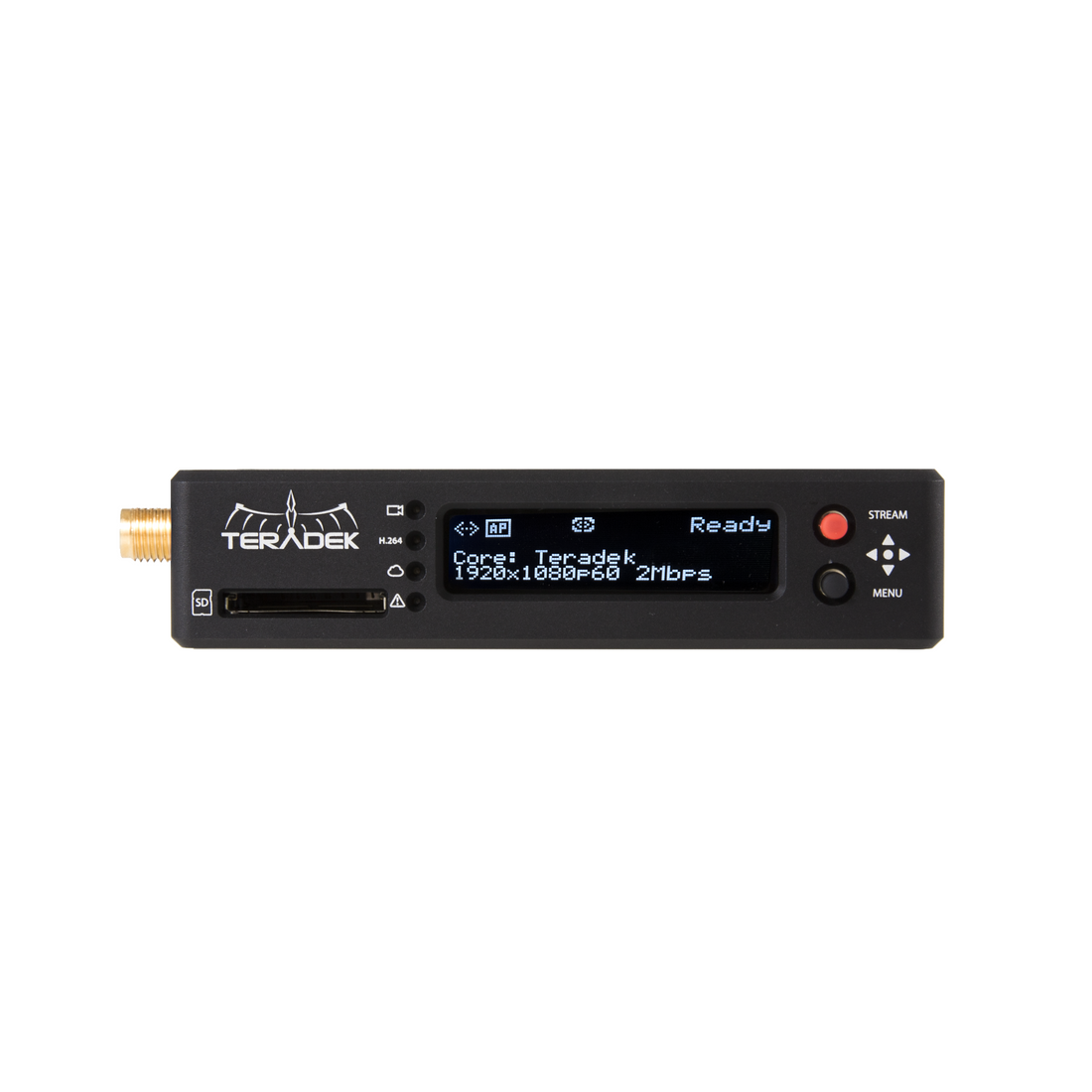

The OLED display, compact body, 1/4" thread, and power supply via an AC adapter or 2-pin battery connector support both fixed and mobile setups.
