Teradek CTRL.3 3-Axis Controller with SmallHD Intergration - Imperial

The Teradek CTRL.3 is a powerful 3-axis wireless lens controller featuring built-in lens mapping, data storage, SmallHD integration, and an ergonomic lightweight design. With a large focus knob, OLED display, removable Canon LP-E6 battery, and wireless range up to 5,000 ft, CTRL.3 provides precise professional FIZ control while displaying critical lens data directly on compatible SmallHD monitors.

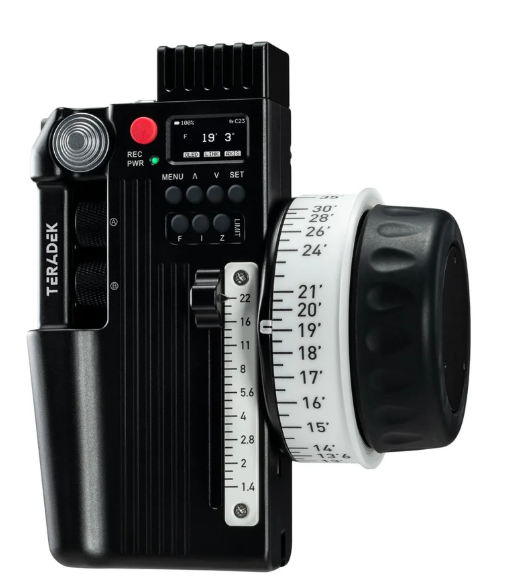

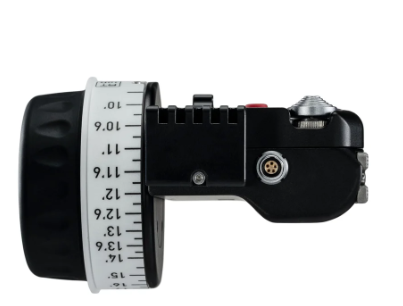

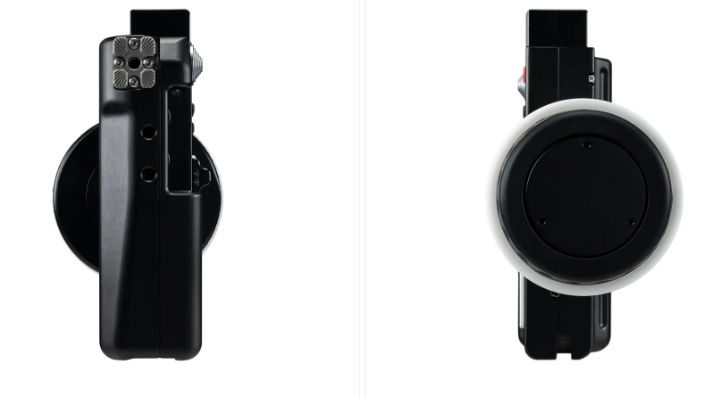

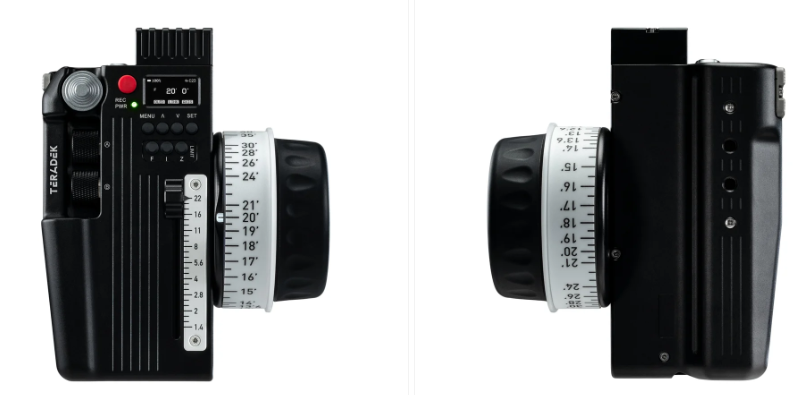

The Teradek CTRL.3 is a feature-rich 3-axis wireless lens controller designed for professional cinema camera and lens-control workflows. Its built-in lens mapping allows lenses to be automatically calibrated to pre-marked focus rings and configurations to be recalled quickly, helping camera assistants save time when changing lenses. This Imperial version includes pre-marked focus rings measured in inches.

When paired with a compatible SmallHD monitor, CTRL.3 provides critical lens data overlays directly on the monitor, including focal distance, focal length, iris, zoom, and other lens information. This allows operators and camera assistants to monitor lens data while keeping their attention on the image.

The controller features a large focus knob, OLED display, flexible mounting options, and a lightweight ergonomic design. A removable Canon LP-E6 battery provides up to 36 hours of continuous use. CTRL.3 can also be managed through the Teradek RT App for iOS, which allows users to create lens maps, configure FIZ settings, perform basic camera controls, and update firmware.

With Teradek RT FHSS 2.4 GHz and Bluetooth 2.4 GHz connectivity, CTRL.3 offers up to 5,000 ft (1,500 m) of line-of-sight wireless range in USA/FCC mode and up to 500 ft (150 m) indoors, with approximately 2 ms latency. Its aerospace-grade aluminum billet construction and multiple mounting points make it well suited for demanding professional production environments.

Key Features

• 3-axis wireless lens controller with advanced FIZ control
• Built-in lens mapping and configuration storage
• Imperial pre-marked focus rings for quick lens calibration
• SmallHD integration with lens data overlays
• Displays focal distance, focal length, iris, zoom, and more
• Large ergonomic focus knob
• OLED display for critical lens information
• Removable Canon LP-E6 battery
• Up to 36 hours of continuous battery operation
• Teradek RT App support for iOS
• Wireless range up to 5,000 ft (1,500 m) line-of-sight
• Up to 500 ft (150 m) indoor wireless range
• Approximately 2 ms latency
• Supports wired and wireless operation
• Multiple mounting options for professional rigs
• Aerospace-grade aluminum billet construction
