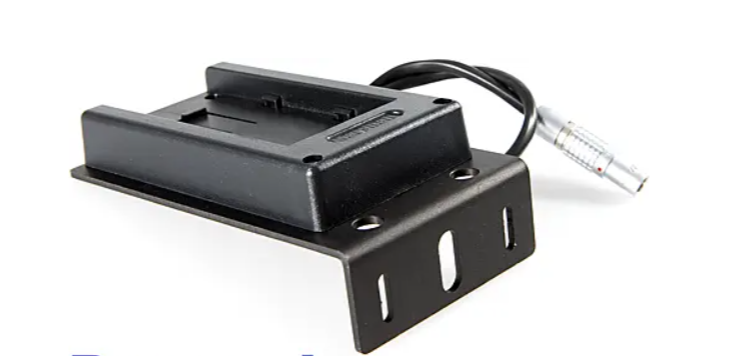

Teradek BIT-755 Panasonic VW-VBG6 Battery Plate for BOLT Transmitter/Receiver

The Teradek BIT-755 L-Bracket Battery Adapter Plate provides a compact and reliable power solution for Teradek wireless video systems when PTap or external 2-pin power sources are unavailable. Designed for Panasonic VW-VBG6 batteries, the plate mounts directly to compatible Teradek equipment and features an integrated 2-pin power connector for secure, direct power delivery without significantly affecting the balance or profile of a camera rig.

The Teradek BIT-755 Panasonic VW-VBG6 battery plate is designed to enable convenient operation of battery-powered Teradek wireless video equipment. The L-shaped adapter is compatible with small Panasonic VW-VBG6 batteries and attaches directly to the chassis of compatible Teradek devices, providing an efficient power solution for professional camera and video production setups.

The integrated 2-pin splitter connector supplies power directly to the connected Teradek device, making the adapter particularly useful in situations where a PTap or other external 2-pin power source is not available. Its compact L-shaped design ensures unobtrusive installation and helps minimize disruption to the balance and configuration of the camera rig.

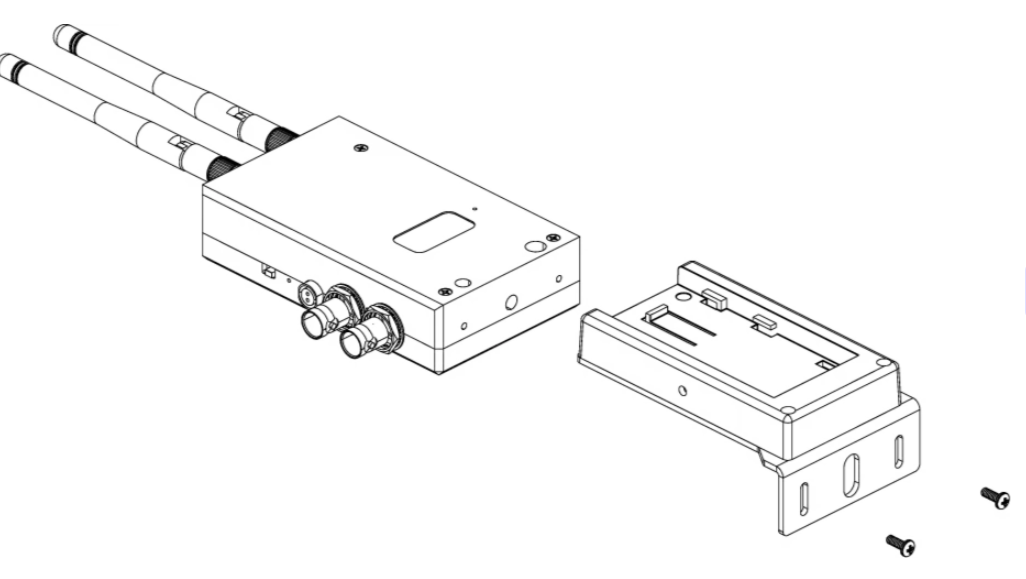

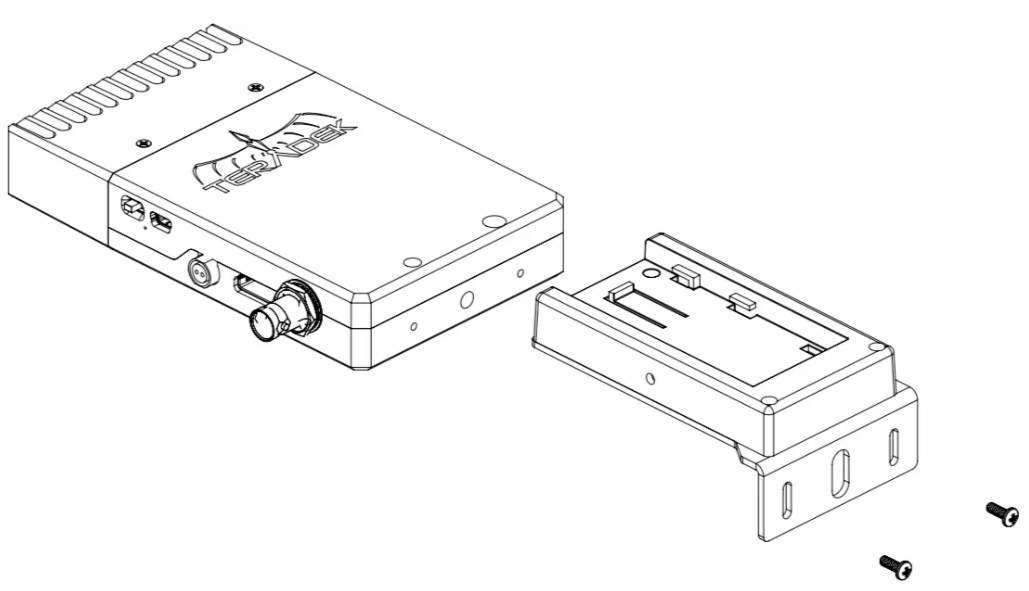

The BIT-755 is compatible with all Teradek Bolt transmitter and receiver models, as well as ServPro devices, the Cube 700 and Cube 600 series, and COLR devices. The two included 4-40 mounting screws ensure a secure attachment to compatible equipment and help maintain a stable, shock-resistant connection during filming.

Key Features

• Designed for Panasonic VW-VBG6 batteries
• Provides battery power to compatible Teradek wireless systems
• Integrated 2-pin power tap connector
• Compact L-shaped design
• Can be mounted directly onto compatible Teradek devices
• Low-profile design helps maintain the balance of the camera system
• Useful when a PTap or external 2-pin power source is not available
• Compatible with Teradek Bolt transmitters and receivers
• Compatible with ServPro products, the Cube 700, Cube 600, and COLR series
• Includes mounting screws for secure installation
