Sennheiser TeamConnect Ceiling 2 ceiling microphone array

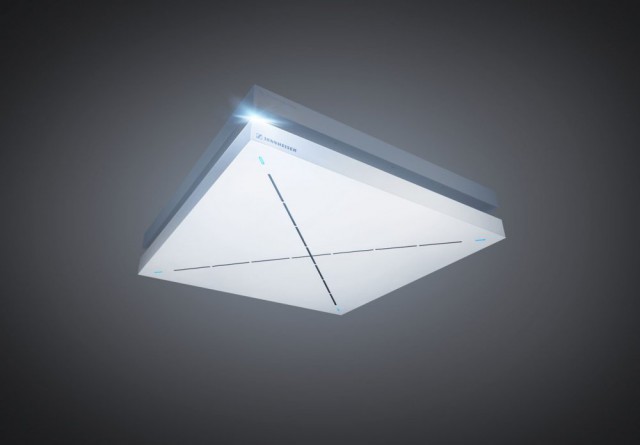

TeamConnect Ceiling 2 is a ceiling microphone the size of a classic ceiling panel that can capture sound from a room up to 60 m² in size. The panel is made up of 28 microphone modules that actively track the speaker as they move during the speech and pass the floor to other contributors.

More information

Promotion: 5 968.36 €
5 973.27 € 5 968.36 € with VAT 4 932.53 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

TeamConnect Ceiling 2 is a ceiling microphone the size of a classic ceiling panel that can capture sound from a room up to 60 m² in size. The panel is made up of 28 microphone modules that actively track the speaker as they move during the speech and pass the floor to other contributors.

Using the Sennheiser Control Cockpit software, it is possible to change the directionality and sensitivity to ensure that the microphone output signal meets the user's high demands, change the switching speed between speakers, or manage the function of the signal LEDs. A great advantage is the possibility of changing the seating order during the event, to which the microphone dynamically adapts. Compared to other systems, the sound system does not require the installation of table microphones that would interfere with the presentable appearance of the meeting room and maintains discreet sound pickup. The SL Ceiling Mic is equipped with two digital Dante as well as one analogue audio output, e.g. for simultaneous conferencing and meeting recording.

It is available in white and black.

The microphone can be installed in the following ways:

  • discreetly in the ceiling grid

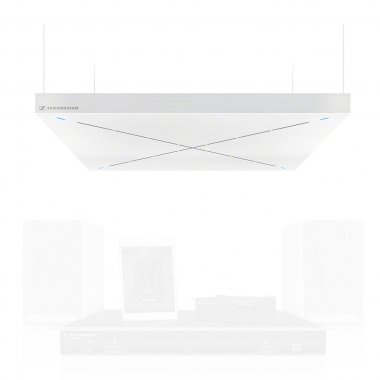

  • suspended from the ceiling on steel cables
  • directly to the ceiling using screws
  • using a VESA adapter
Additional data
Dynamic range: 93 dB(A)
Noise Equivalent: 11 dB(A)
Frequency range: 160 Hz - 18 kHz
Weight: 5.67 kg
Connector: 1 x 3 pin Phoenix audio, 2x LAN, 2x Dante
Max. sound pressure: 104 dB SPL
Microphone System: 28 x KE 10-237
Power supply: 44 - 57 V DC, PoE IEEE 802.3af Class 3
Operating Temperature: 0 - 40°C
Sensitivity switching: stepwise in three levels
Dimensions: 590 x 590 x 43 mm
Directional Characteristics: directional with preference
Sensor (microphone) type: 28 x directional condenser

PACKAGE CONTENT

  • TeamConnect Ceiling 2 microphone array ×1
  • 3-pin Phoenix connector (3.81 mm) ×1
  • Self-adhesive rubber feet ×8
  • Instruction manual ×1

SPECIFICATIONS

  • Transducer type: Pre-polarised condenser
  • Capsules: 28 electret, made in Germany
  • Frequency response: 160 – 18,000 Hz
  • Sensitivity: 0 dBV/Pa (988 mV/Pa)
  • Max. SPL: 104 dB
  • Signal-to-noise ratio: 83 dB(A)
  • Dynamic range: > 93 dB(A)
  • Latency: 4 ms
  • Audio output: 3-pin terminal (Phoenix MCVW 1.5-3-ST-3.81)
  • Power consumption: Max. 8.8 W
  • Dimensions: 590 × 590 × 43 mm
  • Weight: 5,670 g
  • Colour: Black
  • Warranty: 5 years
  • Article number: 509161
Parameters

Parameters

Manufacturer: Sennheiser
Category: Studio Microphones

Main parameters

TypeKondenzátorový
CharacteristicsPřepínatelná
