SWIT VANGO-70 | Slim and Natural-Born-Soft 1:1 professional 70W RGBW LED Panel Light, 2.1cm ultra sl

The SWIT VANGO-70 is a 70W ultra-slim 1:1 RGBW LED panel (21mm thick) delivering 1500 lux at 1 meter, with an extended 2800K–10000K CCT range, advanced color modes, and ultra-bright RGB output using SWIT’s time-division drive technology.

The SWIT VANGO-70 is a professional 70W RGBW LED panel light engineered for studio and on-location productions that require powerful output in an ultra-slim form factor. Measuring only 21mm thick, the panel uses SWIT’s patented edge-mounted SMD LEDs and 90° light guide technology to produce soft, evenly diffused illumination while maintaining an extremely compact profile.

Unlike conventional RGB panels, the VANGO-70 incorporates time-division drive technology, which allocates full power to RGB LEDs when operating in color mode. This results in significantly brighter color output—comparable to a standard 200W RGB light—while maintaining energy efficiency.

The fixture features 120 RGB LEDs and 200 white LEDs, delivering 1500 lux at 1 meter with excellent color accuracy (CRI Ra 96, TLCI 93). It supports multiple color control modes including CCT, HSI, RGB, CIE, GEL, and EFF, and includes 20 Rosco and 20 LEE digital gel presets for fast cinematic lighting setups.

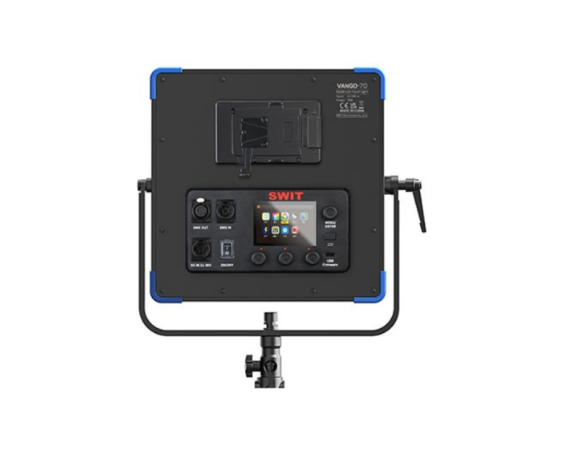

The VANGO-70 offers full control flexibility with DMX512 (3bit/6bit/7bit), Bluetooth app control (iOS/Android), and onboard operation via a 3.5-inch color LCD display. It supports a wide 11–34V DC input range and includes an integrated V-mount or Gold-mount battery plate for portable operation.

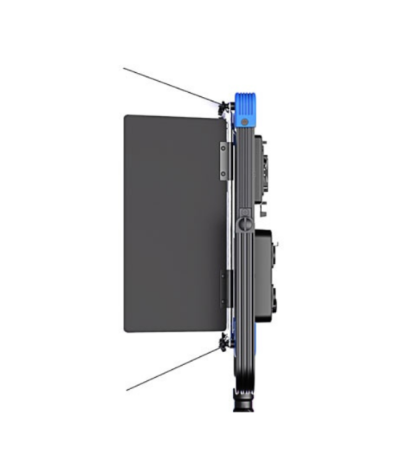

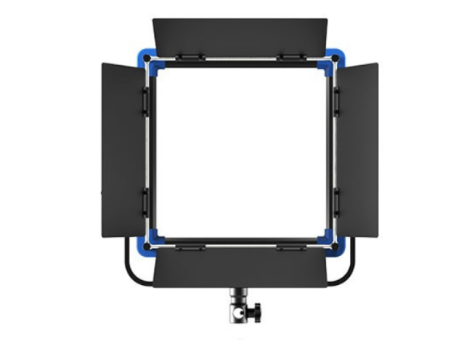

Optional accessories such as 4-panel barn doors and a 40° honeycomb grid allow for precise beam shaping and spill control. The fanless passive cooling design ensures silent operation, ideal for sound-sensitive productions.

Key Features

• 70W RGBW LED panel

• Ultra-slim 21mm thickness

• 1500 lux @ 1 meter

• 2800K–10000K adjustable CCT

• Time-division drive for ultra-bright RGB output

• CRI Ra 96, TLCI 93

• 120 RGB + 200 White SMD LEDs

• CCT / HSI / RGB / CIE / GEL / EFF modes

• 20 Rosco + 20 LEE built-in gel presets

• G/M adjustment ±1.00

• DMX512 control (3bit / 6bit / 7bit)

• Bluetooth APP control (iOS / Android)

• 3.5" color LCD interface

• Integrated V-mount or Gold-mount plate

• 11–34V DC wide voltage input

• Fanless, silent operation

• Optional barn doors & 40° honeycomb grid
