SWIT VANGO-100 | Slim and Natural-Born-Soft 2:1 professional 100W RGBW LED Panel Light, 2.1cm ultra

The SWIT VANGO-100 is an ultra-slim 2:1 RGBW LED panel delivering 100W of powerful, soft, and natural light. With a thickness of just 2.1 cm, advanced Time-Division Drive technology, and a wide 2800K–10000K CCT range, it offers high output (2200 Lux @ 1m), silent fanless operation, and full professional color control.

The SWIT VANGO-100 is a next-generation 100W RGBW LED panel engineered for professional film, broadcast, and studio lighting. Its ultra-slim 2.1 cm profile makes it ideal for tight studio grids, mobile productions, and space-sensitive setups.

Unlike conventional RGB panels that lose brightness in color mode due to fixed power-sharing between RGB and white LEDs, the VANGO-100 uses SWIT’s Time-Division Drive Technology. This innovation dynamically allocates full power to RGB LEDs when needed, delivering significantly brighter and more saturated colors—while maintaining strong CCT performance.

With a soft 2:1 form factor and wide 65° beam angle, the VANGO-100 produces flattering, natural light output equivalent to a traditional 300W RGB panel, yet consumes only 100W. It operates completely fanless, ensuring silent performance for interviews, film sets, and sound-sensitive environments.

Advanced Color Control

The VANGO-100 supports multiple professional color modes:

• CCT Mode: 2800K – 10000K with ±G/M adjustment

• HSI Mode

• RGB Mode

• CIE Mode

• GEL Mode: Integrated 20× Rosco + 20× LEE gel presets

• EFF Mode: Built-in lighting effects

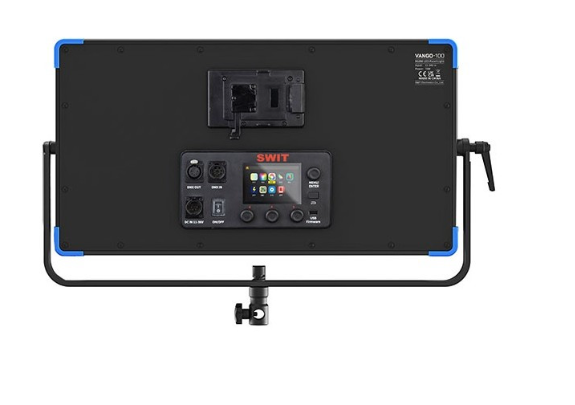

A 3.5-inch color LCD screen provides intuitive access to menus and shortcuts.

Control & Connectivity

• DMX512 (5-pin XLR In & Out)

• 3-bit / 6-bit / 7-bit DMX color control

• Bluetooth App Control via “SWIT Console” (iOS & Android)

• USB-A port for firmware updates & wireless DMX receiver power

• 4-pin XLR DC input (11–34V)

• Integrated V-mount battery plate (Gold mount optional)

Key Features

• Ultra-slim 2.1 cm profile

• 2:1 soft panel design

• 100W RGBW output

• 2200 Lux @ 1 meter

• 2800K–10000K wide CCT range

• CRI 96 / TLCI 93

• Time-Division Drive Technology

• Completely fanless, silent operation

• Built-in Rosco & LEE digital gels

• DMX & Bluetooth APP control

• Wide DC input range 11–34V
