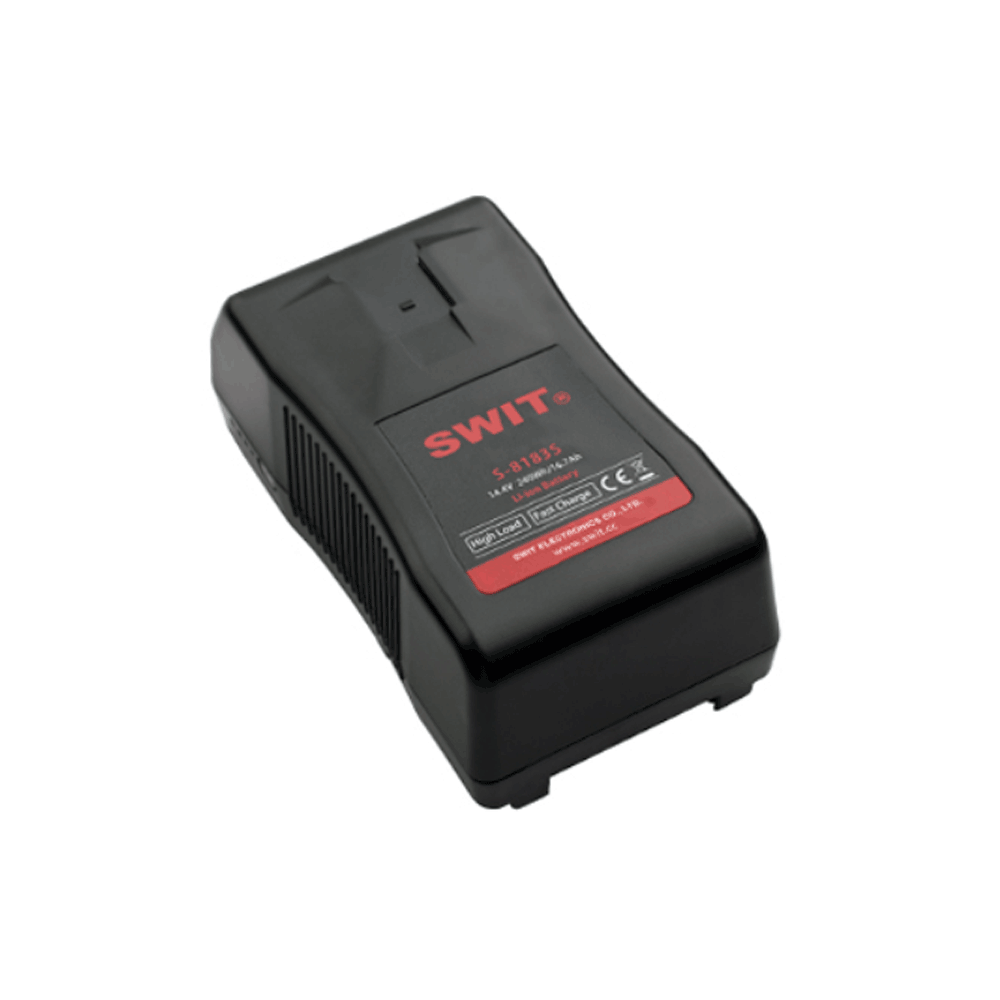

SWIT S-8183S 240Wh V-Mount battery

The S-8183S is a 240Wh V-mount Li-ion battery for professional video cameras.

Adopt High-Load Li-ion Cells
Max 180W, 15A constant power output. Perfect for high draw power application

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there're monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely
Using S-8183S high-load battery, you can get MAX 180W/15A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won't reduce battery life during long time high power output

240Wh / 16.7Ah High Capacity
Consists of 24pcs 18650 battery cells, and reaches 240Wh/16.7Ah high capacity. run approx 8 hours for normal 30W ENG cameras, and approx 2.5 hours for ARRI Alexa camera

6A Fast Charging
S-8183S supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.anced cells, to prolong the battery life

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8183S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc
The Max Power from D-tap is 120W, 10A.

4-level LED Power Indicator
On the side of the battery, there're 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using
