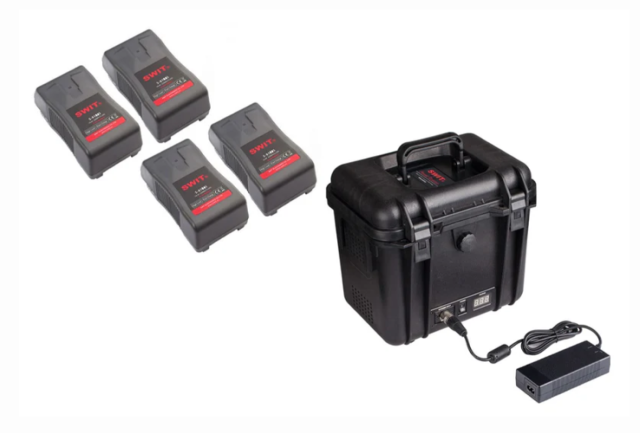

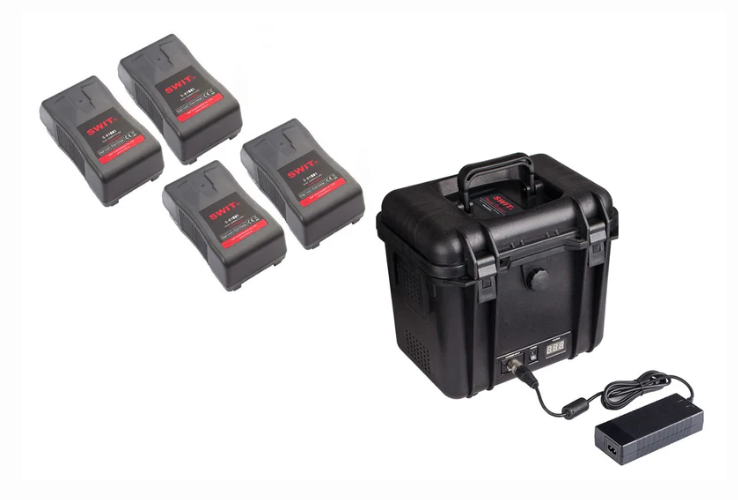

SWIT S-4030 KIT | 24/24V power station with 4*S-8180S total 880Wh power batteries

The SWIT S-4030 KIT is a high-capacity 24V portable power station featuring the S-4030 dual 24V power box and four S-8180S 220Wh high-load V-mount batteries, delivering a massive total of 880Wh. Designed for cine cameras, lighting, and mobile studios, it provides dual 24V XLR outputs, up to 15A output, and reliable high-draw performance for demanding production environments.

The SWIT S-4030 KIT is a professional 24V power station solution tailored for film, television, and mobile production setups requiring stable, high-capacity power. The kit combines the S-4030 dual 24V power station box with four S-8180S 220Wh high-load V-mount batteries, delivering a total power capacity of 880Wh.

S-4030 Power Station Box (Dual 24V)

The S-4030 is constructed with a rugged PP + fiberglass reinforced case, offering high strength, heat resistance, and durability for demanding field use. It supports 1–4 V-mount batteries and features an intelligent auto-balanced circuit that allows mixed battery capacities while optimizing performance.

Equipped with dual 3-pin XLR DC outputs, the S-4030 can simultaneously supply 22–33.6V at up to 15A, making it ideal for powering cine cameras, lighting fixtures, and studio equipment. A built-in LED panel displays real-time voltage and provides low-voltage warnings. Integrated cooling fans and multiple circuit protections (overload, over-voltage, etc.) ensure safe and stable operation.

The included 5A charger allows users to recharge batteries directly inside the unit without removing them, improving workflow efficiency.

S-8180S 220Wh High-Load V-Mount Batteries

Each S-8180S battery delivers 14.4V / 220Wh (15.3Ah) capacity and supports up to 140W / 12A constant output—perfect for high-draw cinema cameras such as ARRI ALEXA and other demanding equipment. Built with high-load Li-ion cells (24× 18650 cells), these batteries maintain stable performance without reducing lifespan under sustained high loads.

The batteries feature a standard V-mount connection with a durable metal V-wedge for secure attachment. A built-in D-tap output (14.4V nominal, up to 10A) powers accessories such as monitors, lights, and wireless systems. A 4-level LED indicator provides quick battery capacity status checks.

Key Features

S-4030 Power Station Box

• Installs 1–4 V-mount batteries

• Dual 24V (22–33.6V) 3-pin XLR DC outputs

• Max 15A simultaneous output

• Auto-balanced circuit design

• LED panel for real-time voltage & low-voltage warning

• Charge batteries inside the box (5A charger included)

• Cooling fan system

• Multiple circuit protections

• Rugged PP + fiberglass case

S-8180S Batteries (×4)

• 220Wh / 15.3Ah high-capacity

• 14.4V nominal output

• Max 140W / 12A constant output

• Built-in D-tap output (max 120W / 10A)

• High-load Li-ion cells (24× 18650)

• 4-level LED power indicator

• Standard V-mount connection
