SWIT S-2430C | 100W Bi-color LED Panel Light, DMX, V-mount

The SWIT S-2430C 100W Bi-color LED Panel Light is a professional studio and field lighting solution featuring 1152 surface-mounted LEDs, a wide 70° beam angle, and continuous color temperature adjustment from 3200K to 5600K. It offers high color accuracy (CRI ≥93, TLCI ≥97), DMX512 control, flicker-free dimming, and flexible power options via V-mount battery or AC adapter.

The SWIT S-2430C LED Panel is a high-performance bi-color studio and field light designed for professional video and broadcast applications. Featuring 1152 surface-mounted LEDs and an integrated recessed diffuser, the S-2430C produces soft, even illumination across a 70° beam angle, making it ideal for interviews, studio setups, and location shoots.

The panel offers continuous bi-color adjustment between 3200K and 5600K, allowing precise matching to ambient lighting or other fixtures. With a power output of 100W, it delivers 2500 Lux at 1 meter and supports smooth flicker-free dimming from 10% to 100% PWM for consistent light quality on camera.

Color accuracy is exceptional, with a CRI ≥93 and TLCI ≥97, ensuring accurate skin tones and faithful color reproduction for professional production. The DMX512-compatible 5-pin input/output allows full remote control of both brightness and color temperature, while the rear LCD screen displays current settings and enables touch-based DMX address configuration.

The S-2430C is powered via 12–17V DC, supporting either a V-mount battery or the included AC-DC adapter with V-shaped bracket. The panel features an all-metal casing with a 4-panel barn door for precise light shaping and a U-shaped mounting bracket with included steel safety ropes for secure tripod or ceiling installation.

Designed for versatility, high output, and professional-grade color fidelity, the SWIT S-2430C is an essential lighting tool for studio and location video production.

Key Features

• 100W LED panel with 1152 surface-mounted LEDs
• Bi-color adjustable 3200K–5600K
• 70° beam angle with recessed diffuser
• Flicker-free dimming 10–100% PWM
• High color accuracy: CRI ≥93, TLCI ≥97

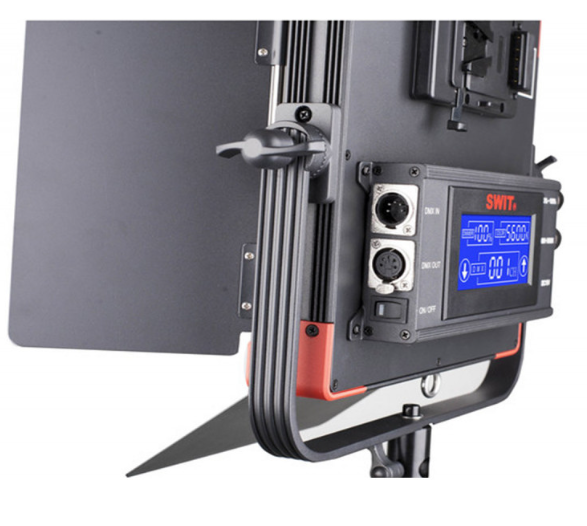

• DMX512 control for dimmer and color temperature

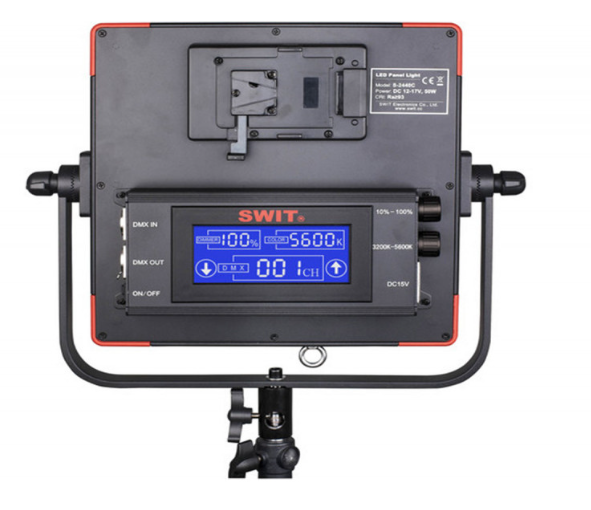

• Rear LCD screen for dimmer, color temperature, and DMX address display
• 12–17V DC power input: V-mount battery or AC adapter

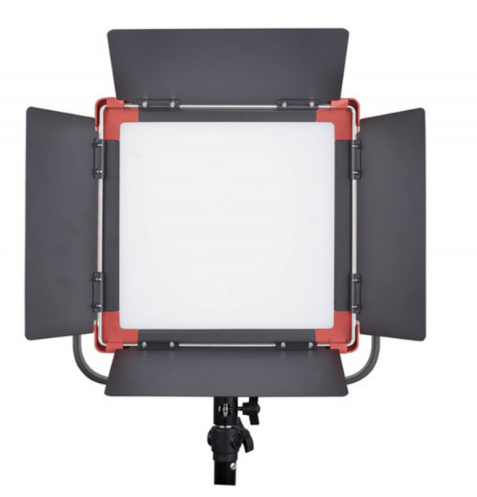

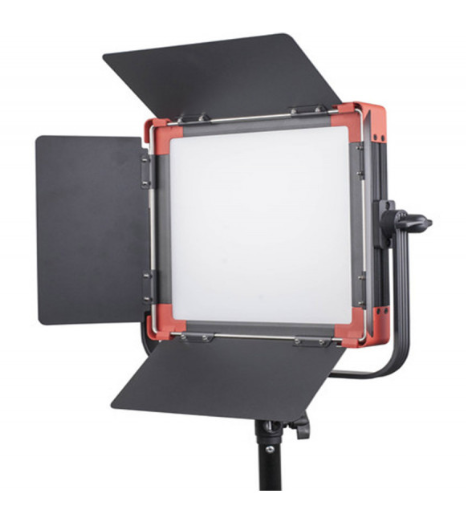

• 4-panel metal barn door for precise light shaping
• U-shaped mounting bracket with steel safety ropes
• Durable all-metal construction for studio and field use
