SWIT Mino-S210 | USB-C, tiny size with 210Wh pocket mini battery, USB-A/USB-C/D-tap, V-Mount, also i

The SWIT MINO-S210 is a compact 210Wh V-mount pocket battery delivering up to 200W/16A constant output for cinema cameras and lights. Featuring D-tap, USB-A, and 65W USB-C output with 48W USB-C fast charging input, it supports high-power devices including the RED V-Raptor while maintaining a lightweight, ultra-compact design.

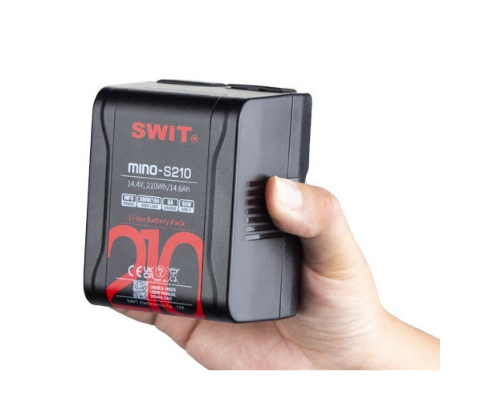

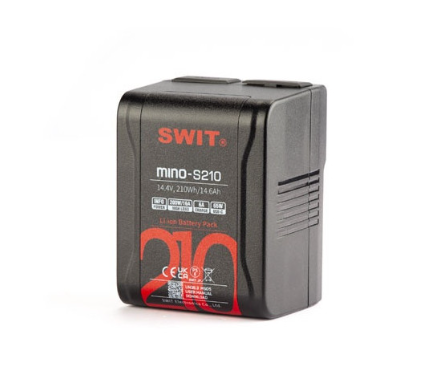

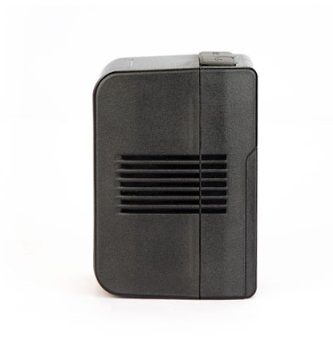

The SWIT MINO-S210 is a high-capacity 210Wh V-mount pocket battery engineered for professional cinema cameras, LED lights, and AV equipment. Despite its powerful output, it maintains a remarkably compact size (105 × 79.6 × 73.8 mm) and weighs only 1.02 kg, making it small enough to carry in a pocket while still delivering reliable high-load performance.

Designed to support demanding cameras such as the RED V-Raptor, the MINO-S210 can power the camera for approximately 3 hours. It provides a constant 200W / 16A high-load output, ideal for high-draw cinema cameras and professional lighting fixtures.

Versatile Power Outputs

The MINO-S210 offers multiple DC interfaces for flexible on-set powering:

• D-Tap (200W/16A output, 16.8V/6A input supported)

• USB-A (5V/2A, 10W output)

• USB-C (65W output, 48W PD charging input)

The 65W USB-C output supports a wide range of laptops and devices using PD2.0/3.0, QC2.0/3.0, BC1.2, FCP, and SCP protocols. The 48W USB-C PD charging input enables full recharge in approximately 5 hours using compatible chargers.

Innovative Wire-Free Internal Design

SWIT’s internal wire-free technology directly solders battery cells and output modules to the PCB, reducing internal resistance while enhancing stability, safety, and long-term reliability.

A 4-level LED power indicator provides quick battery status checks, and integrated circuit protections safeguard against overcurrent, overcharge, over-discharge, and short circuits. The battery also communicates power data to compatible SONY and RED cameras.

Built for professional reliability, the MINO-S210 is ideal for filmmakers, rental houses, and broadcast professionals who need high-capacity power in the smallest possible form factor.

Key Features

• Compact pocket-sized V-mount battery

• 210Wh / 14.6Ah high capacity

• Constant 200W / 16A high-load output

• 1× D-Tap (output & charging input supported)

• 1× USB-A (5V/2A, 10W)

• 1× USB-C (65W output, 48W PD input)

• Ultra-fast USB-C charging (approx. 5 hours full charge)

• 4-level LED power indicator

• Compatible with RED V-Raptor installation

• Internal wire-free PCB technology

• Multiple circuit protections
