SWIT FL-C400D | 400W Bi-color Studio 130000lux TLCI99 LED Fresnel Spot Light, SWIT Free Design for

The SWIT FL-C400D is a 400W bi-color COB LED Fresnel studio light delivering up to 130,000 lux at 1 meter, featuring fanless silent operation, DMX control, and high CRI/TLCI performance for broadcast, theatre, and film set installations.

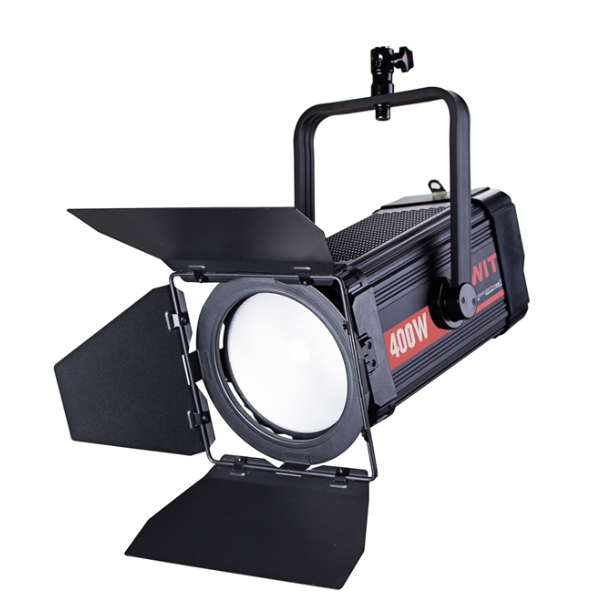

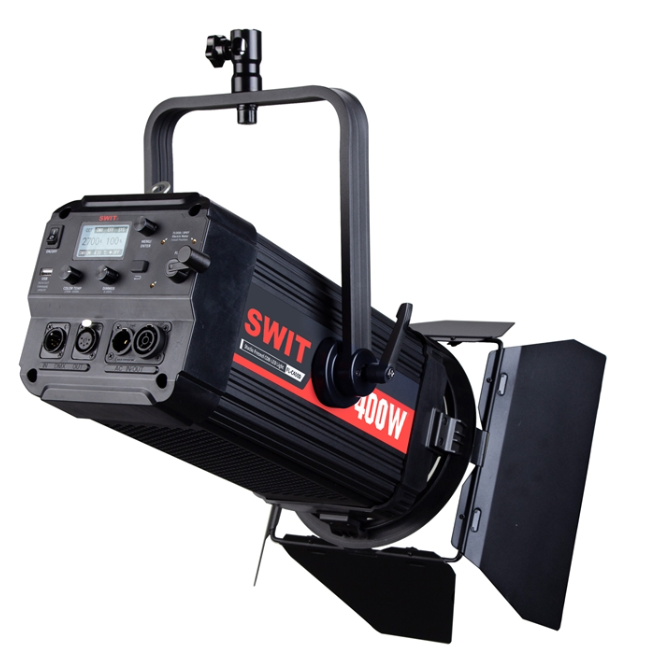

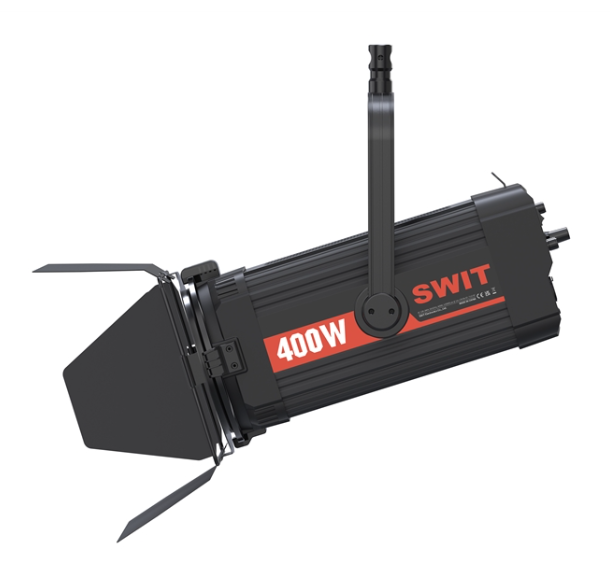

The SWIT FL-C400D 400W Bi-color Fresnel LED Light is a high-performance professional lighting solution designed for broadcast studios, theatres, and film production environments requiring powerful, precise, and silent illumination. Built around a 400W COB LED engine, the FL-C400D produces an impressive 130,000 lux at 1 meter, delivering strong, punchy hard light suitable for key lighting, long throws, and dramatic lighting effects.

The light features a 15°–50° adjustable flood/spot angle, achieved through a Fresnel and fly’s eye compound lens system, ensuring smooth beam uniformity and precise light shaping. For advanced studio setups, an optional E-motor allows DMX-controlled spot angle adjustment, enabling remote zoom operation.

With a bi-color range from 2700K to 6500K, the FL-C400D adapts seamlessly to various lighting conditions while maintaining outstanding color accuracy with CRI Ra 97 and TLCI 99. The light supports 0–100% flicker-free dimming, making it suitable for high-speed filming and broadcast use.

Designed for noise-sensitive environments, the FL-C400D includes a silent mode, allowing the cooling fans to be switched off when required. Full DMX512 control is provided, with separate DMX addresses for dimmer, color temperature, and fan operation. An integrated LCD display menu system enables intuitive on-board configuration.

Power connectivity is professional-grade with PowerCON TRUE1 AC input and loop-through output, while a USB power output supports wireless DMX receivers. The fixture includes 4-leaf metal barn doors and a robust yoke bracket, with an optional pole-operated yoke available for studio grid installations.

Key Features

• 400W COB LED Fresnel studio light

• 130,000 lux @ 1 meter high-output hard light

• 15°–50° adjustable flood/spot beam angle

• Optional DMX motorized zoom control

• Fresnel + fly’s eye compound lens system

• Bi-color 2700K–6500K adjustment

• CRI Ra 97, TLCI 99 for accurate color reproduction

• 0–100% flicker-free dimming

• Fanless silent mode for noise-sensitive environments

• DMX512 input & output control

• Independent DMX control for dimmer, CCT, and fan

• USB power output for wireless DMX receiver

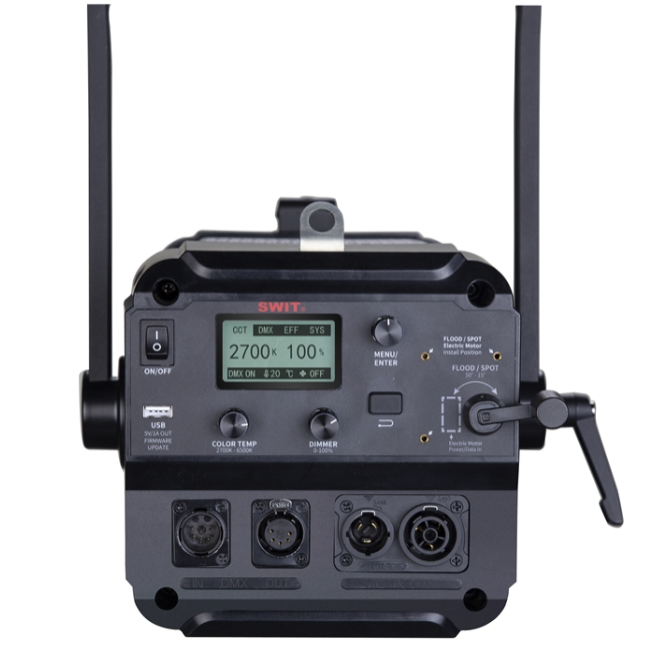

• LCD display with intuitive menu system

• PowerCON TRUE1 AC input and loop output

• Includes 4-leaf barn doors and yoke bracket

• Optional pole-operated yoke available
