Sony UTX-M40/K42

UWP-D Series Wireless Handheld Microphone (Channel 42)

More information

350.9 € with VAT 290 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

UWP-D Series Wireless Handheld Microphone (Channel 42)

  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
  • Interchangeable head for wide choice of microphone capsules
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Variable muting function
  • Compatibility with Sony WL-800/UWP/UWP-D series
  • High visibility OLED display, ideal for indoor/outdoor use

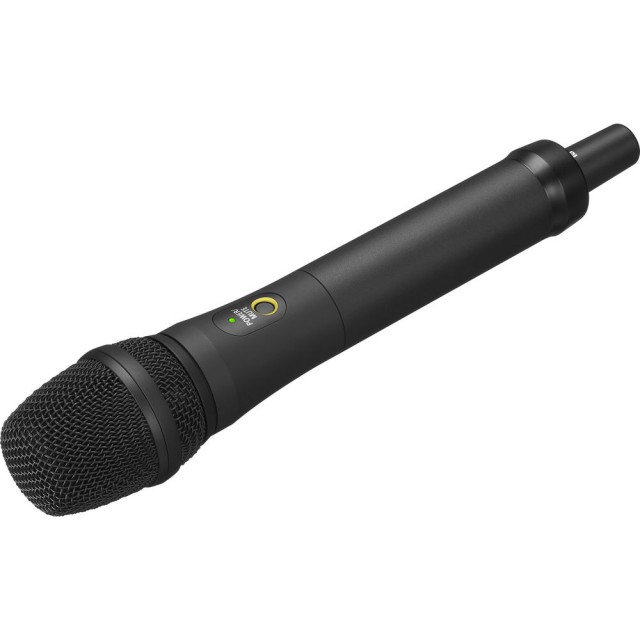

TheSony UTX-M40 is a wireless handheld microphone transmitter compatible with the URX-P40 camera-mount receiver. The rugged, all-metal design is comfortable for performers and presenters to hold and is well suited for tough operating conditions. The transmitter offers a 72 MHz bandwidth with 2772 selectable UHF frequencies. It provides up to 8 hours of operation on two AA batteries, with an adjustable 5/30mW RF power output and a transmission range up to 330'.

The UTX-M40 features a dynamic microphone capsule with a cardioid pickup pattern that focuses audio capture on the presenter in front of the mic while reducing unwanted background noise. The transmitter uses an interchangeable mic capsule design compatible with over 40 different capsules from various manufacturers
The UTX-M40 is backward-compatible with Sony WL-800 and UWP Series systems.

High-Quality Sound with Digital Audio Processing

Unlike traditional analog wireless systems, the UWP-D supplements its proven analog UHF transmission technology with a proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that's intelligible and nuanced.

The handheld mic features a dynamic mic capsule with a directional cardioid polar pattern that helps to reject unwanted background sound, making it ideal in noisy environments such as trade-show floors or busy public areas.

Automatic NFC Sync Mode

Press and hold the NFC/Sync button on the receiver and it scans for the cleanest RF channel. Simply hold the transmitter next to the receiver; it automatically syncs up and you're good to go!

Unlike purely digital systems, the UTX-B40 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.

Auto-Gain Mode to Prevent Mic Distortion

Auto-Gain mode saves you the time and aggravation of setting and managing the input level on the transmitter. It uses a limiter to help prevent distortion, great when the loudness of the presenter's voice is unknown.

The +15 dB Gain Volume-Boost mode boosts the mic gain by 15 dB to compensate for situations when the mic is not close enough to the presenter's mouth and the audio level is insufficient.Manual input-level setting is also available.

High-Visibility OLED Display for Indoor/Outdoor Use

The unit features an easy-to-read OLED display. The quick response of the display lets you see the operating conditions clearly and accurately in real time, even in bright sunlight.

DSP Filter Removes Occupancy Sensors Artifacts

Two levels of DSP filtering help remove the artifacts caused by occupancy sensors used in modern "green" buildings to turn off lights when people leave a room.

Multiple Powering Options

Two AA batteries (alkaline or NiMH rechargeable type) power the transmitter for up to 8 hours.

The unit can also be powered through its USB port, allowing it to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.

A battery count-up timer allows for accurate reading of battery running time to minute accuracy.

Other Features

  • Low-cut filter reduces plosives and filters out noise caused by wind and machinery - Off / Low (100 Hz) / Mid (150 Hz) / High (200 Hz)
  • Simple menus make navigation easy. Advanced menus for in-depth control are also available
  • The Power/Mute button can be programmed for latched or momentary muting. It can also be used as a momentary talk button.
  • You can operate up to 16 mics in one location.

Compatibility with Other Sony Wireless Systems

The UWP-D transmitter can be used with a UWP Series or WL-800 Series receiver. A UWP Series or WL-800 Series transmitter can be used with a UWP-D receiver.

PACKAGE CONTENT

  • Sony UTX-M40
  • Wireless Handheld Cardioid Microphone Transmitter
  • Microphone Holder

SPECIFICATIONS

Oscillator Type
Crystal-controlled PLL synthesizer

Antenna Type
1/4 ? wavelength wire antenna

Carrier Frequencies
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

RF Output Power
30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)

Capsule Type
Dynamic

Directivity
Uni-directional

Reference Audio Input level
-55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)

Maximum Audio Input Level
151 dB SPL (21 dB attenuation, using supplied microphone unit)

Audio Attenuator Adjustment Range
0 dB to 21 dB (3 dB steps)

Frequency Response
70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
70 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio
60 dB (-60 dBV, 1 kHz sine wave input)
102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)

Distortion
0.9% or less (-60 dBV, 1 kHz input)

Audio Delay
Approx. 0.35 ms

Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display
OLED

Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery life*
Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature
-20 °C to +55 °C (-4 °F to +131 °F)

Dimensions
o48 × 258 mm (1 15/16 × 10 1/4 in.) (diameter / length)

Mass
Approx. 255 g (9.0 oz) (excluding batteries)
