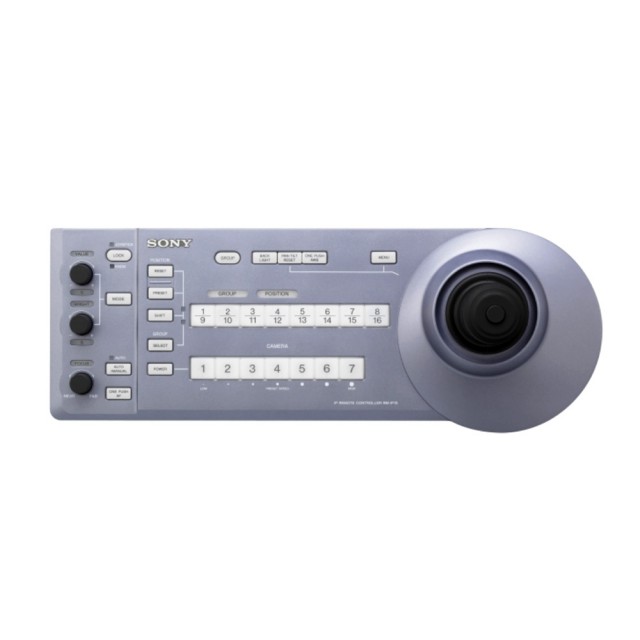

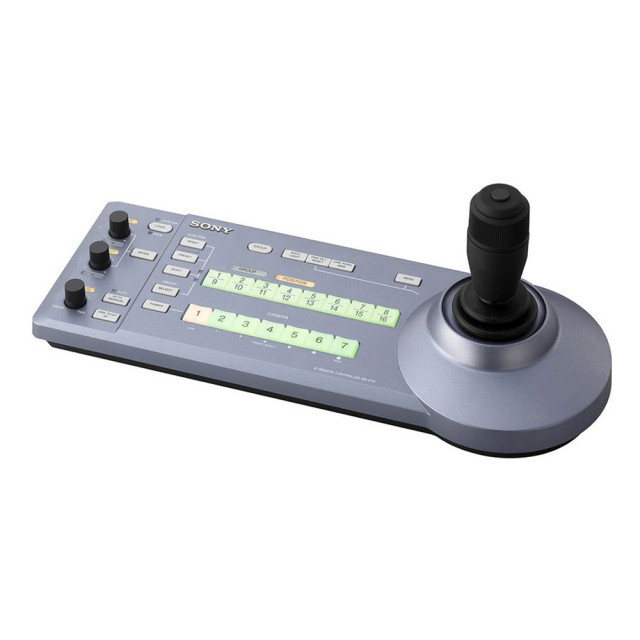

Sony RM-IP10
SKU: RM-IP10
IP Remote Control Unit for BRC, SRG cameras.
1 512.5 € 1 484.55 € with VAT
1 226.9 € without VAT
Availability
on request
Top accessories for Sony RM-IP10
Sony SRG-X120 (Black)
IP 4K PTZ camera with 12x zoom and NDI®*|HX output capabilityThe camera's ability
2 232.76 €
on request
Sony BRC-H800/W HD PTZ camera
Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent
5 819.45 €
on request
Sony BRC-X400 (Black)
The Sony BCR-X400 is a 4K PTZ camera with 40x zoom, 1/2.5" Exmor R CMOS sensor, 3G-SDI,
4 608.06 €
on request
Sony BRC-H800 HD PTZ broadcast camera
Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent
5 819.45 €
on request
BRC-H800W/AC HD PTZ broadcast camera
Sony BRC-H800/AC (BRCH800AC) white, includes AC Adaptor, HD PTZ Camera with 1" Exmor
5 819.45 €
on request
Sony SRG-X400 (Black)
IP 4K PTZ camera with 40x zoom and NDI®*|HX output capabilityThe camera's ability
2 850.34 €
on request
Sony BRC-H800/AC HD PTZ camera
Sony BRC-H800/AC (BRCH800AC) HD PTZ Camera (BLACK ver, Includes AC Adapter) with
5 819.45 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
IP Remote Control Unit for BRC, SRG cameras.
Control of up to 112 BRC cameras via an IP network
The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network, or 7 cameras over a traditional VISCA-controlled network. Up to 5 remote control panels can share control of the system
Easy to install control for BRC-H900, BRC-Z330 and BRC-Z700 cameras
The RM-IP10 is compatible with Sony's BRC-X400*1, SRG-X400*1, SRG-X120*1, BRC-X401*1,*2, SRG-201M2*1,*2, SRG-HD1M2*1,*2, BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG-300H, SRG-120DU, SRG-120DH and SRG-120DS cameras when they are fitted with the BRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with the BRBK-IP7Z option board. Easy and economical installation and set-up saves you time and cost.
*1 Requires firmware V2.17
*2 Model sold in China only
Easy to install control for BRC-H900, BRC-Z330 and BRC-Z700 cameras
The RM-IP10 is compatible with Sony's BRC-X400*1, SRG-X400*1, SRG-X120*1, BRC-X401*1,*2, SRG-201M2*1,*2, SRG-HD1M2*1,*2, BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG-300H, SRG-120DU, SRG-120DH and SRG-120DS cameras when they are fitted with the BRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with the BRBK-IP7Z option board. Easy and economical installation and set-up saves you time and cost.
*1 Requires firmware V2.17
*2 Model sold in China only
Control of up to 112 BRC cameras via IP
The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network
Additional ability to use VISCA control
The RM-IP10 can also control up to 7 BRC cameras over a traditional VISCA (Video System Control Architecture) network
Compatible Sony cameras
The RM-IP10 is compatible with Sony's BRC-X400, SRG-X400, SRG-X120, BRC-X401*, SRG-201M2*, SRG-HD1M2*, BRC-H900, BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG-300H, SRG-120DU, SRG-120DH and SRG-120DS cameras when they are fitted with the BRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with the BRBK-IP7Z option board.
*Model sold in China only
Simple RJ-45 (10Base-T/100Base-TX) connection for easy connection
The RM-IP10 links to an IP network with via a RJ-45 connector providing very easy, low cost and speedy installation
PC configuration software supplied
The RM-IP10 provides for convenient configuration of system IPs and BRCs numbers, with location free configuration of anetwork
Up to 5 controllers can operate on a single network
Up to 5 RM-IP10 control panels can be used on a single network allowing shared control and simultaneous multi-operator control of large camera systems
Simultaneous Preset recall to all cameras under control
Instantaneous set-up of multiple cameras provides a big time saving for camera adjustments.
PACKAGE CONTENT
- Operating Instructions (1)
- AC Power Adapter (SONY)(1)
- AC power cord (1)
- CD-ROM (1)
- RS-422 connector plug (attached to the unit) (2)
SPECIFICATIONS

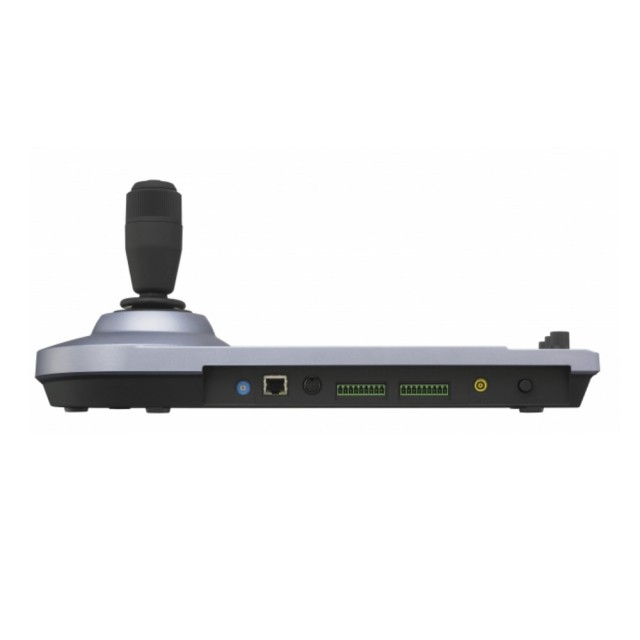

Input/output connectors
Control input/output
VISCA RS-232C OUT Connector : Mini DIN 8pin type
VISCA RS-422 connector: 9-pin type LAN : RJ-45, 10BASE-T/100BASE-TX automatically detected
Tally In/Contact Out: 9-pin type
VISCA RS-422 connector: 9-pin type LAN : RJ-45, 10BASE-T/100BASE-TX automatically detected
Tally In/Contact Out: 9-pin type
Control signal format
9,600 bps/38,400 bps (for RS-232C/RS-422 communication)
VISCA over IP communication
VISCA over IP communication
Power Connector
JEITA type 4 (DC IN 12V)
General
Input voltage
12V DC (10.8 to 13.2V DC)
Current consumption
0.3A max. (at 12V DC), 3.6W
Operating temperature
0℃ to 40 ℃ (32°F to 104°F )
Storage temperature
-20℃ to 60 ℃ (-4°F to 140°F )
Dimensions (W x H x D)
391.3 mm x 165 mm x 145.9 mm
(15 ½ inches x 6 ½ inches x 5 ¾ inches)
(15 ½ inches x 6 ½ inches x 5 ¾ inches)
Mass
Approx. 950g (2 lb 15 oz)
User Interface
Display
No
Speed Control
No
Zoom Seesaw Lever
No
Zoom Ring of Joystick
Yes
Zoom Control selectable
Ring of Joystick
ASSIGN button
0
Kensington lock hole
No
Camera Control
Maximum IP Connections
112
Maximum Serial Connections
7
Control Protocol
VISCA over IP/VISCA RS-422/VISCA RS-232C switchable
max Controller qty (/sys)
5
Direct Function of Buttons/Knobs
Exposure mode selection
No
One-push white balance auto adjustment
No
One-push black balance auto adjustment
No
Toggle color bars output on/off
No
Toggle backlight compensation on/off
Yes
Toggle flicker compensation on/off
No
Display the status of iris,gain,shutter speed and zoom position
No
R gain and B gain adjustment
Yes *1
R black and B black adjustment
Yes *1
Master black adjustment
No
Detail level display
No
Detail level adjustment
No
Knee point display
No
Knee point adjustment
No
AE level display
No
AE level adjustment
No
Iris setting display
No
Iris value adjustment
Yes *1
Gain setting display
No
Gain value adjustment
Yes *1
Shutter speed display
No
Shutter speed adjustment
Yes *1
Supplied Accessories
Supplied Accessories
Operating Instructions (1)
AC Power Adapter (SONY)(1)
AC power cord (1)
CD-ROM (1)
RS-422 connector plug (attached to the unit) (2)
AC Power Adapter (SONY)(1)
AC power cord (1)
CD-ROM (1)
RS-422 connector plug (attached to the unit) (2)
Notes
*1
Need multiple button/knob/DIP SW operation
Available functions/specifications depend on camera specification
