Sony CBK-WA02 Wireless LAN Adapter

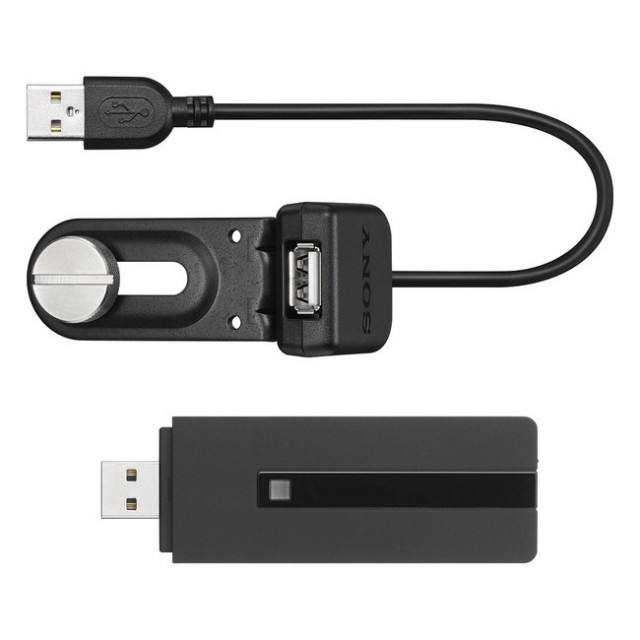

The CBK-WA02 Wireless LAN adapter enables wireless data transfer from specified Sony camcorders to other devices on the same network. The kit consists of two units: the CBK-WA02 Wireless LAN Adapter and CBK-NA1E - modem attachment for 3G/4G/LTE communication. This kit is designed for use with camcorders such as PXW-X500, PXW-X200 and PXW-X180 that are compatible with wireless LAN network operation and have appropriate firmware. (CBK-WA02 support is due in updated PXW-X180 and PXW-X500 firmware scheduled for Autumn 2015. PXW-X200 V2 firmware release date is to be confirmed. Please refer to Resources section of appropriate product pages to always see latest firmware.) CBK-WA02 is also compatible with wireless adapters CBK-WA100 and CBK-WA101 with V2.0 or greater firmware installed.

Specification:

• Weight: Approx. 20g
• Dimensions: 25.5x11x81mm
• Power requirements: DC 5V
• Power consumption: 2.5W
• Operating temperature: 0 to +40°C
• Standards compilance: IEEE 802.11a/b/g/n/ac
• Security: 64/128bit WEP, WPA/WPA2
• Frequency: Europe - 2.400 GHz - 2.483 GHz, 5.150 GHz - 5.350 GHz, 5.470 GHz - 5.725 GHz, 5.730 GHz - 5.850 GHz
• Data rate (standard value): Max. 866 Mbps (IEEE802.11ac), Max. 300 Mbps (IEEE802.11n), Max. 54 Mbps (IEEE802.11a, IEEE802.11g), Max. 11 Mbps (IEEE802.11b)
• Host interface: USB 2.0 Type A
