SmallRig V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3203

+4
  • SHOWROOM PRAHA
  • LAST PIECE
SKU: 3203B

A SmallRig V-mount battery adapter plate with a dual 15 mm rod clamp. It powers the camera and the accessories around it: two 12 V outputs, one 8 V, a 14.8 V D-Tap and a 5 V/2 A USB port. Mount it on LWS rods or via the 1/4"-20 threads.

More information

141 € with VAT 116.53 € without VAT
Add to Compare Price history
Personal pickup: 02. 11. from 09:00
Shipment day: 02. 11.
In stock 1 pcs
Praha 1 pcs
SKU:
3203B
Add to Compare Price history

Top accessories for SmallRig V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3203

Super lightweight 15mm RailBlock 3 942

The aluminium alloy SmallRig 942 railblock holds a rig on 15mm rods and weighs only
12 €
In stock > 5 pcs

CONST LB-65V V-mount 65Wh Li-ion battery

  • Sales
CONST LB-65V V-mount Li-ion battery (4.4Ah, 65Wh, 14.8V)
178 €
To be sent > 5 pcs

SmallRig Mini V Mount Battery Plate 2987

V-mount plate that clamps a large V-mount battery onto a camera rig; power comes
27 €
In stock > 5 pcs

SmallRig DC5525 to 2-Pin Charging Cable for BMPCC 4K/6K 2920

SmallRig DC5525 to 2-Pin Charging Cable for BMPCC 4K/6K 2920 is designed for use
23 €
To be sent 2 pcs

SWIT SC-302S dual channel sequential V-Mount charger

SWIT SC-302S is a 2-channel sequential charger for V-Mount batteries
241 €
3-5 days

CONST LB-190V V-mount 190Wh Li-ion battery

CONST LB-190V V-mount Li-ion battery (12.8Ah, 190Wh, 14.8V)
299 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

A SmallRig V-mount battery adapter plate with a dual 15 mm rod clamp. It powers the camera and the accessories around it: two 12 V outputs, one 8 V, a 14.8 V D-Tap and a 5 V/2 A USB port. Mount it on LWS rods or via the 1/4"-20 threads.

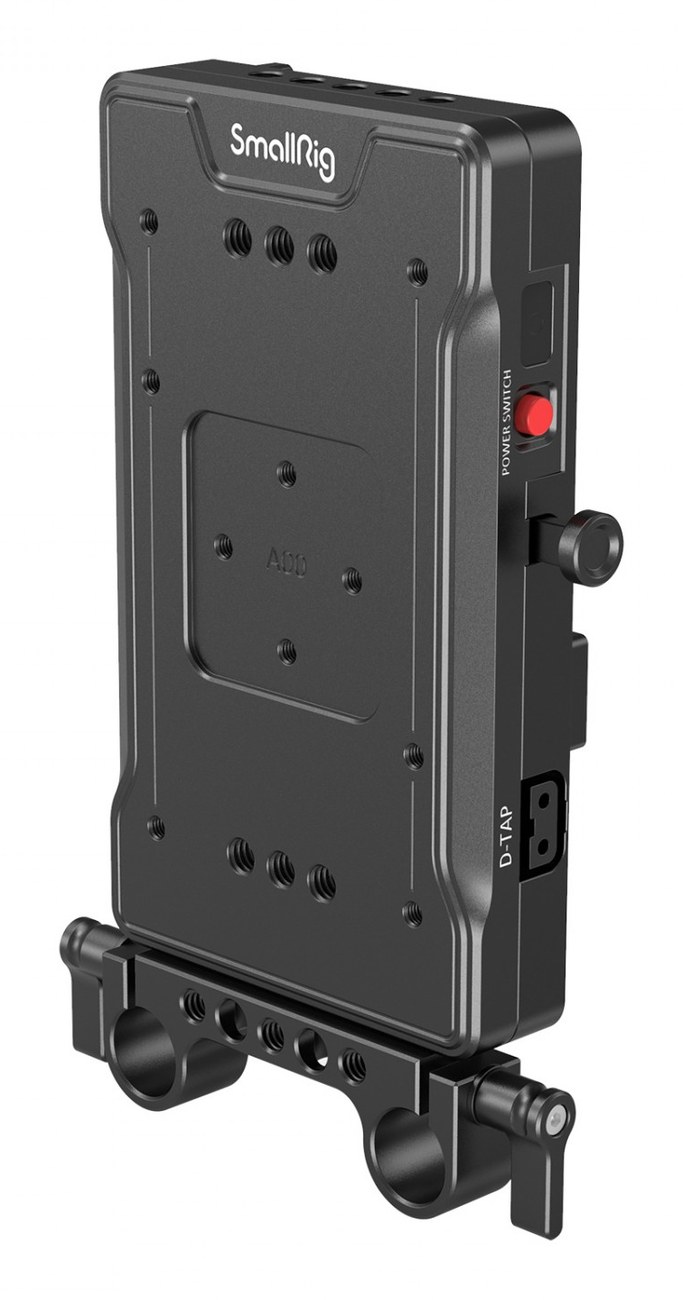

V-mount plate with 15 mm dual rod clamp

A SmallRig V-mount battery adapter plate with a dual 15 mm rod clamp.

V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3203

Five power outputs

Two 12 V outputs, one 8 V, a 14.8 V D-Tap and 5 V/2 A USB power the camera and accessories from a V-mount battery.

One power switch

It controls all outputs at once.

15 mm rod clamp

The dual clamp fixes the plate to a 15 mm LWS rod system.

1/4"-20 threads

On the back, top and bottom for the clamp, arm or other accessories.

5 V/2 A USB

Powers a phone or a wireless video transmitter.

Key Features:

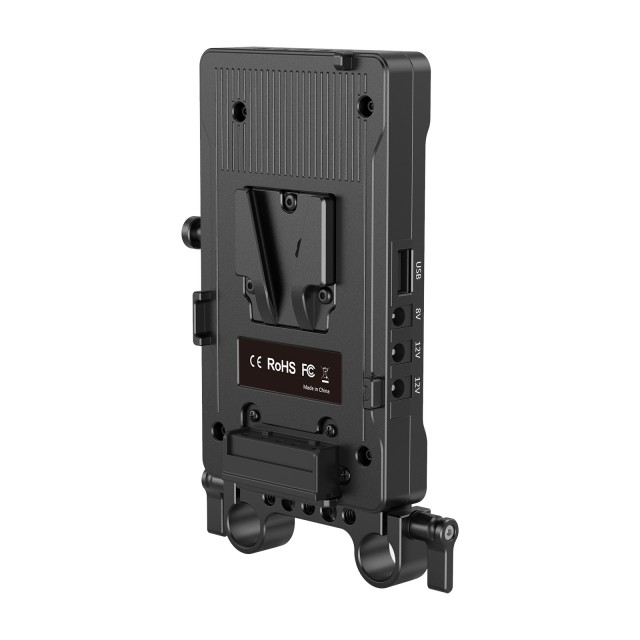

1. The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig.

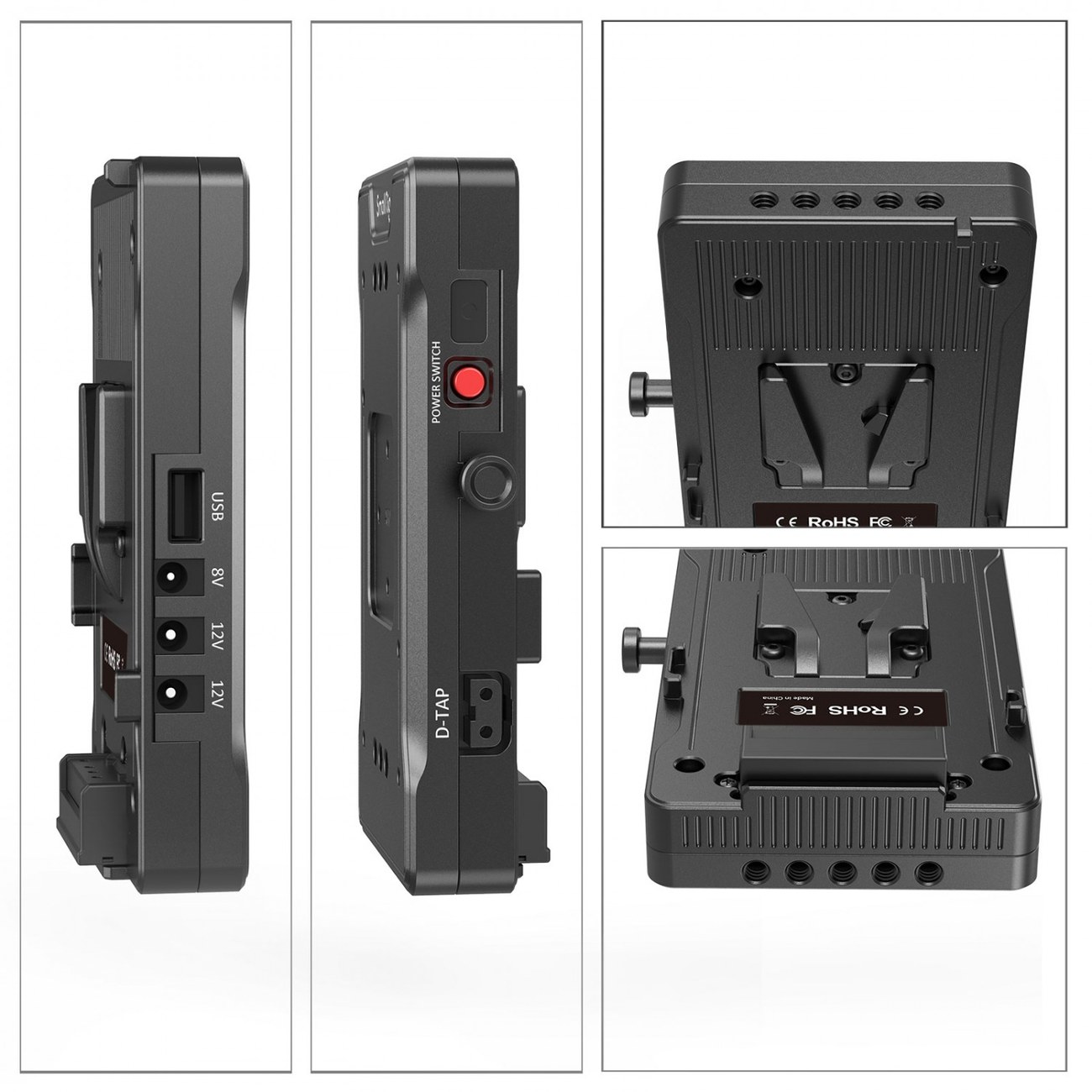

2. The plate provides different output ports, including an 8V DC output port, two 12V DC output ports, and a 14.8V D-Tap output port.

V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3203

3. The plate provides a 5V/2A USB output port to power a phone or a wireless video transmitter via a V mount battery.

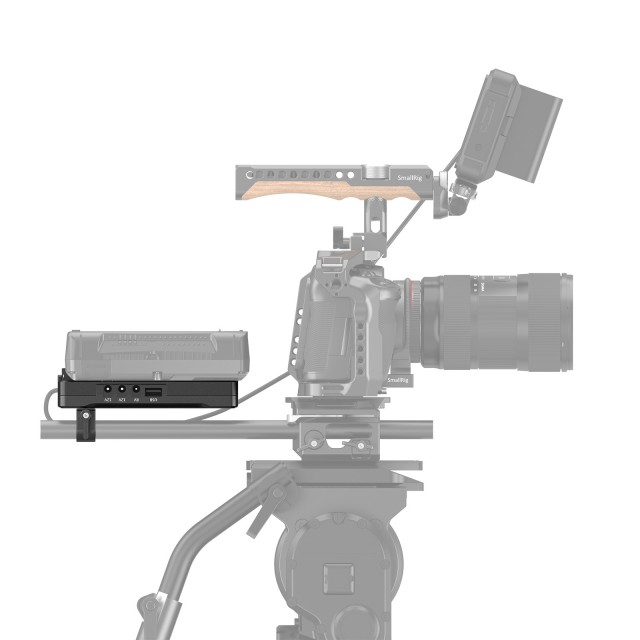

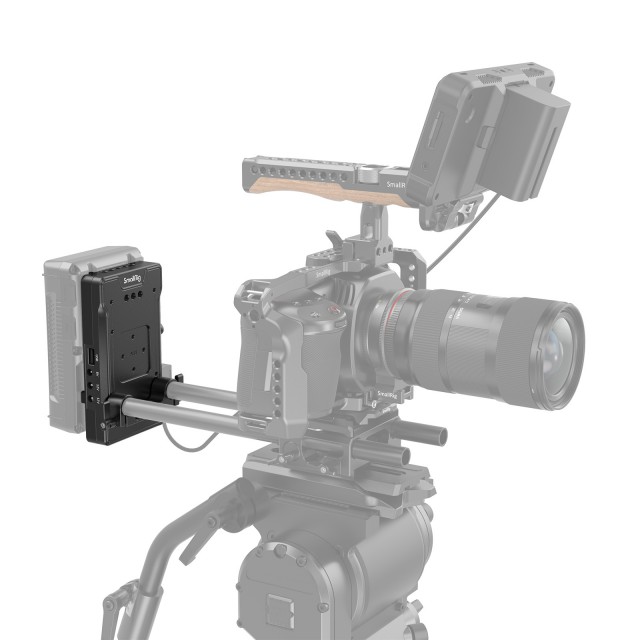

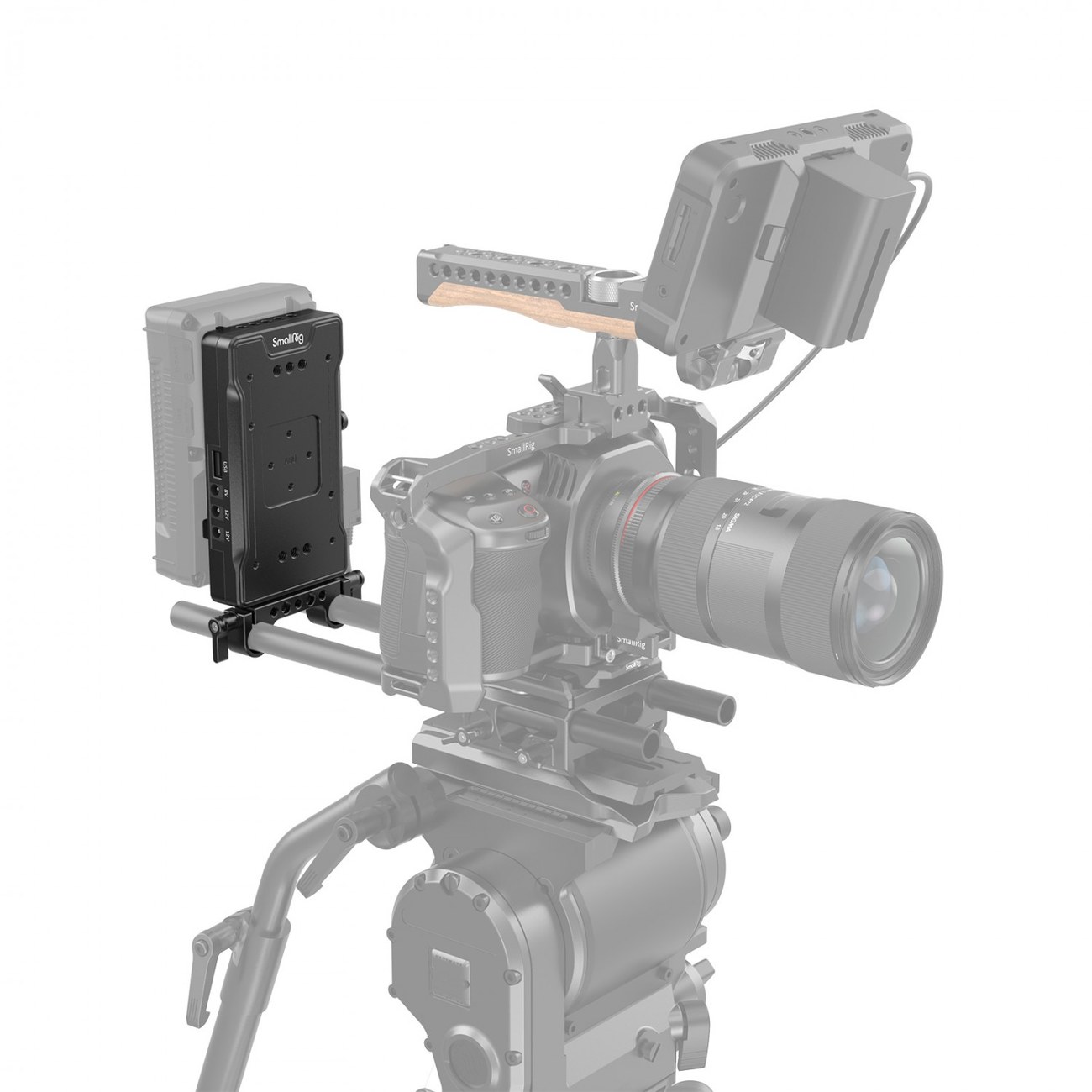

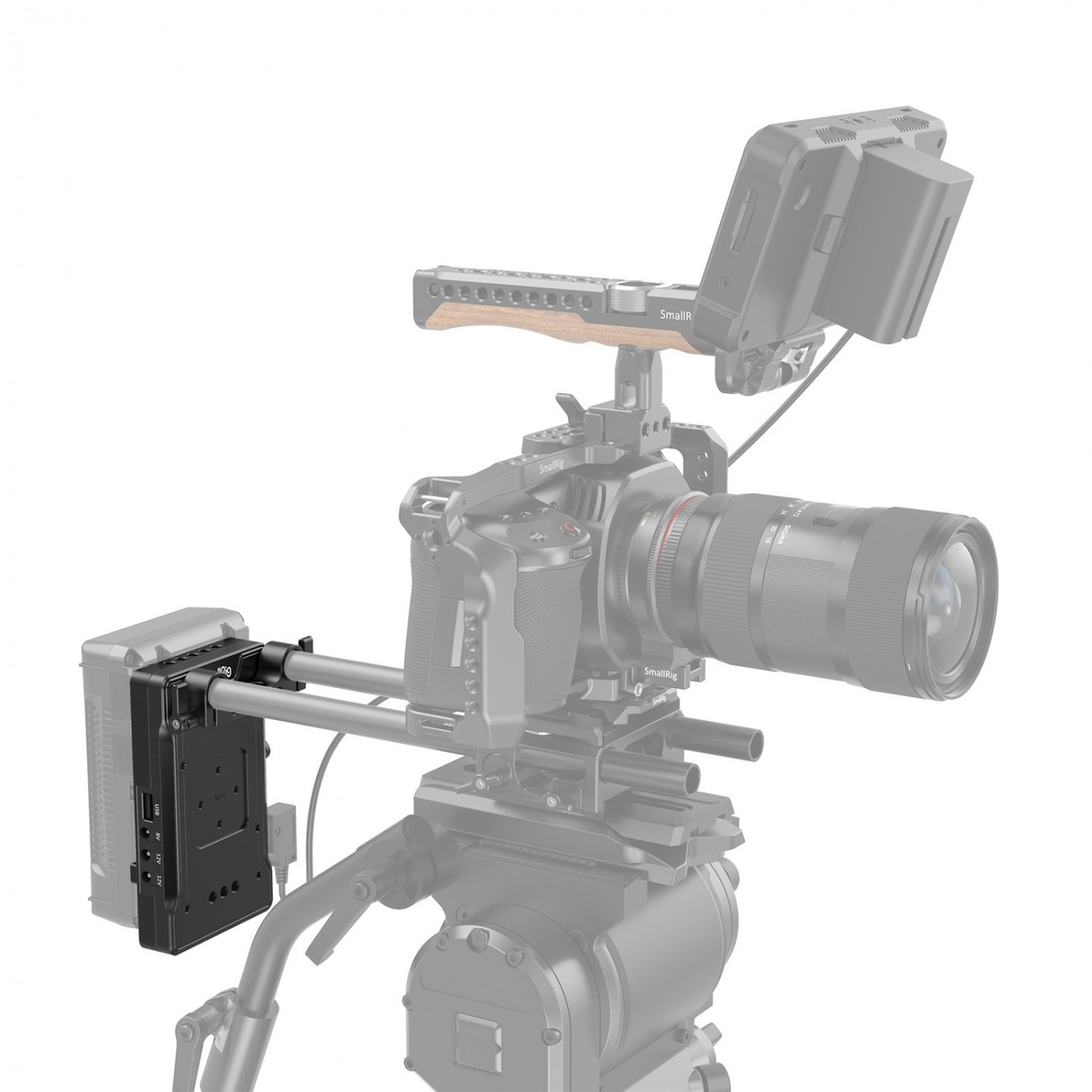

4. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system.
5. It features multiple 1/4”-20 thread holes on the back, top, and bottom to attach a dual rod clamp, a magic arm, or other accessories.

V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3203

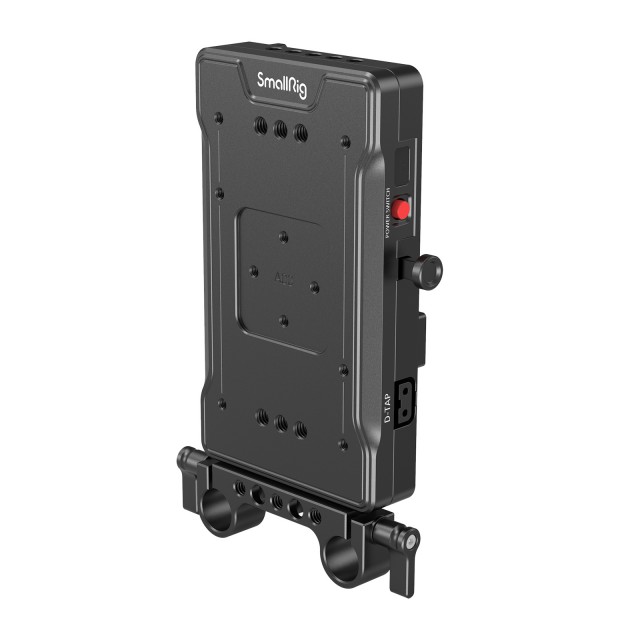

A switch on the plate controls every output at once, so the whole rig goes on and off with one press.

Note:
1. Do not use in damp environment to avoid short circuit;

V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3203

Compatibility:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

V Mount Battery Adapter Plate with Dual 15mm Rod Clamp 3203

PACKAGE CONTENT

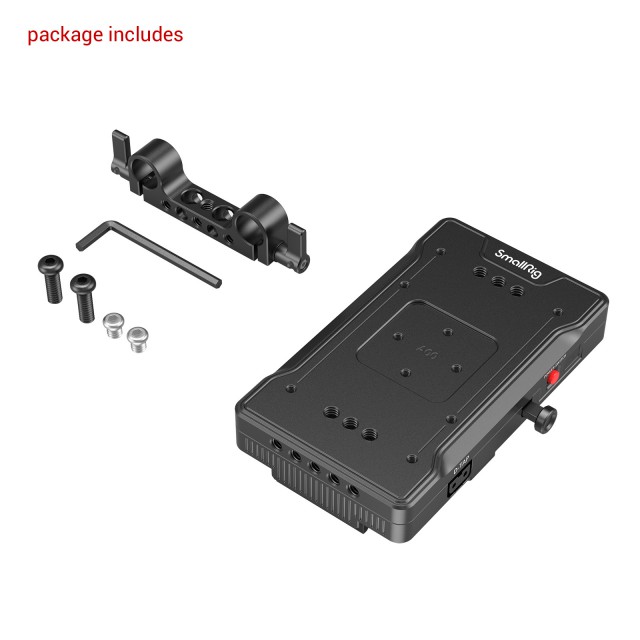

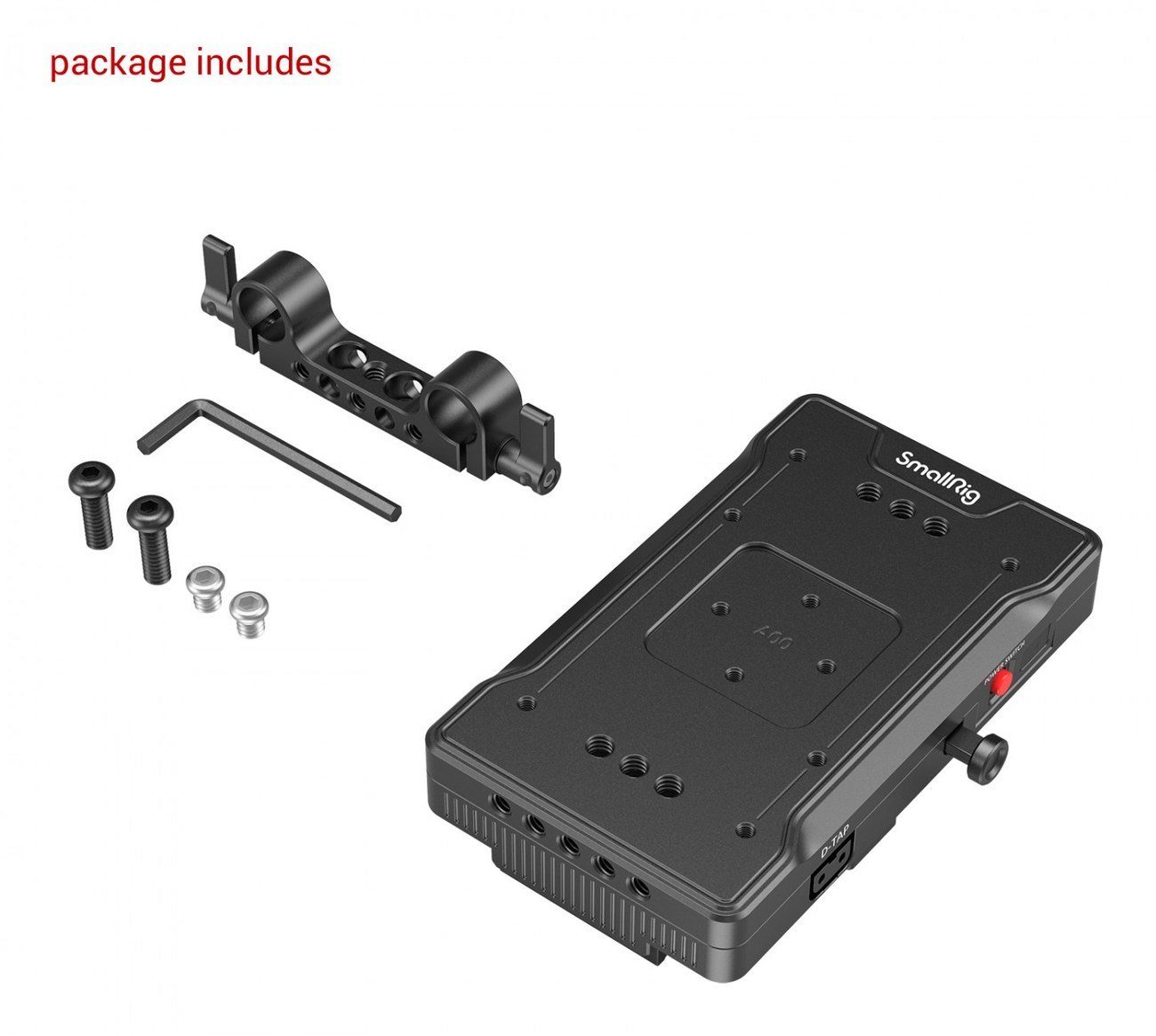

Package Includes:
1× V Mount Battery Adapter Plate
1× Dual 15 mm Rod Clamp
1× Allen Wrench
4× Mounting Screw

SPECIFICATIONS

Product Dimensions: 168.7 × 108 × 33 mm
Package Dimensions: 175 × 180 × 49 mm
Net Weight: 324 g±5 g
Package Weight: 474 g±5 g
Material(s): Aluminum Alloy
Parameters

Parameters

Manufacturer: SmallRig
Category: Power battery plates

Main parameters

Battery Type / MountingV-Mount
Outputs and InterfacesD-Tap / P-Tap
Mounting / Installation15mm LWS Rod Clamp (tyče) · 1/4"-20 / 3/8"-16 závit
CompatibilityUniverzální
For batteryV-Mount
