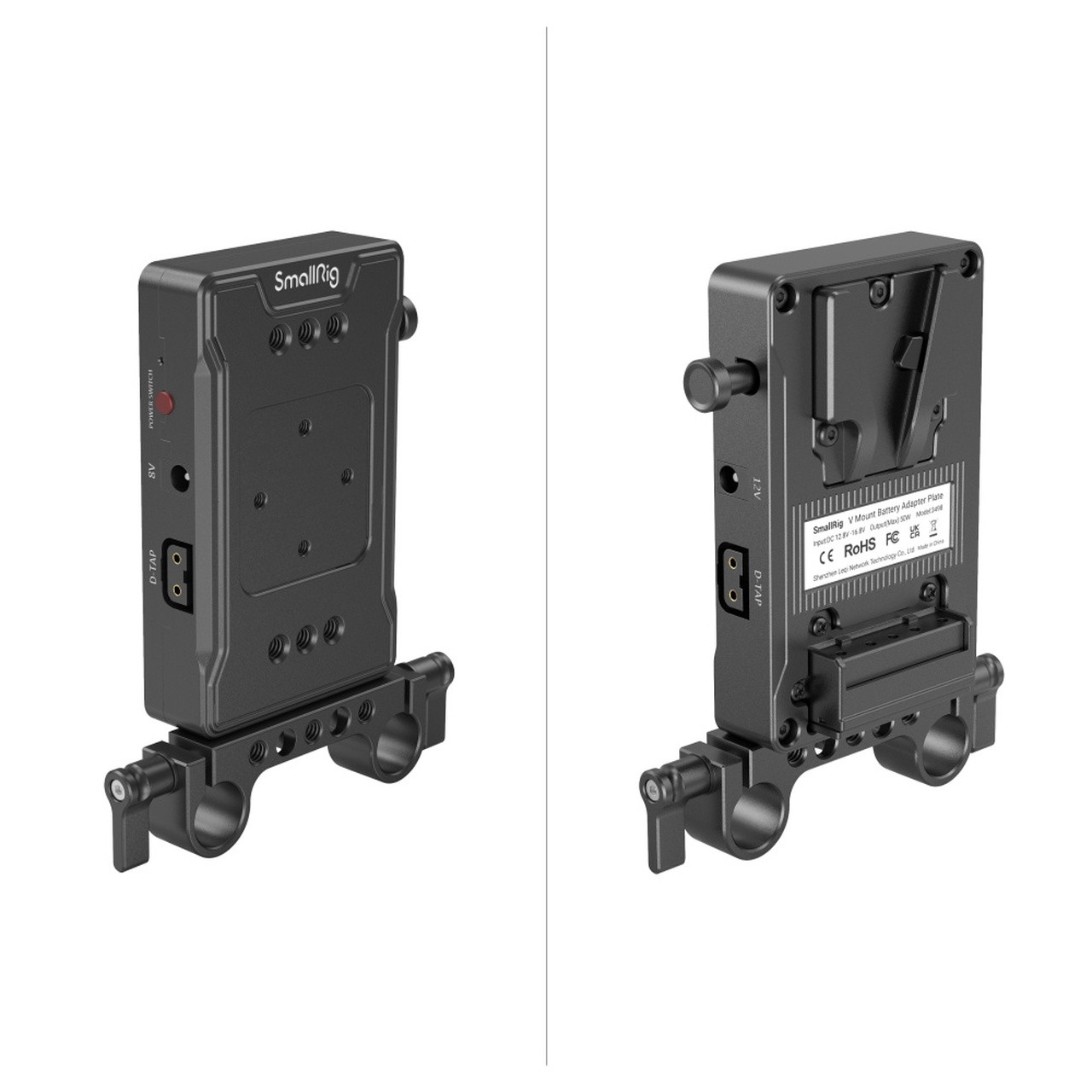

SmallRig V Mount Battery Adapter Plate (Basic Version) with Dual Rod Clamp 3498B

SmallRig 3498B adds a standard V-Mount battery interface to a camera rig and distributes power through two 14.8V D-Tap outputs, one 12V DC output and one 8V DC output. A master switch controls all outputs, while the included dual clamp mounts the plate directly to a 15mm LWS rod system.

It supports most V-Mount batteries and can power a camera, monitor, wireless transmitter or follow focus. Multiple 1/4"-20 threads provide convenient mounting points for additional rigging accessories.

Power for a complete camera rig

One V-Mount battery, four power outputs

The plate distributes power to the camera and accessories, while the master switch controls the complete setup from one place.

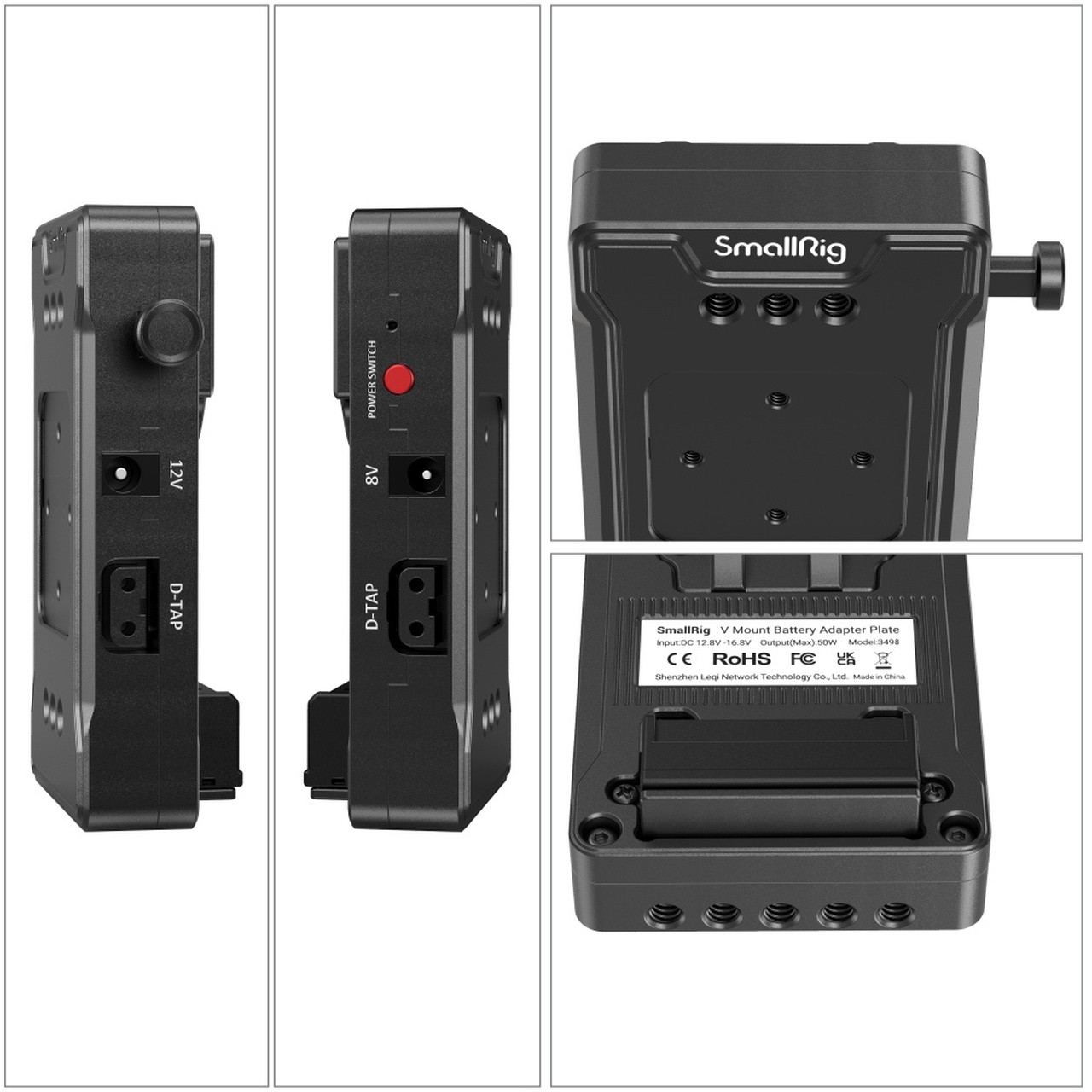

Dual D-Tap and dedicated DC outputs

Two 14.8V D-Tap ports are complemented by 12V and 8V DC outputs, helping you connect each device to the appropriate supply without unnecessary adapters.

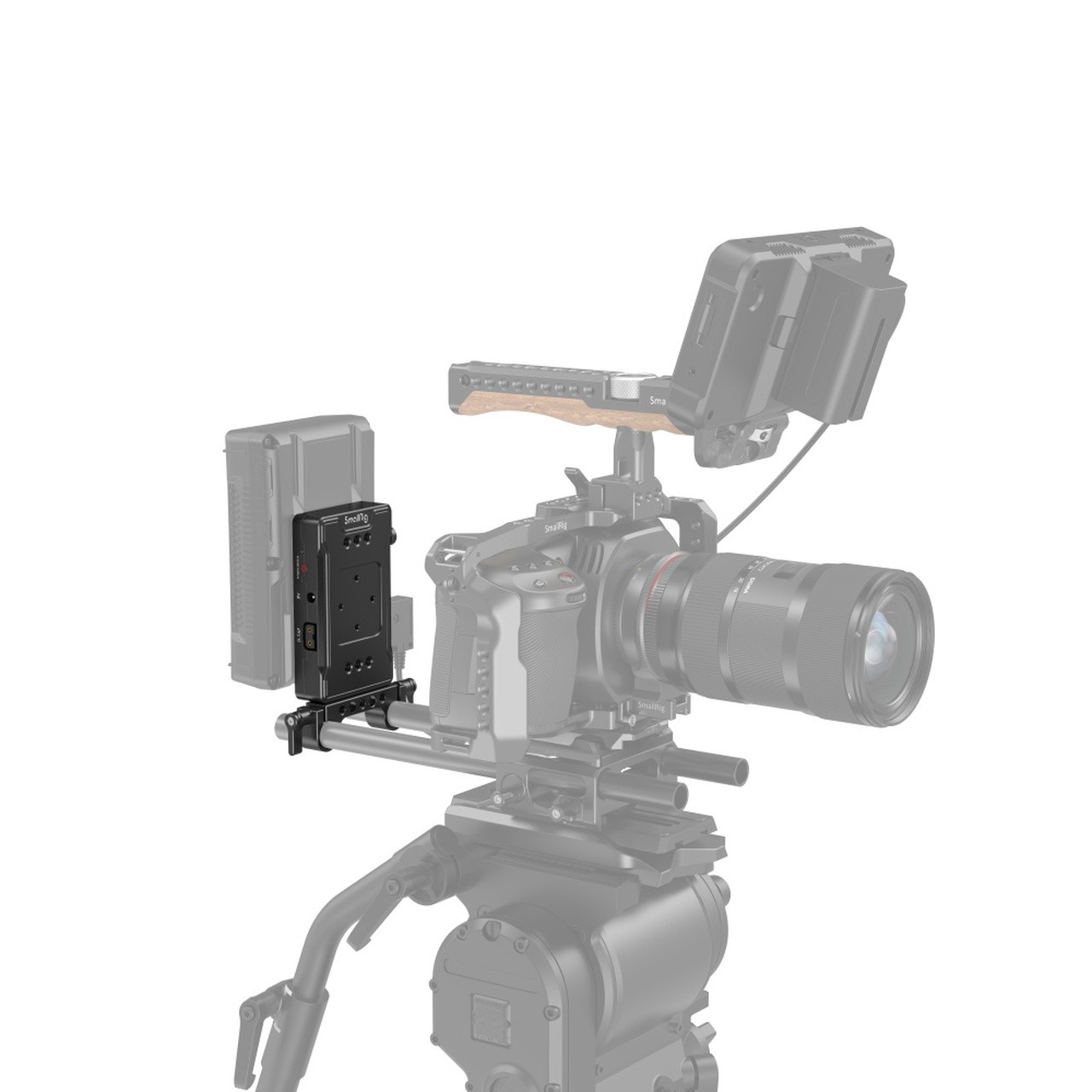

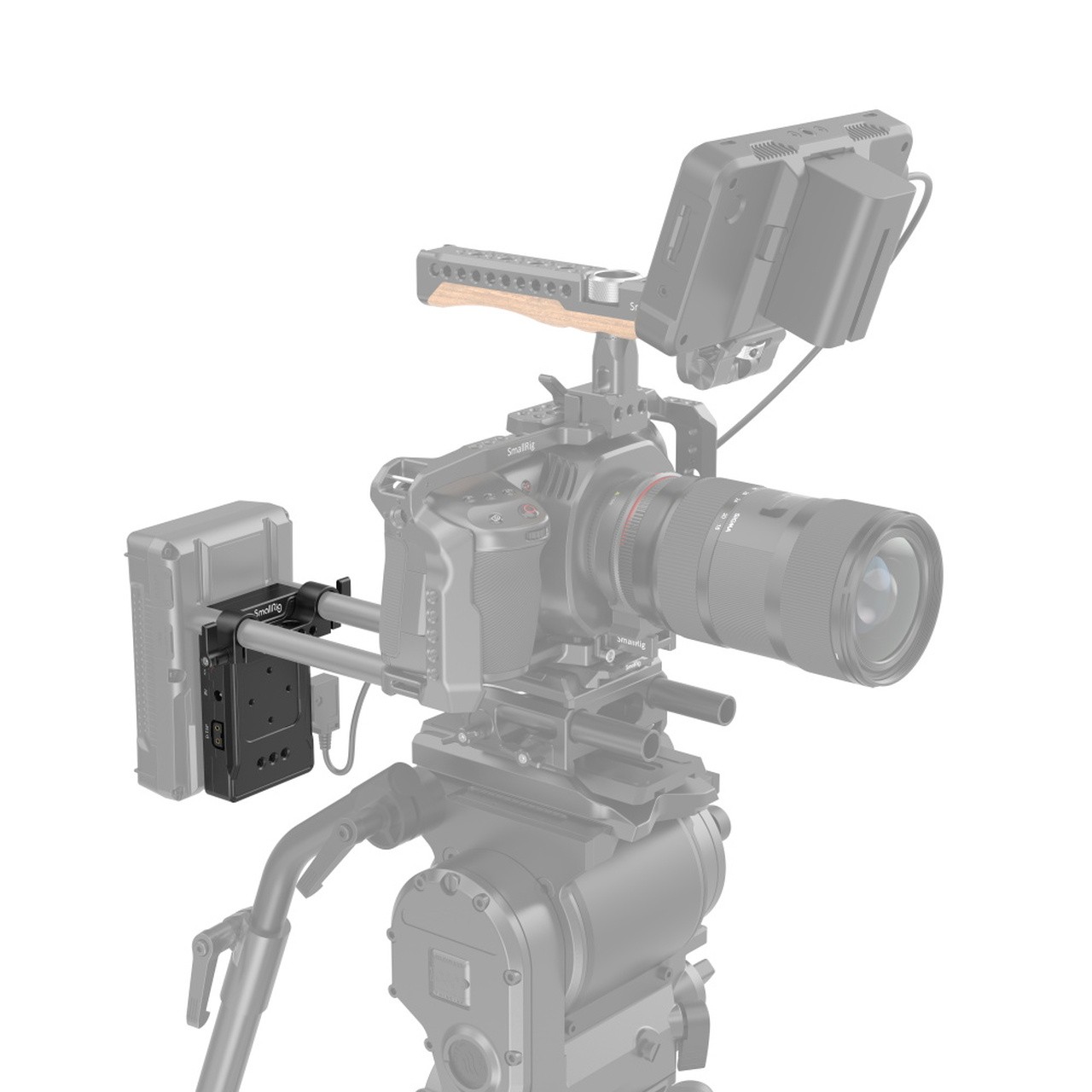

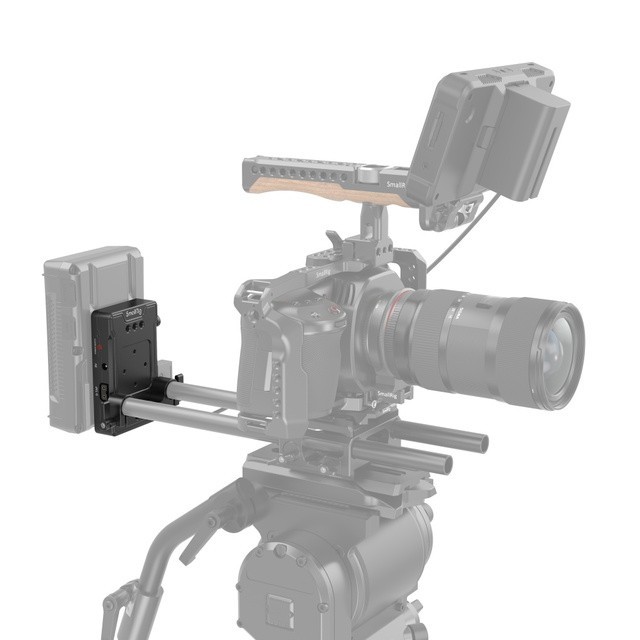

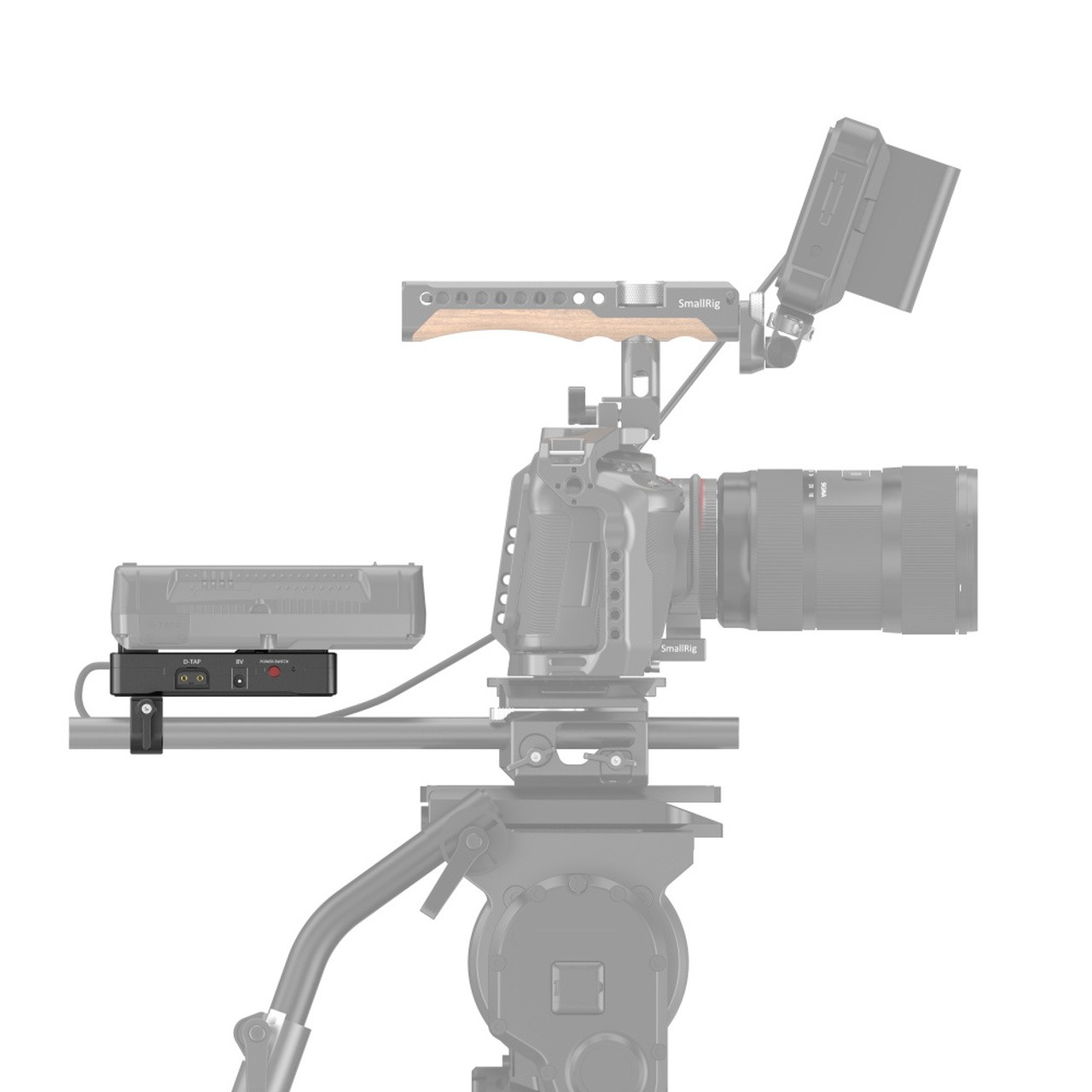

Mounts directly on 15mm LWS rods

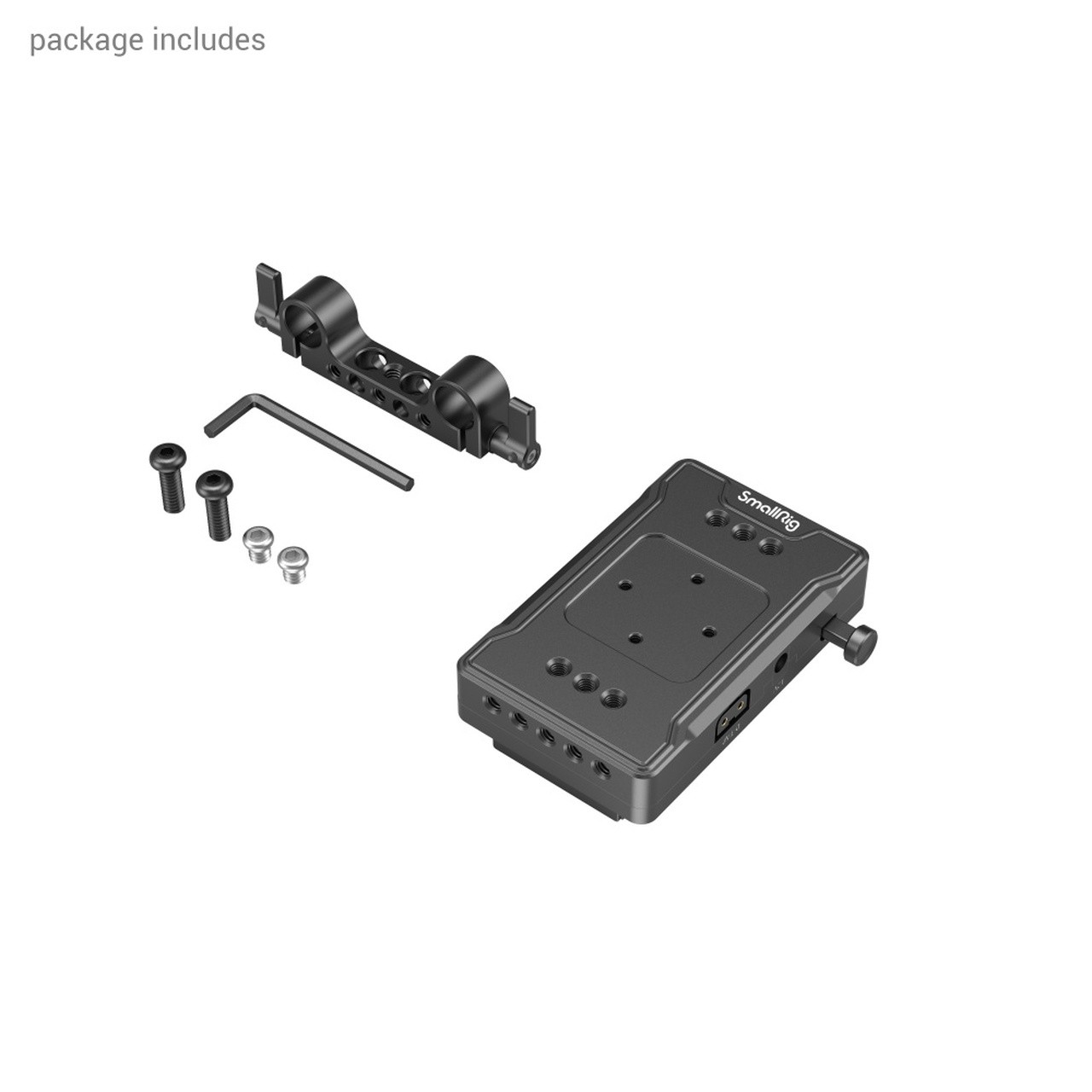

The included dual rod clamp secures the plate to a standard 15mm rig. Additional 1/4"-20 threads remain available for expanding the setup.
