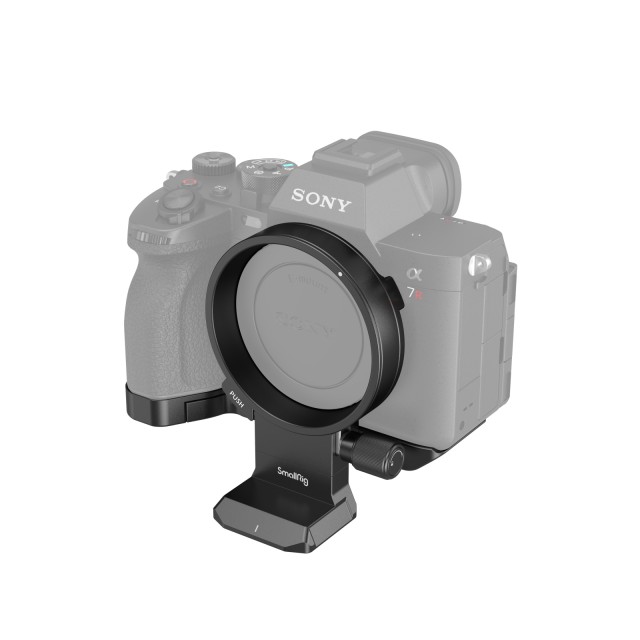

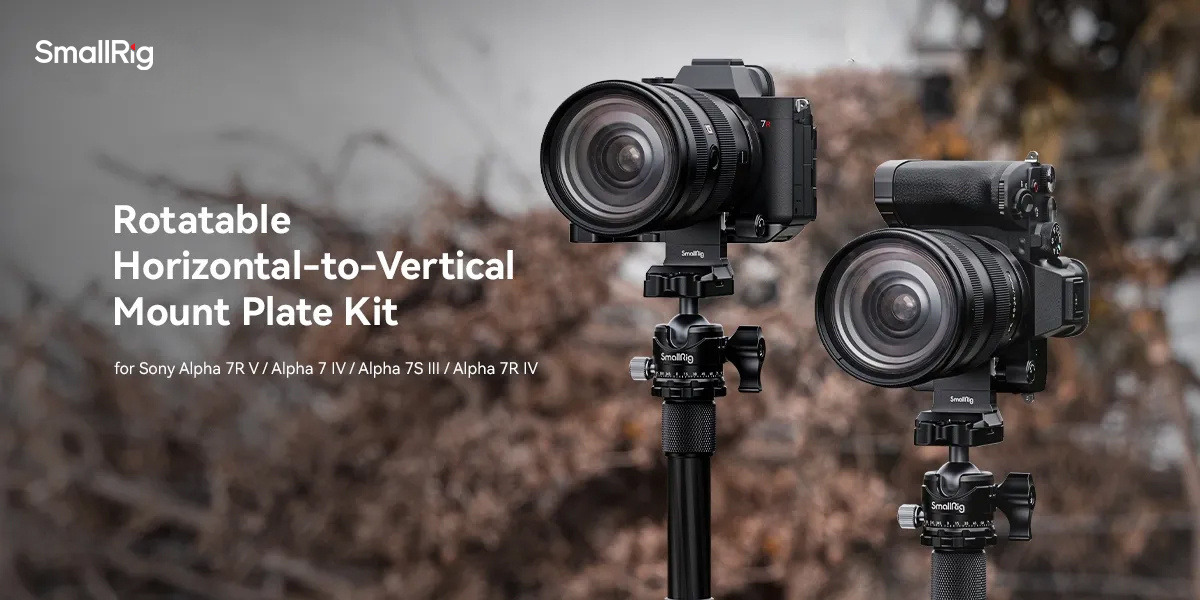

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7R IV 4148 is designed to quickly switch between horizontal and vertical modes without adjusting the lens optical axis. It locks…

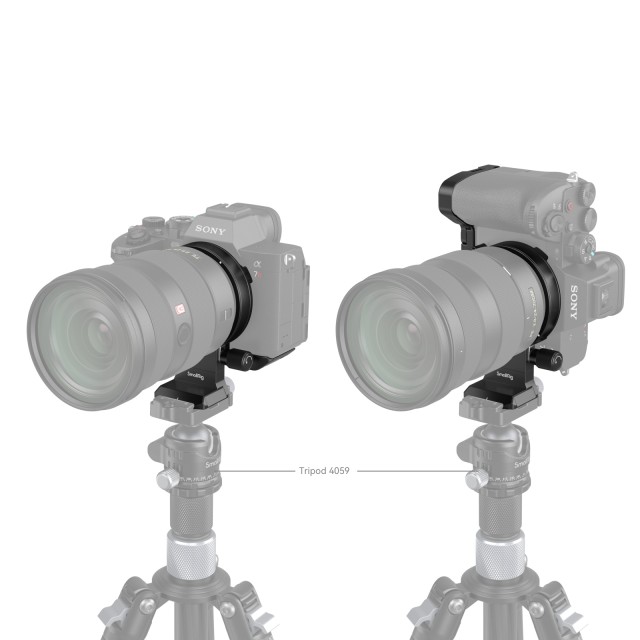

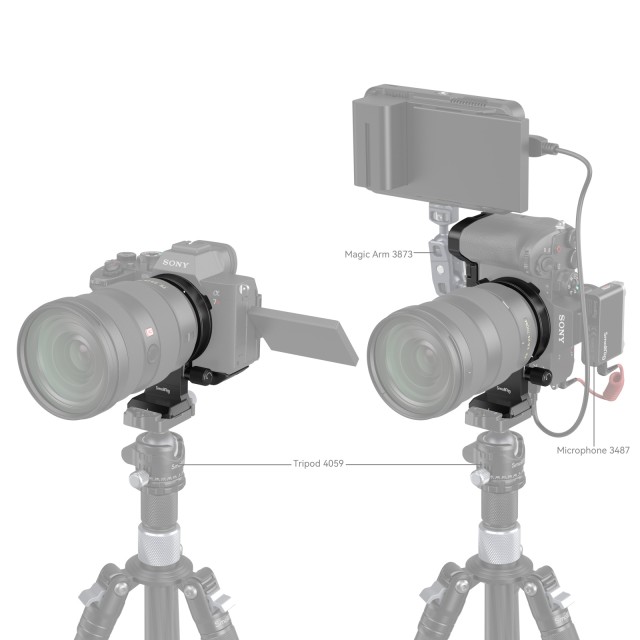

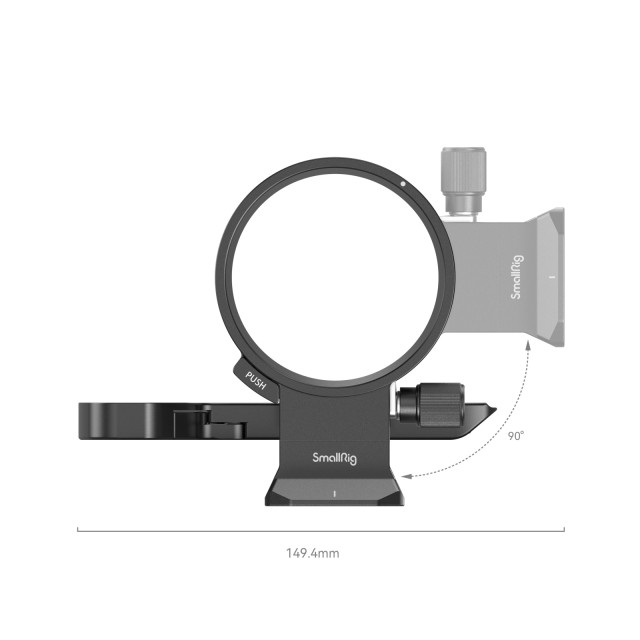

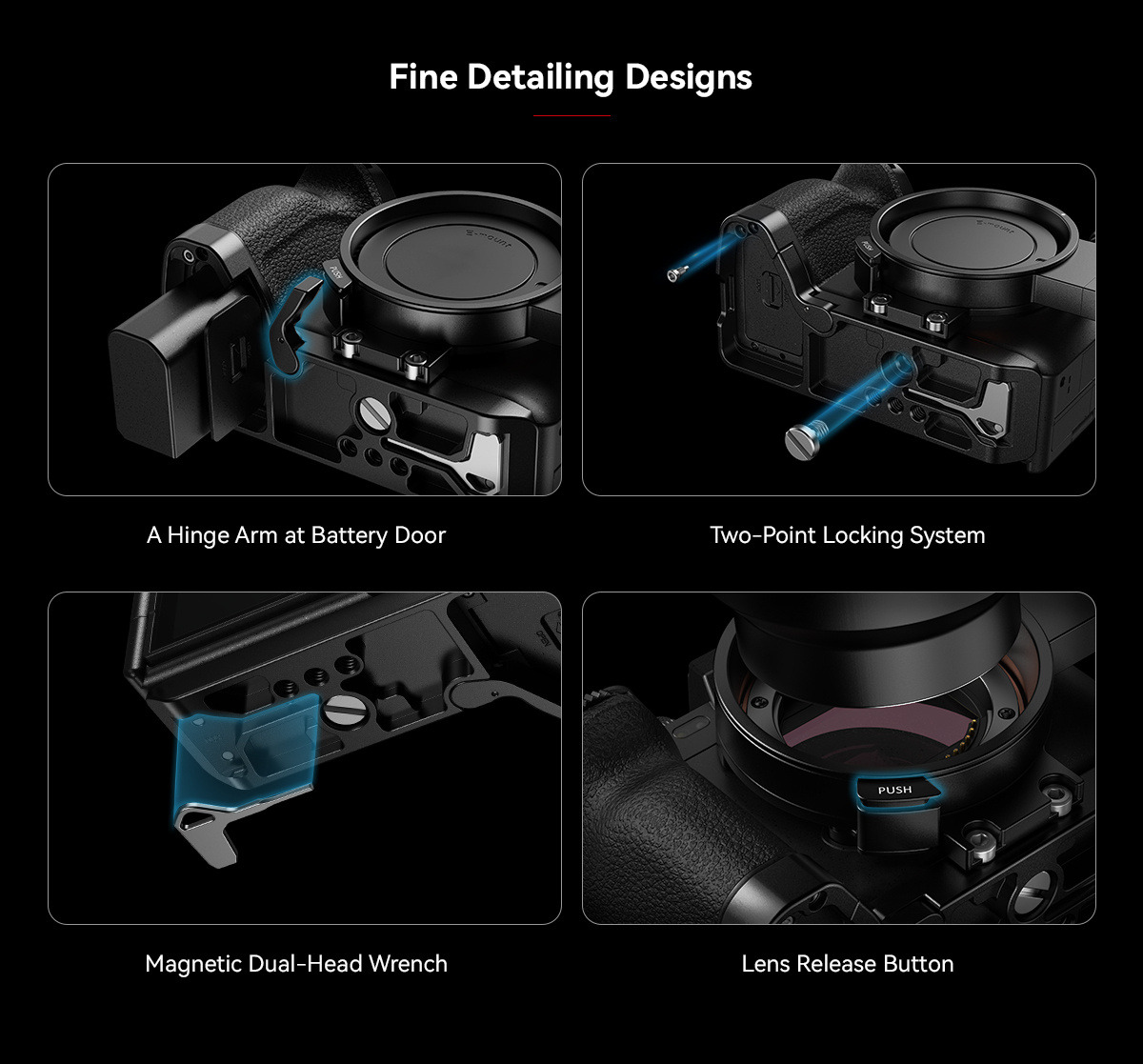

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7R IV 4148 is designed to quickly switch between horizontal and vertical modes without adjusting the lens optical axis. It locks the bottom of the camera via a 1/4"-20 screw and anti-twist pin and maintains full access to the LCD flip screen and ports and features built-in pads that prevent scratches and twisting. Compatible with Arca-type / Manfrotto RC2 tripod, the mounting plate can rotate by 90 degrees by unlocking a knob to switch between horizontal and vertical shooting. It's bottom 1/4"-20 and 3/8"-16 threaded holes also support Handle 2093C, etc. to enhance stability in handheld mode. The baseplate can be used separately to meet your various needs, with a hinge arm at the battery door fitting the camera body perfectly for a better grip experience. It also comes with a strap slot, a 1/4"-20 threaded hole for the wrist strap, a quick release plate, etc.; and a magnetic double-head wrench for easy installation and release.

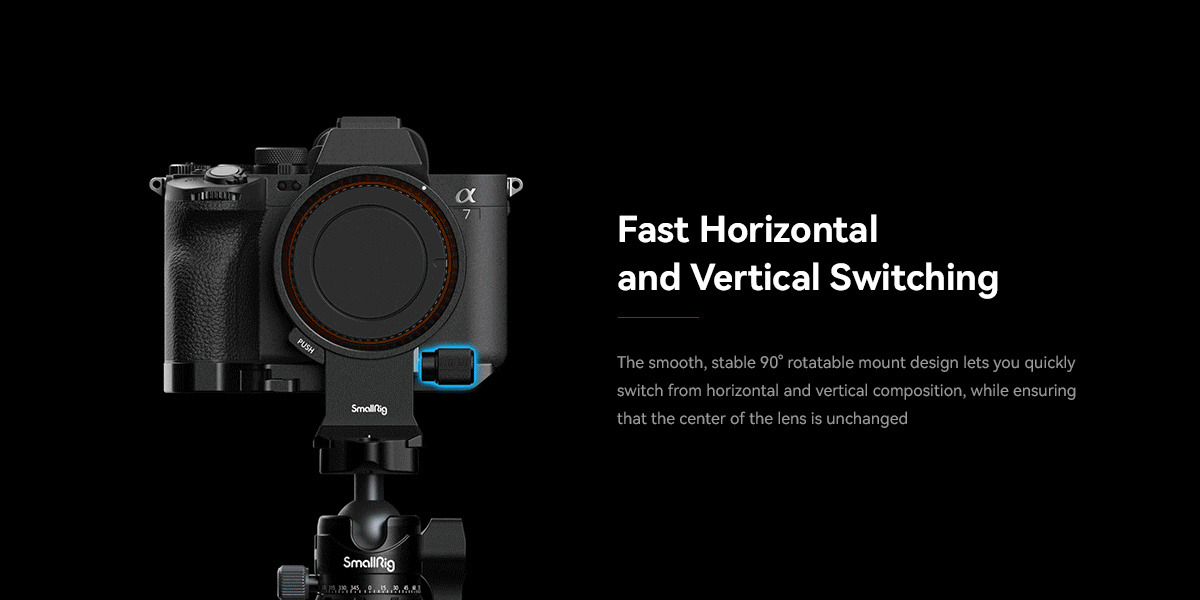

1. Quick switch between horizontal and vertical modes

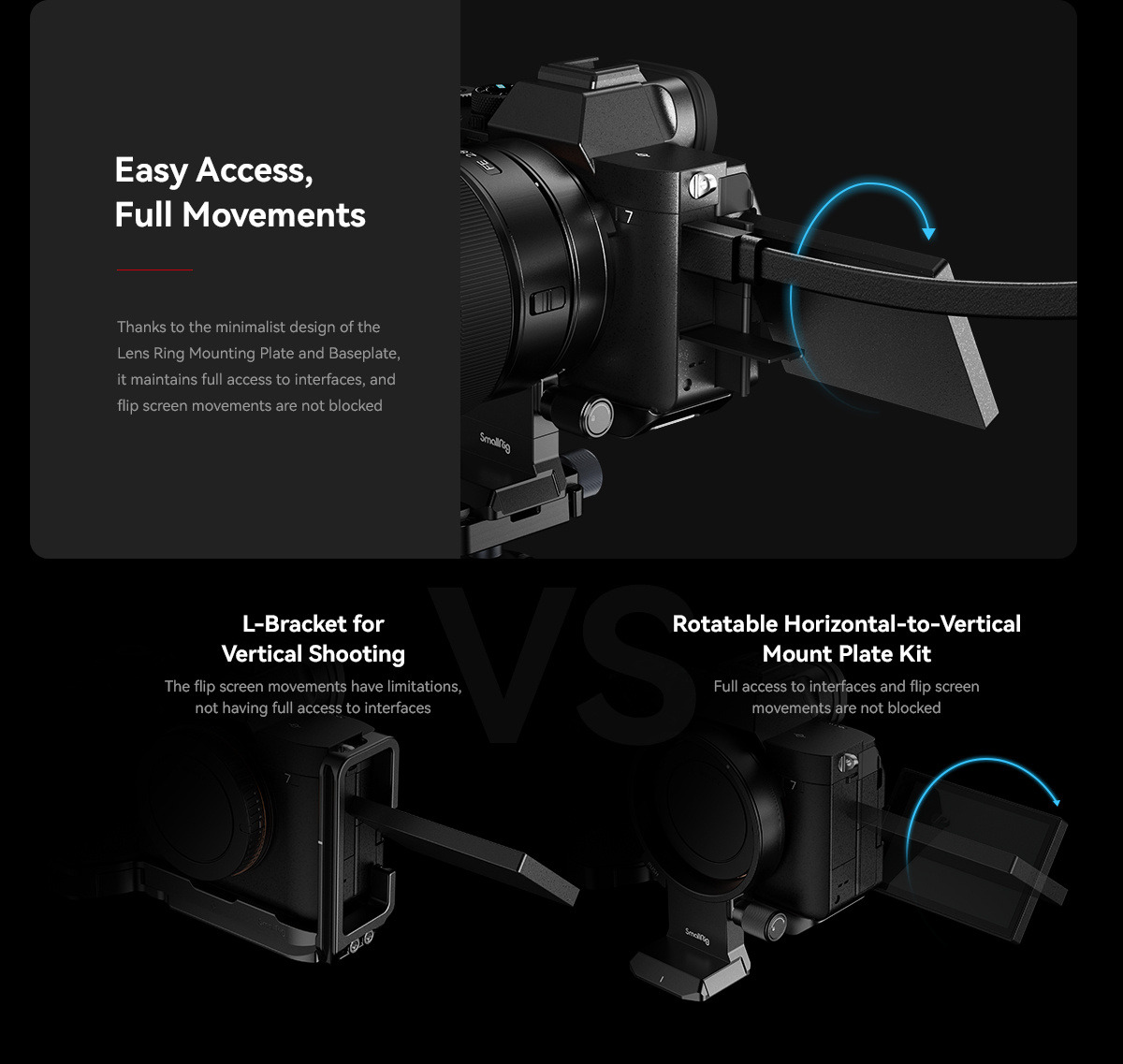

2. Gives full access to ports and LCD screen

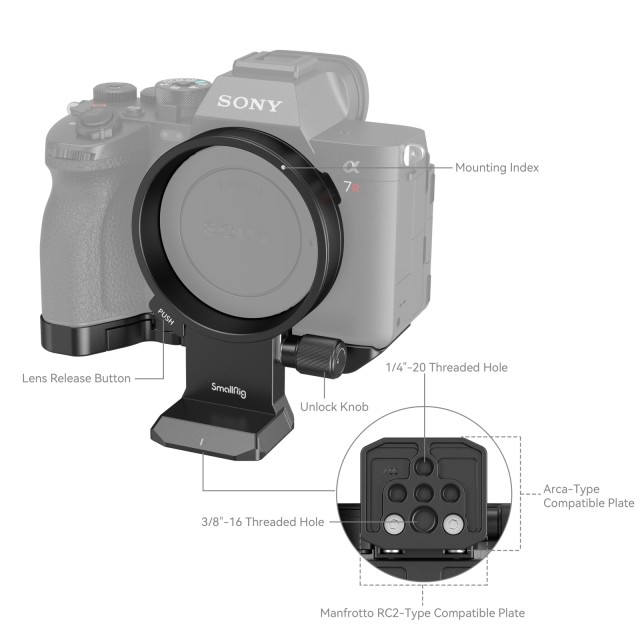

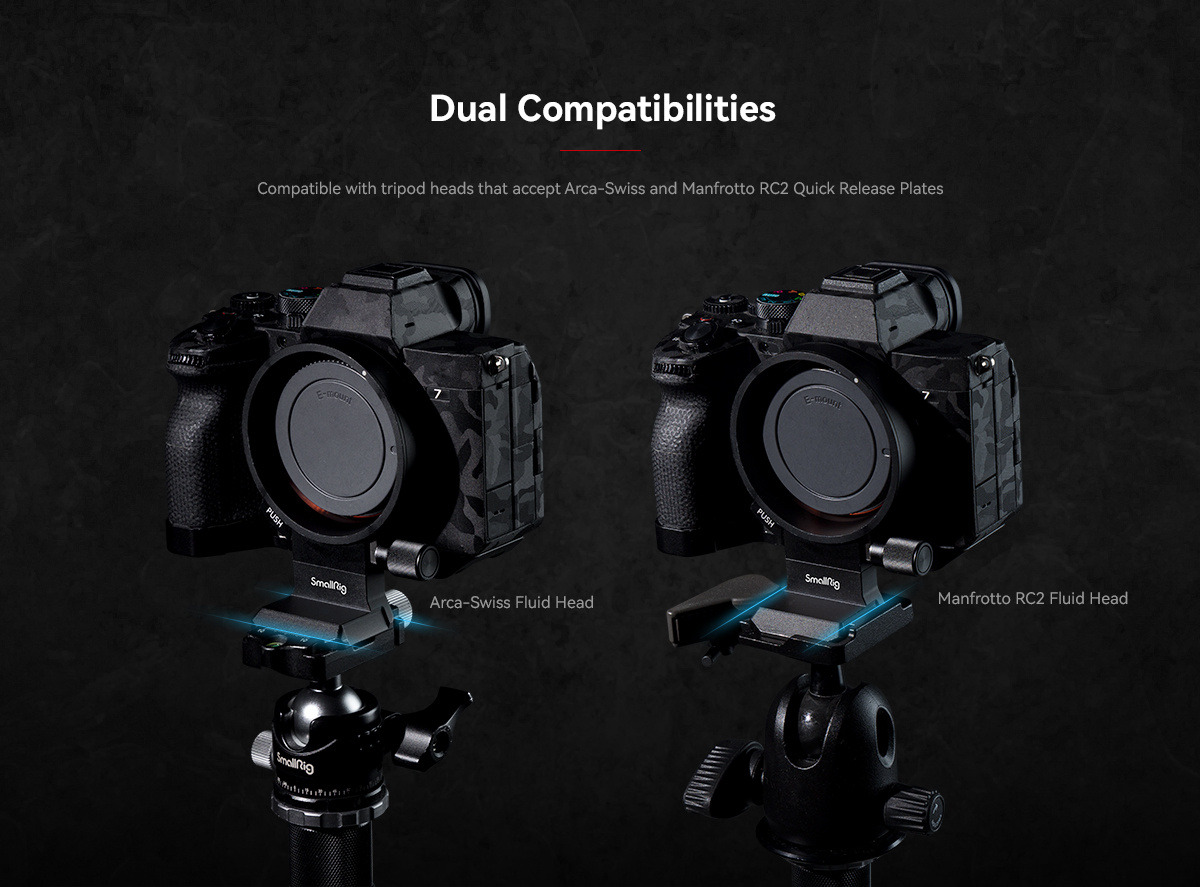

3. Arca-type plate and Manfrotto RC2 plate

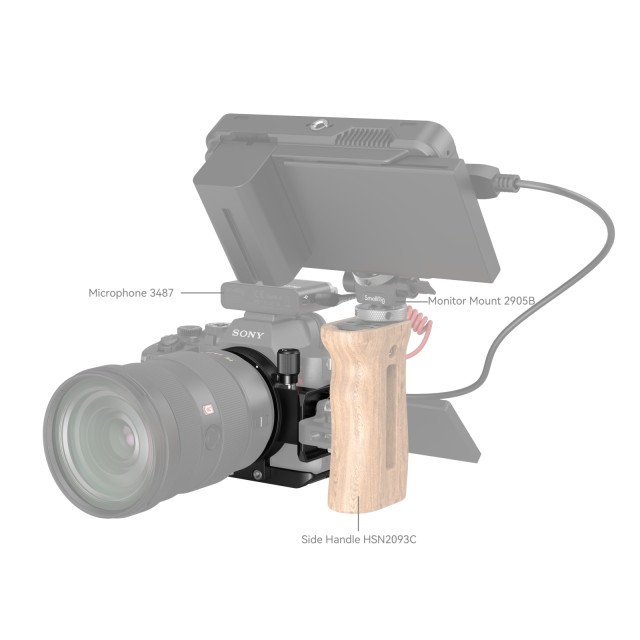

4. Quick-release plate supports handle in handheld mode

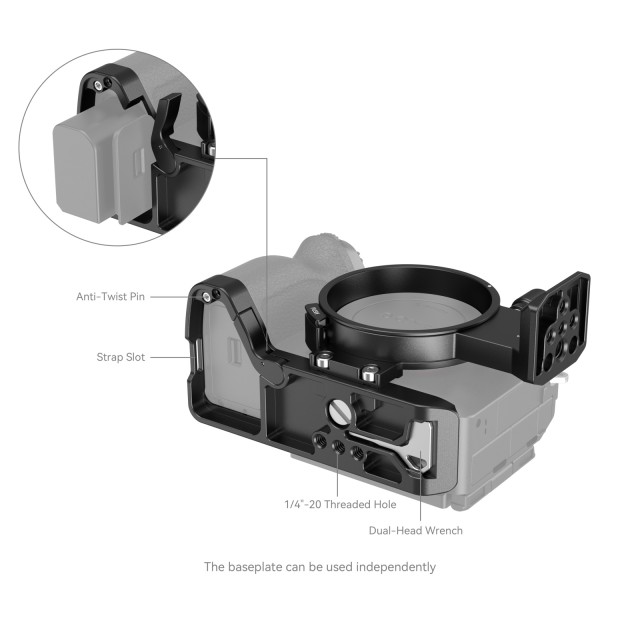

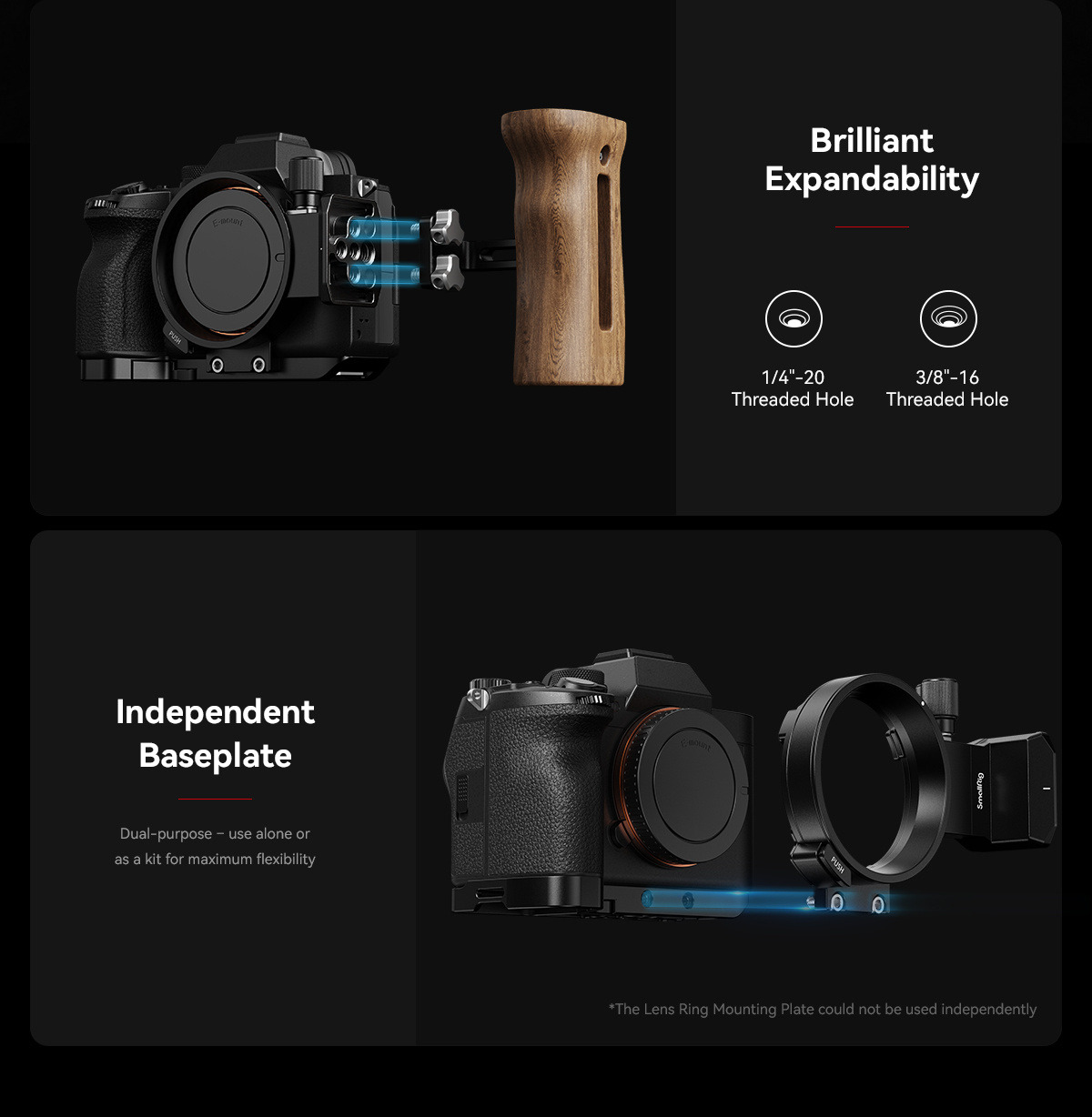

5. Baseplate can be used separately for a better grip experience
1. Only supports lens adapter ring of less than 63mm in outer diameter. Please first remove the lens adapter ring support (if any).
2. This product is not compatible withTamron 28-75mm f/2.8 Di III VXD G2 Lens (Sony E).
Sony Alpha 7R V
Sony Alpha 7R IV
Sony Alpha 7 IV
Sony Alpha 7S III

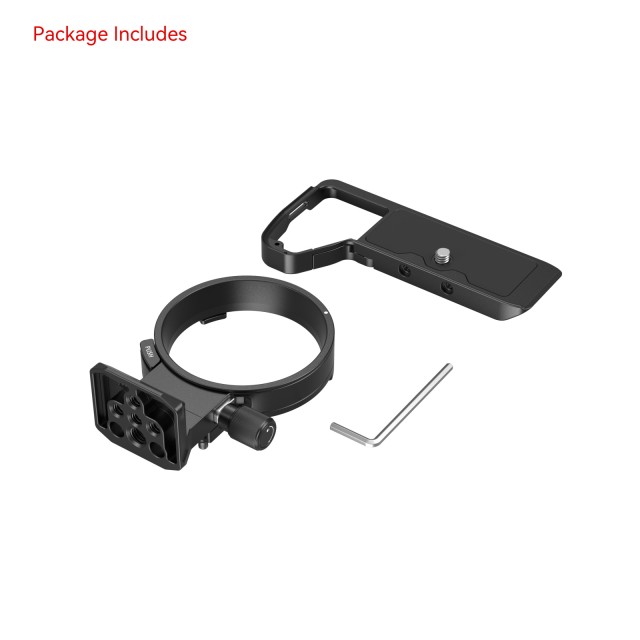

1 x Baseplate
1 x Lens Ring Mounting Plate for Vertical and Horizontal
1 x Allen Wrench

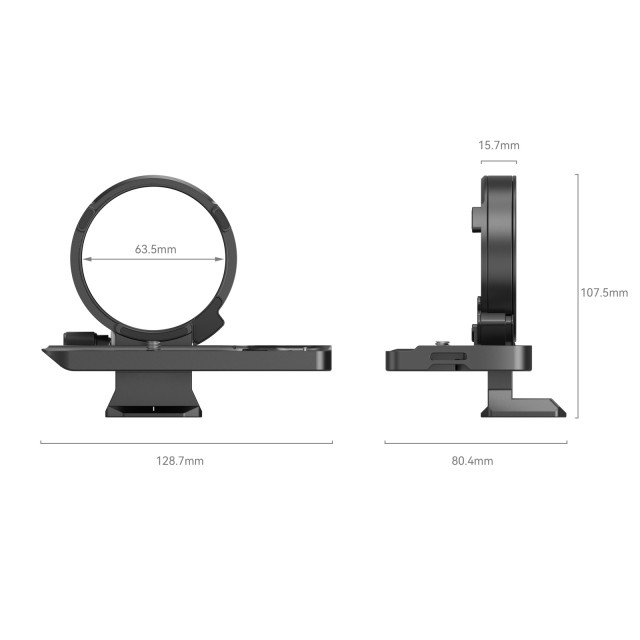

Product Dimensions: 107.5 x 80.4 x 28.7mm
Package Dimensions: 162.0 x 121.0 x 71.0mm
Product Weight: 185.0 ± 5.0g
Package Weight: 281.5 ± 5.0g
Material(s): Aluminum Alloy, Stainless Steel
|To this product||Sony Alpha A7 IV (Body)|
Sony Alpha A7R Mark V
Sony Alpha A7S III (body)
