SmallRig Quick Release Mount Plate with Manfrotto-to-Arca Type Plate for DJI RS 6439

A SmallRig quick release mount plate for DJI RS gimbals with a built-in Arca-Swiss base. An Arca-type plate, cage or L-bracket locks in with the latch, no tools needed, so you switch between tripod and gimbal in seconds. Aluminium and steel, matte, 135.5 g.

More information

47 € with VAT 38.84 € without VAT
-+
Availability
Backordered 4 pcs - 27.11.2026
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

A SmallRig quick release mount plate for DJI RS gimbals with a built-in Arca-Swiss base. An Arca-type plate, cage or L-bracket locks in with the latch, no tools needed, so you switch between tripod and gimbal in seconds. Aluminium and steel, matte, 135.5 g.

Manfrotto-to-Arca plate for DJI RS

A SmallRig quick release mount plate for DJI RS gimbals with a built-in Arca-Swiss base.

Quick Release Mount Plate with Manfrotto-to-Arca Type Plate for DJI RS

Arca-Swiss on the gimbal

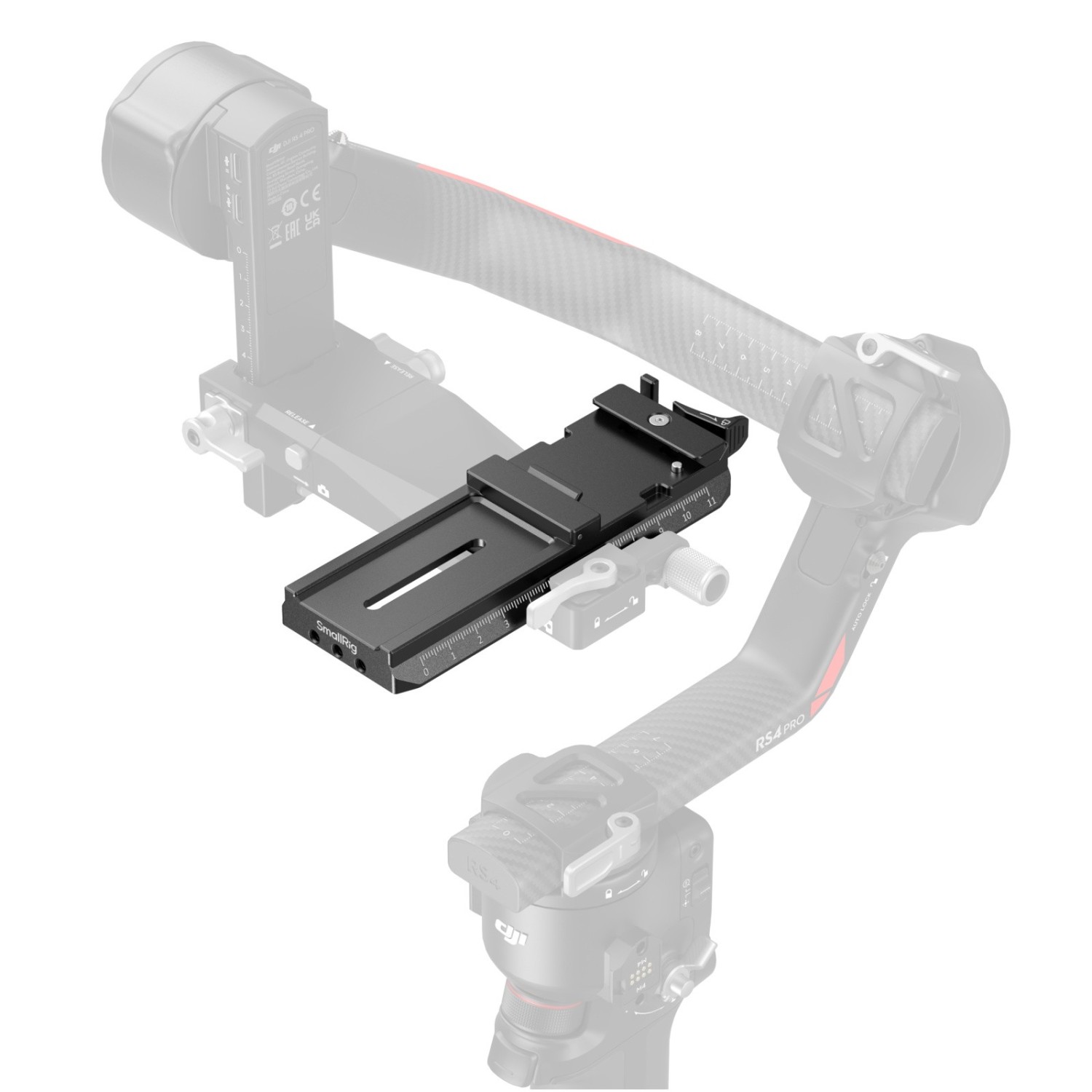

Fits the standard Manfrotto base on DJI RS gimbals and adds a built-in Arca-Swiss base, so nothing needs re-screwing between tripod and gimbal.

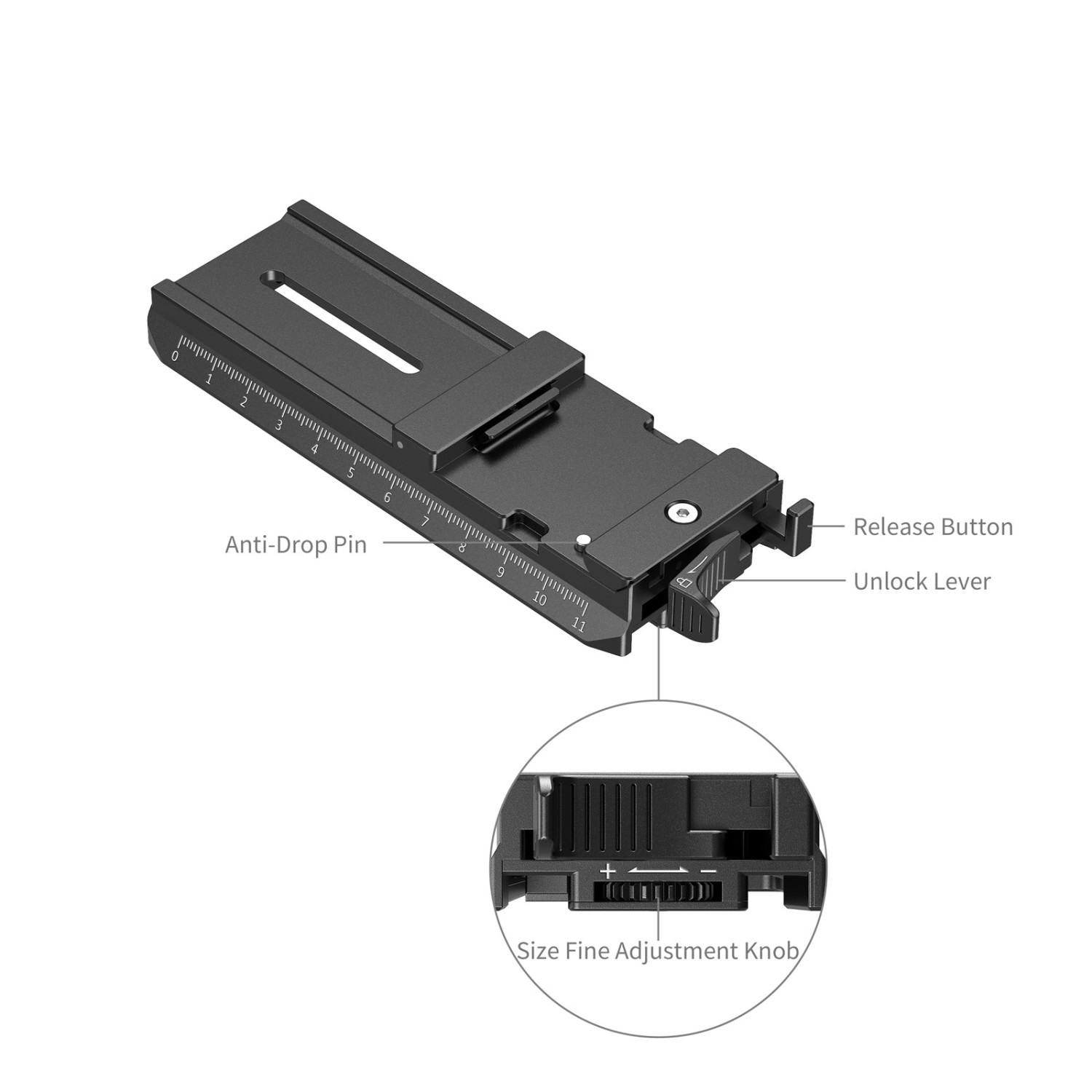

Lever lock

Slide left to lock the plate, right to release; no tools needed.

Drop protection

The adjustable safety catch also works with standard Arca-Swiss quick-release plates.

32–38 mm

Width of the Arca-Swiss plates it clamps.

135.5 g

Aluminum alloy and stainless steel; the matte finish cuts glare.

Quick Release Mount Plate with Manfrotto-to-Arca Type Plate for DJI RS
Quick Release Mount Plate with Manfrotto-to-Arca Type Plate for DJI RS

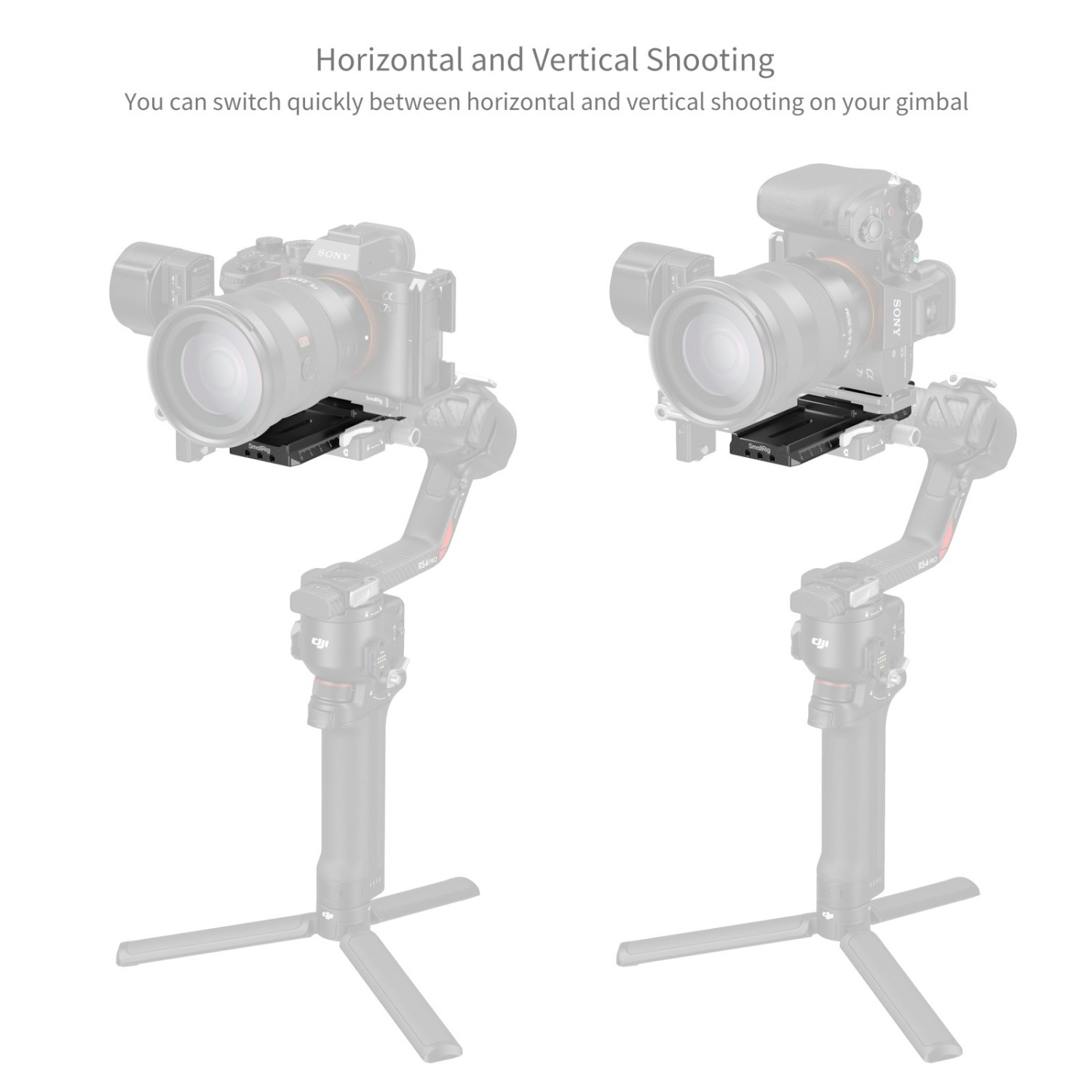

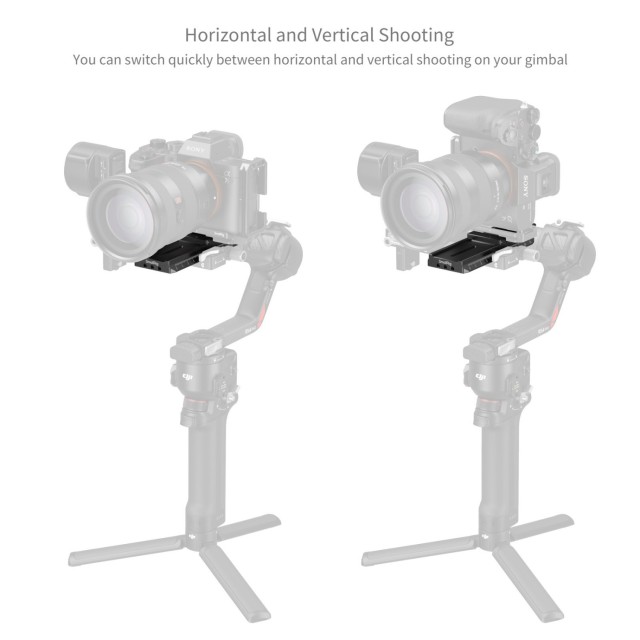

The SmallRig 6439 quick release mount plate with a Manfrotto-to-Arca plate is made for DJI RS series gimbals. It fits the standard Manfrotto base these gimbals use and brings a built-in Arca-Swiss base to them. A camera in a cage, on an L-bracket or on a short Arca plate then mounts straight onto the gimbal, and moving between tripod and gimbal needs no rescrewing. The lock works by hand: slide the latch to the left to lock the plate and to the right to release it. An adjustable anti-drop feature also works with ordinary Arca-Swiss quick release plates. A bottom adjustment structure allows fine positioning of the plate while balancing. The matte finish keeps reflections down and matches the gimbal body; at 135.5 g the plate barely adds to the rig. It is made of aluminium alloy and stainless steel. Always support the camera when pressing the release button, so an accidental unlock cannot let it fall.

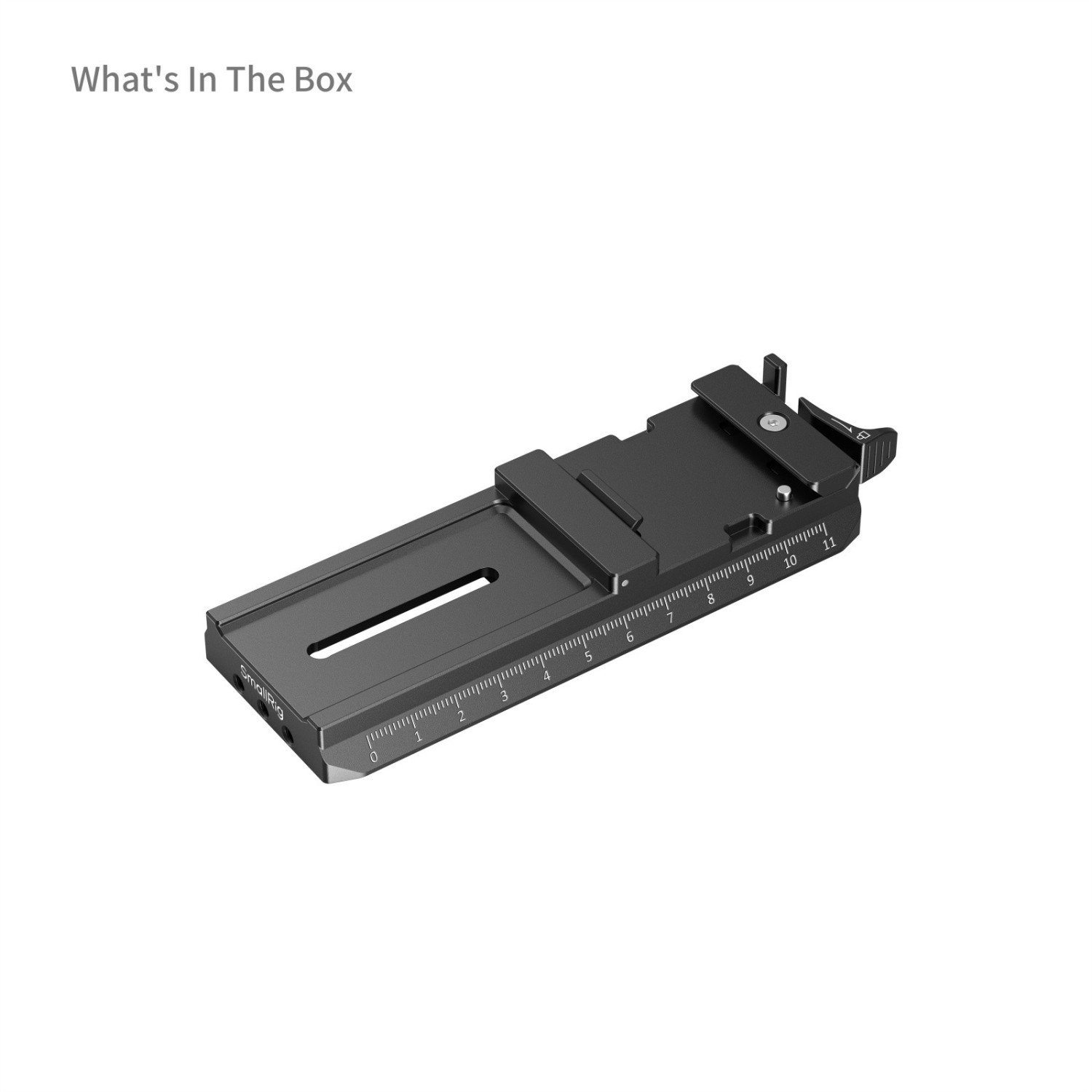

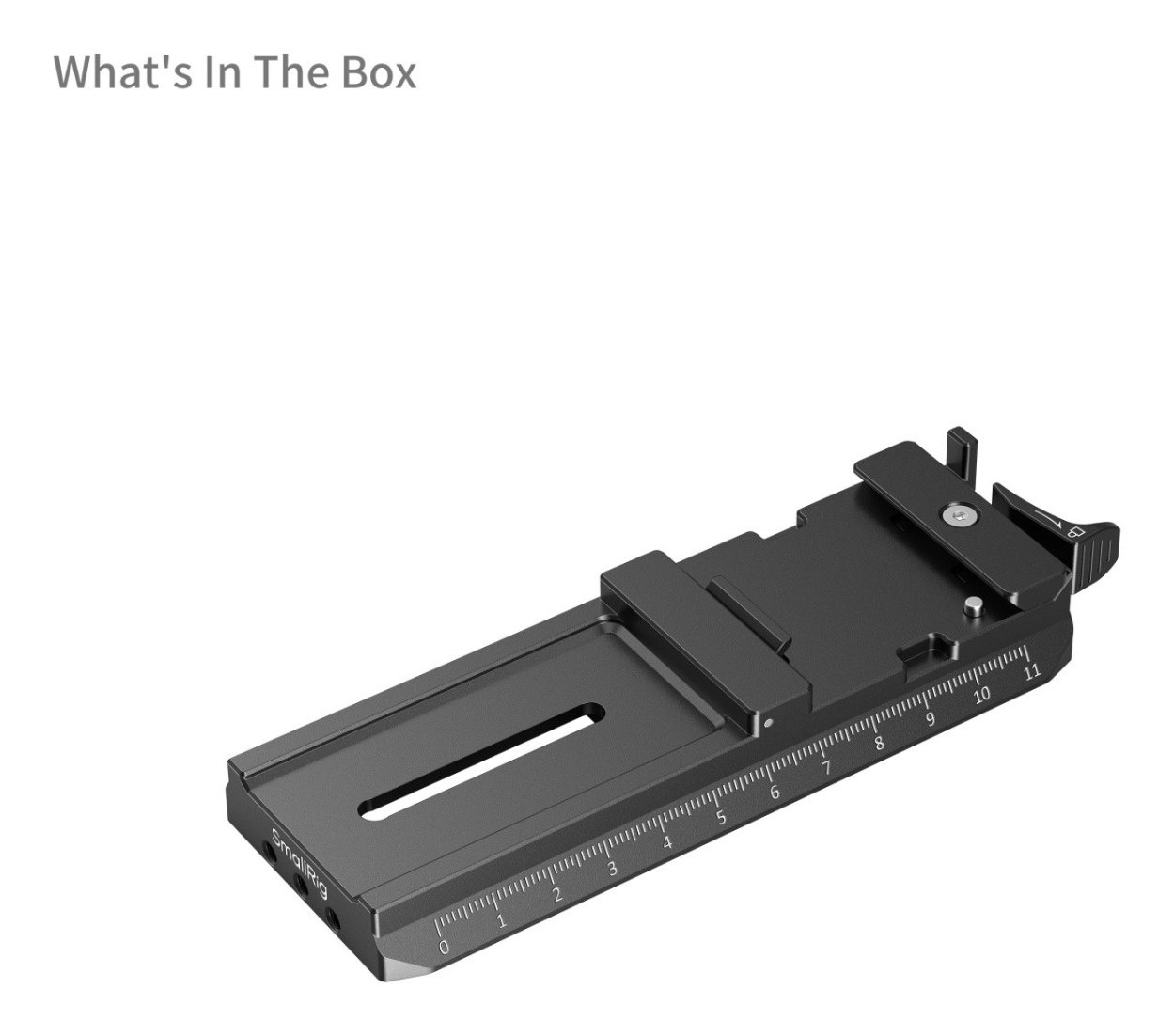

PACKAGE CONTENT

1× Quick Release Plate

SPECIFICATIONS

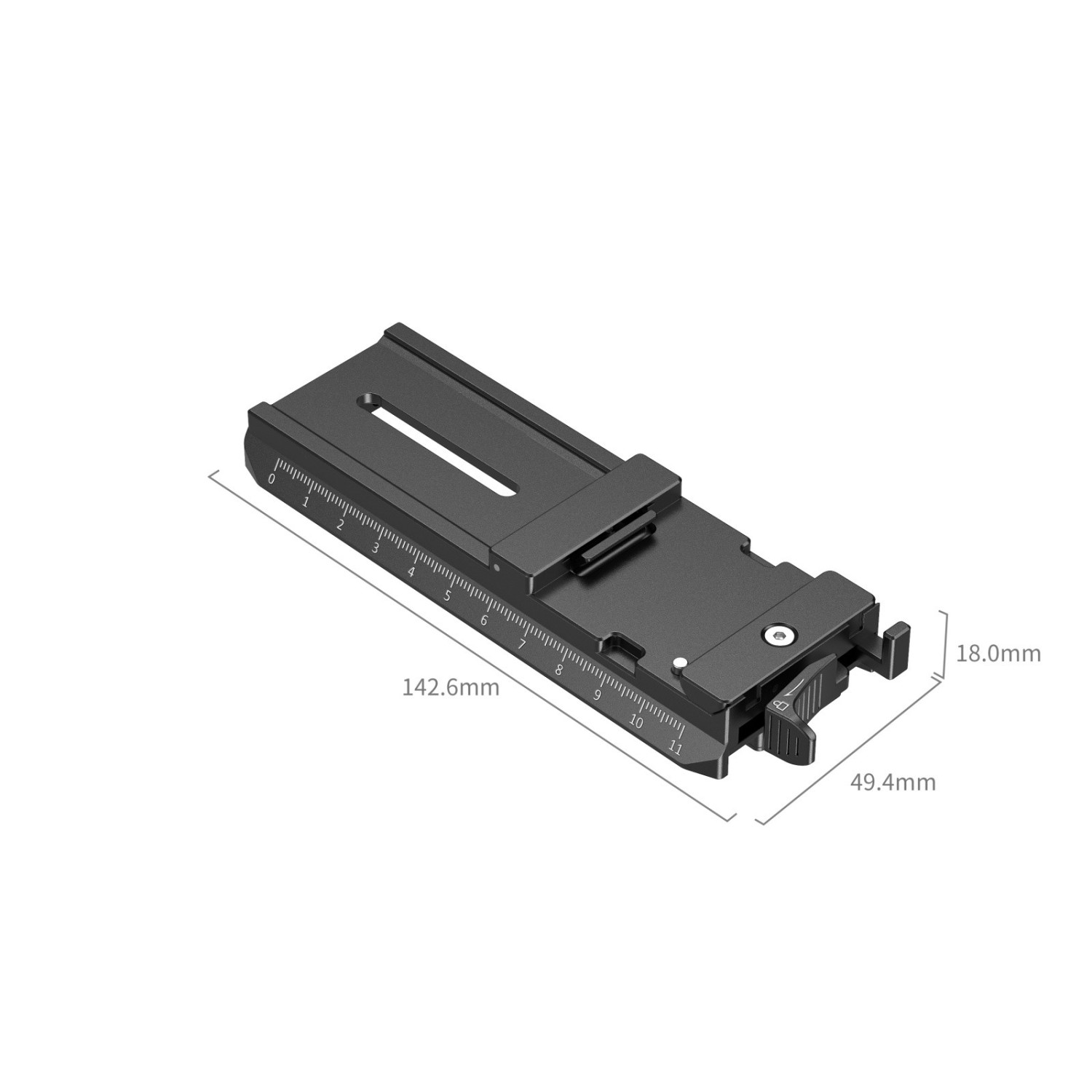

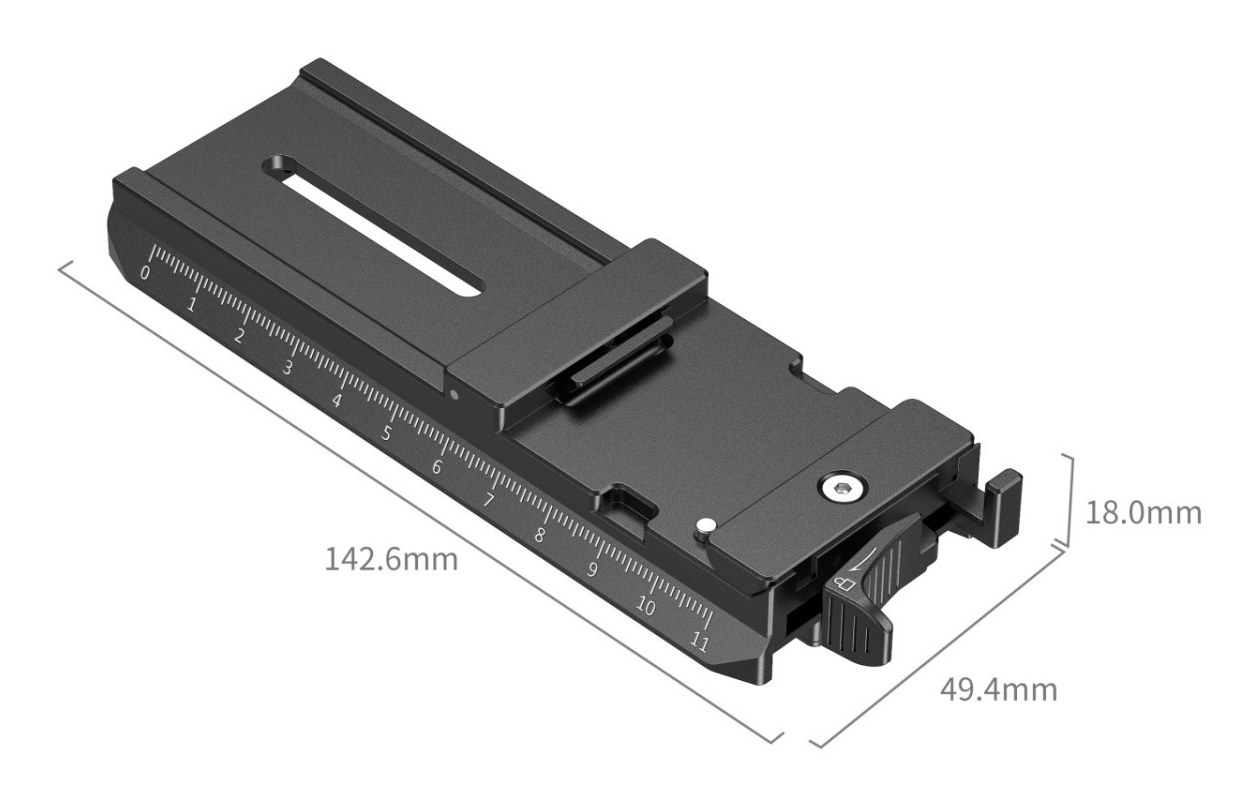

Product Dimensions: 145.0 × 49.4 × 18.0 mm
Package Dimensions: 155.0 × 81.5 × 42.0 mm
Product Weight: 135.5 ± 5.0 g
Package Weight: 180.0 ± 5.0 g
Material(s): aluminium alloy, stainless steel
Plate Type: Manfrotto (bottom), Arca-Swiss (top)
Accepted Arca-type width: 32.0-38.0 mm

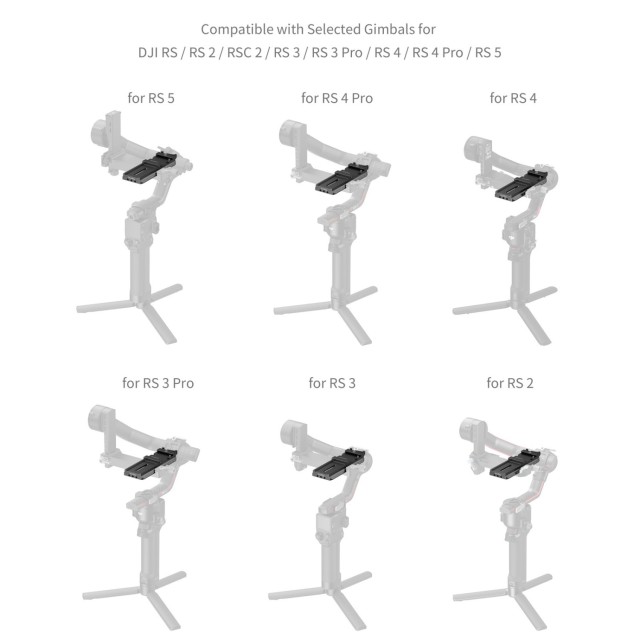

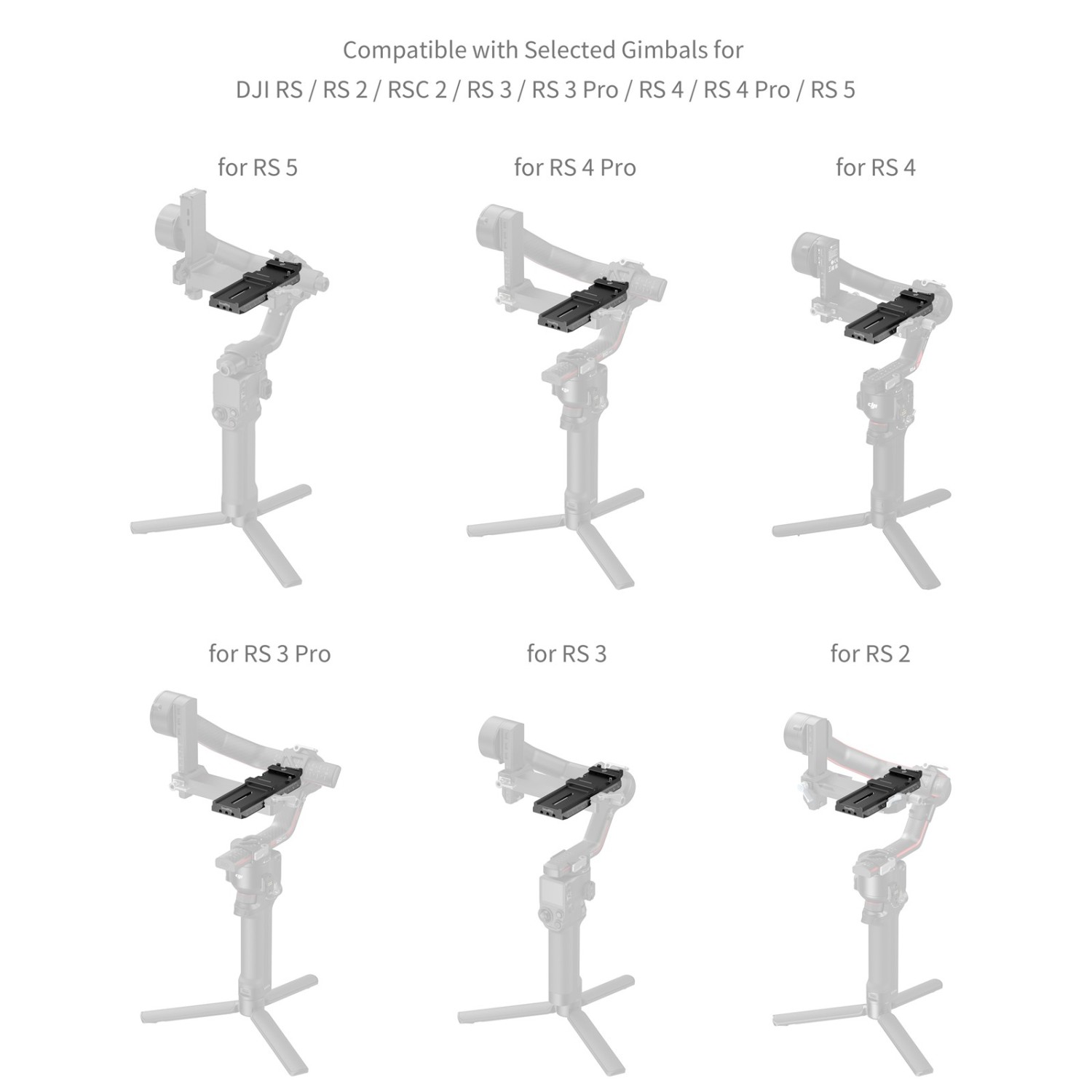

Compatibility: DJI RS, RS 2, RSC 2, RS 3, RS 3 Pro, RS 4, RS 4 Pro, RS 5
Parameters

Parameters

Manufacturer: SmallRig
Category: Baseplates

Main parameters

MaterialAluminium alloy
Plate typeManfrotto
