SmallRig NP-F Battery Adapter Plate Professional Edition 3168

+4
  • -1 %
SKU: 3168B

The SmallRig 3168 adapter plate runs a BMPCC 4K/6K or a mirrorless camera off NP-F batteries. A self-locking button clamps the battery, DC 8 V and 12 V outputs plus a USB-C port feed accessories, and LEDs show the remaining charge.

More information

Promotion: 63.67 € ends in: 9d: 16h: 08m
64.62 € 63.67 € with VAT 52.62 € without VAT
Add to Compare Price history
Availability
Shipment day: 22. 09.
To be sent 1 pcs
Budapest 1 pcs
SKU:
3168B
Add to Compare Price history

SmallRig NP-F Battery Adapter Plate Lite 3018

In stock > 5 pcs27.97 €without VAT 23.12 €

Top accessories for SmallRig NP-F Battery Adapter Plate Professional Edition 3168

Viltrox Battery NP-F750

The Viltrox NP-F750 is a high-capacity, rechargeable NP-F-type Li-ion battery for
32 €
To be sent > 5 pcs

SmallRig DC5525 to 2-Pin Charging Cable for BMPCC 4K/6K 2920

  • -6 %
  • LAST PIECE
Promotion: -6% ends in: 9d: 16h: 08m
SmallRig DC5525 to 2-Pin Charging Cable for BMPCC 4K/6K 2920 is designed for use
22.02 €
23.42 €
In stock 1 pcs

SmallRig NP-F550 USB-C Rechargeable Camera Battery (Orange) 4971

SmallRig NP-F550 4971 battery in orange with its own USB-C port, so a power bank
53 €
In stock 3 pcs

SmallRig EOS R5/R6/R5 C Power Supply Kit 3768

  • -74 %
Promotion: -74% ends in: 10d: 22h: 08m
A power kit for the Canon EOS R5, R6 and R5 C: an L-bracket, an NP-F battery adapter
30.33 €
117.58 €
In stock 3 pcs

SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edit 4341

The SmallRig 4341 kit runs Sony mirrorless bodies off ordinary NP-F batteries: an
82 €
Backordered > 5 pcs

Sony NP-F970

SONY NP-F970 is the largest capacity (and size) Li-Ion rechargeable battery for most
209 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The SmallRig 3168 adapter plate runs a BMPCC 4K/6K or a mirrorless camera off NP-F batteries. A self-locking button clamps the battery, DC 8 V and 12 V outputs plus a USB-C port feed accessories, and LEDs show the remaining charge.

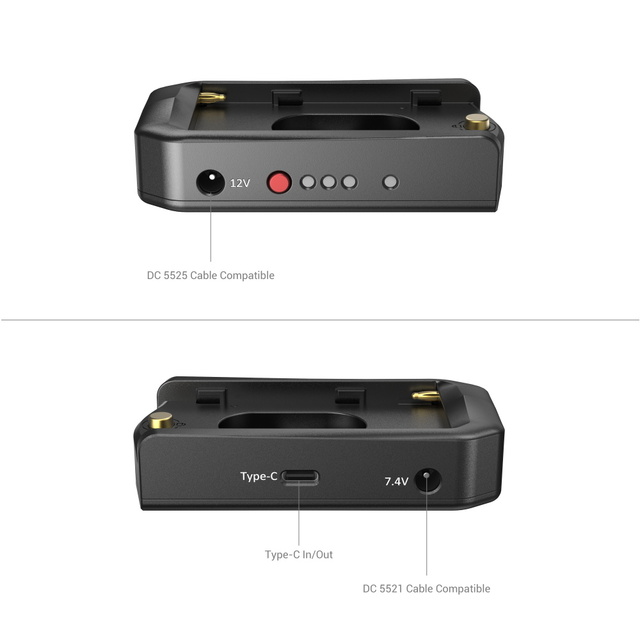

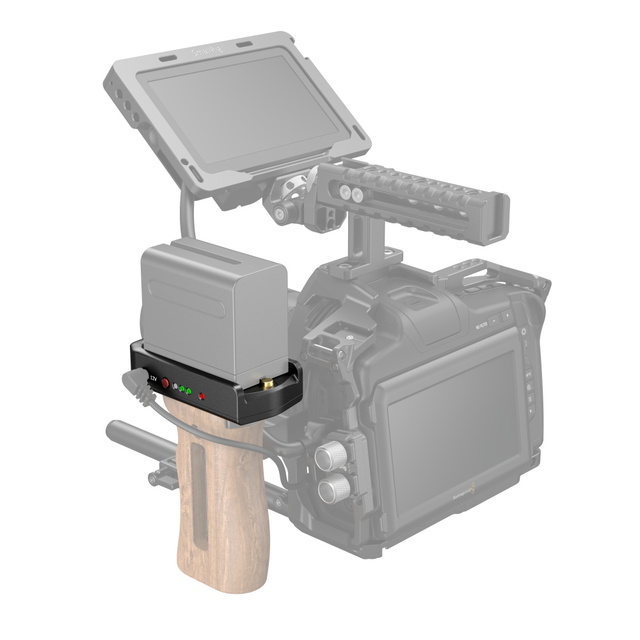

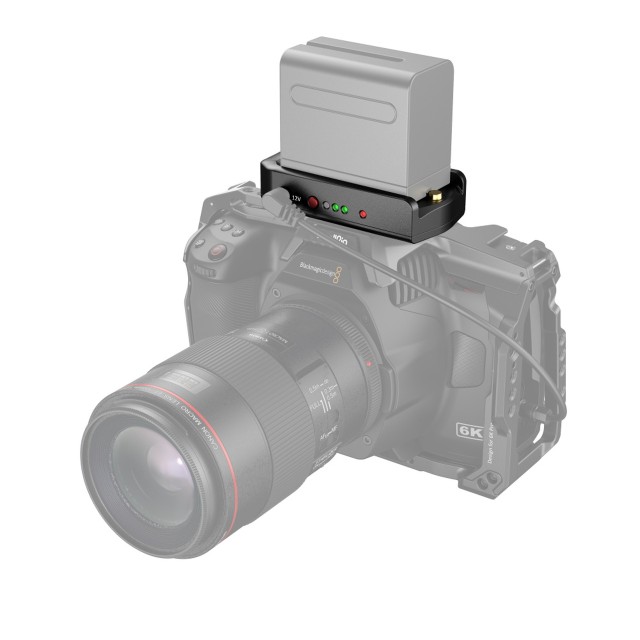

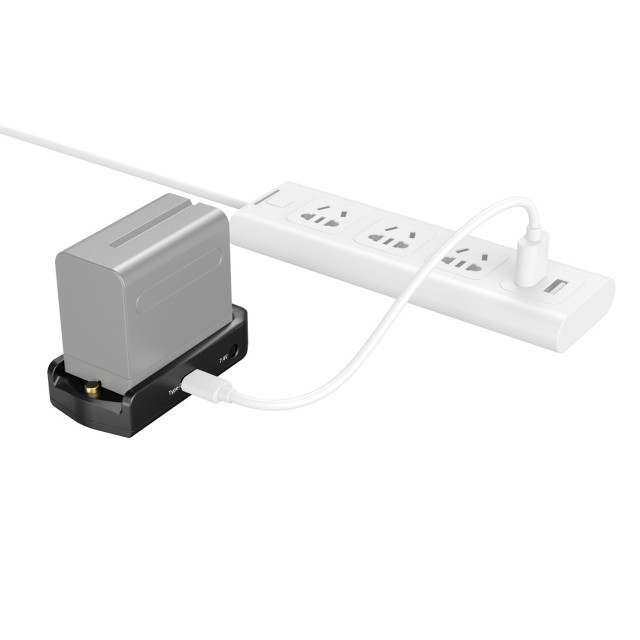

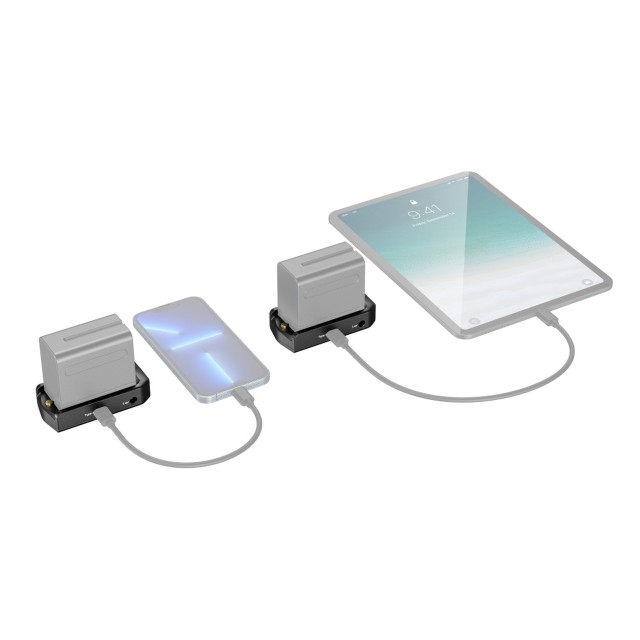

SmallRig NP-F Battery Adapter Plate Professional Edition 3168 is designed to enable NP-F batteries on the market (including original Sony batteries and third-party batteries) to power BMPCC 4K/6K and various mirrorless cameras. The plate comes with a self-locking button for quick and secure battery installation, and a 1/4 threaded hole for easy attachment to cage. On the side there are DC 8V and 12V output and a Type-C port which can output current or charge NP-F battery. All ports are designed with short circuits protection to avoid damage to the camera. In addition, it features LED lights indicating battery connection and battery life.

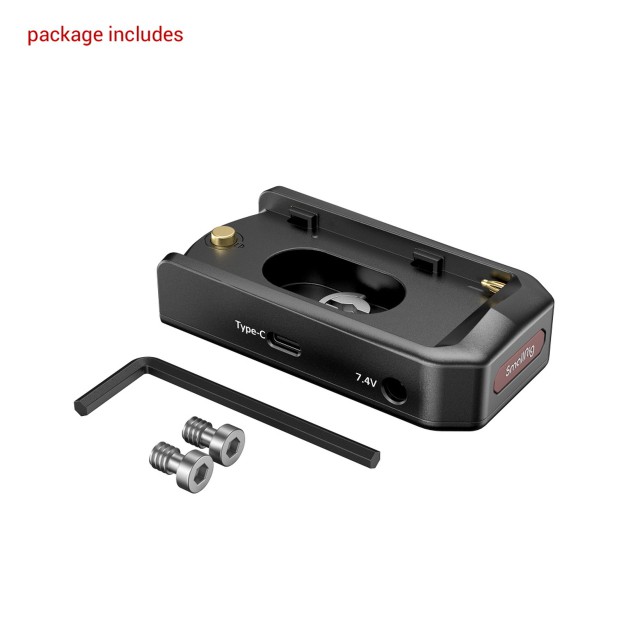

PACKAGE CONTENT

Package includes:

  • 1 x NP-F Battery Adapter Plate Professional Edition
  • 2 x 1/4 Screw
  • 1 x Allen Wrench
  • 1 x Type-C to Type-C Cable

SPECIFICATIONS

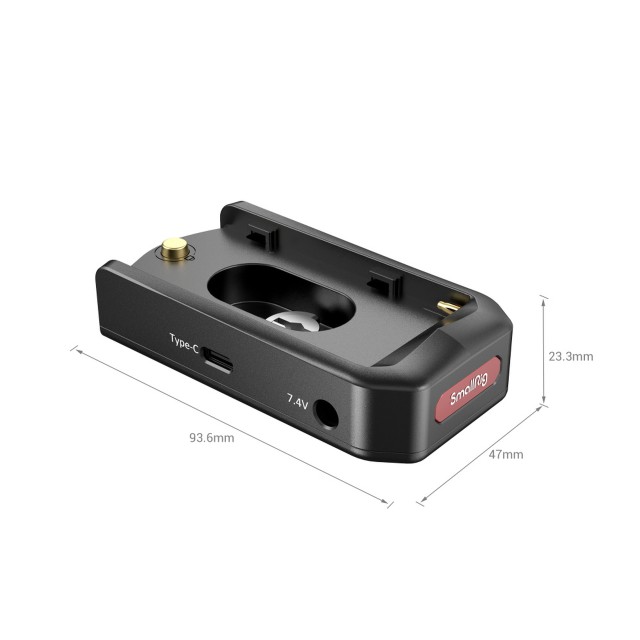

  • Product Dimensions: 93.6 x 47 x 23.3mm
  • Package Dimensions: 127 x 38 x 82mm
  • Net Weight: 75.5g±5g
  • Package Weight: 120.5g±5g
  • Material: ABS+PC
Parameters

Parameters

Manufacturer: SmallRig
Category: Power battery plates

Main parameters

Typ baterie / uchyceníSony NP-F
Výstupy a rozhraníDC 5521 (8V) · DC 5525 (12V)
Uchycení / montáž1/4"-20 / 3/8"-16 závit · Přímá montáž na kameru / cage
FunkceIndikátor stavu (LED)
KompatibilitaSony · Blackmagic Design
For the batterySony NP-F
