SmallRig Lightweight Fluid Video Head 3457

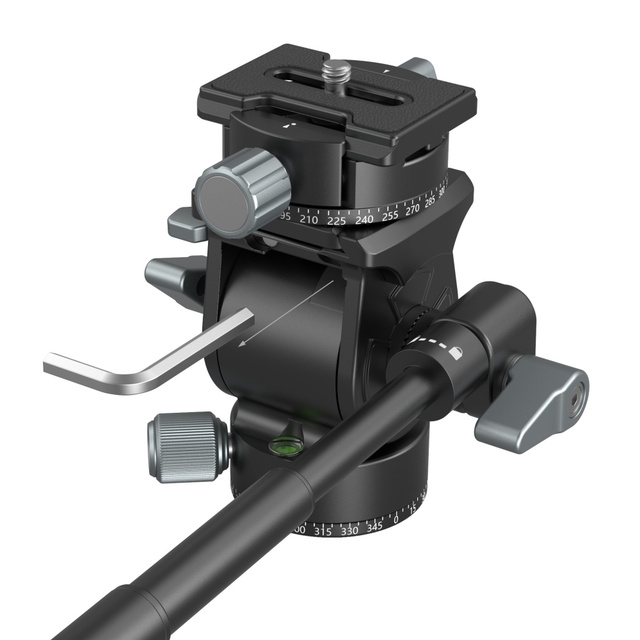

SmallRig Lightweight Fluid Video Head 3457 is specially designed for videoing and photography. It features panoramic panning and is Arca-swiss QR system compatible, allowing being fitted directly with Arca-swiss cages and L brackets. You may adjust its center of gravity back and forth by turning the side knob when using large lenses or mounting camera horizontally. The head comes with a removable telescopic handle that supports 360° swivel and one 1/4''-20 threaded hole to fit a magic arm for such devices as monitor, microphone, image transmitter or even camera. A built-in spanner is also included for removing or installing quick release plate.

SmallRig Lightweight Fluid Video Head - Comprehensive Technical Description

The SmallRig Lightweight Fluid Video Head is a professional-grade tripod head specifically engineered for videography and photography applications. This aluminum alloy construction delivers a robust yet portable solution for content creators, filmmakers, and photographers who require smooth panoramic panning capabilities combined with reliable load capacity and intuitive balance adjustment features.

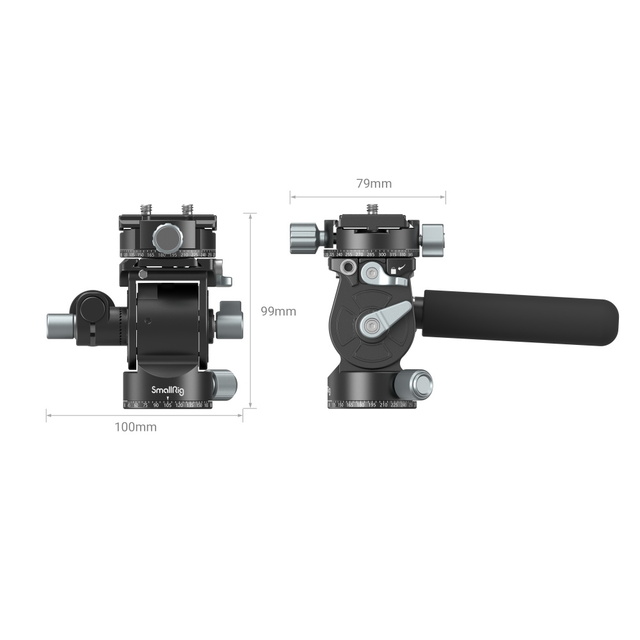

Built from premium aluminum alloy, this video head weighs only 512 grams while maintaining exceptional structural integrity and durability. The compact design measures 104 by 77.5 by 62 millimeters, making it an ideal choice for travel, outdoor productions, and situations where equipment portability is essential. Despite its lightweight construction, the head supports a maximum load capacity of 5 kilograms, accommodating most mirrorless cameras, DSLR systems, and compact camera configurations with standard lenses.

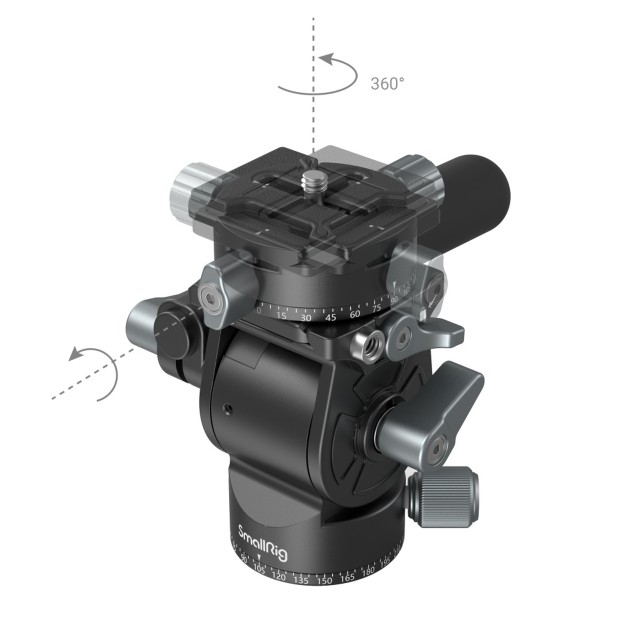

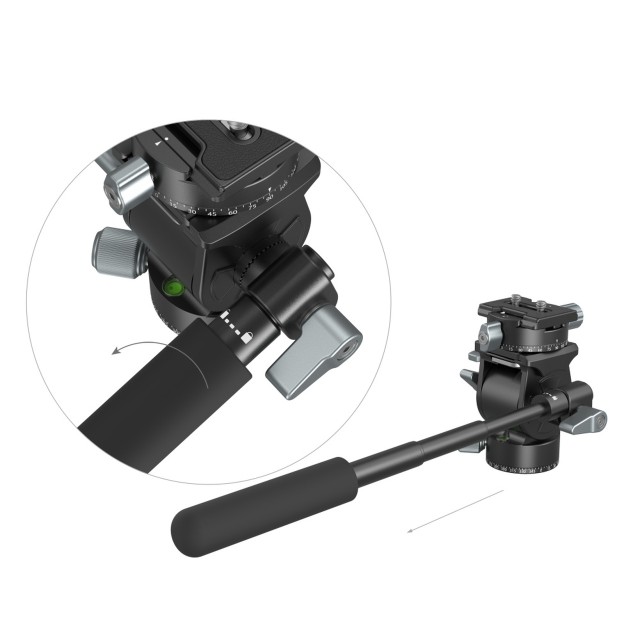

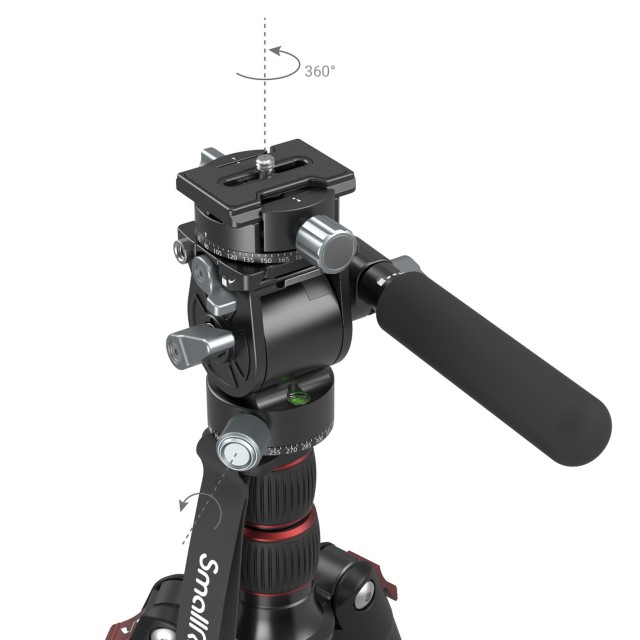

The panoramic panning system provides seamless 360-degree rotation capability, enabling operators to execute smooth horizontal camera movements essential for professional video production. The tilt range extends from positive 90 degrees to negative 60 degrees, offering comprehensive vertical adjustment for diverse shooting angles and compositional requirements. The removable telescopic handle supports full 360-degree swivel functionality, with a folded length of 140 millimeters and maximum extended length of 330 millimeters, providing comfortable ergonomic control while maintaining portability.

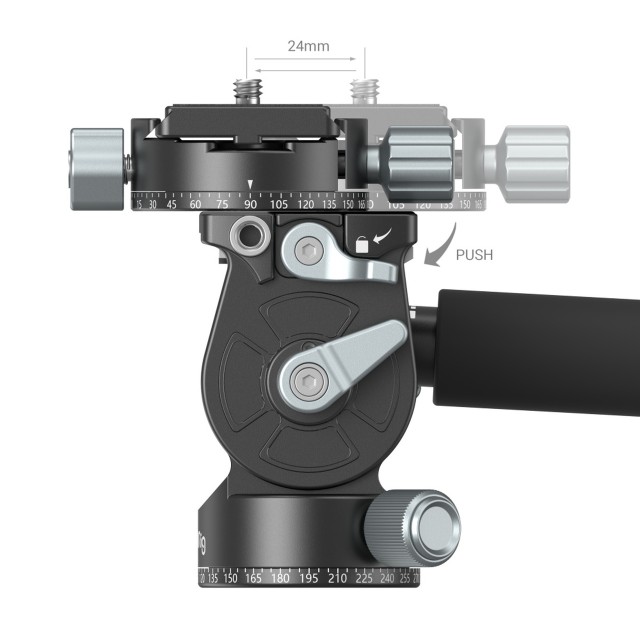

The adjustable center of gravity mechanism represents a key engineering feature, allowing operators to turn the side knob to shift the mount section backward or forward. This functionality is particularly valuable when working with large lenses or mounting cameras horizontally, as it compensates for weight distribution and ensures stable, balanced operation. The system effectively addresses situations where equipment balance might otherwise compromise video smoothness or introduce unwanted vibration.

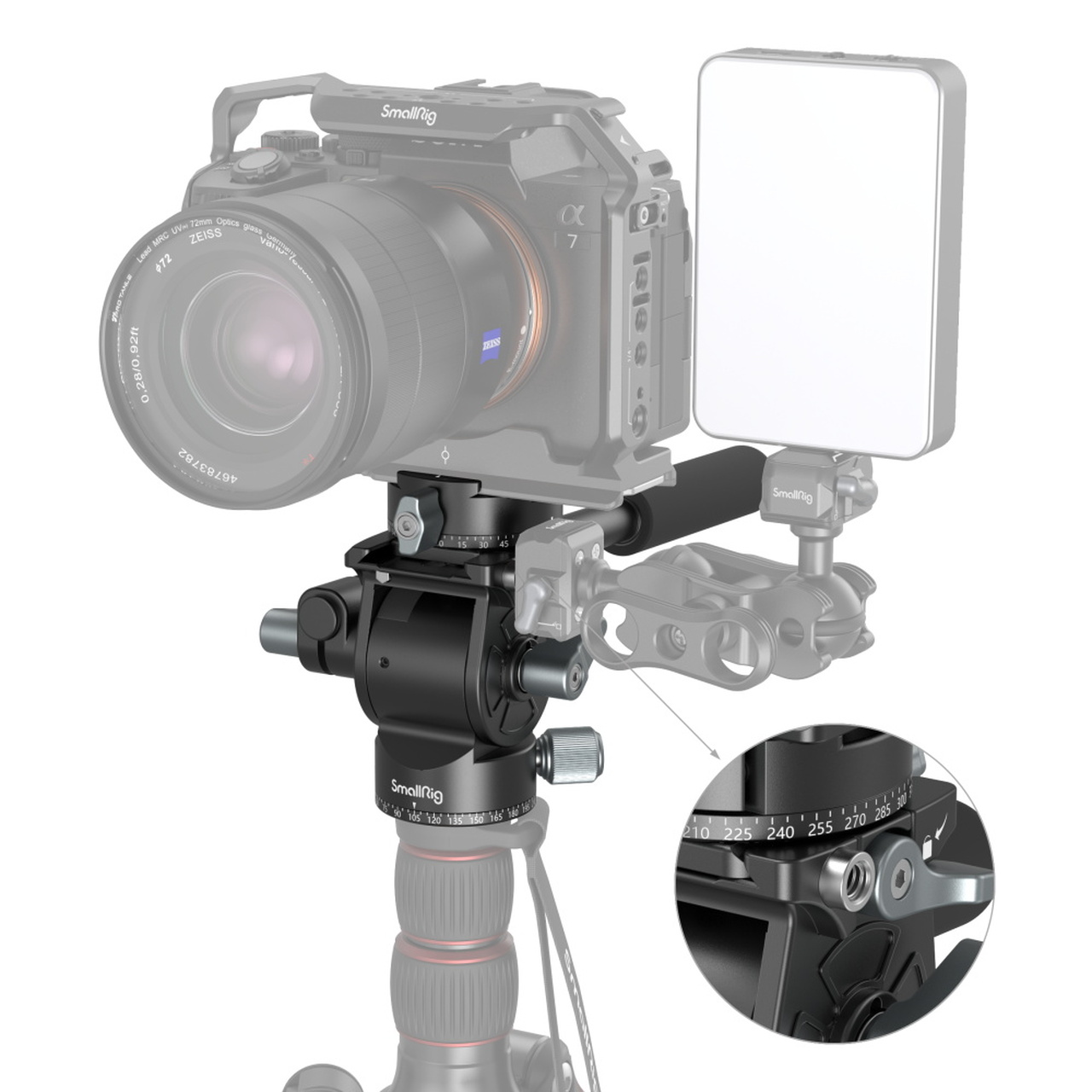

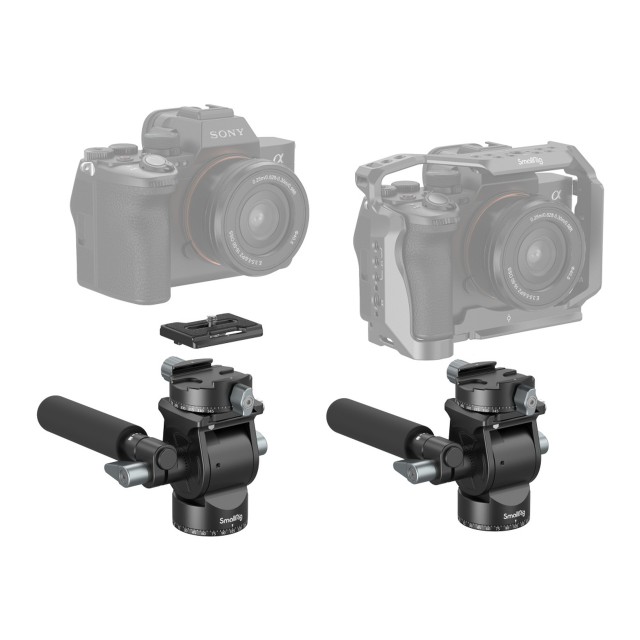

This video head features Arca-Swiss quick release system compatibility, enabling direct mounting with Arca-Swiss cages and L-brackets. The mounting system includes one 1/4-inch by 20-thread socket designed for attaching optional accessories via magic arm, such as external monitors, microphones, image transmitters, or supplementary cameras. The base diameter measures 46 millimeters and connects to tripods equipped with 3/8-inch 16-thread screws, representing the standard mounting configuration for professional video tripod systems.

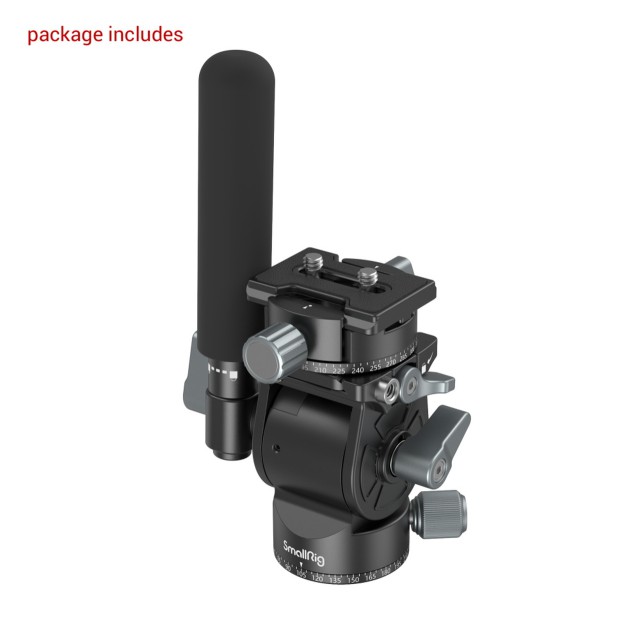

The standard package includes the video head unit, quick release plate, two 1/4-inch by 20-thread screws, and a built-in screwdriver tool for convenient quick-release plate installation and removal. The complete package weight measures 653.5 grams with packaging materials included. The product dimensions when packaged are 201 by 126 by 93 millimeters, facilitating efficient storage and transportation in equipment cases or production kits.

Operation and maintenance are straightforward and user-friendly. The mount rotation adjustment screw allows users to control and lock rotation tension, enabling camera mounting in any required direction based on specific cage or release plate configurations. The mount rotation function also facilitates panning operations, though primary panning control operates through the panoramic panning system. The integrated design minimizes external components that require adjustment or maintenance during shooting.

Performance considerations include potential effects from heavy camera and lens combinations on tilt experience and smoothness. While the 5-kilogram load capacity accommodates most standard shooting configurations, operators should be aware that particularly heavy setups may introduce resistance or slightly reduced fluidity in tilt movements. The aluminum alloy construction provides excellent weight-to-strength ratio while maintaining resistance to corrosion and environmental conditions typical in professional production environments.

Key features supporting professional videography include the combination of lightweight design, adjustable balance compensation, panoramic panning capability, and Arca-Swiss compatibility. The removable handle design facilitates equipment versatility by enabling operators to detach the handle for remote operation or mounting within specialized camera rigs. This video head successfully addresses the requirements of modern content creators working across travel production, mirrorless and DSLR systems, and compact camera configurations where equipment weight and portability significantly impact production efficiency and shooting flexibility.

Technical Specifications Summary:

• Load Capacity: 5 kilograms

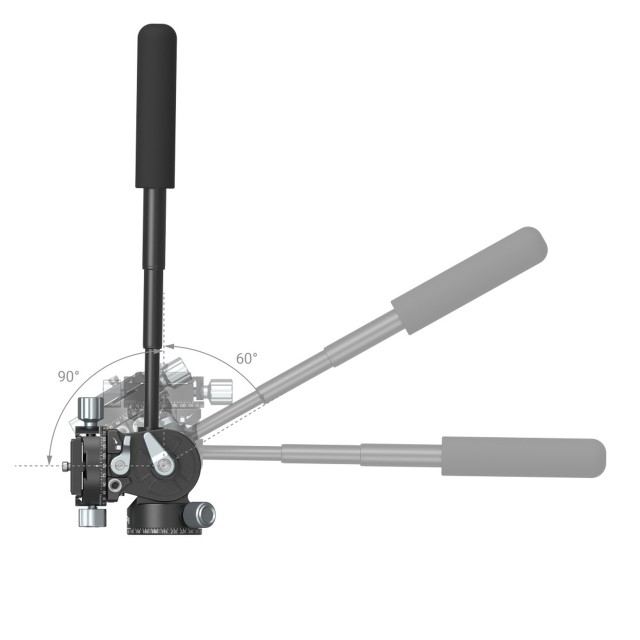

• Tilt Range: Plus 90 degrees to minus 60 degrees
• Pan Range: 360 degrees continuous
• Material: Aluminum alloy
• Net Weight: 512 grams plus or minus 5 grams
• Product Dimensions: 104 by 77.5 by 62 millimeters
• Base Diameter: 46 millimeters
• Handle Folded Length: 140 plus or minus 5 millimeters
• Handle Maximum Length: 330 plus or minus 5 millimeters
• Tripod Compatibility: 3/8 inch 16-thread screws
• Quick Release System: Arca-Swiss compatible
• Accessory Thread: 1/4 inch by 20-thread socket
