SmallRig Cage for Sony FX30 / FX3 4183(4138 new version)

SmallRig Cage for Sony FX30 / FX3 4183 is designed to protect the camera and provide accessory mounting points. The modular cage consists of a NATO rail and a U-shaped cage. The NATO rail is secured on the top via two 1/4"-20 screws and removed to allow installing the original XLR top handle; the U-shaped cage is fixed via 1/4"-20 screws on both sides and…

More information

Promotion: 99 €
105.71 € 99 € with VAT 81.82 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs, Budapest 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

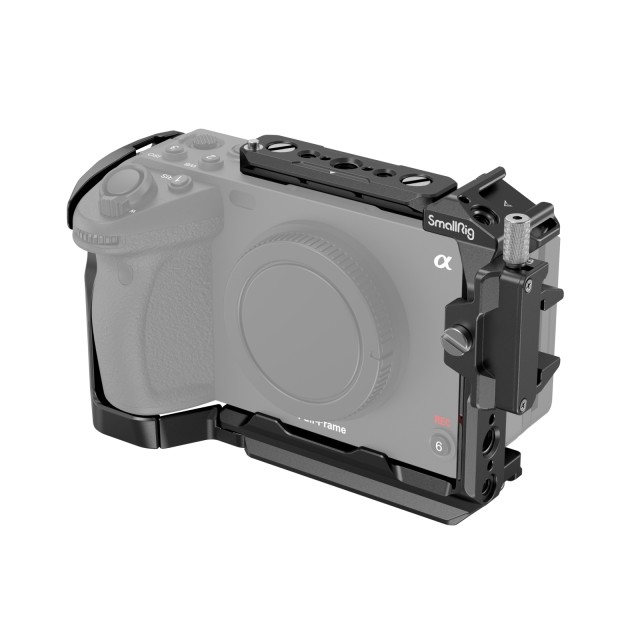

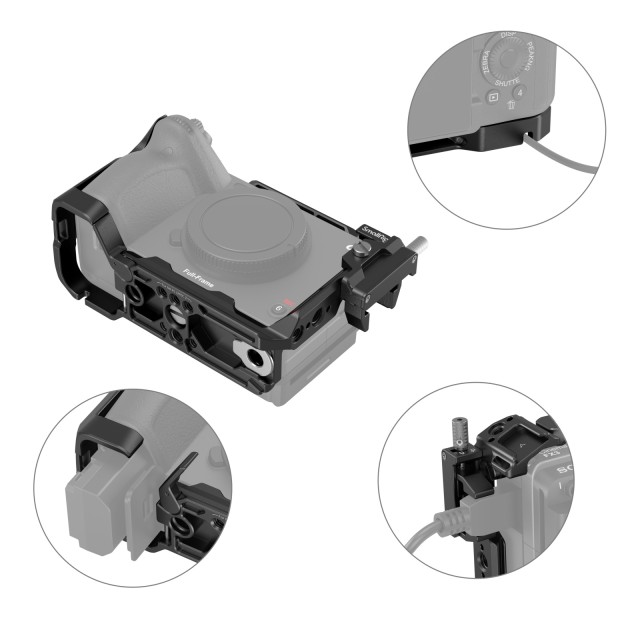

SmallRig Cage for Sony FX30 / FX3 4183 is designed to protect the camera and provide accessory mounting points. The modular cage consists of a NATO rail and a U-shaped cage. The NATO rail is secured on the top via two 1/4"-20 screws and removed to allow installing the original XLR top handle; the U-shaped cage is fixed via 1/4"-20 screws on both sides and at the bottom to prevent twisting, with a cushion against scratches. At the battery door, there is a hinge arm that fits the camera curve for an improved grip experience for a little finger.

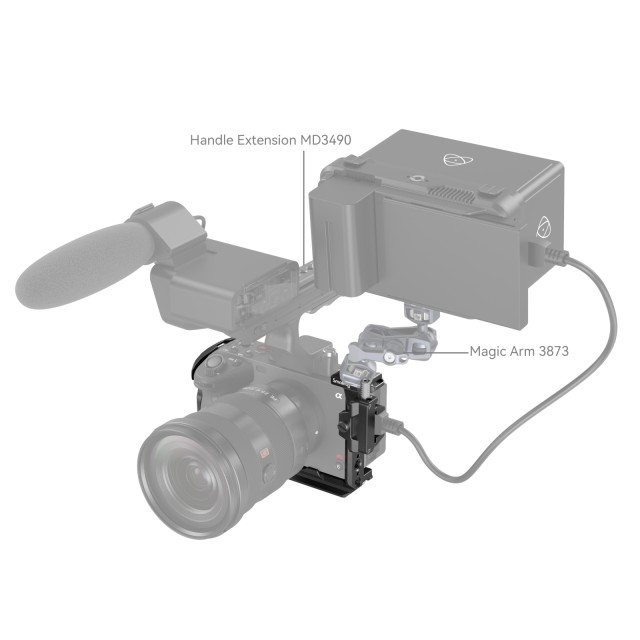

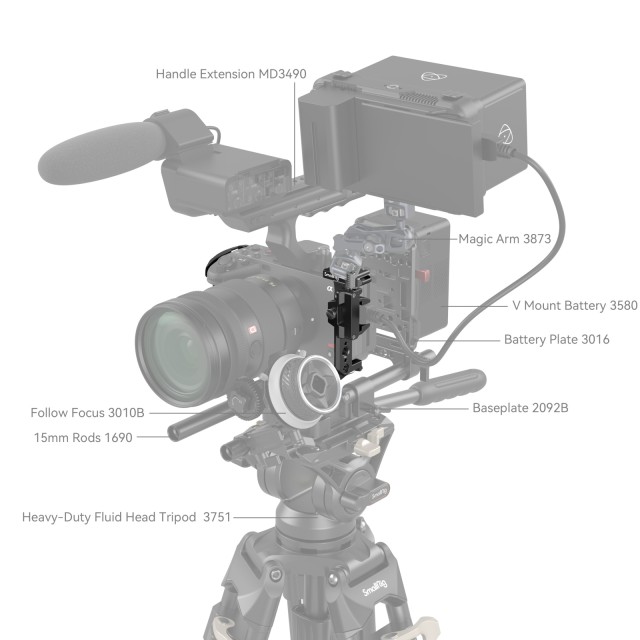

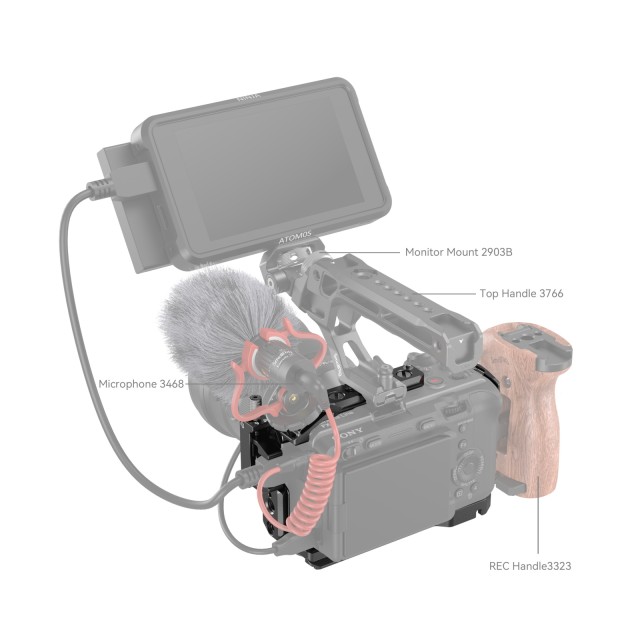

A dedicated HDMI cable clamp protects interfaces to ensure stable signal transmission. Among its varied accessory mounts, 1/4"-20 holes support Magic Arm 2070; ARRI 3/8"-16 locating holes connect Top Handle 2165C or Monitor Mount 2903B; the top NATO rail supports Top Handle 3322, and the left one, Side Handle 2187B; 1/4"-20 locating holes at the top-left quarter and on the left side attach Rod Clamp 3598 for follow focus; two 1/4"-20 holes on the right side allow being securely mounted onto a quick release plate for vertical shooting; the cold shoe mount supports microphone, LED light; and the QD port at the bottom fits QD strap. An Arca-Swiss quick-release plate at the bottom can attach DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro directly or a quick-release plate (height increase pad) for DJI RS 2 / RSC 2 gimbal and Arca-Type Quick Release Plate 3154. Both sides and the bottom have holes for Hand Strap 3848 and Shoulder Strap PSC2428. A magnetic spanner is also included for easy assembly and disassembly.

Note: Please remove the top NATO rail before installing the original XLR handle.

1. Full cage that protects Sony FX30 / FX3.
2. Modular design with removable NATO rail; supports the original XLR top handle.
3. Hinge arm at the battery door fits the camera curve for an improved grip experience.
4. Dedicated HDMI cable clamp ensures stable signal transmission.

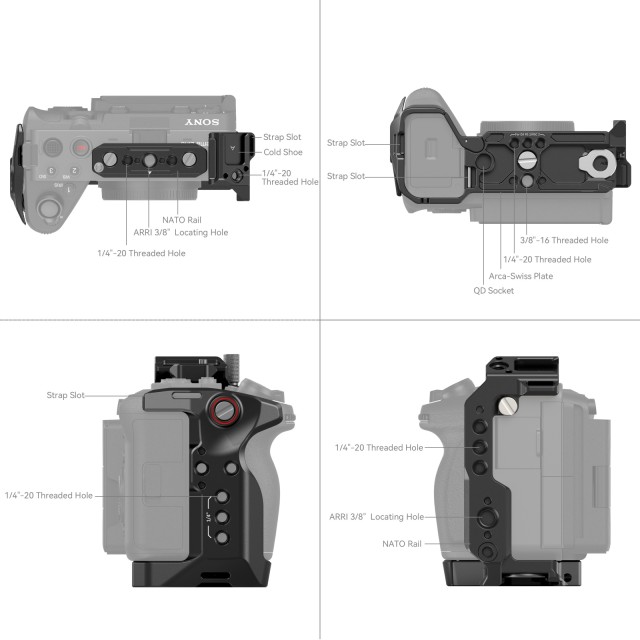

5. 1/4"-20 threaded holes, ARRI 3/8"-16 locating holes, cold shoe mounts, NATO rails, QD port for the handle, microphone, LED light, monitor, hand strap, etc.

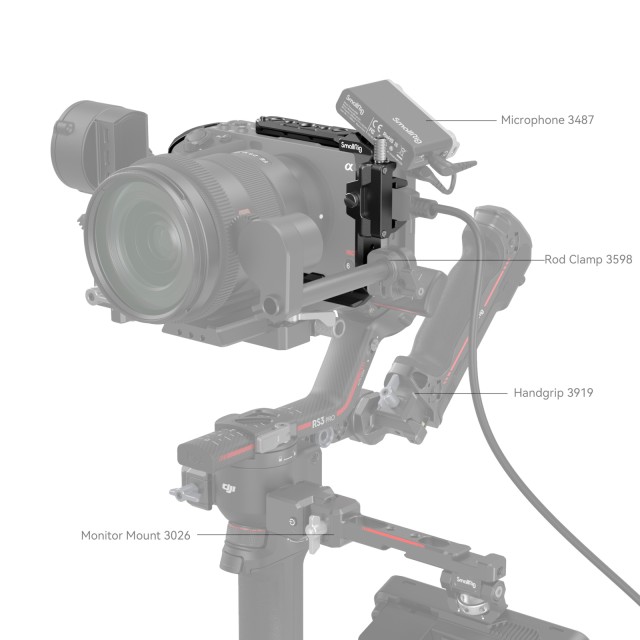

6. Arca-Swiss quick release plate at the bottom quickly attaches DJI RS 2 / RS 3 gimbal and Arca-Swiss tripod.

4183 is an upgrade of 4138

Compatible With
Sony FX30
Sony FX3

PACKAGE CONTENT

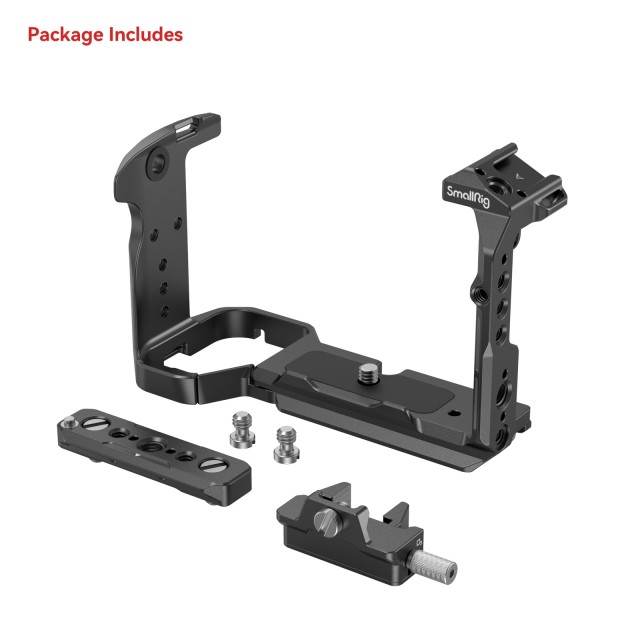

Packing List
1 x Cage
1 x NATO rail
1 x HDMI Cable Clamp
2 x 1/4”-20 Screw



SPECIFICATIONS


Technical Data

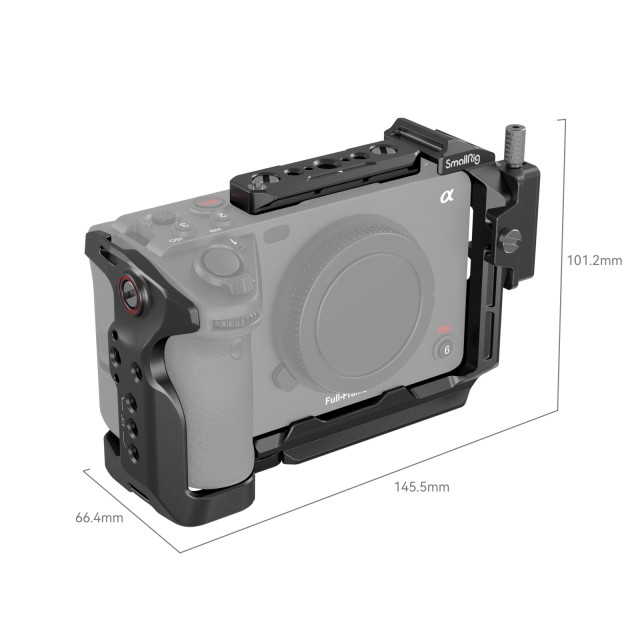

Product Dimensions: 159 x 101.2 x 66.2mm
Package Dimensions:180 x 129.5 x 78mm
Product Weight: 195±5g
Package Weight: 301±5g
Material(s): Aluminum Alloy, Stainless Steel



Parameters

Parameters

Manufacturer: SmallRig
Category: Cages
