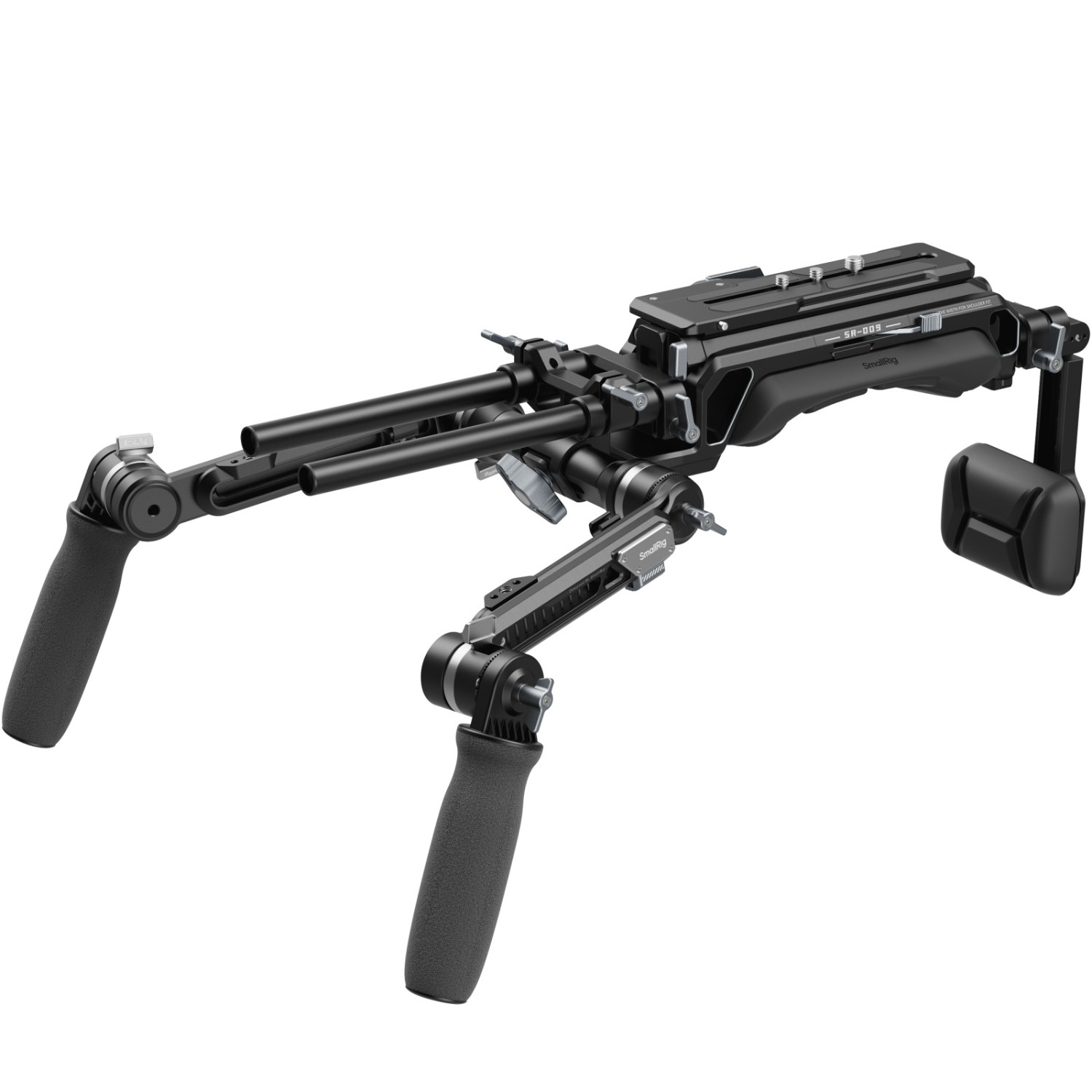

SmallRig "HawkLock" VCT-14 Type Shoulder Rig (SR009) 5199

Shoulder rig for medium to large cinema cameras, payload up to 20kg. Built-in VCT-14 module for one-second tripod switching, tool-free assembly, 185mm center-of-gravity adjustment, ARRI rosette, 1/4"-20 holes and 15mm rod clamps.

More information

589 € with VAT 486.78 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock 1 pcs
Praha 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Shoulder rig for medium to large cinema cameras, payload up to 20kg. Built-in VCT-14 module for one-second tripod switching, tool-free assembly, 185mm center-of-gravity adjustment, ARRI rosette, 1/4"-20 holes and 15mm rod clamps.

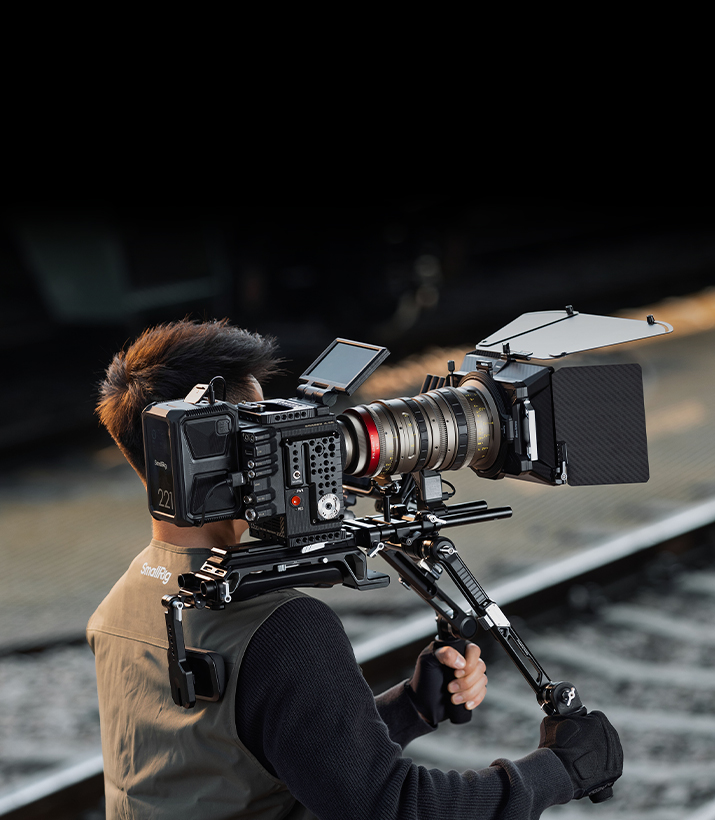

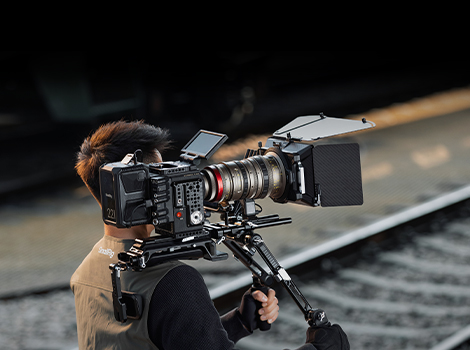

The SmallRig "HawkLock" VCT-14 Type Shoulder Rig (SR009) 5199 is built for medium to large cinema cameras with a payload of up to 20kg (44lb). It is designed for smooth handheld and first-person shooting where stability, comfort and a fast setup on set matter.



20kg (44.1lb) Capacity

Rock-solid support for cinema cameras

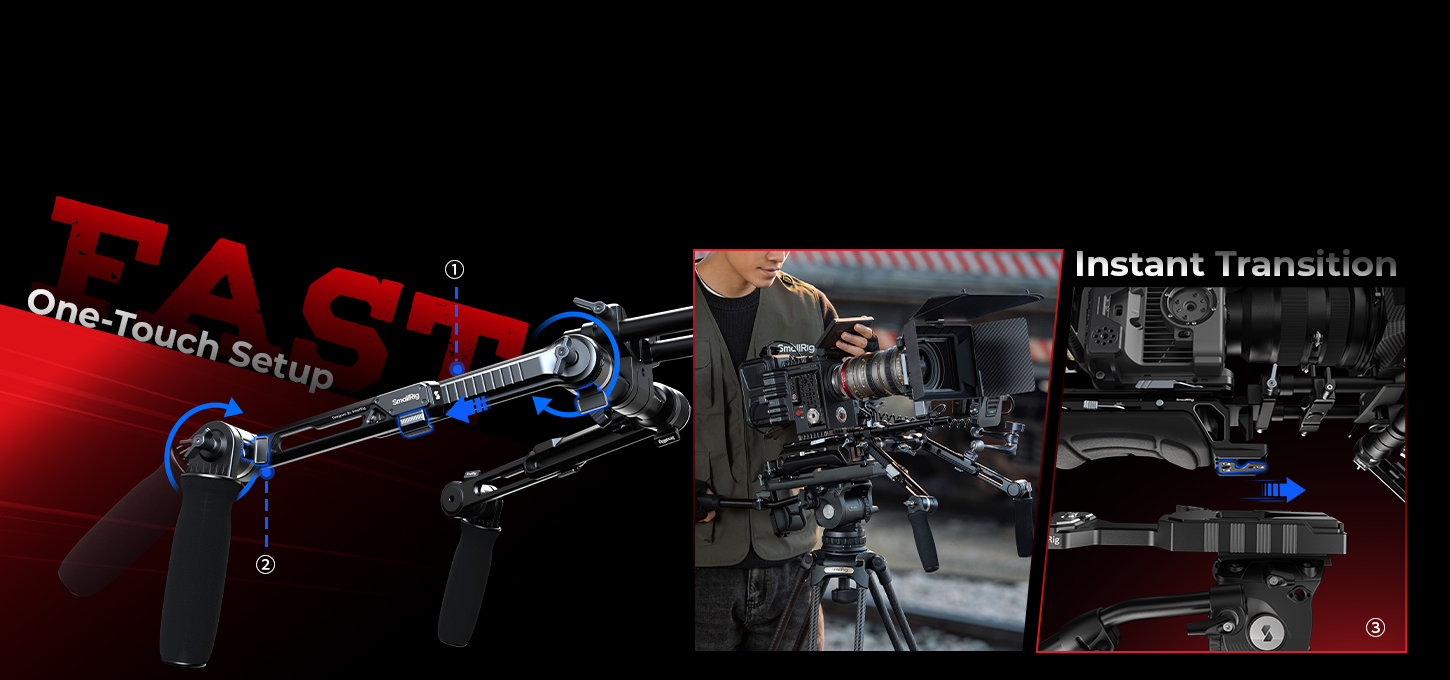

Tool-Free, Speed-Focused

Fast assembly, adjustment, and disassembly

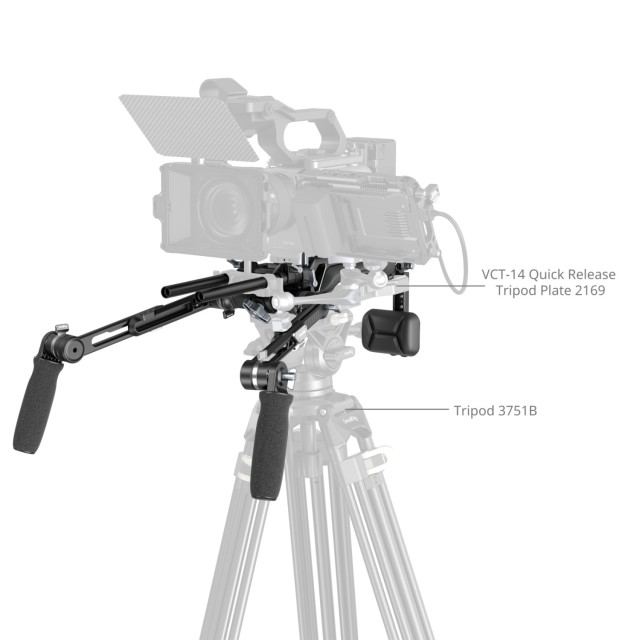

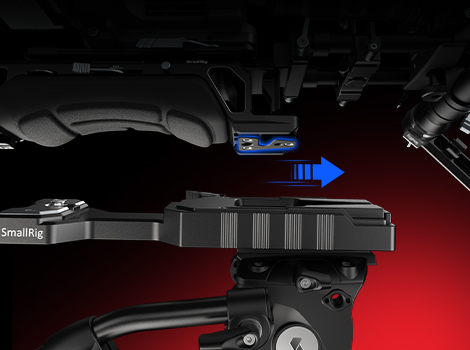

Built-In VCT-14 Adapter

Switch from tripod to shoulder rig & back

Your Personal Shape

Adjust for a perfect fit

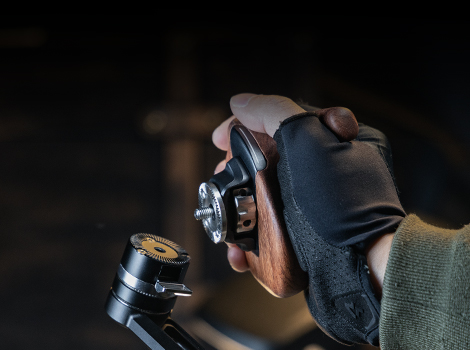

Universal Rosette Handle Mount

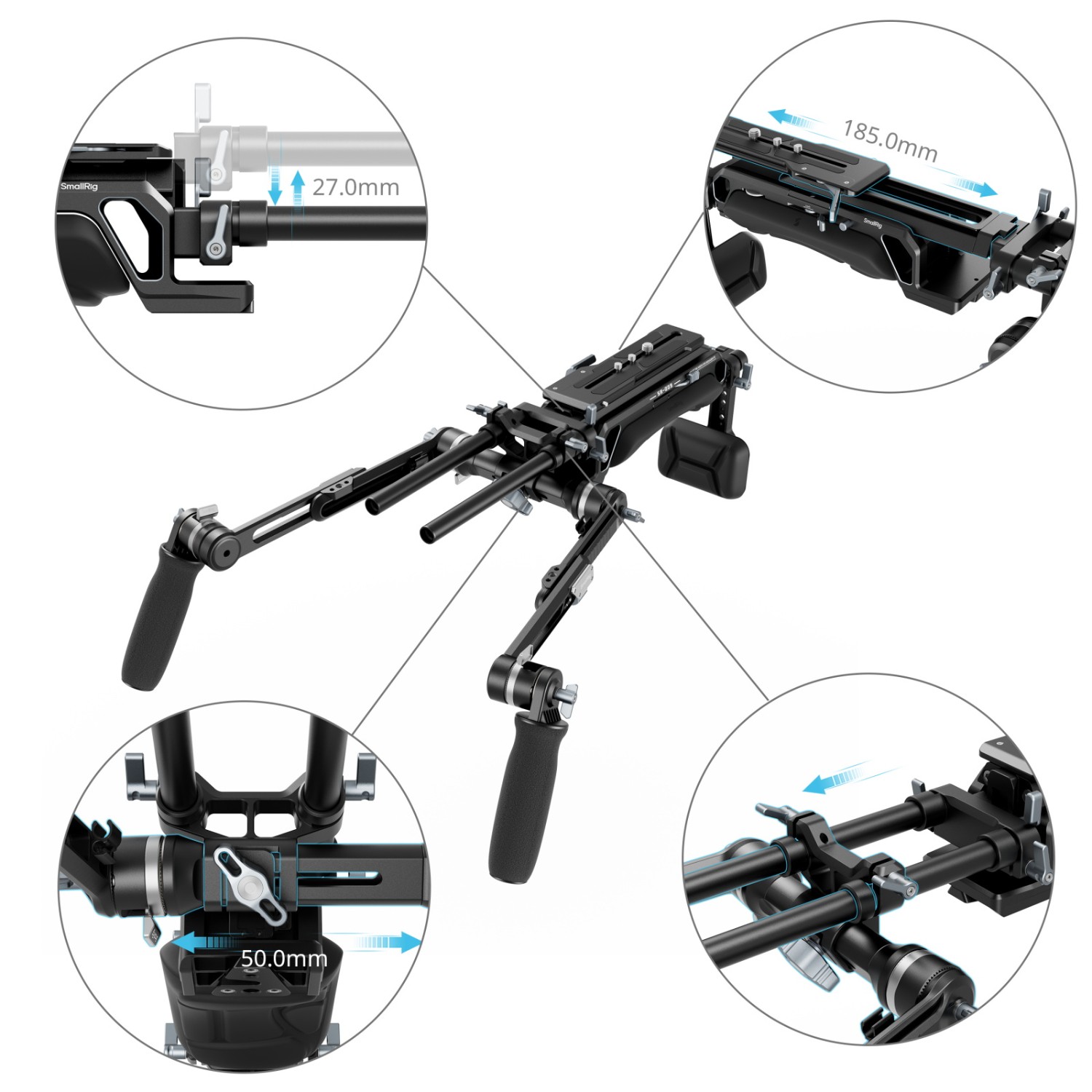

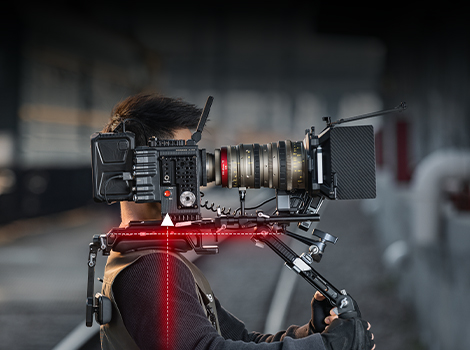

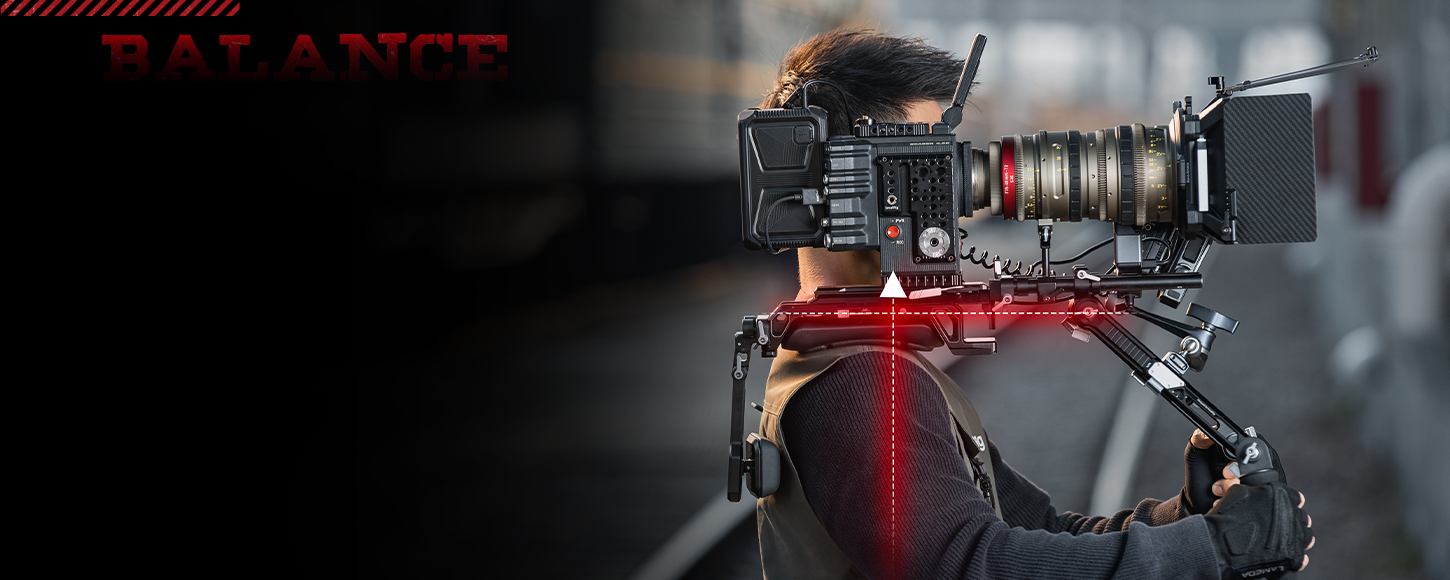

Forward & Backward Balance

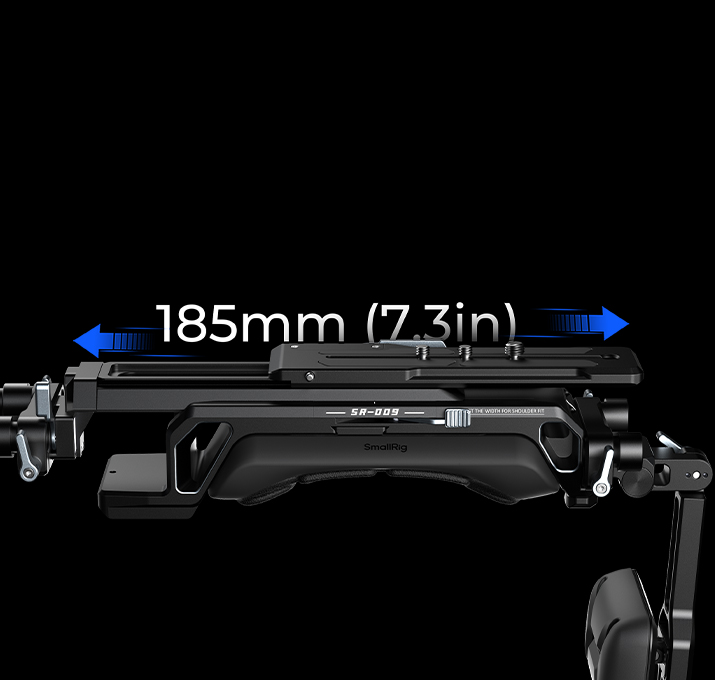

Adjust your camera's position by up to 185mm (7.3in) with the double-layer quick release plate

Side Alignment

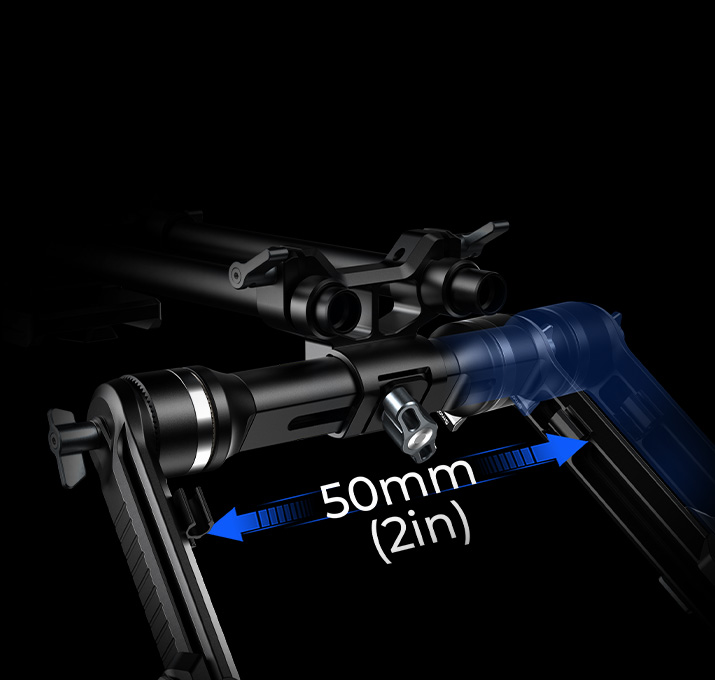

Fine-tune the telescopic arm by 50mm (2in)

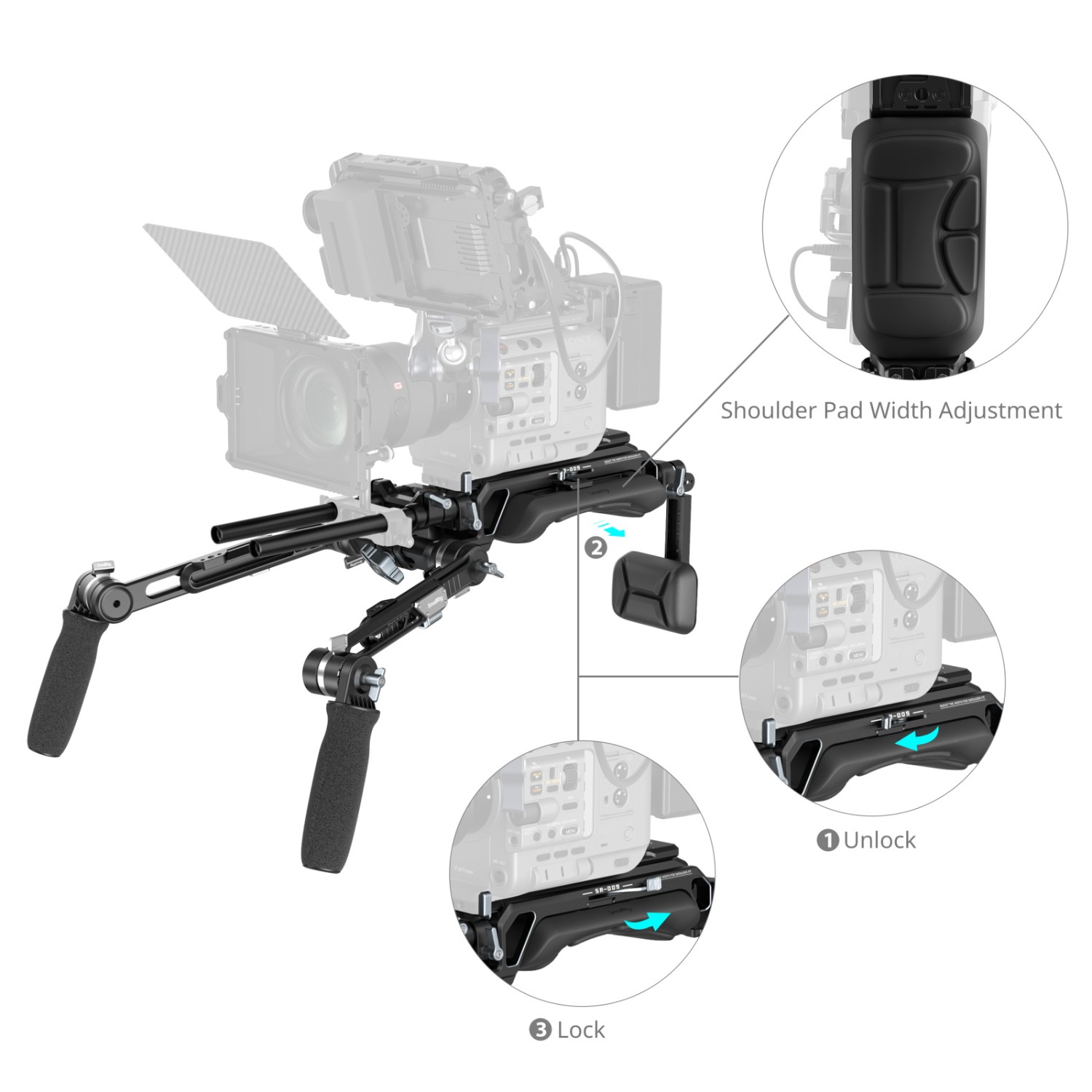

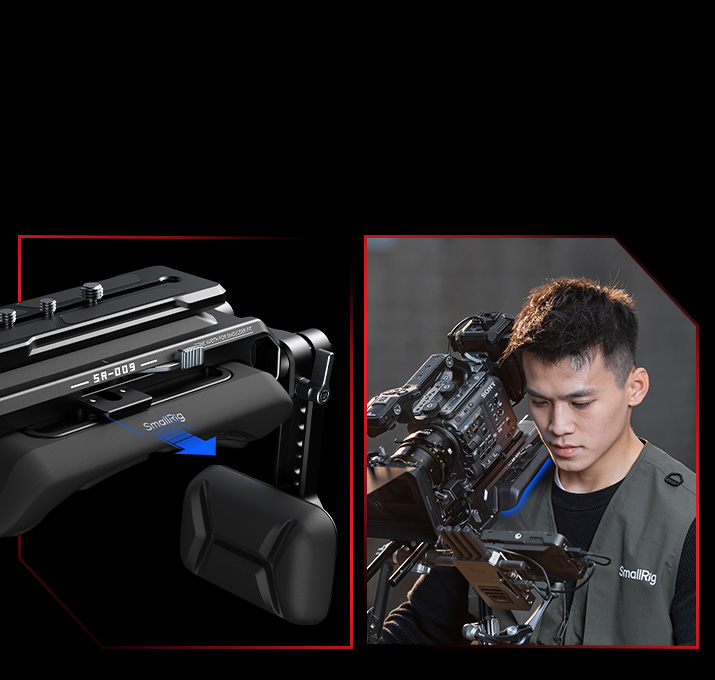

Shift the shoulder pad for natural alignment

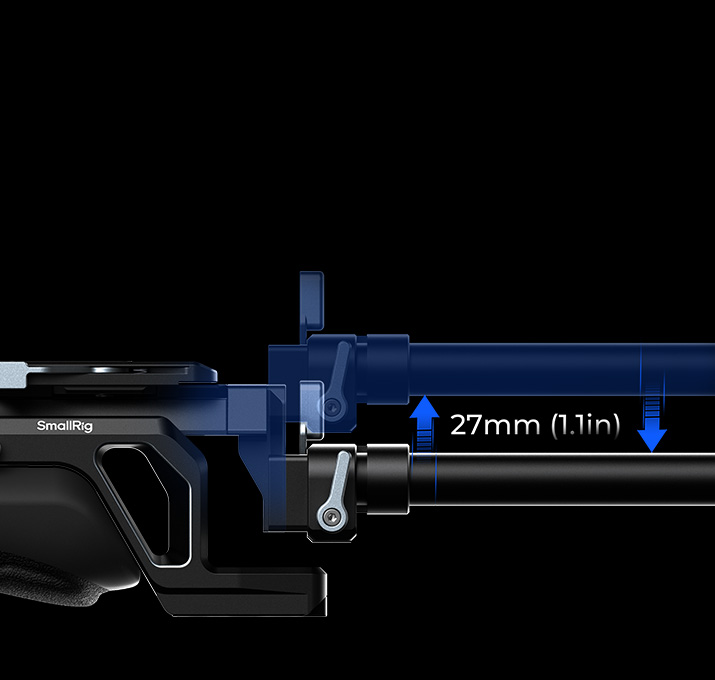

Up & Down Clearance

Adjust the base height by 27mm (1.1in) to accommodate different lens sizes

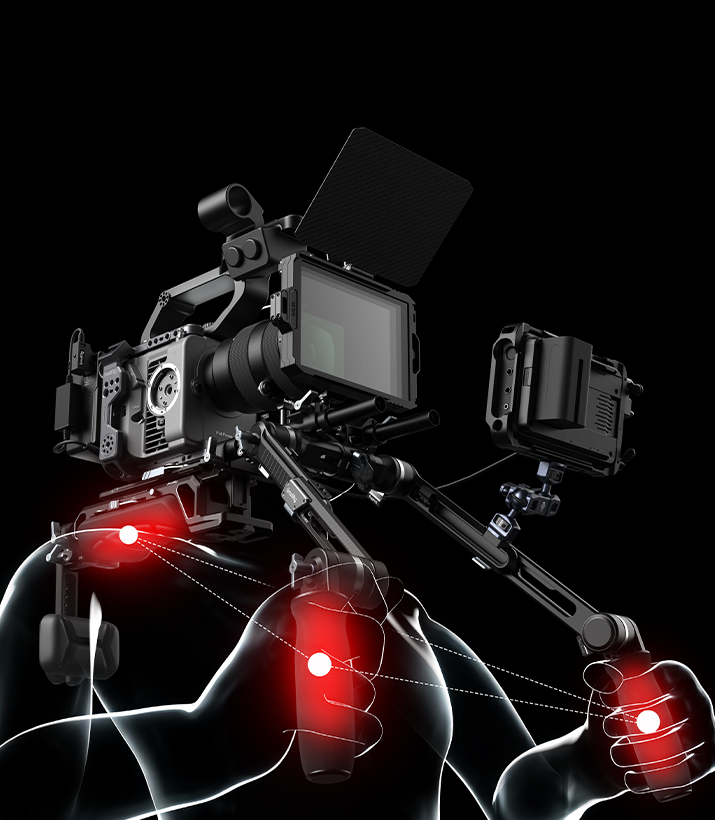

The Anatomy Alignment

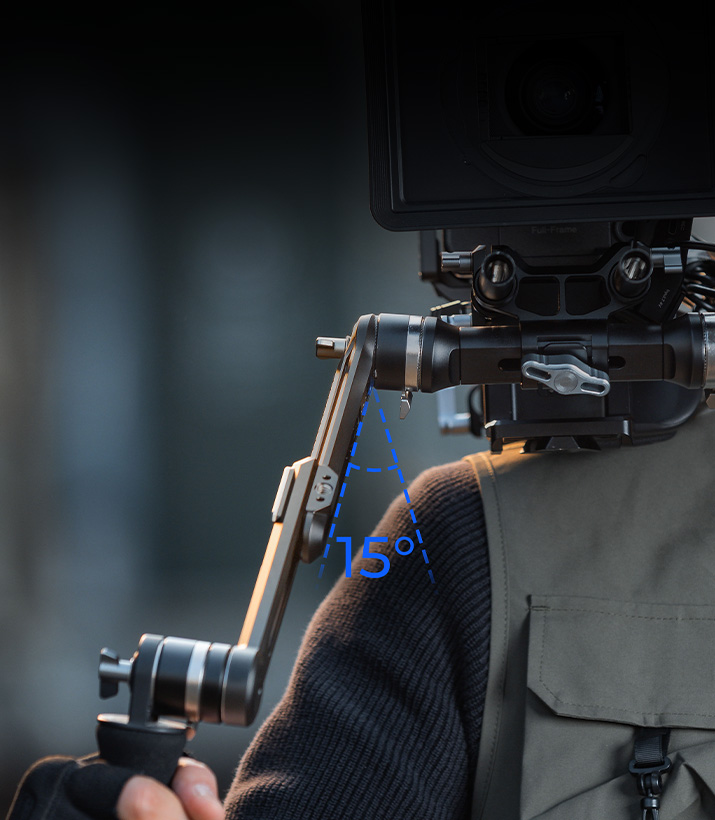

Ergonomic Handle Design

Angled outward to fit your natural shooting stance

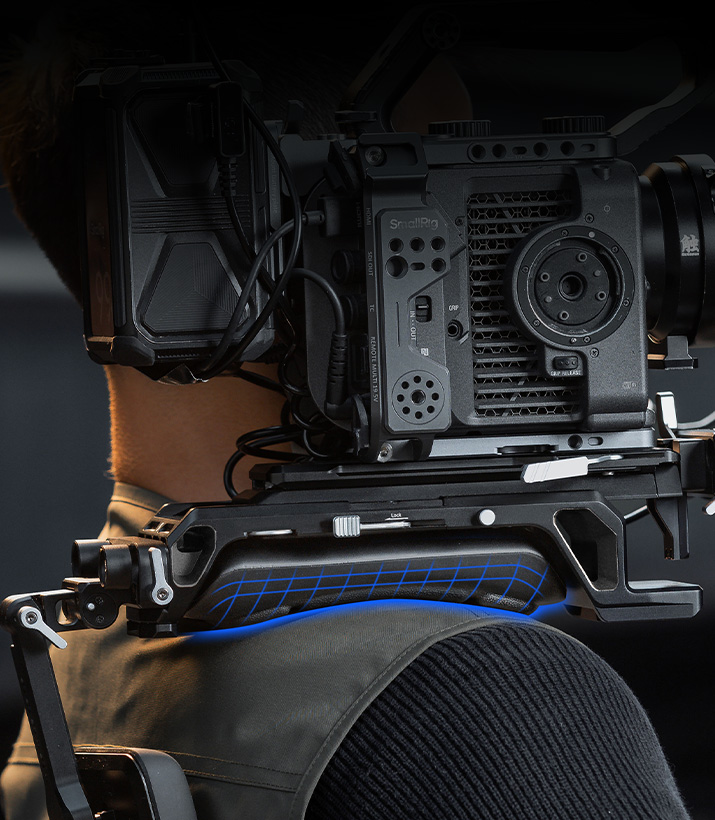

Comfort-Engineered Shoulder Pad

Widened, thickened, and replaceable pad

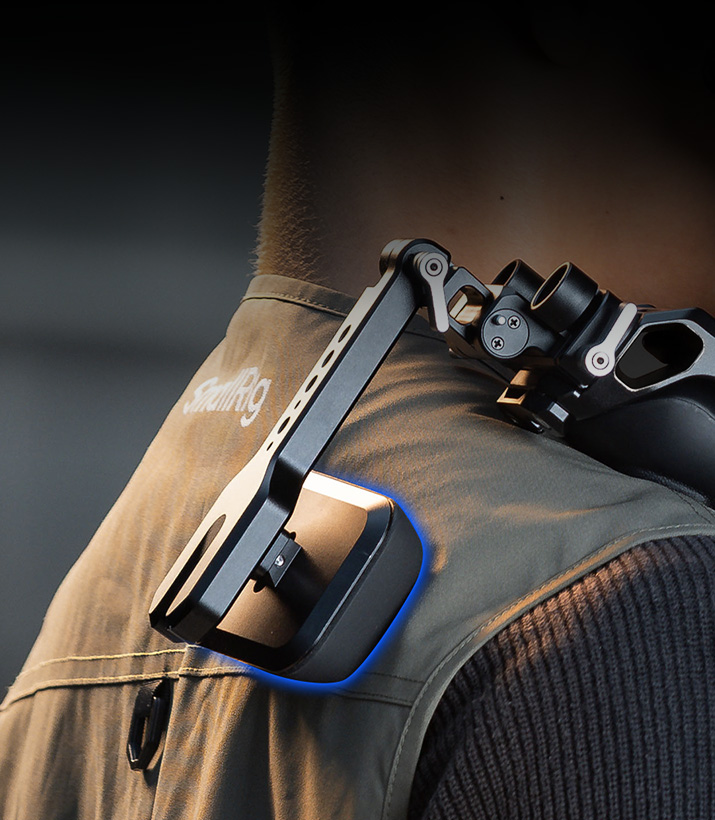

Self-Adjusting Back Pad

Spring-mounted silicone pad conforms to your anatomy

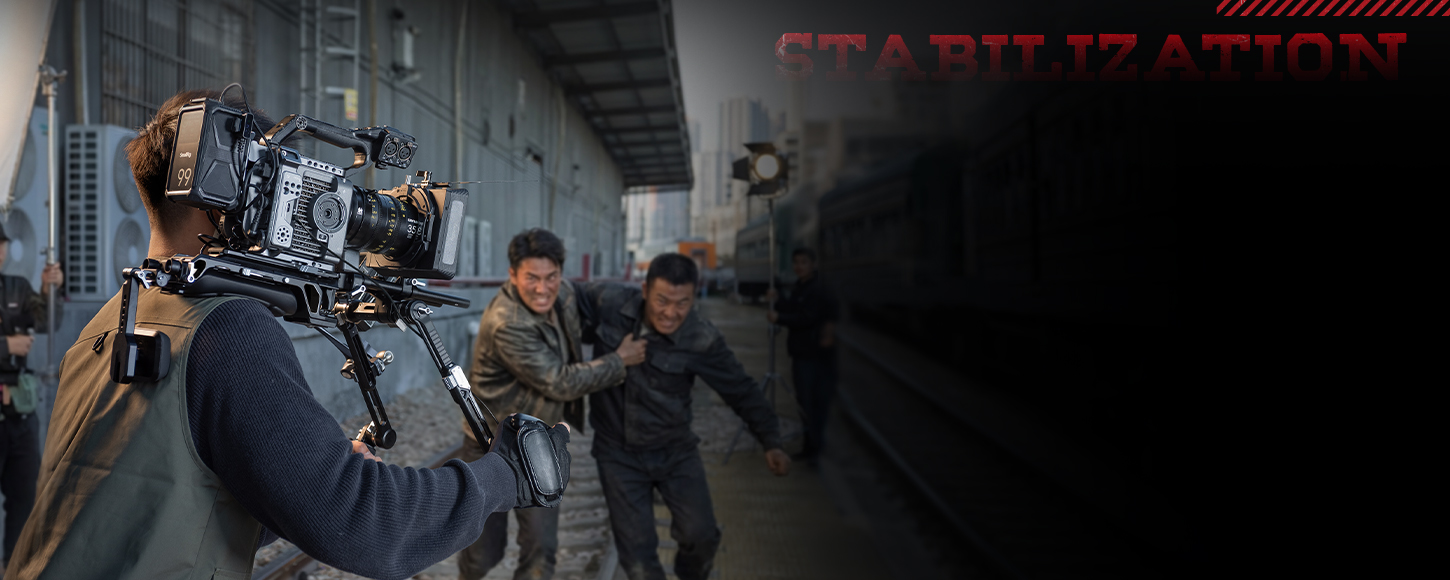

Stability and ergonomics

  • Payload of up to 20kg (44lb) for medium to large cinema cameras, for shake-free shots.
  • The wide, thickened shoulder pad distributes weight evenly without blocking the view, and shifts sideways for a natural fit.
  • The spring-mounted back pad conforms to the body and adds security during low-angle shots.

Fast setup

  • Built-in VCT-14 module: switch between shoulder and tripod mode in one second.

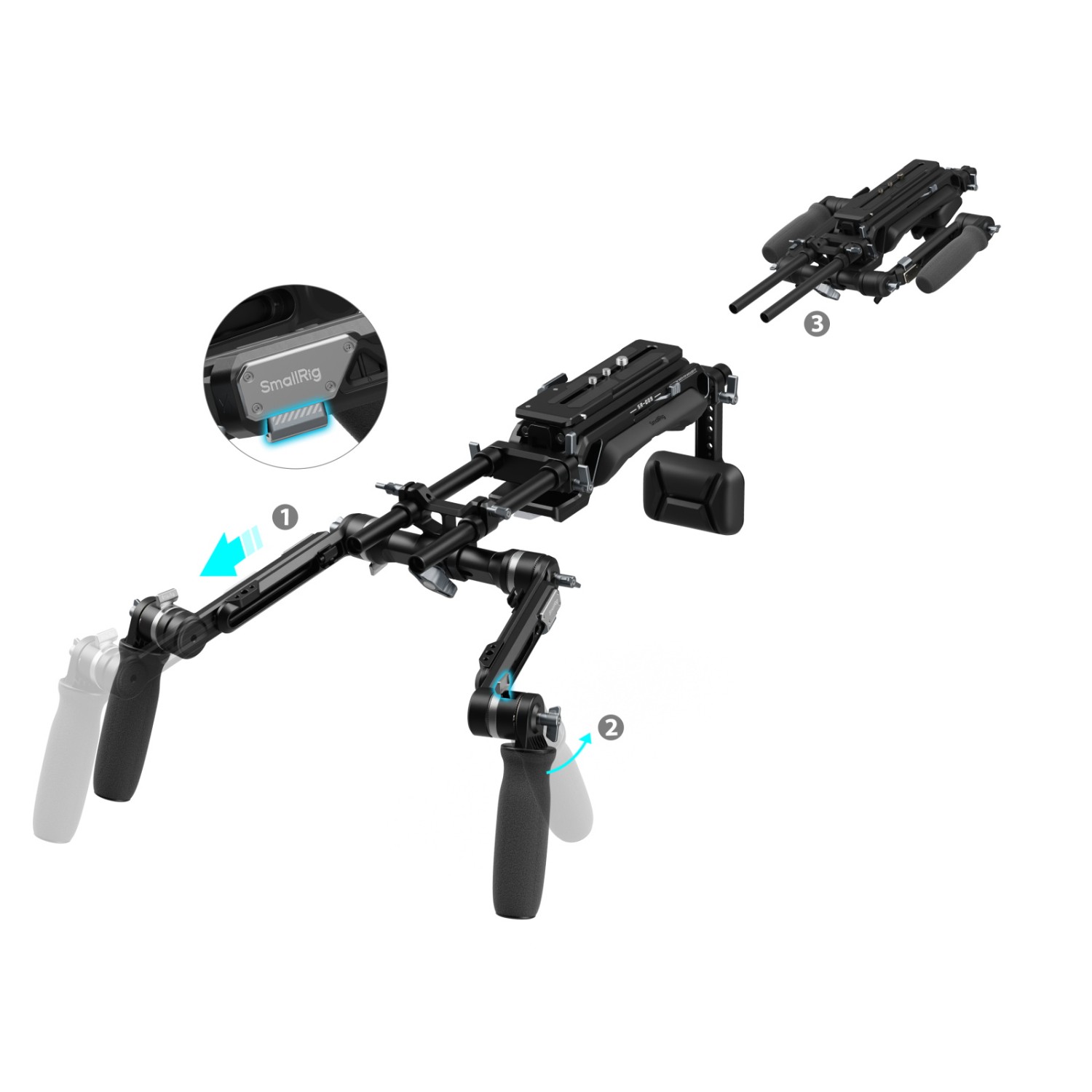

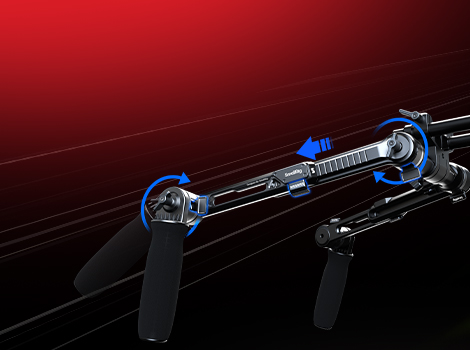

  • Tool-free assembly; the telescopic arm deploys in one move thanks to the "HawkLock" quick release.
  • The handle angle is fine-tuned with the integrated rosette.

Adjustment and balance

  • The telescopic arm adjusts laterally by 50mm (2in) to fit operators of different sizes.
  • Dual quick release plates move the center of gravity forward or backward over a range of 185mm (7.3in).
  • The base height adjusts by 27mm (1.1in) to suit a wide range of camera and lens combinations.

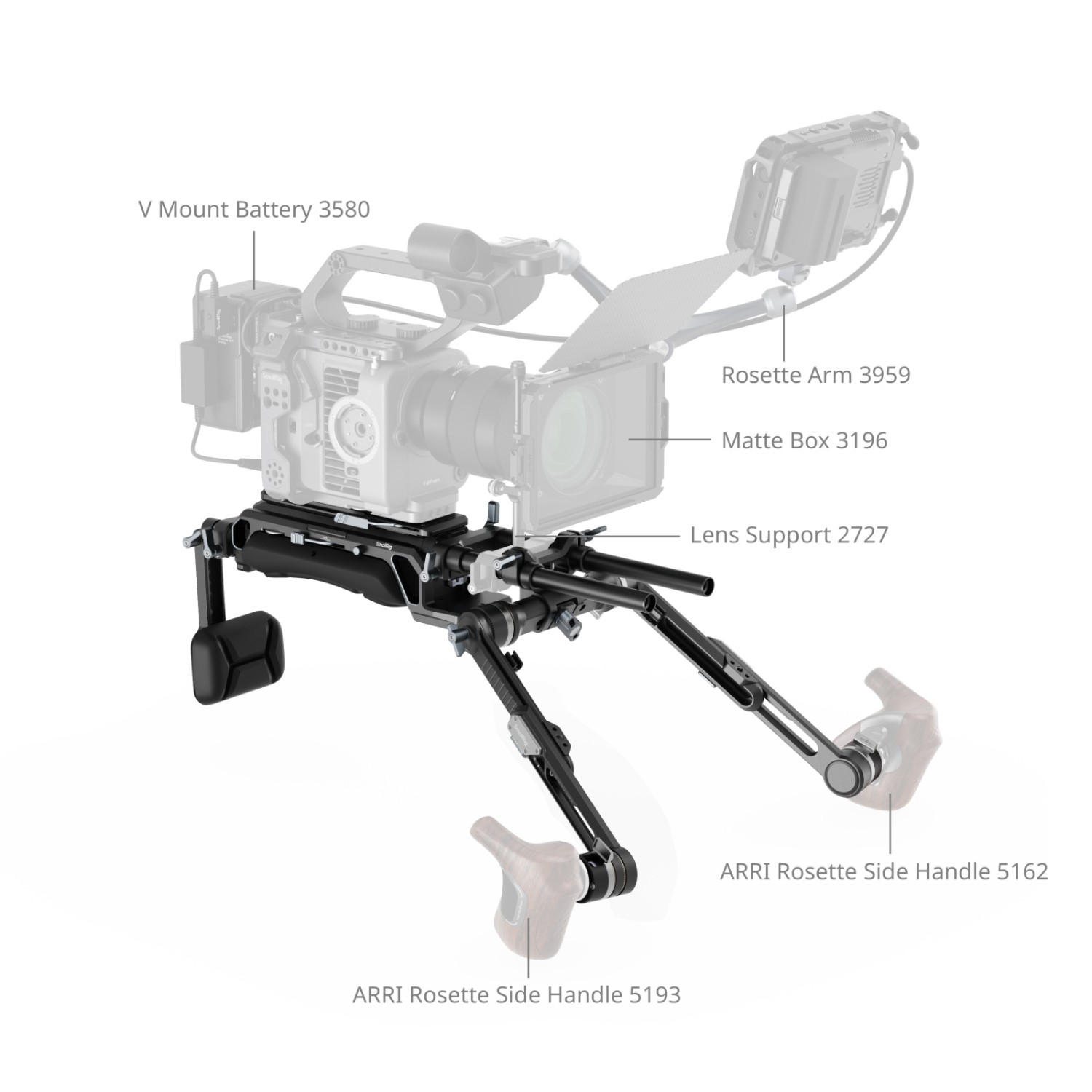

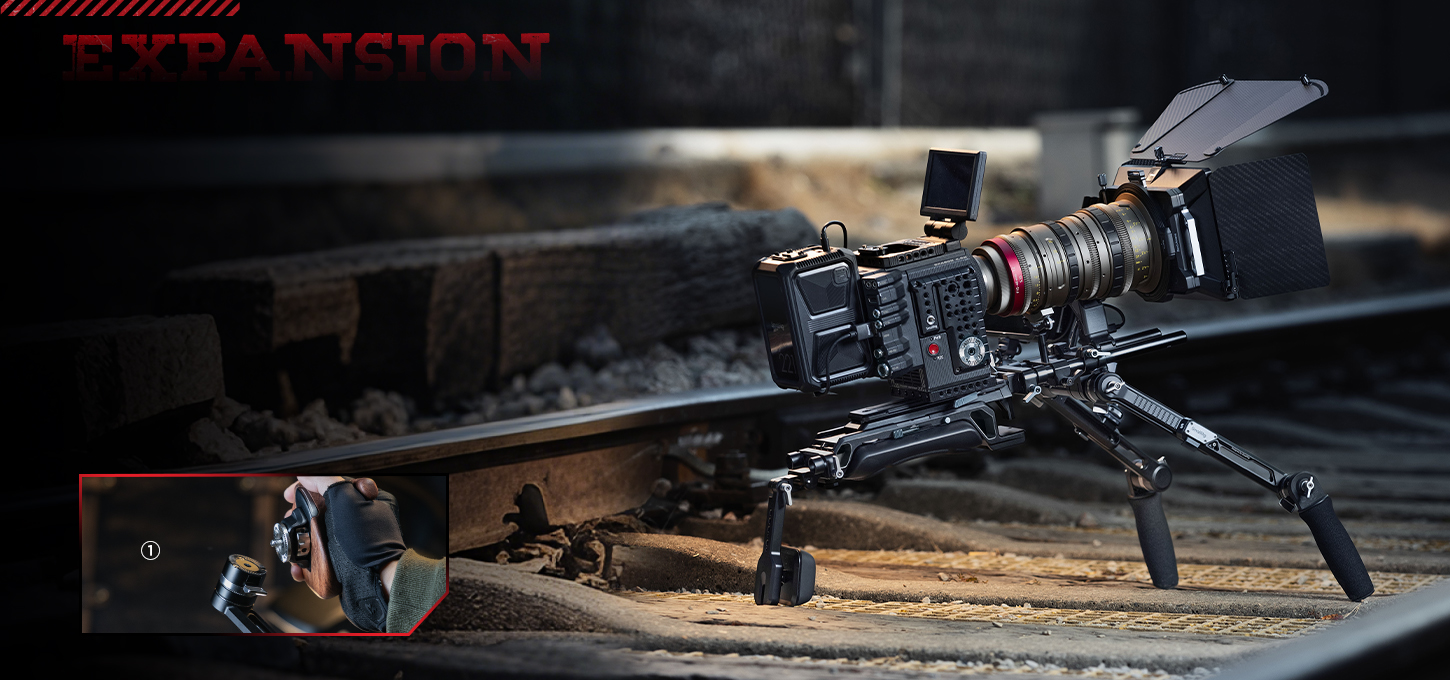

Expansion and modularity

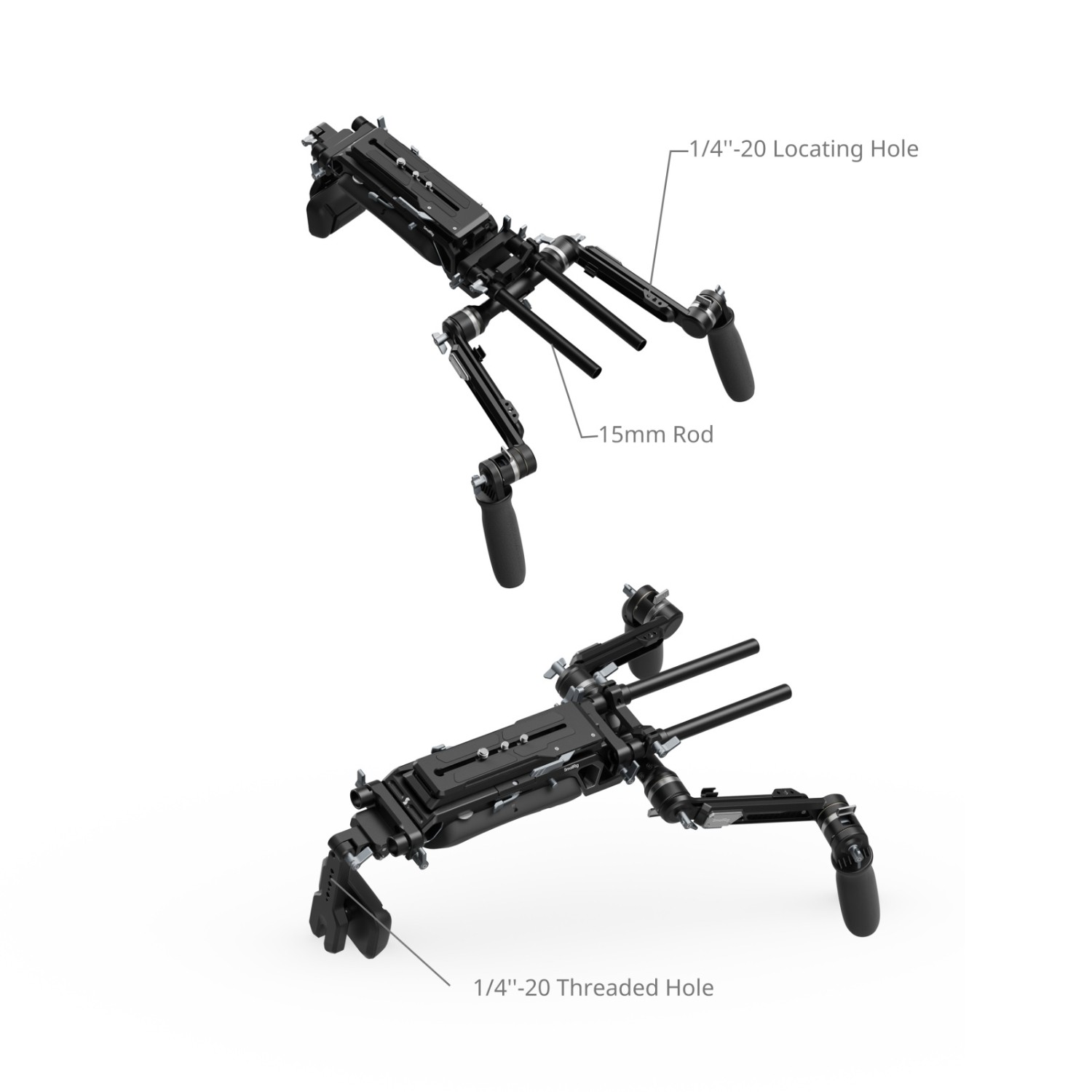

  • 1/4"-20 locating and threaded holes plus 15mm rod clamps for monitors, V-mount batteries or follow focus units.
  • A standard ARRI rosette with a rotary module lets you swap handles and tailor the setup to your shooting style.

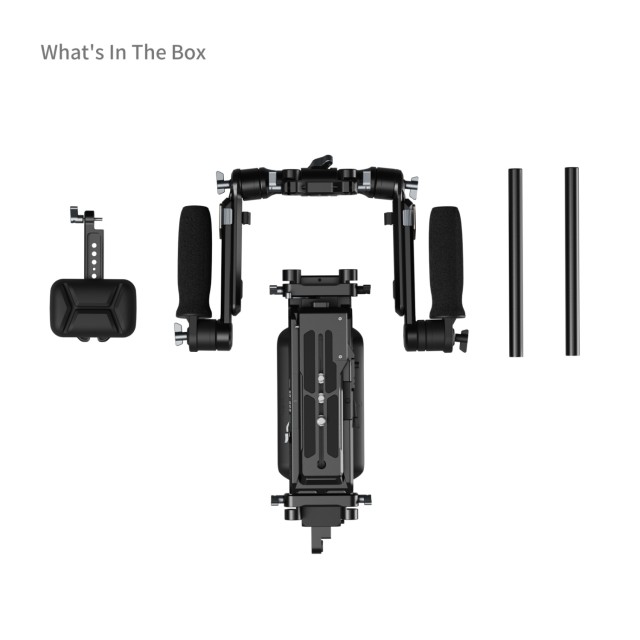

PACKAGE CONTENT

Package Contents:
Shoulder Rig Kit × 1
Telescopic Extension Arm × 1
Back Pad × 1
15mm Rod × 2
User Manual × 1

SPECIFICATIONS

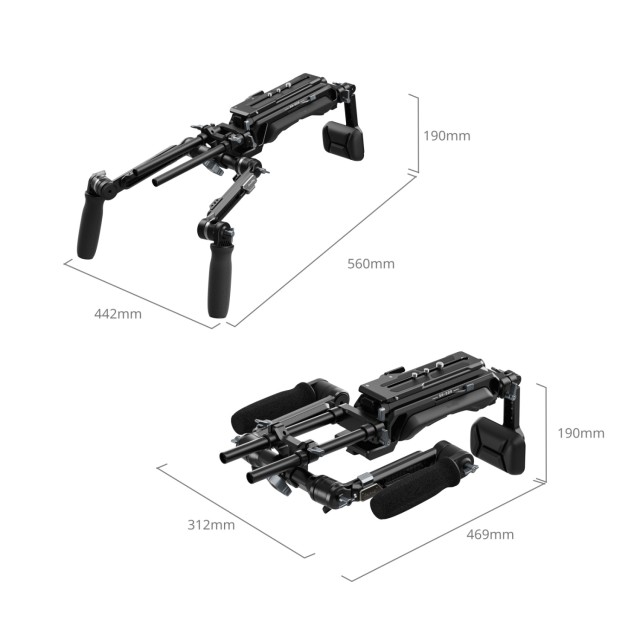

Product Dimensions:
469.0 × 312.0 × 190.0 mm / 18.5 × 12.3 × 7.5 in

Package Dimensions:
384.5 × 264.0 × 179.5 mm / 15.1 × 10.4 × 7.1 in

Product Weight:
2266.0 ± 20.0 g / 80.0 ± 0.7 oz

Package Weight:
2877.0 ± 20.0 g / 101.5 ± 0.7 oz

Materials:
aluminum alloy, stainless steel, silicone, PU, foam, PC + 10% fiberglass

Parameters

Parameters

Manufacturer: SmallRig
Category: Accesories Rigy

Main parameters

Load capacity20kg
Mounting type1/4″-20 thread · 15 mm rod · ARRI rosette
MaterialAluminium alloy
Weight2266g
ColourBlack
Dimensions469x312x190mm
