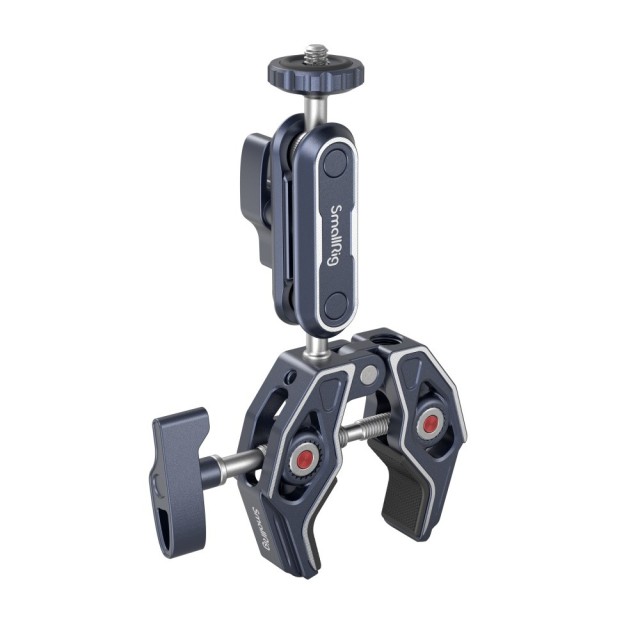

SmallRig Crab-Shaped Clamp with Ballhead Magic Arm 3757B

SmallRig Crab-Shaped Clamp with Ballhead Magic Arm 3757 is made of aircraft-grade aluminum alloy and stainless steel, CNC machined and carved to increase sturdiness and durability. It features a skeletal design and shark clamp with stronger clamping force as well as widely compatible 1/4"-20 threaded holes, 3/8"-16 threaded holes, and ARRI 3/8"-16 locating…

More information

21 € with VAT 17.36 € without VAT
-+
Availability
Backordered > 5 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

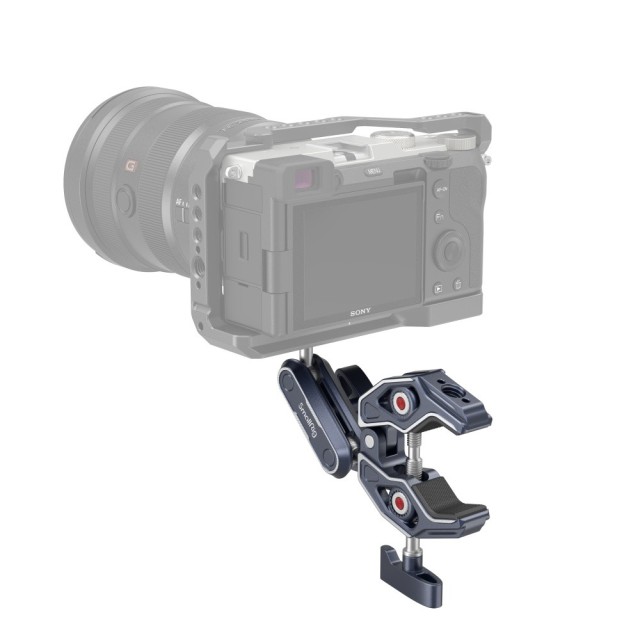

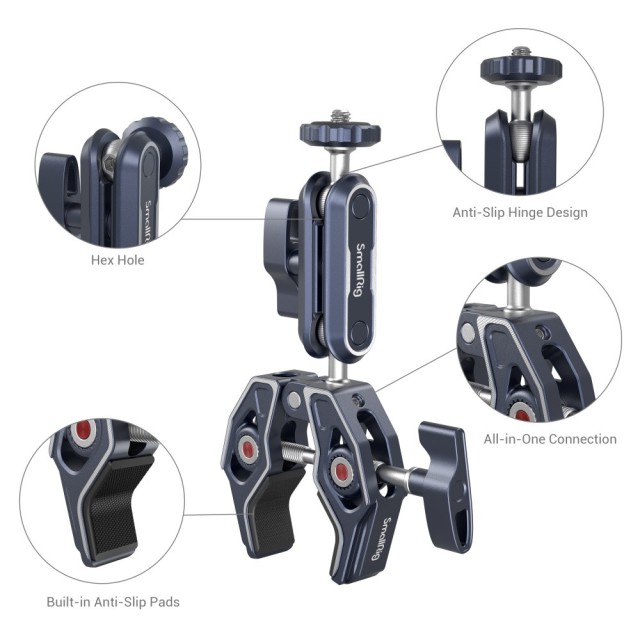

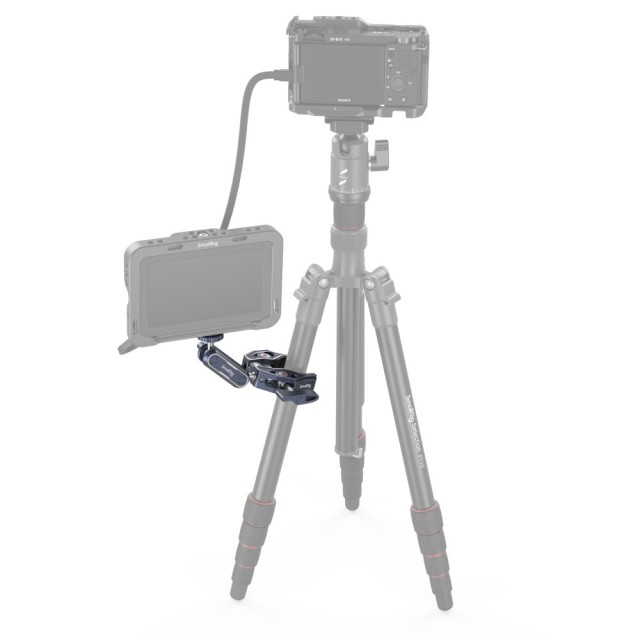

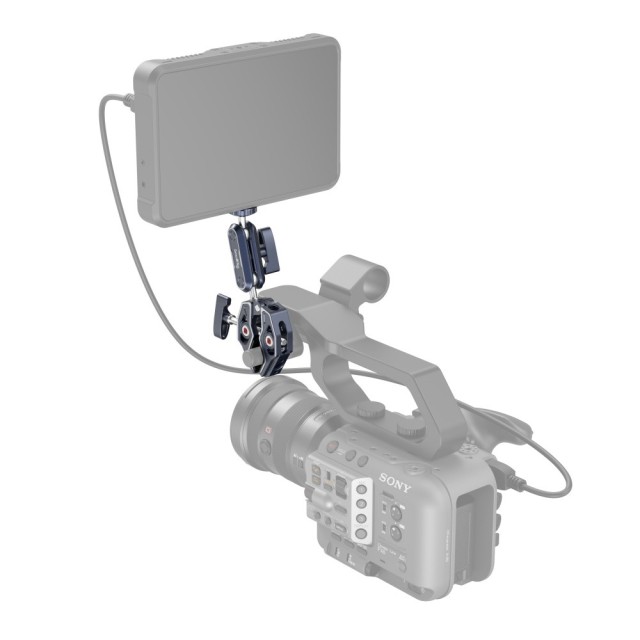

SmallRig Crab-Shaped Clamp with Ballhead Magic Arm 3757 is made of aircraft-grade aluminum alloy and stainless steel, CNC machined and carved to increase sturdiness and durability. It features a skeletal design and shark clamp with stronger clamping force as well as widely compatible 1/4"-20 threaded holes, 3/8"-16 threaded holes, and ARRI 3/8"-16 locating holes. The clamp, which supports a rod of a minimum diameter of 13mm and a surface with a maximum thickness of 65mm, can quickly attach cameras, monitors, LED lights, etc. to round pipes, cables, handlebars, tripods, and stabilizer handheld rings. In addition, built-in cushions provide protection and clamping stability. The ballhead magic arm consists of two ball heads and a ballhead clamp. An anti-twist design secures it to the crab-shaped clamp to prevent disconnection. The bottom ballhead is designed with a hex hole for enhanced fastening with the Allen wrench. The 360-degree adjustable ball heads feature anti-slip threads for easier locking and one 1/4"-20 screw to allow quickly connecting action cameras, monitors, LED lights, microphones, and other accessories.

Key features

1. Made of aircraft-grade aluminum alloy and stainless steel for greater sturdiness and durability.
2. Load capacity< 3.5 kg, compatible with most photographic accessories.

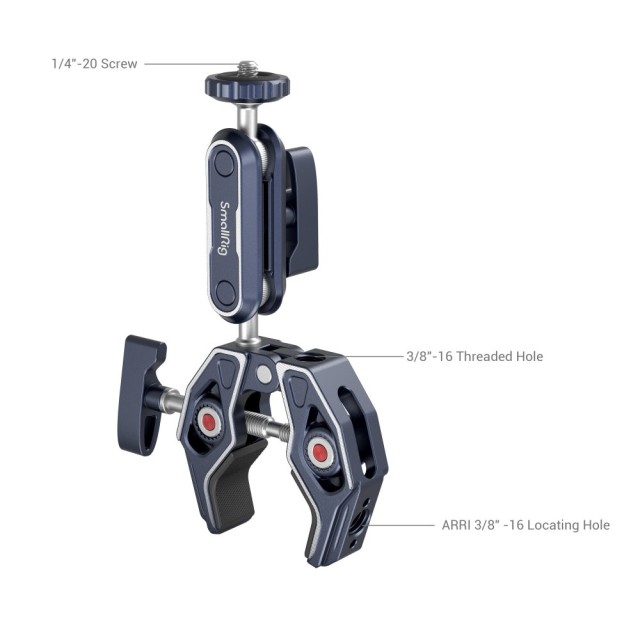

3. Wide compatibility: equipped with 1/4"-20 threaded holes, 3/8"-16 threaded holes, and ARRI 3/8"-16 locating holes.
4. Anti-twist design.

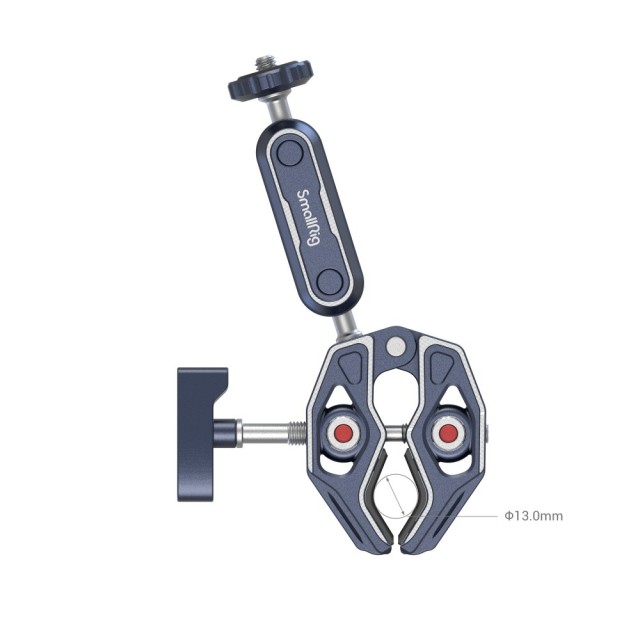

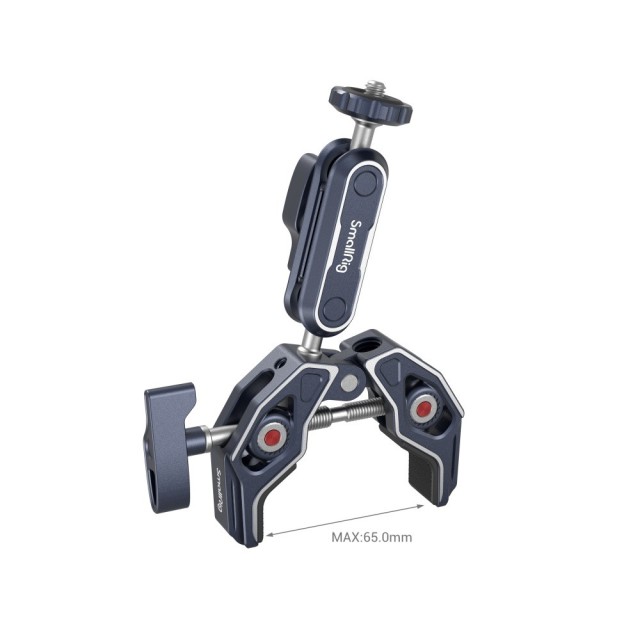

5. Open distance of 13mm - 65mm, anti-slip cushions make it safer and more stable.

PACKAGE CONTENT


1 x Crab-Shaped Clamp
1 x Ballhead Magic Arm

SPECIFICATIONS





Product Dimensions: 141.0 x 89.8 x 18.0mm
Package Dimensions: 137.0 x 104.0 x 52.0mm
Net Weight: 184g±5g
Package Weight: 430g±5g
Material: Aluminum Alloy, Stainless Steel, Silicone

Parameters

Parameters

Manufacturer: SmallRig
Category: Magic arm - arms

Main parameters

Load Capacity3.5kg
Mechanism TypeMagic Arm (kulová hlava)
Clamp / End Mount TypeCrab-Shaped Clamp · Kulová hlava
Thread Type1/4"-20 · 3/8"-16 (ARRI)
MaterialHliníková slitina
Intended UseMonitor · Mikrofon / audio · Světlo · Kamera / klec
