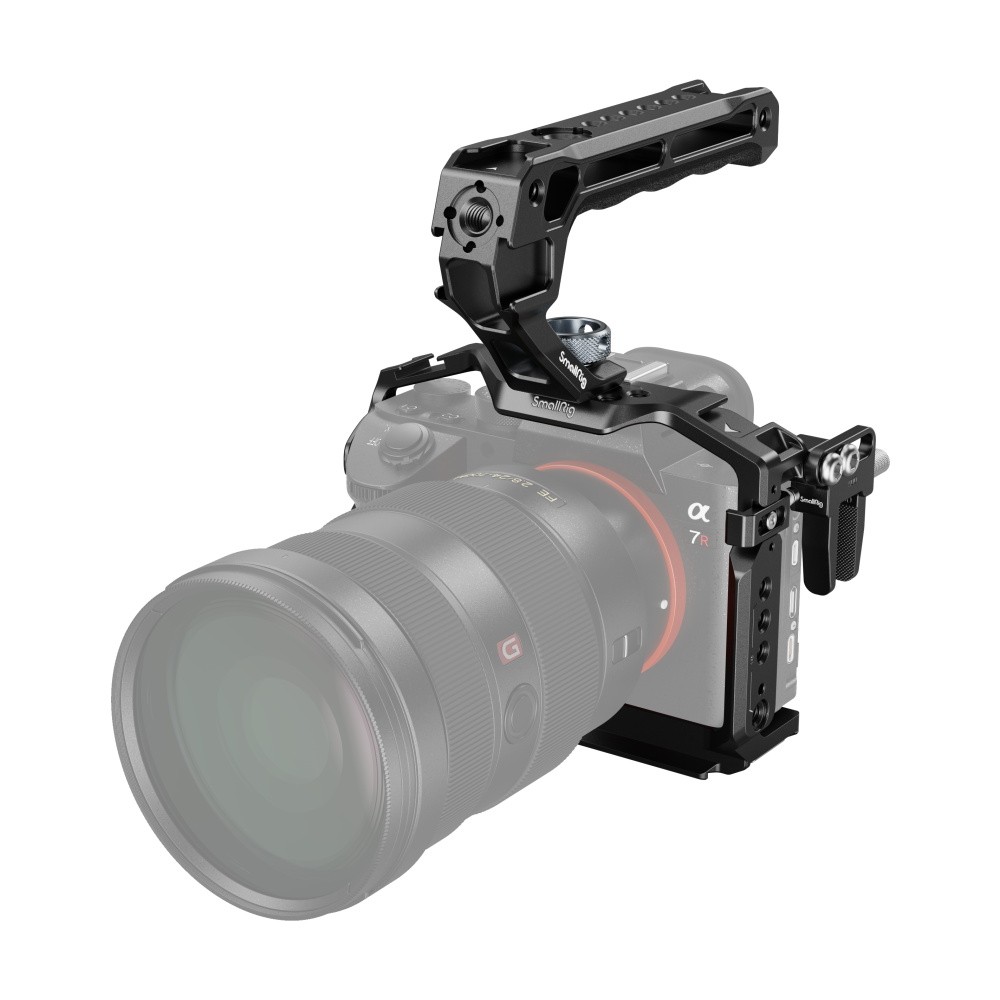

SmallRig Cage Kit for Sony Alpha 7 III / Alpha 7R III 4198

The SmallRig 4198 kit for the Sony A7 III and A7R III pairs a cage with an ARRI top handle and an HDMI cable clamp. The handle makes low-angle work easy, while 1/4"-20 and ARRI 3/8"-16 threads, cold shoes and NATO rails carry monitor, mic and light.

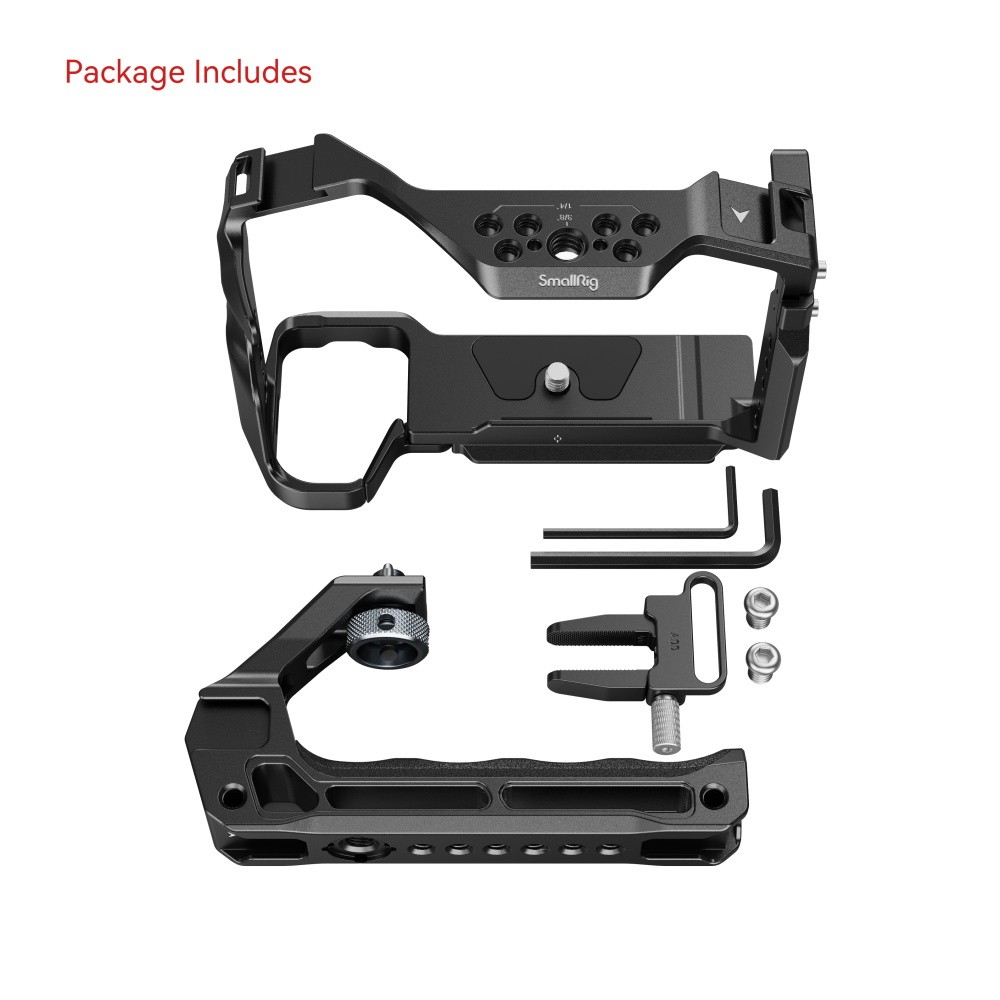

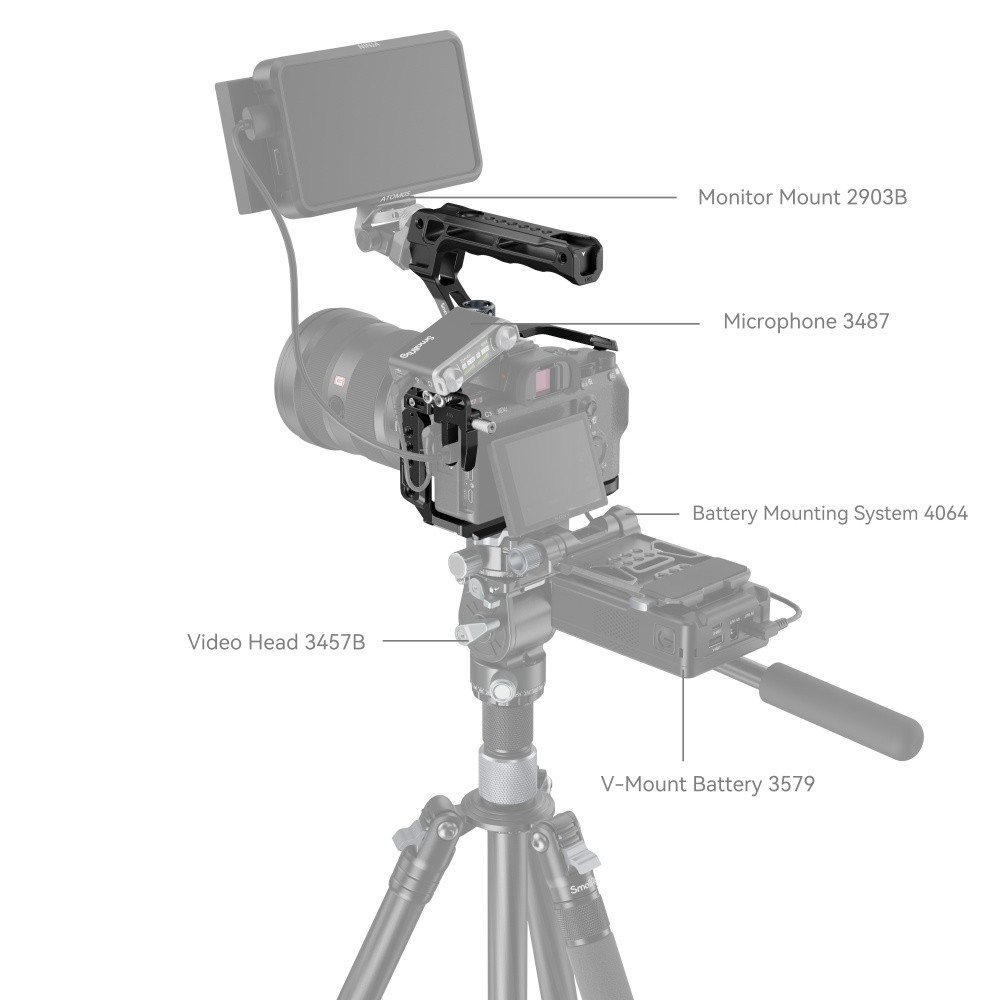

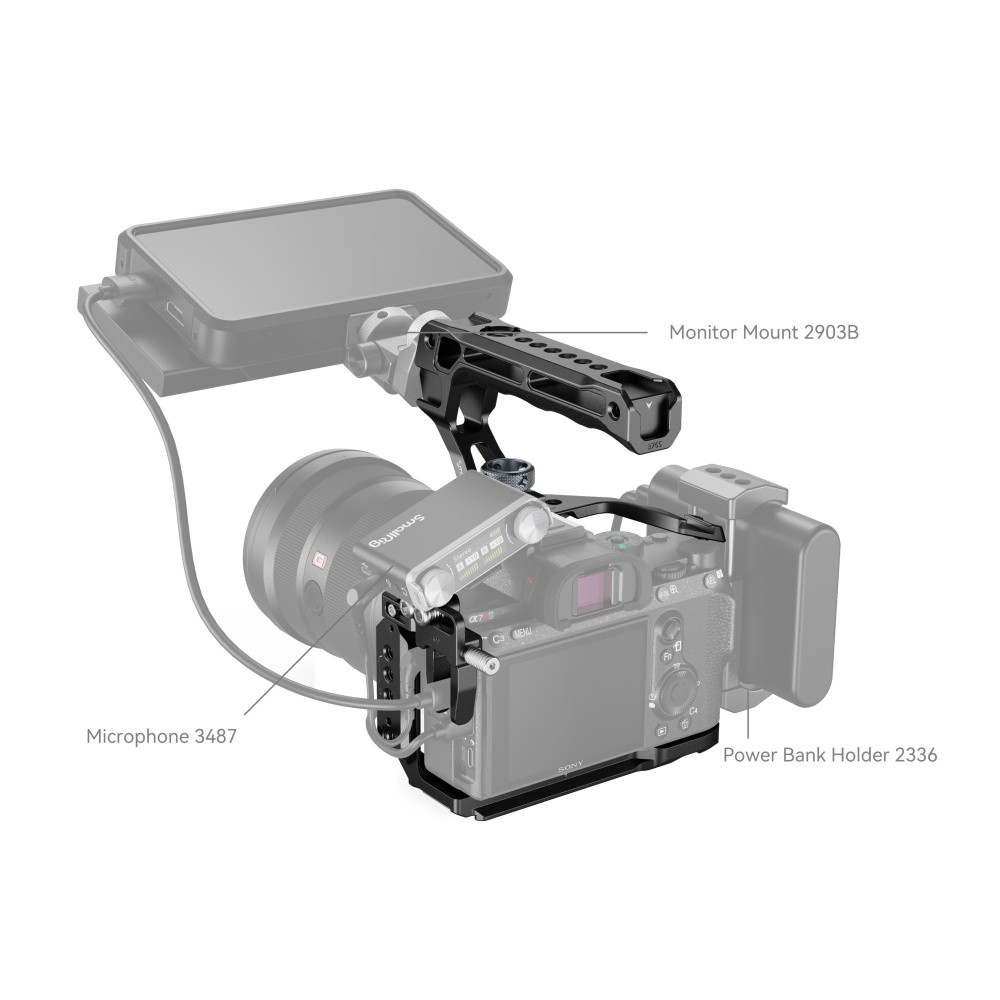

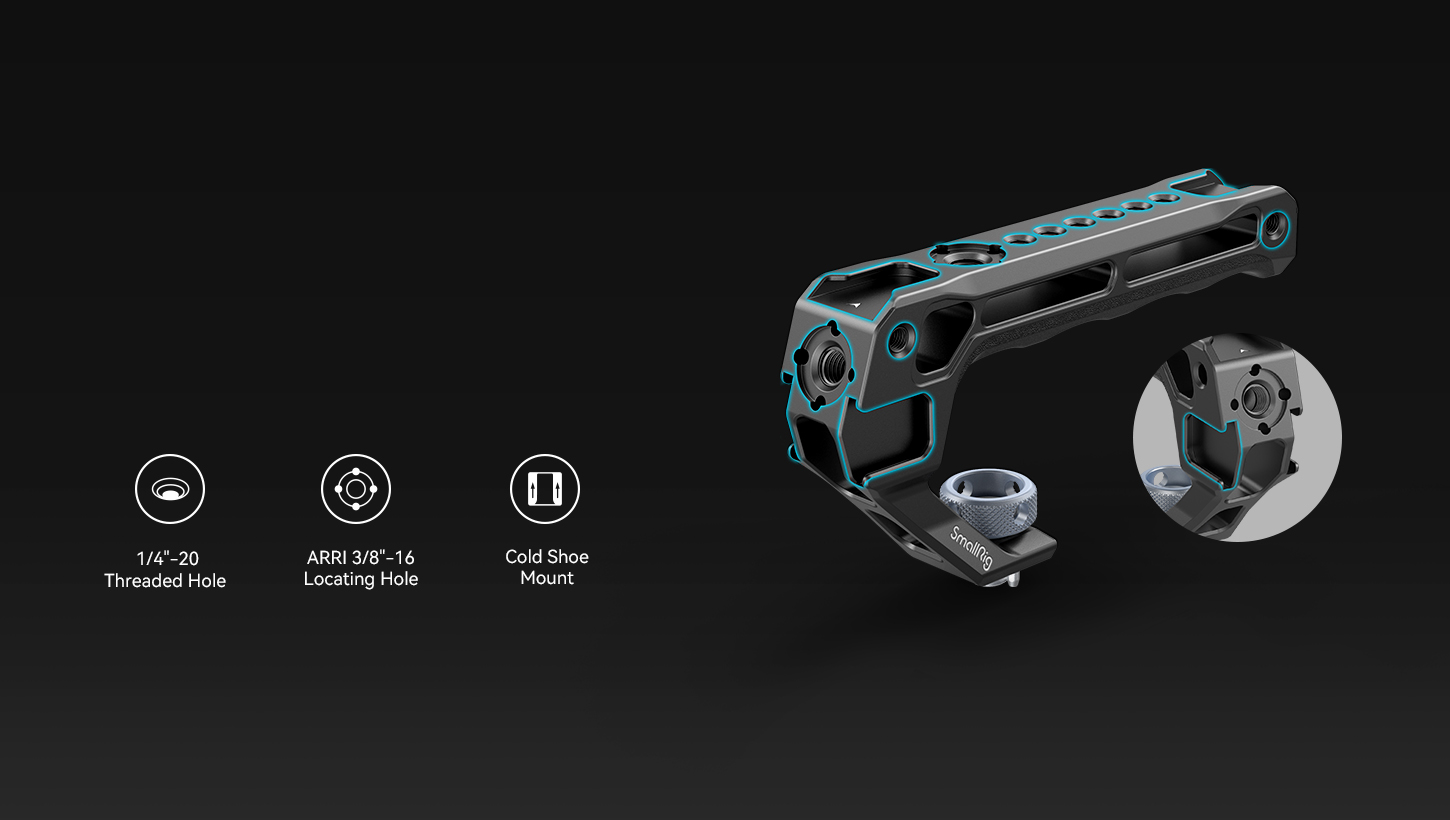

SmallRig Cage Kit for Sony Alpha 7 III / Alpha 7R III 4198 is designed to facilitate a low-angle shot and protect the camera while offering a wide range of accessory mounts. It includes a cage, an HDMI cable clamp, and a top handle. The top handle feels comfortable and enables easy carrying at a low-angle shot. 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoes and NATO rails and QD socket support monitor mount 2294, microphones, LED lights, monitor mount 2903B, NATO accessories.

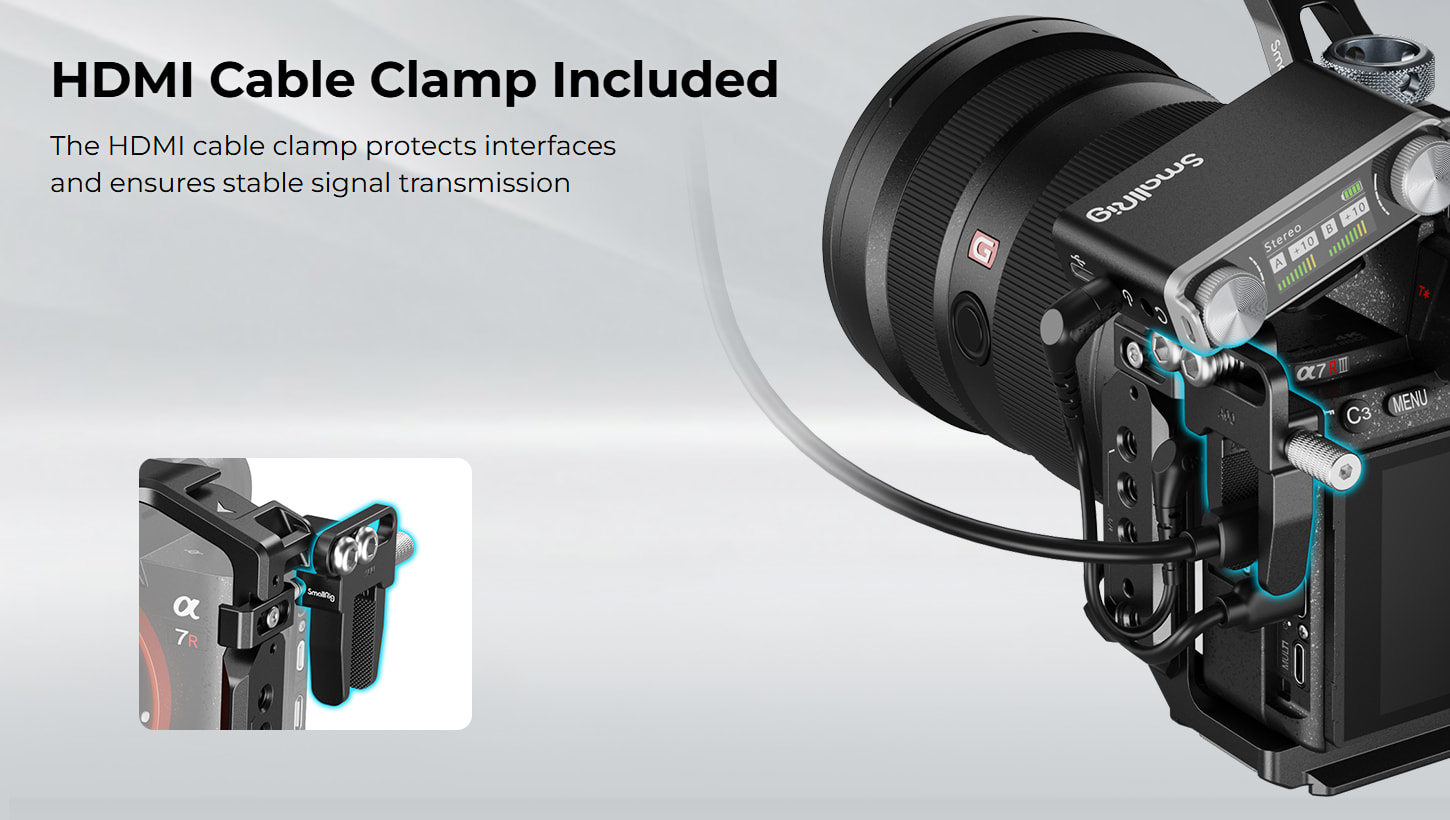

The HDMI cable clamp, mounted onto the left side of the cage via two 1/4"-20 screws, prevents deflection and fixes cables with a thumbscrew to protect interfaces and ensure stable signal transmission. In addition, holes on both sides of the cage allow for attaching hand straps. The cage comes with a built-in magnetic flat-head screwdriver & hex spanner for easy disassembly and assembly.

1. Portable handheld kit for an easy low-angle shot.
2. Triple-point locking for enhanced stability and anti-twist.
3. HDMI cable clamp protects interfaces and ensures stable signal transmission.
4. A hinged arm at the battery door fits the camera curve and enhances the grip experience.
5. Multiple mounting points: 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoe mounts, NATO rails and QD socket support handles, microphones, LED lights, monitors, etc.

Note: Please remove the split D-ring on both sides of the camera before installing the cage.

Compatible With
Sony Alpha 7 III
Sony Alpha 7R III

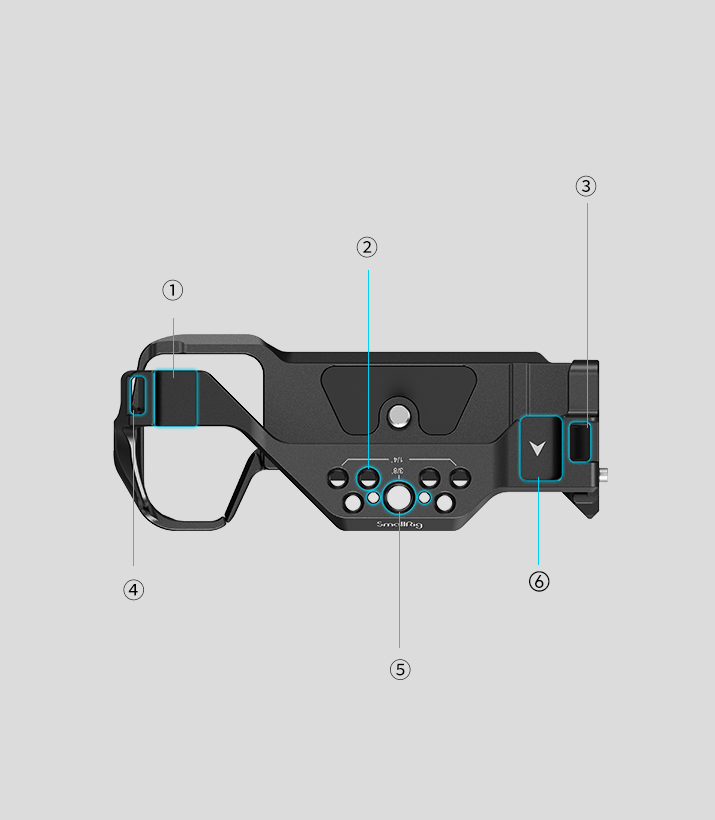

① Cold Shoe
② 1/4"-20 Threaded Hole
③ Strap Slot
④ Strap Slot
⑤ Hole for ARRI 3/8"-16 Locating
⑥ Cold Shoe

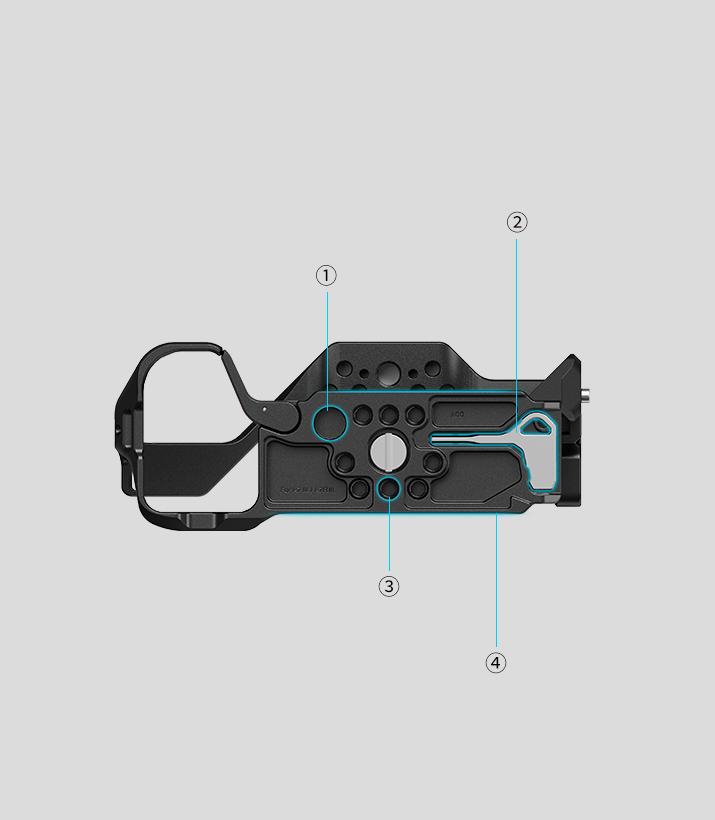

① QD Socket
② Dual-Head Wrench
③ 1/4"-20 Threaded Hole
④ Plate for Arca-Swiss

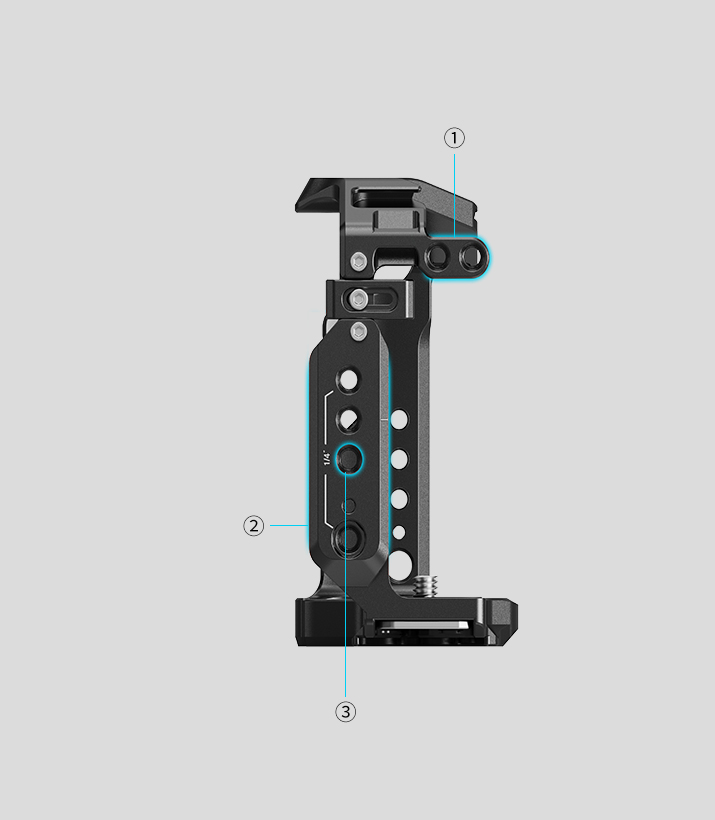

① For Cable Clamp (Package Include)
② NATO Rail
③ 1/4"-20 Threaded Hole

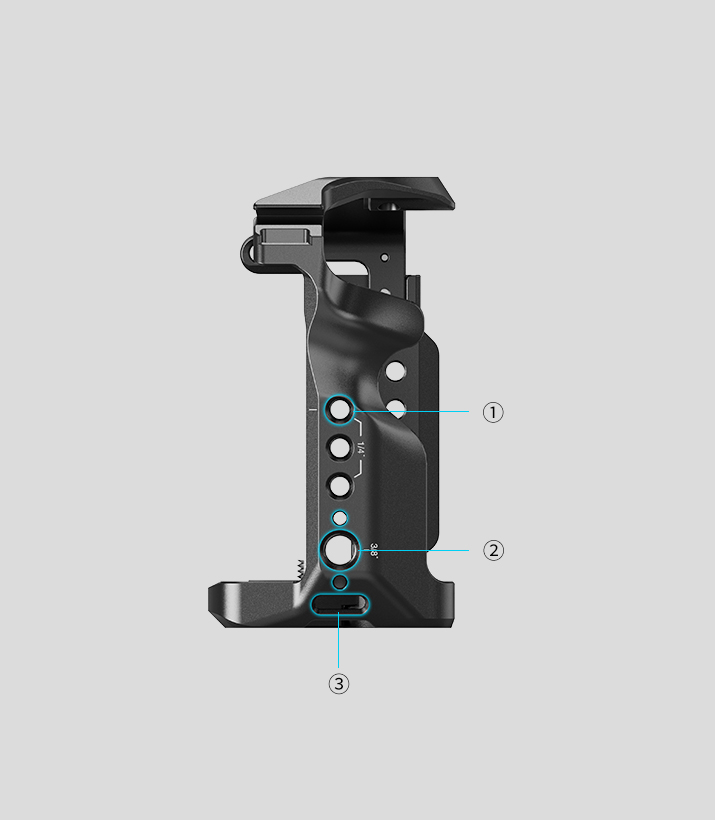

① 1/4"-20 Threaded Hole
② Hole for ARRI 3/8"-16 Locating
③ Strap Slot

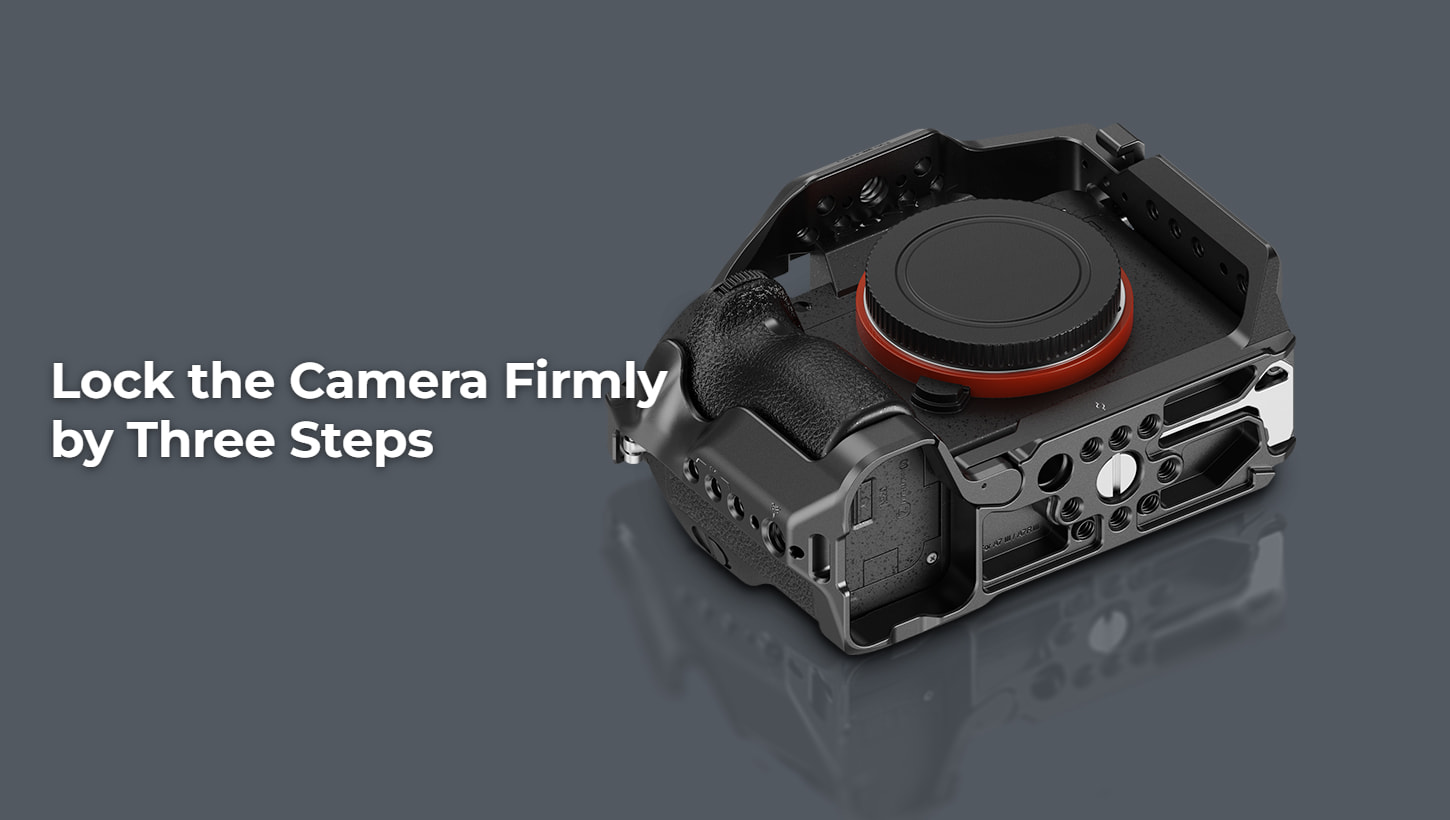

STEP 1

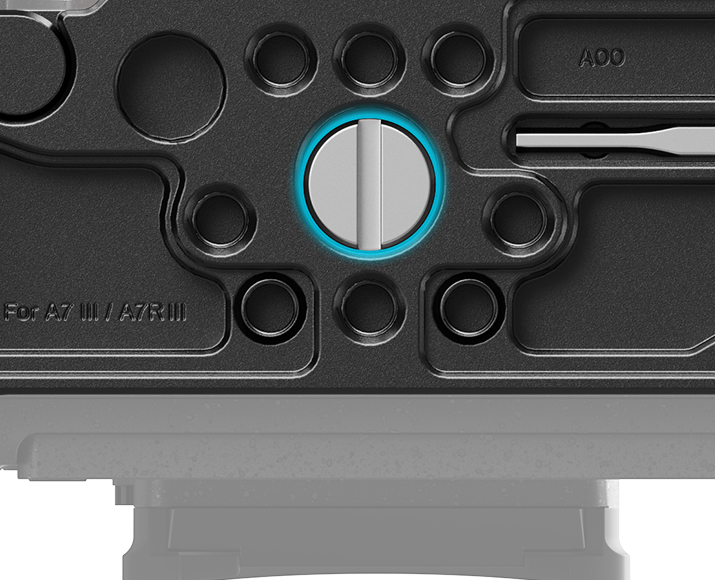

Lock the camera via a 1/4"-20 screw at the bottom of the cage

STEP 2

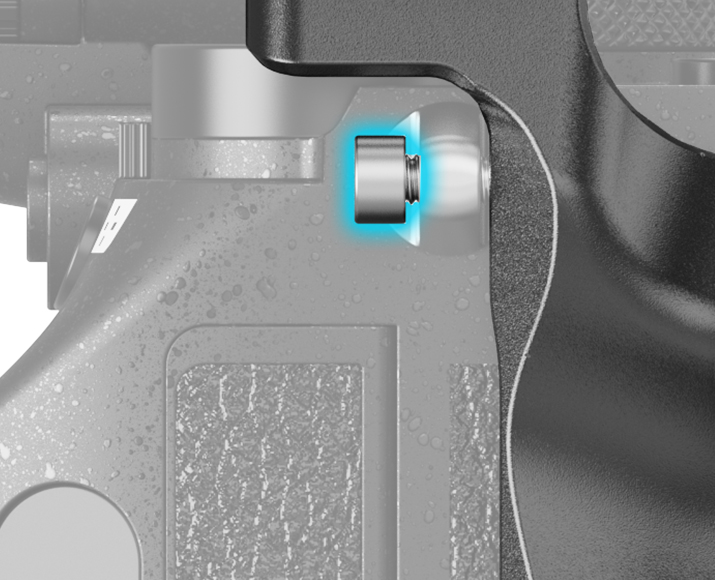

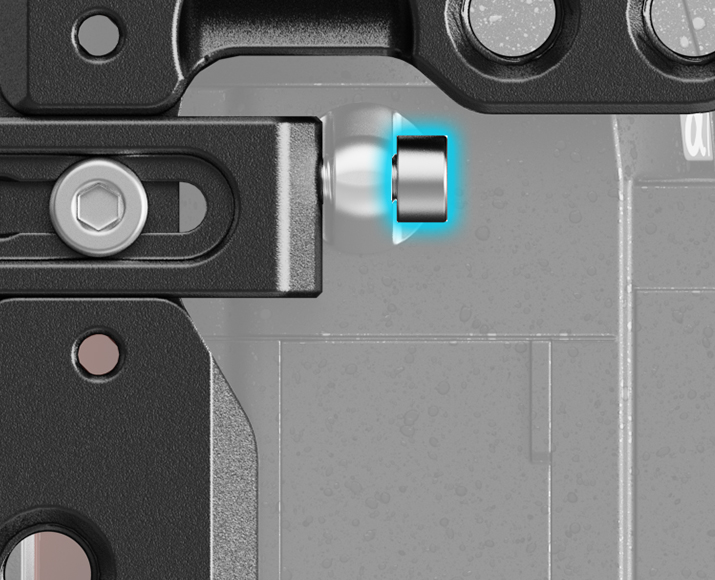

Lock the camera via a locating pin at the side of the cage

STEP 3

Lock the camera via a M2.5 screw at the left of the cage

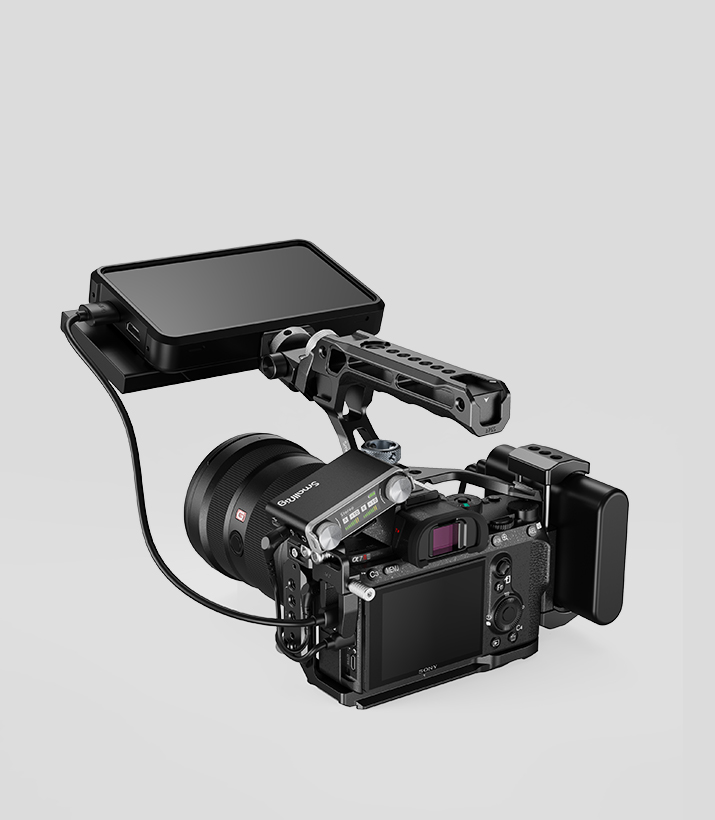

Handheld Shooting

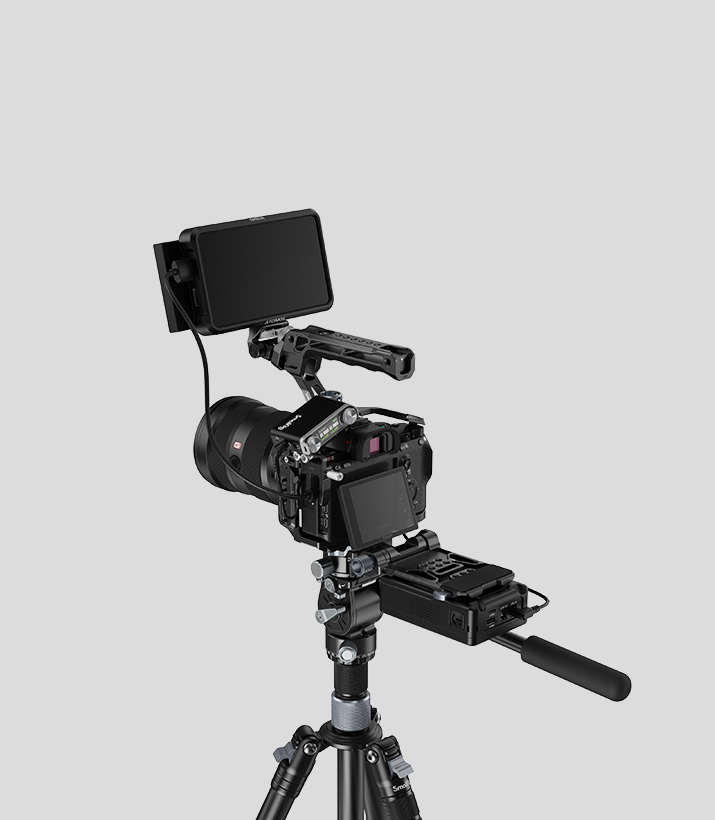

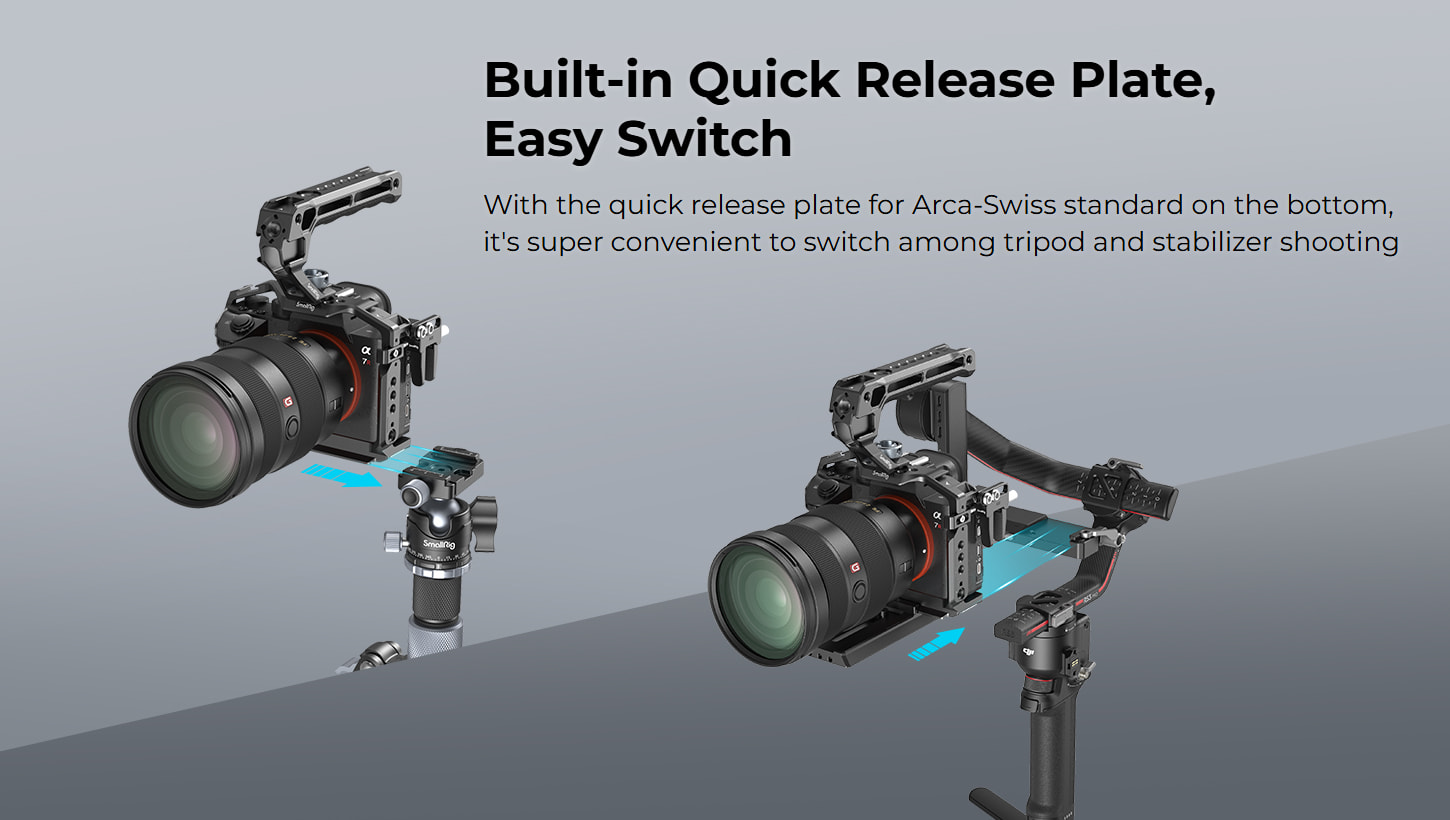

Tripod Shooting

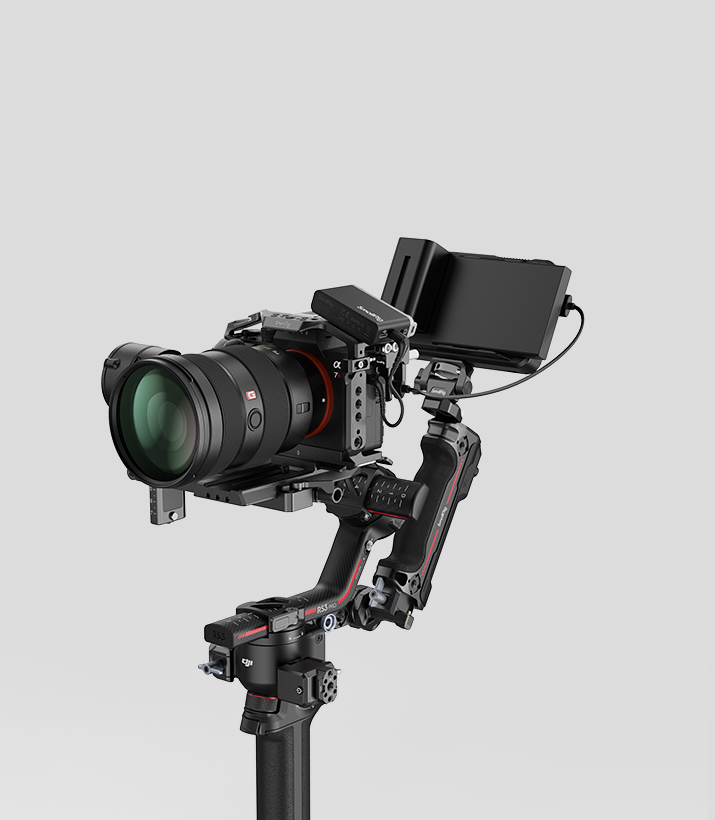

Stabilizer Shooting
