SmallRig Cage for Z cam E2 Camera 2264
SKU: CVZ2264
SmallRig Cage for Z cam E2 Camera CVZ2264 is designed to provide protection and mounting options for Z cam E2. The modular designed cage is mainly consists of a top plate, bottom plate, two side plates, HDMI and USB cable clamp as well as a M43 lens adapter support.
85 € with VAT
70.25 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Praha 2 pcs
Top accessories for SmallRig Cage for Z cam E2 Camera 2264
SmallRig Articulating Arm with Double Ballheads(1/4’’ Screw) 2070B
The SmallRig 2070B articulating arm carries a ball head with a 1/4"-20 screw at each
59 €
In stock > 5 pcs
SmallRig Swivel and Tilt Adjustable Monitor Mount with Screws Mount 2904
The SmallRig 2904B monitor mount bolts to a cage or handle with two 1/4"-20 screws
35 €
In stock 4 pcs
SmallRig Arri Locating Handle 2165C
The SmallRig 2165C ARRI locating handle mounts and comes off in seconds. It offers
69 €
In stock > 5 pcs
SmallRig Samsung T5 SSD Mount for BMPCC 4K/6K and Z CAM 2245
SmallRig Samsung T5 SSD Mount (New Version) 2245B allows cameramen to mount the Samsung
24 €
In stock 2 pcs
SmallRig Mounting Adapter for Z CAM HDMI to SDI Converter 2951
SmallRig Mounting Adapter for Z CAM HDMI to SDI Converter 2951 is designed to mount
18 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

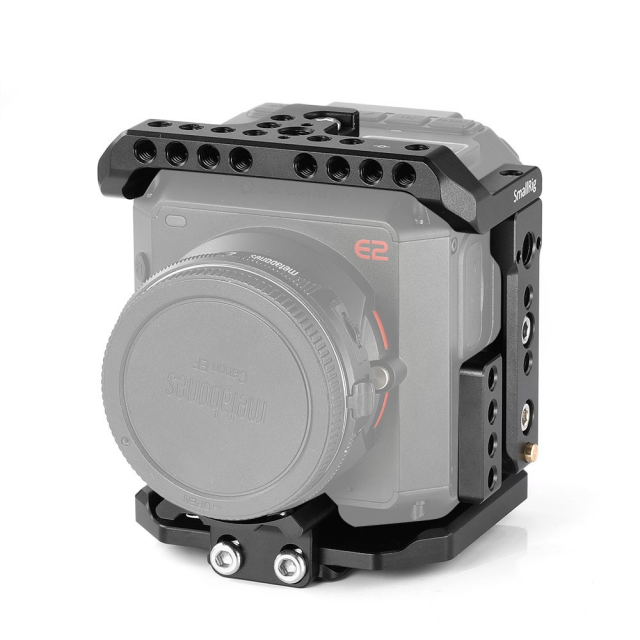

SmallRig Cage for Z cam E2 Camera CVZ2264 is designed to provide protection and mounting options for Z cam E2. The modular designed cage is mainly consists of a top plate, bottom plate, two side plates, HDMI and USB cable clamp as well as a M43 lens adapter support.
Cage for the Z CAM E2 camera
SmallRig Cage for Z cam E2 Camera CVZ2264 is designed to provide protection and mounting options for Z cam E2.
Modular, lightweight build

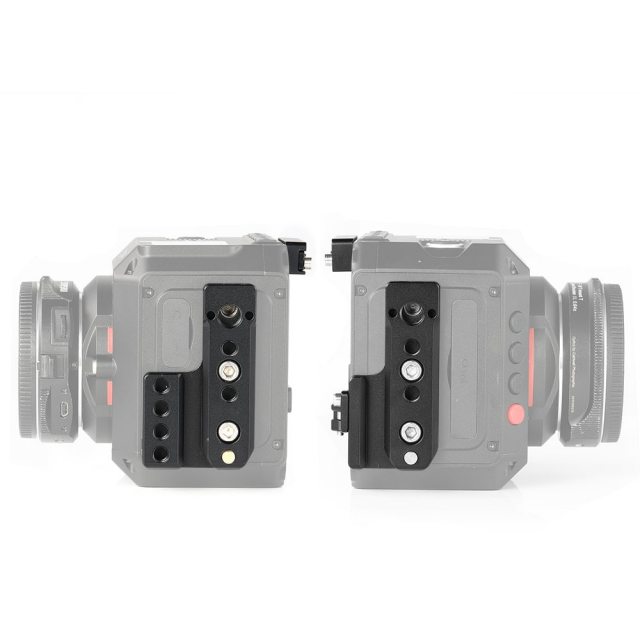

You can use the side and bottom plates independently, which keeps the rig light. The cage consists of a top plate, a bottom plate and two side plates.
NATO rail
On each side plate, for an articulating arm or a NATO handle.
Arca-Swiss plate
Built into the bottom plate, so the camera goes straight onto an Arca tripod.
Threads and ARRI
1/4"-20, 3/8"-16 and ARRI 3/8" threads for accessories.
268 g
Net weight; the box holds an M43 lens adapter support and HDMI and USB clamps.

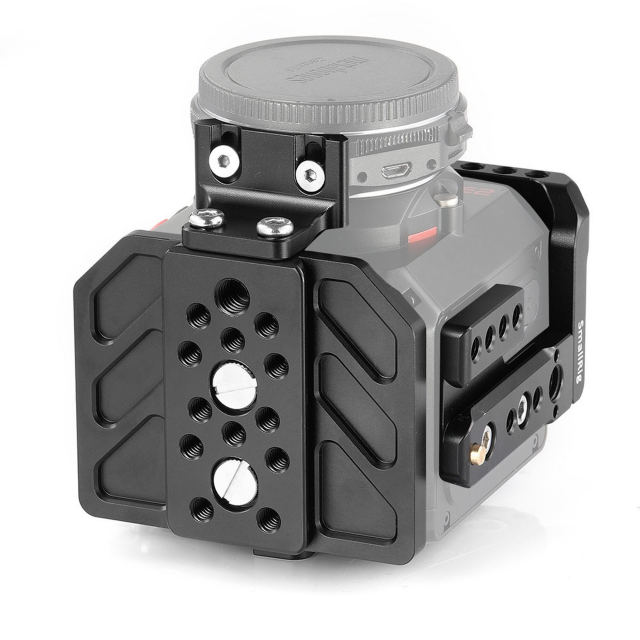

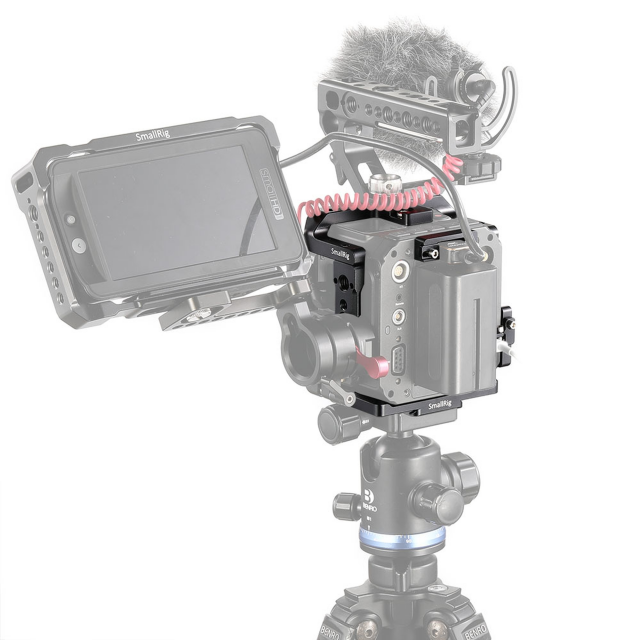

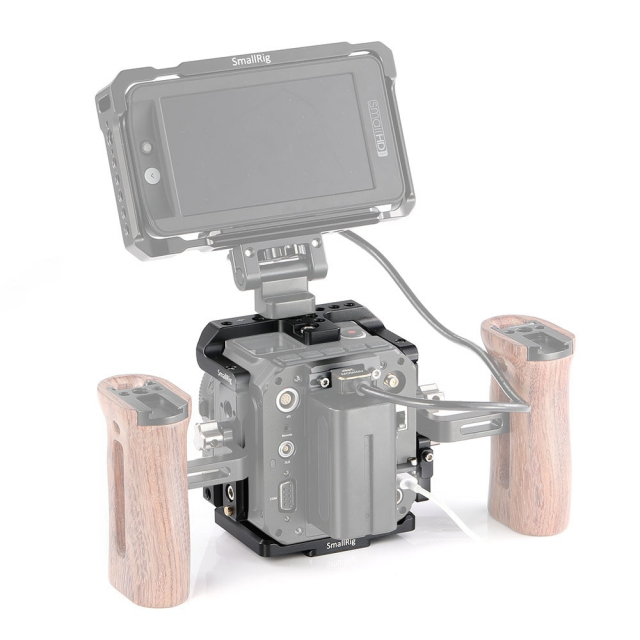

The SmallRig Cage for Z cam E2 Camera 2264 keeps the rig light by letting you use the side plates and the bottom plate independently, as your needs dictate. The cage carries multiple 1/4"-20, 3/8"-16 and ARRI 3/8" threaded holes for accessories such as a magic arm, a cold shoe or handles. Each side plate comes with a NATO rail that takes the Magic Arm 2071 for a monitor or the NATO handle 2187 for quickly breaking the rig down. The bottom plate has rubber pads on top so the cage does not scratch the camera body, and it integrates an Arca-Swiss plate, so the Z CAM E2 mounts straight onto an Arca tripod in seconds.
Key features
1. Designed for the Z CAM E2 camera
2. Modular construction keeps the rig light
3. NATO rail on each side plate
4. Integrated Arca-Swiss plate on the bottom
5. Multiple 1/4"-20, 3/8"-16 and ARRI 3/8" threaded holes
6. Lens adapter support and HDMI and USB cable clamps included

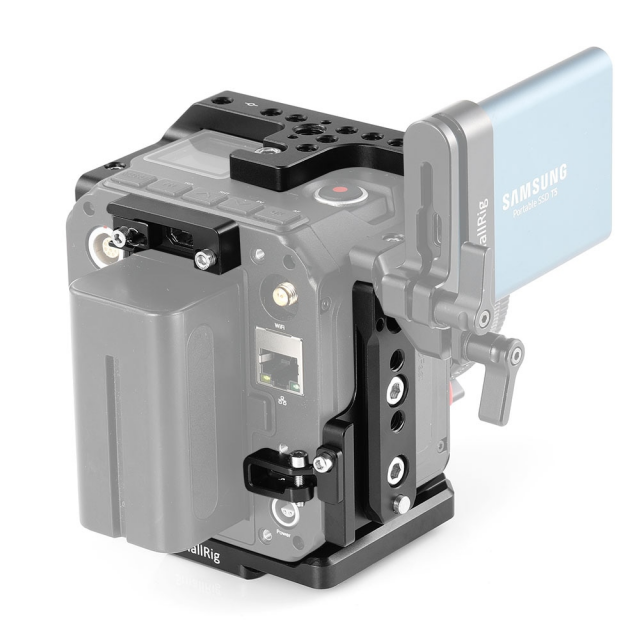

7. Compatible with the SmallRig Samsung T5 SSD mount 2245

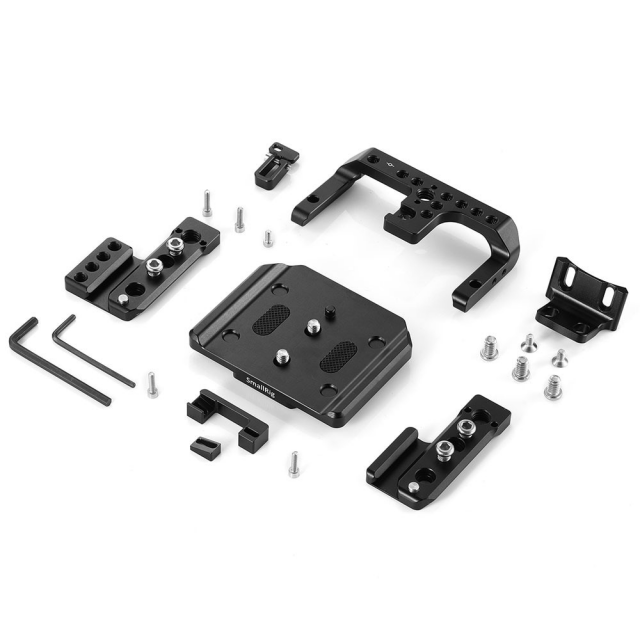

PACKAGE CONTENT
1× Top Plate
1× Bottom Plate
2× Side Plate
1× Lens Support
1× HDMI Cable Clamp
1× USB Cable Clamp
7x 1/4" screw
2× M4 screw
6× M3 screw
2× hex spanner
1× Bottom Plate
2× Side Plate
1× Lens Support
1× HDMI Cable Clamp
1× USB Cable Clamp
7x 1/4" screw
2× M4 screw
6× M3 screw
2× hex spanner
SPECIFICATIONS
Product Dimensions: 106 × 114.5 × 87 mm
Package Dimensions: 95 × 65 × 28 mm
Net Weight: 268 g
Package Weight: 325 g
Material: Aluminium Alloy
Package Dimensions: 95 × 65 × 28 mm
Net Weight: 268 g
Package Weight: 325 g
Material: Aluminium Alloy
Parameters
Parameters
| Manufacturer: | SmallRig |
| Category: | Cages |
Main parameters
| Colour | Black |
| Material | Aluminium alloy |
| Version | Cage kit |
| Mounting Interface | 1/4"-20 · 3/8"-16 · ARRI 3/8"-16 · NATO · Arca-Swiss |
| For camera | Z CAM E2 |
| Product Weight | 268g |
| Dimensions | 106x114.5x87mm |
