SmallRig Cage for Canon EOS C80 5810
SKU: 5810
Modular SmallRig 5810 cage for the Canon EOS C80: top and side plates, baseplate, bottom mount plate, cable clamp and NATO rail. 1/4"-20 and ARRI 3/8"-16 threads, cold shoes and QD sockets for handles, monitors and DJI RS gimbals.
118 € with VAT
97.52 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs
Praha > 5 pcs
Top accessories for SmallRig Cage for Canon EOS C80 5810
SmallRig Rosette Arm (7”) 4194
A 7" SmallRig 4194 articulating arm in aircraft-grade aluminium and stainless steel.
41 €
To be sent 5 pcs
SmallRig Rotating NATO Handle (Left Side) 3260
The SmallRig 3260 rotating handle clamps to the left side of a cage on a NATO clamp
94 €
In stock > 5 pcs
SmallRig Side Handle with 1/4"-20 Screws 4015
SmallRig 4015 side handle bolts on with two 1/4"-20 screws 18mm apart and adjusts
59 €
In stock > 5 pcs
SmallRig Universal LWS Baseplate with Dual 15mm Rod Clamp 3357
A universal baseplate with a dual 15 mm rod clamp for a lens support, follow focus
59 €
In stock > 5 pcs
SmallRig Magic Arm Support 5141
A magic arm that carries a monitor on a shoulder rig or tripod. A ball joint at one
71 €
In stock > 5 pcs
SmallRig x LensVid mini L-Shaped Mount Plate Kit MD4360
The SmallRig MD4360 mini L-plates, designed with LensVid, hold a wireless video transmitter,
34 €
To be sent 1 pcs
SmallRig Magic Arm with Dual Ball Heads (1/4”-20 Screws) 3873
The SmallRig 3873 magic arm joins two 20 mm ball heads with 1/4"-20 screws and holds
35 €
Backordered > 5 pcs
SmallRig 12mm/15mm Single Rod Clamp 3598
The SmallRig 3598 single rod clamp adds a follow focus to a SmallRig cage. It supports
18 €
To be sent 1 pcs
SmallRig HawkLock H21 Quick Release Monitor Support with NATO Clamp 4487
A quick-release monitor mount with a NATO clamp. A monitor, light or microphone of
47 €
Backordered > 5 pcs
SmallRig Rosette Arm (11") 3959
The SmallRig 3959 rosette arm in aircraft-grade aluminium and steel holds a monitor,
42 €
Backordered > 5 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Modular SmallRig 5810 cage for the Canon EOS C80: top and side plates, baseplate, bottom mount plate, cable clamp and NATO rail. 1/4"-20 and ARRI 3/8"-16 threads, cold shoes and QD sockets for handles, monitors and DJI RS gimbals.

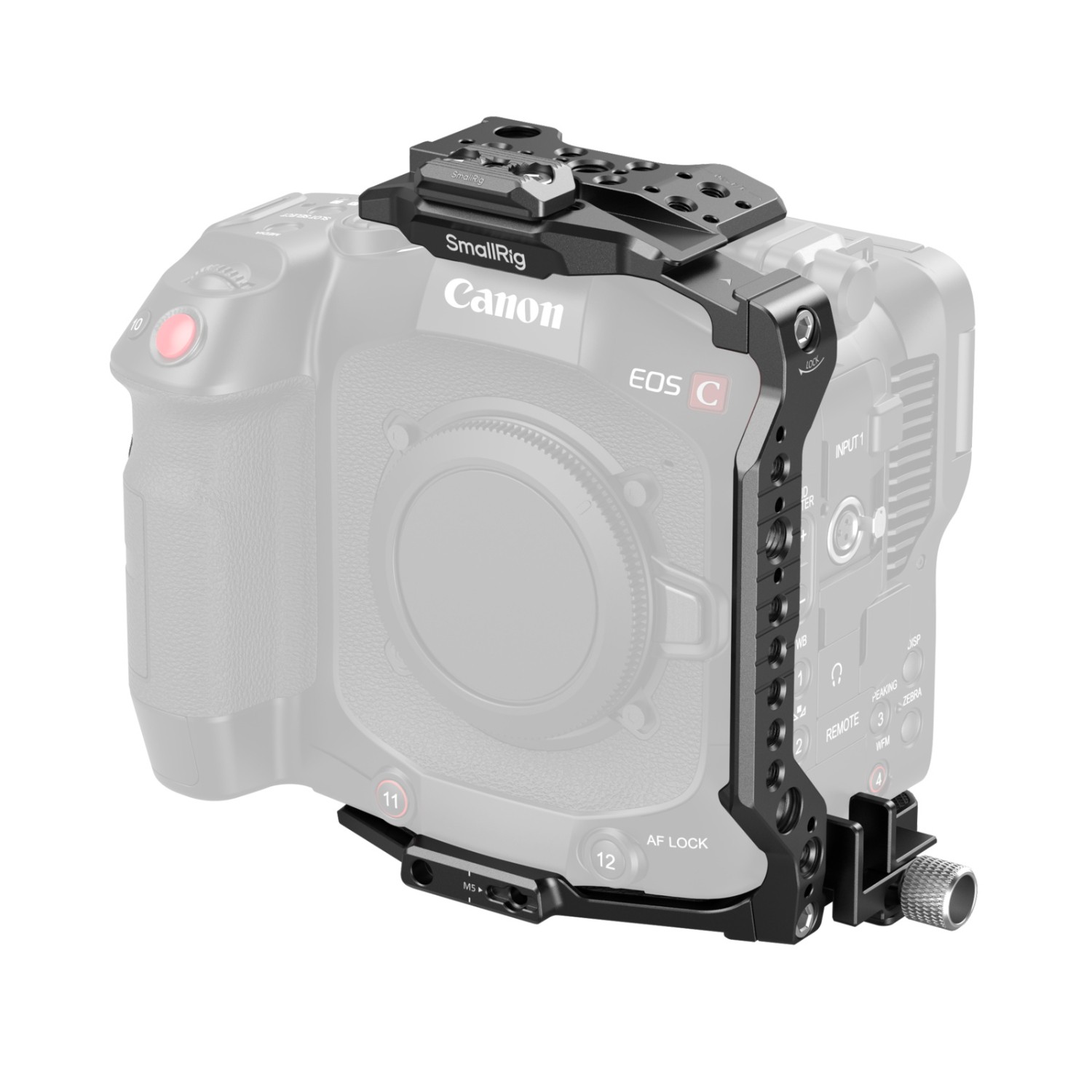

SmallRig Cage for Canon EOS C80 5810 is expertly designed to provide versatile shooting solutions for filmmakers. The kit includes a top plate, dual side plates, a baseplate, a bottom mount plate, a cable clamp, and a NATO Rail.

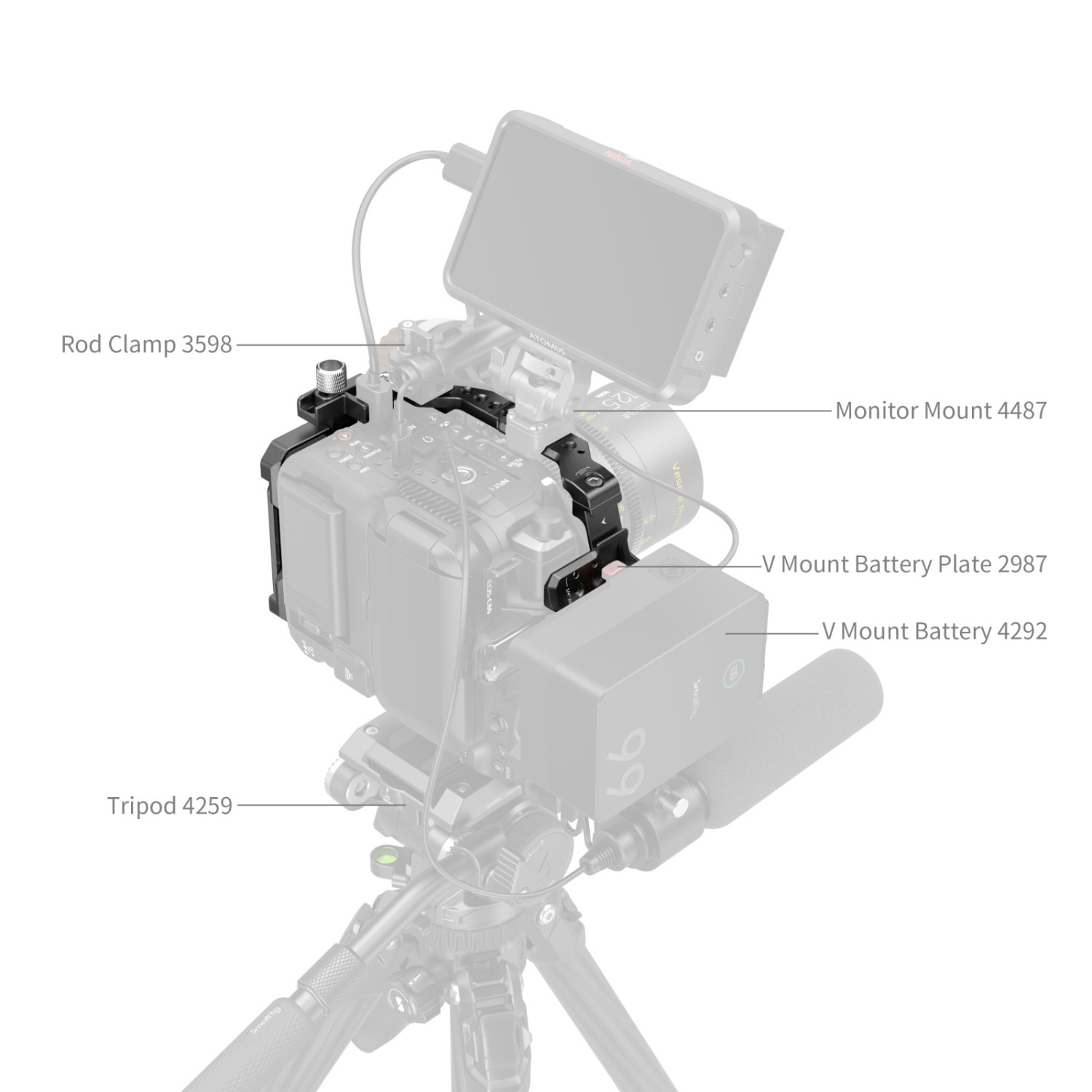

Featuring a modular design, the cage incorporates a variety of mounting interfaces: 1/4"-20 and 3/8"-16 threaded holes, 1/4"-20 locating holes, ARRI 3/8"-16 locating holes, M3 threaded holes, cold shoe mounts, H21 NATO rails, QD sockets, and more. This extensive compatibility allows for seamless integration with side handles (ID 3260, 4015, 4016), magic arms (ID 5141, 4194, 3873, 3959), monitor mounts (ID 4487, 2906B, 2903B, 2905B), baseplates with dual rod clamps (ID 3357), and follow focus rod clamps (ID 3598).
The modular baseplate offers two configurations: attaching the bottom mount plate widens the distance between threaded holes, making it compatible with tripods (ID 4463), ARRI BP8 bridge plates, LWS baseplates with dual rod clamps (ID 3357), and shoulder rigs (ID 4181), suitable for both tripod and shoulder-mounted setups. Removing the mount plate allows for direct attachment to DJI RS 2, RS 3 Pro, and RS 4 Pro gimbals.
The ergonomic right side plate enhances grip and features multiple threaded holes for attaching accessories like tripods (ID 4463) or mini L-shaped mount plates (ID MD4360). The modular NATO rail, designed with the matching grooves to fit the original handle, can be mounted on the top and sides of the cage for seamless horizontal and vertical shooting.

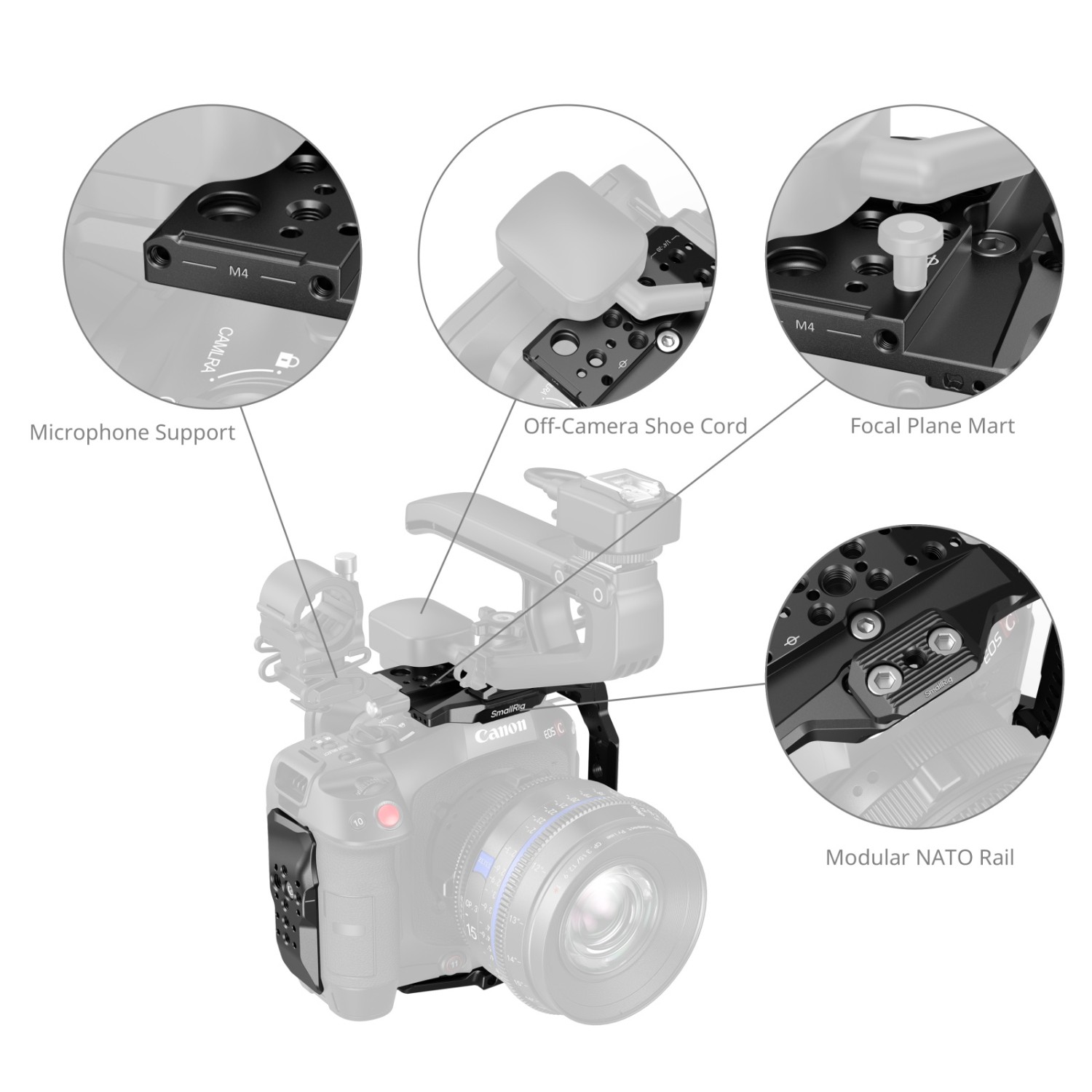

This cage kit is compatible with Canon’s microphone holders, focal plane marking hooks, and off-camera shoe cords (OC-E4A). Additionally, the kit includes an HDMI cable clamp for stable data transmission and a magnetic Allen wrench for easy assembly and disassembly.

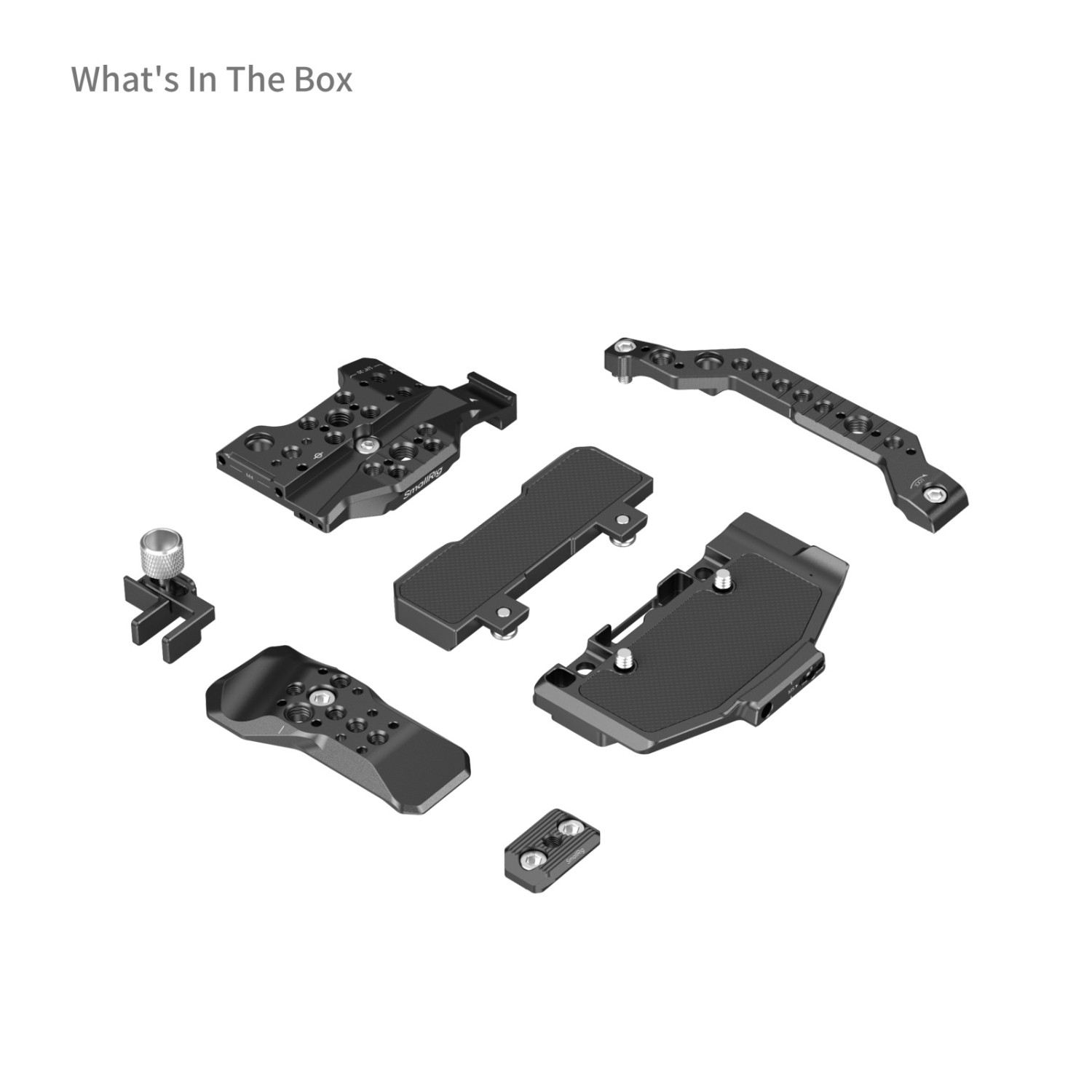

PACKAGE CONTENT
Top Plate x 1
Left Plate x 1
Right Plate x 1
Baseplate x 1
Bottom Mount Plate x 1
Cable Clamp x 1
NATO Rail x 1
Operating Instruction x 1
Guarantee Card x 1
SPECIFICATIONS

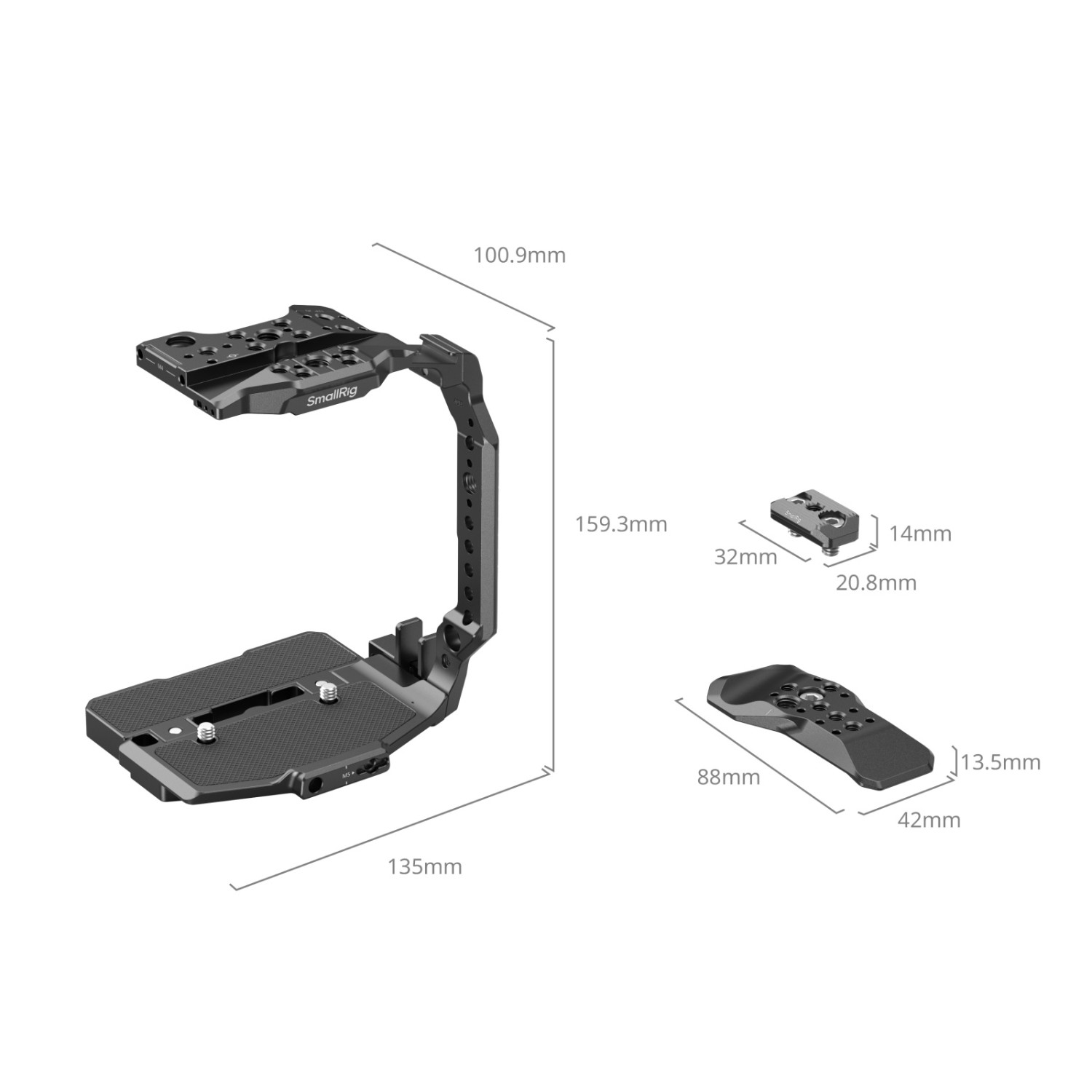

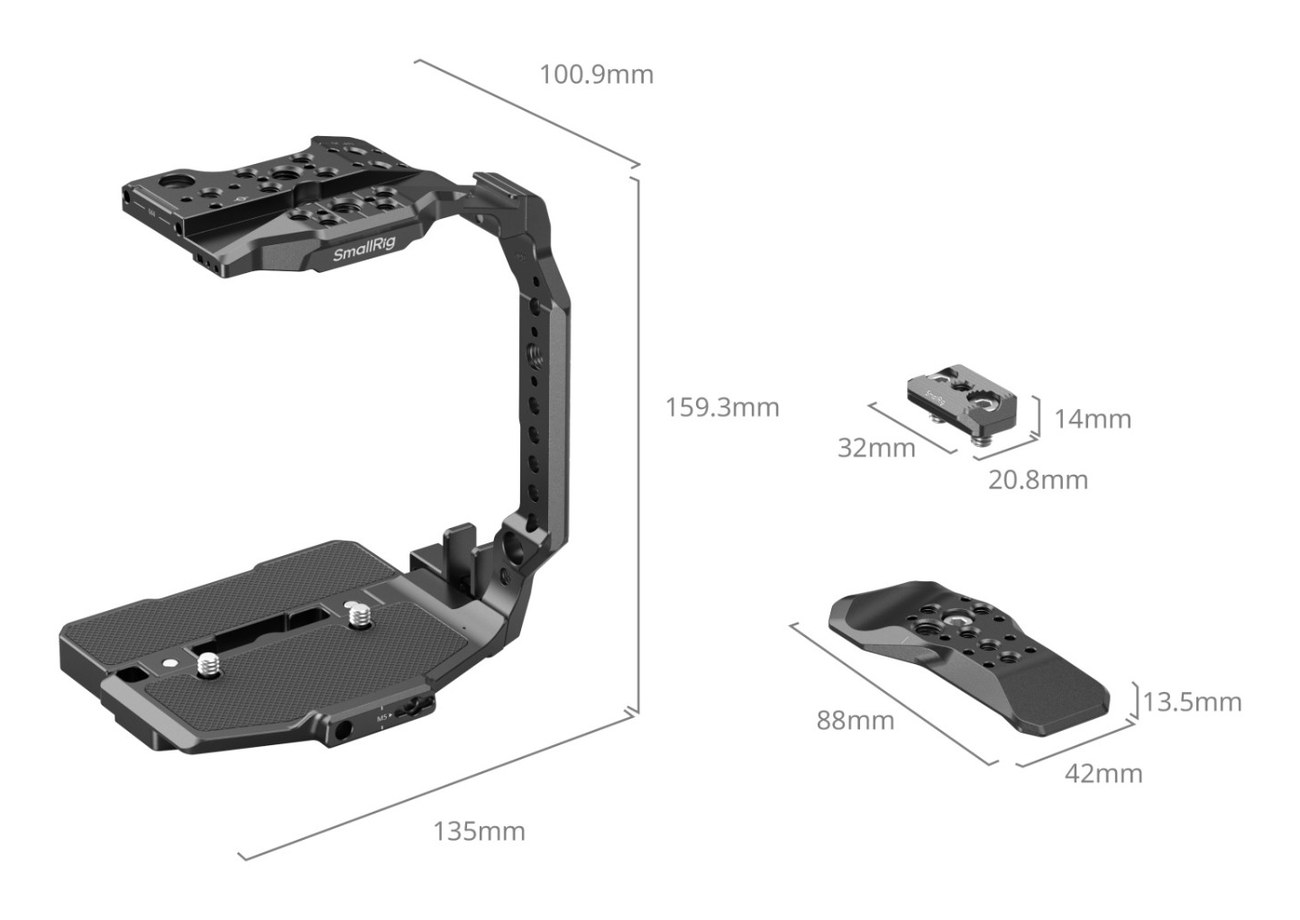

Product Dimensions: 135.0 x 100.9 x 159.3mm / 5.3 x 4.0 x 6.3in
Package Dimensions: 144.0 x 102.5 x 70.0mm / 5.7 x 4.0 x 2.8in
Net Weight: 309.2 ± 5.0g / 10.9 ± 0.2oz
Package Weight: 383.4 ± 5.0g / 13.5 ± 0.2oz
Material(s): Aluminum Alloy
