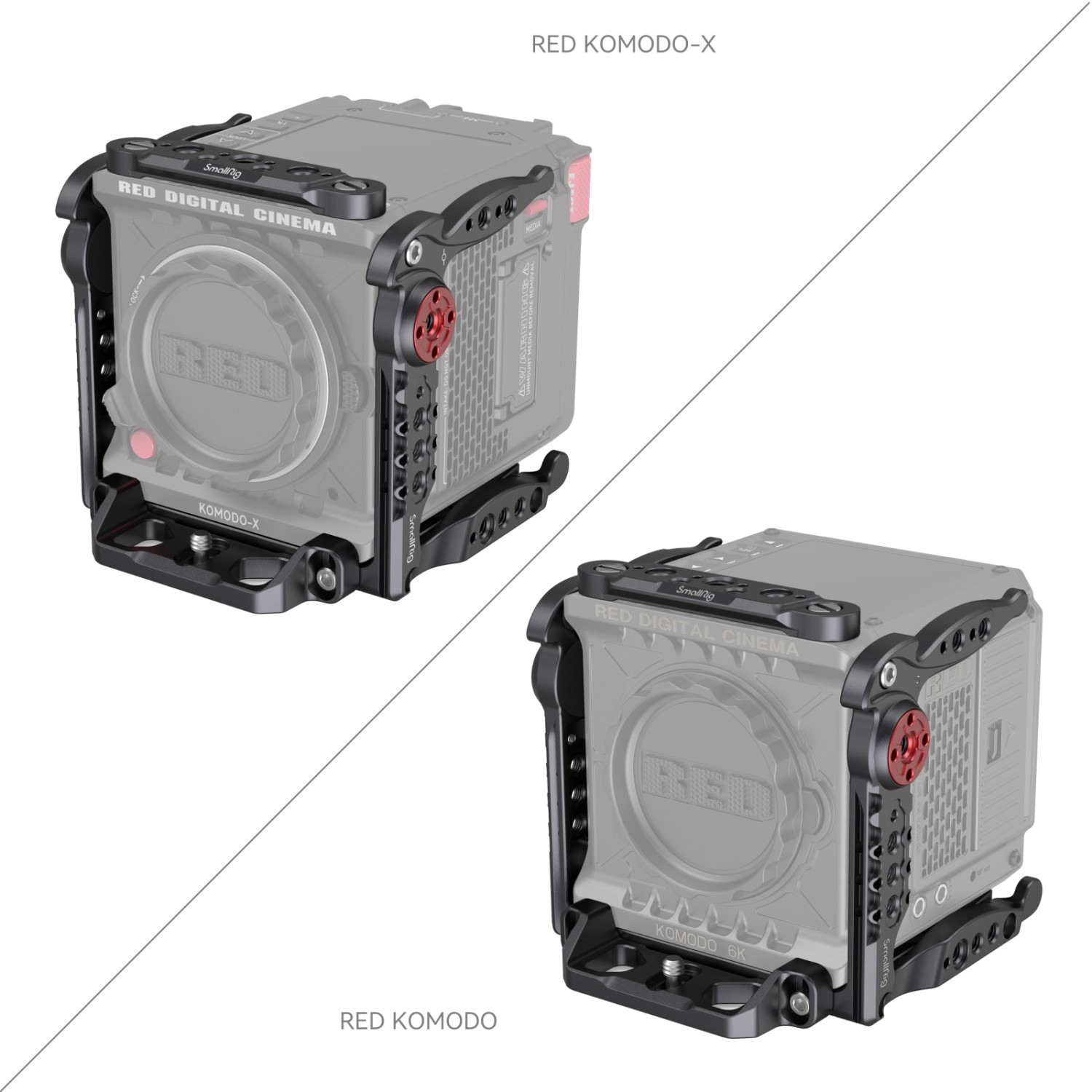

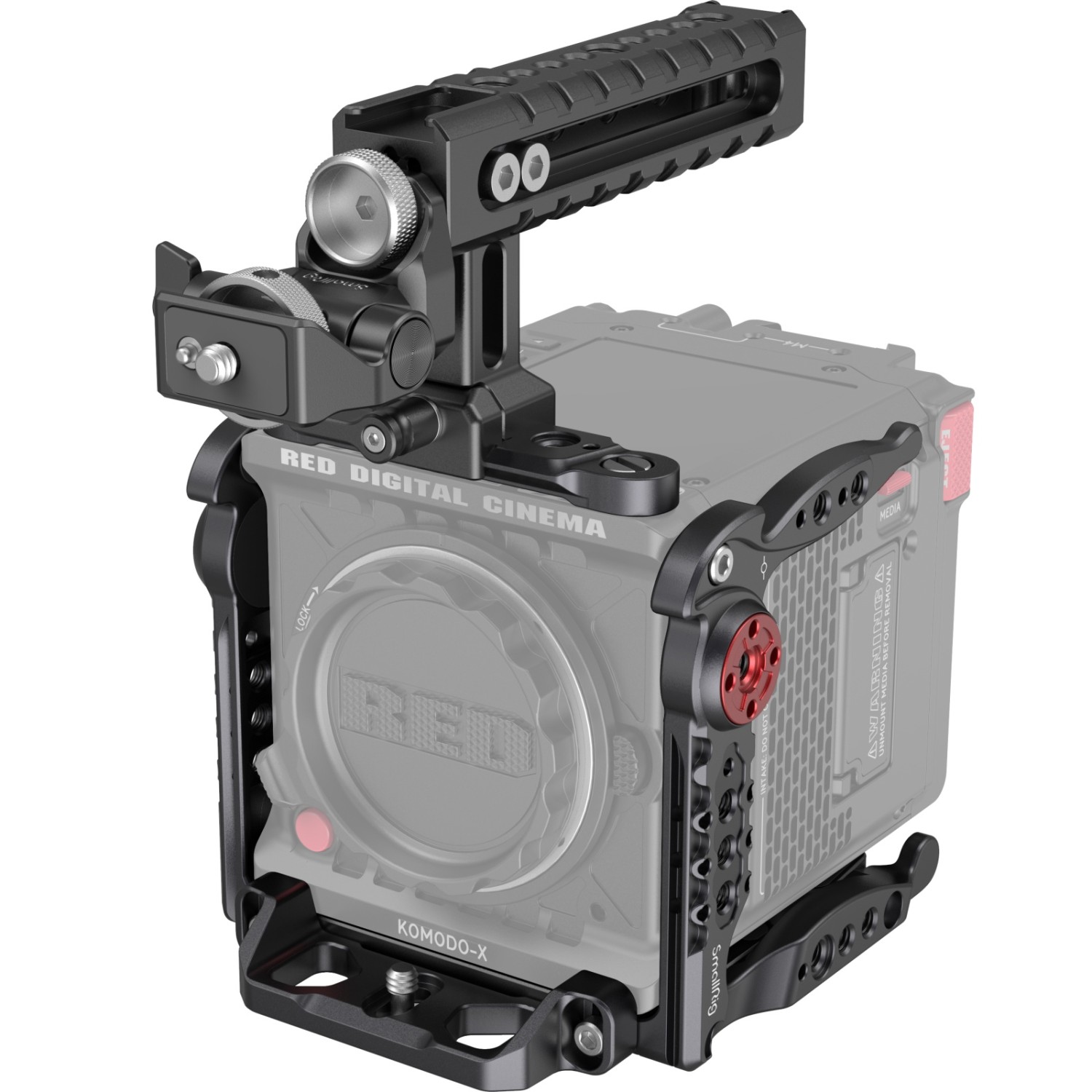

SmallRig Basic Cage Kit for RED KOMODO / KOMODO-X 4110 is designed to facilitate low-angle shooting, monitor installation, provide accessories mount holes, and protect the camera body. The kit includes a cage (top plate + left plate + right plate + baseplate), lens mount adapter support, NATO top handle, and monitor mount. The monitor mount can install the…
SmallRig Basic Cage Kit for RED KOMODO / KOMODO-X 4110 is designed to facilitate low-angle shooting, monitor installation, provide accessories mount holes, and protect the camera body. The kit includes a cage (top plate + left plate + right plate + baseplate), lens mount adapter support, NATO top handle, and monitor mount. The monitor mount can install the monitor, and support 180 ° pitch, and 360 ° panning adjustment, for convenient monitoring. The top handle can be installed through the NATO clamp, which is easy to disassemble and assemble; it can be adjusted back and forth after being loosened by a wrench to facilitate the use of the LCD screen on top of the camera.

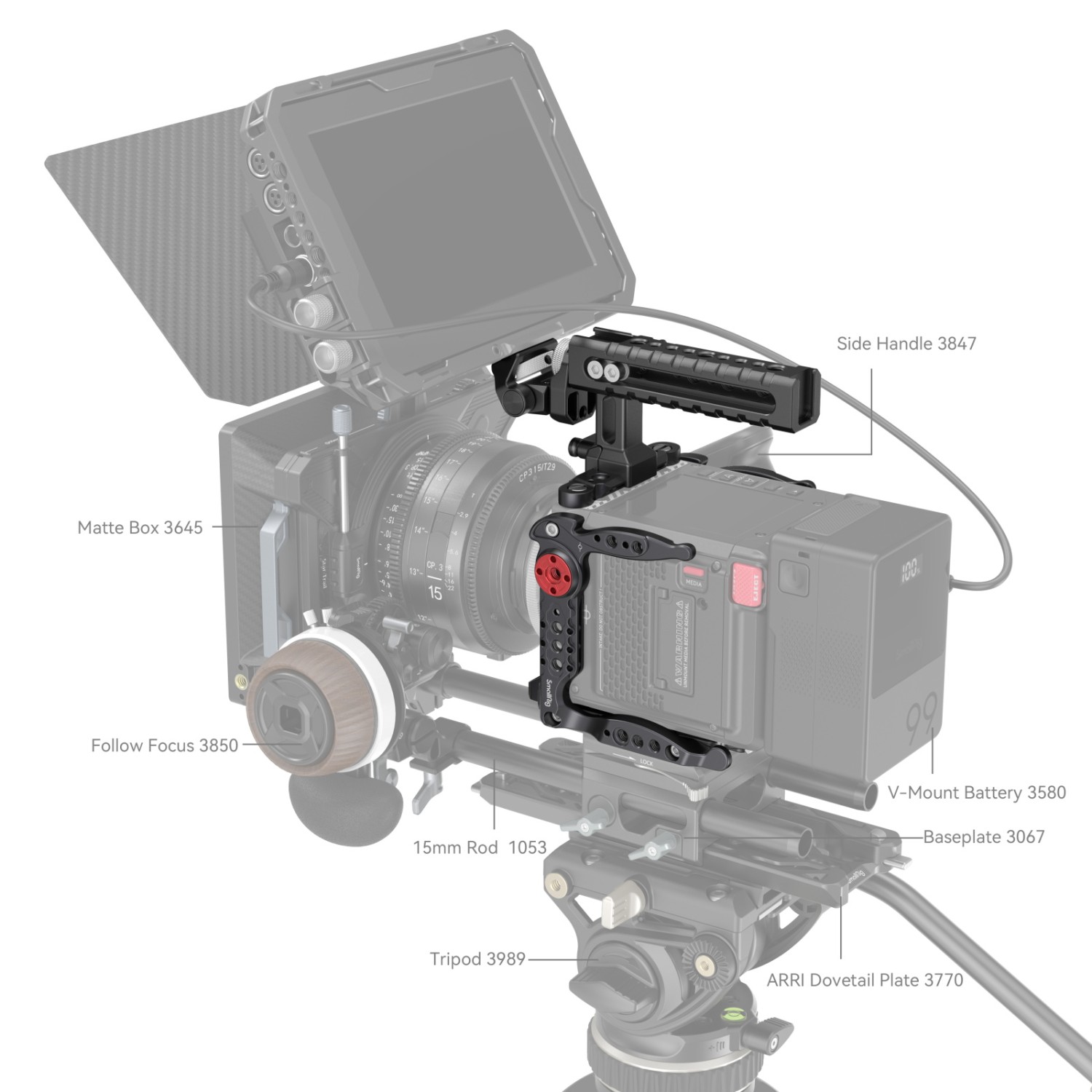

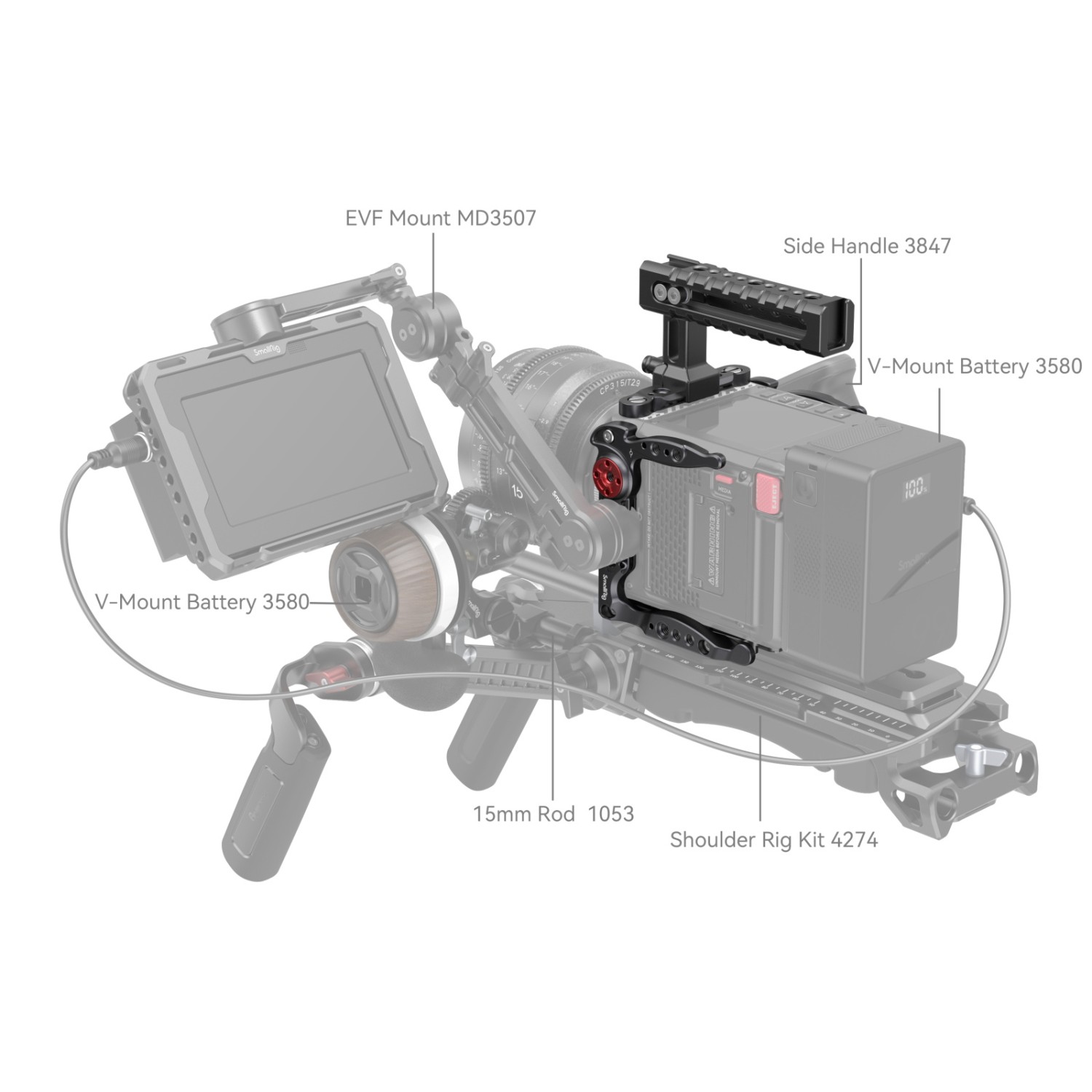

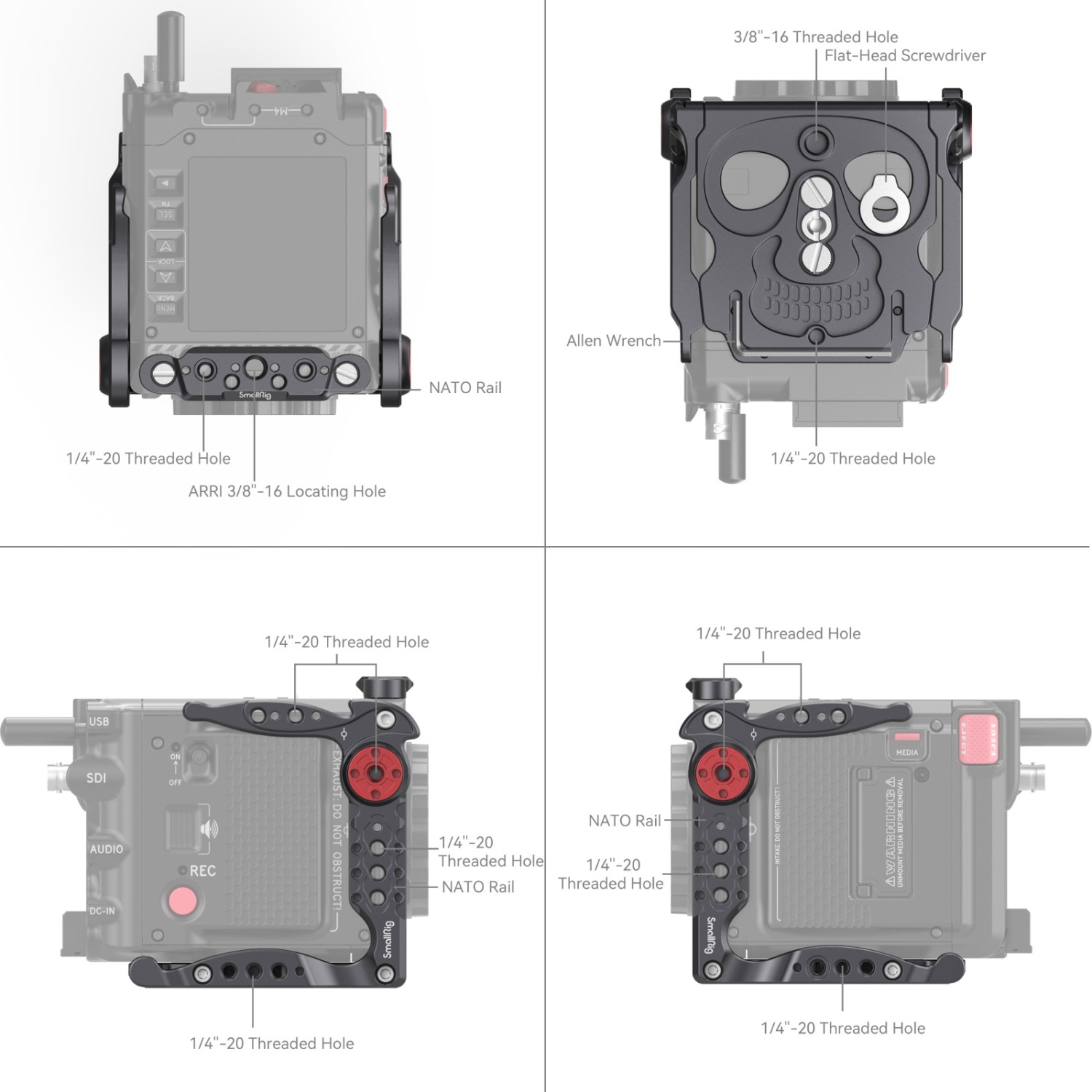

The cage adopts new bionic design, which is highly compatible with the design concept of the camera; modular design, the top plate, and baseplate can be used independently; after the top plate is disassembled, it is compatible with KOMODO OUTRIGGER HANDLE and DSMC3 RED TOUCH 7.0". The kit is equipped with multiple built-in 1/4"-20 threaded holes, ARRI 3/8"-16 threaded holes, 3/8"-16 threaded holes, NATO rails, cold shoe mounts, and other interfaces, easy to install the side handle 3847, microphone, magic arm 3873 and other accessories. The front of the cage can be installed with lens mount adapter support, by fixing the Metabones mount adapter, to protect the camera lens mount and enhance shooting stability. A built-in flat-head screwdriver and an Allen wrench at the bottom, for easy disassembly and assembly.
1. Protect the camera body, easy to install the side handle, magic arm, and other accessories for professional creation.
2. The top handle is easy to disassemble, convenient for low-angle shooting, supports front and rear adjustment, and full access to the camera LCD screen.

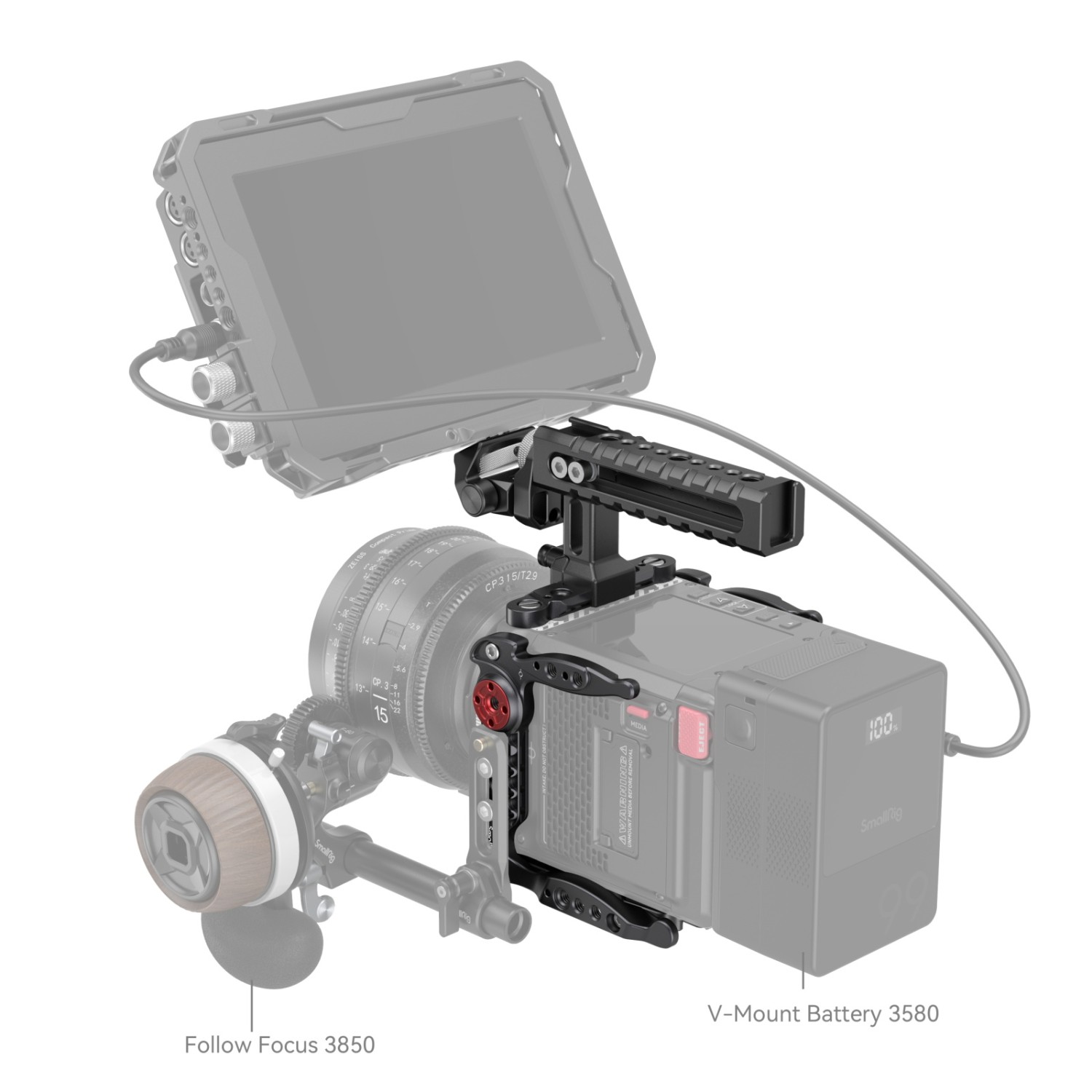

3. Monitor mount supports 180 ° pitch, 360 °panning adjustment, and convenient monitor monitoring.
4. Lens mount adapter support to protect the camera lens mount, and enhance shooting stability.
5. New bionic design, highly compatible with the camera design concept.
Mount Adapter Support Compatibility:
Metabones ARRI PL Lens to Canon RF-Mount T Cine Speed Booster ULTRA 0.71x (EOS-R)
Metabones Canon EF Lens to RF-Mount T CINE Speed Booster Ultra 0.71x Adapter (EOS-R)

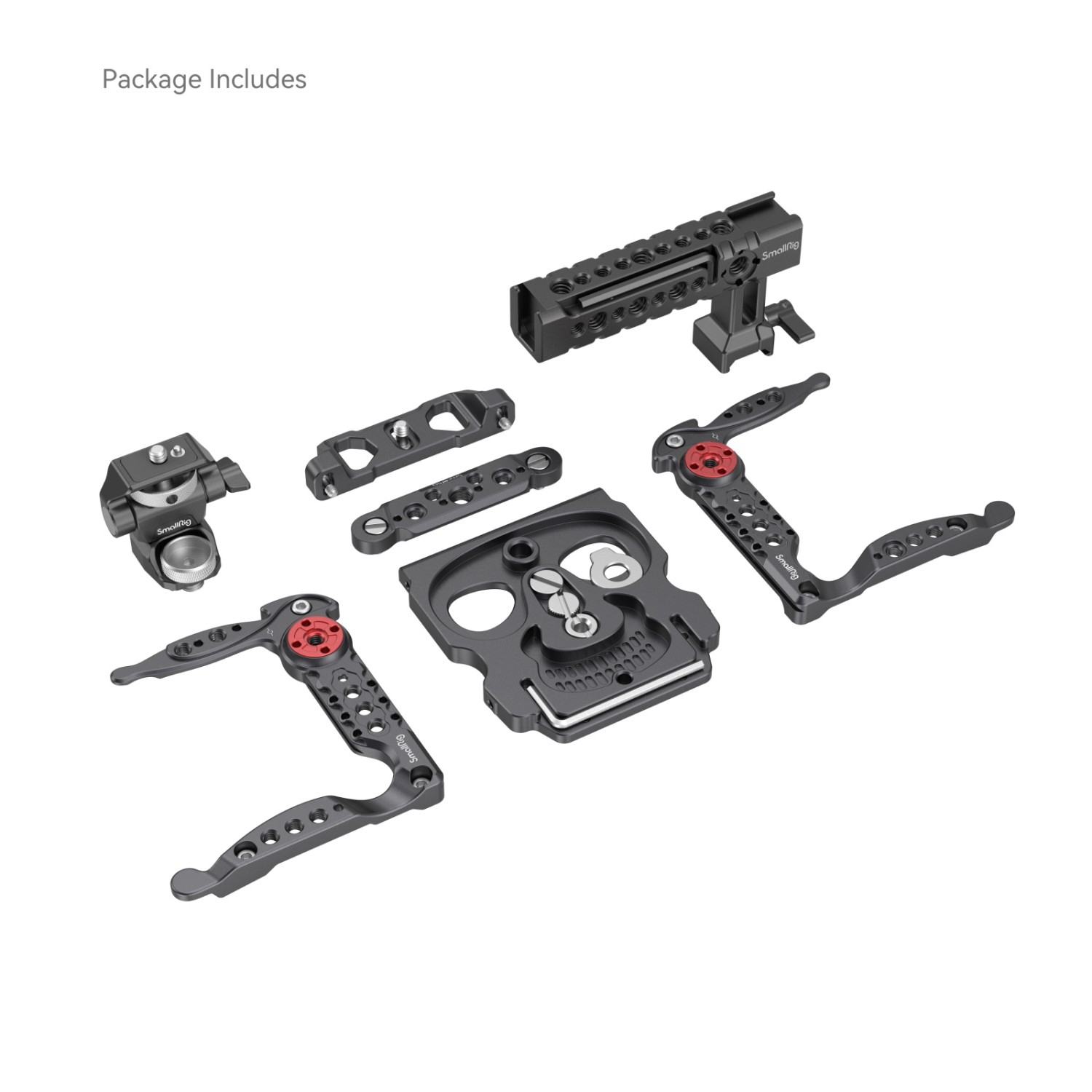

Top Plate × 1
Left Side Plate × 1
Right Side Plate × 1
Baseplate × 1
Lens Mount Adapter Support × 1
Top Handle × 1
Monitor Mount × 1

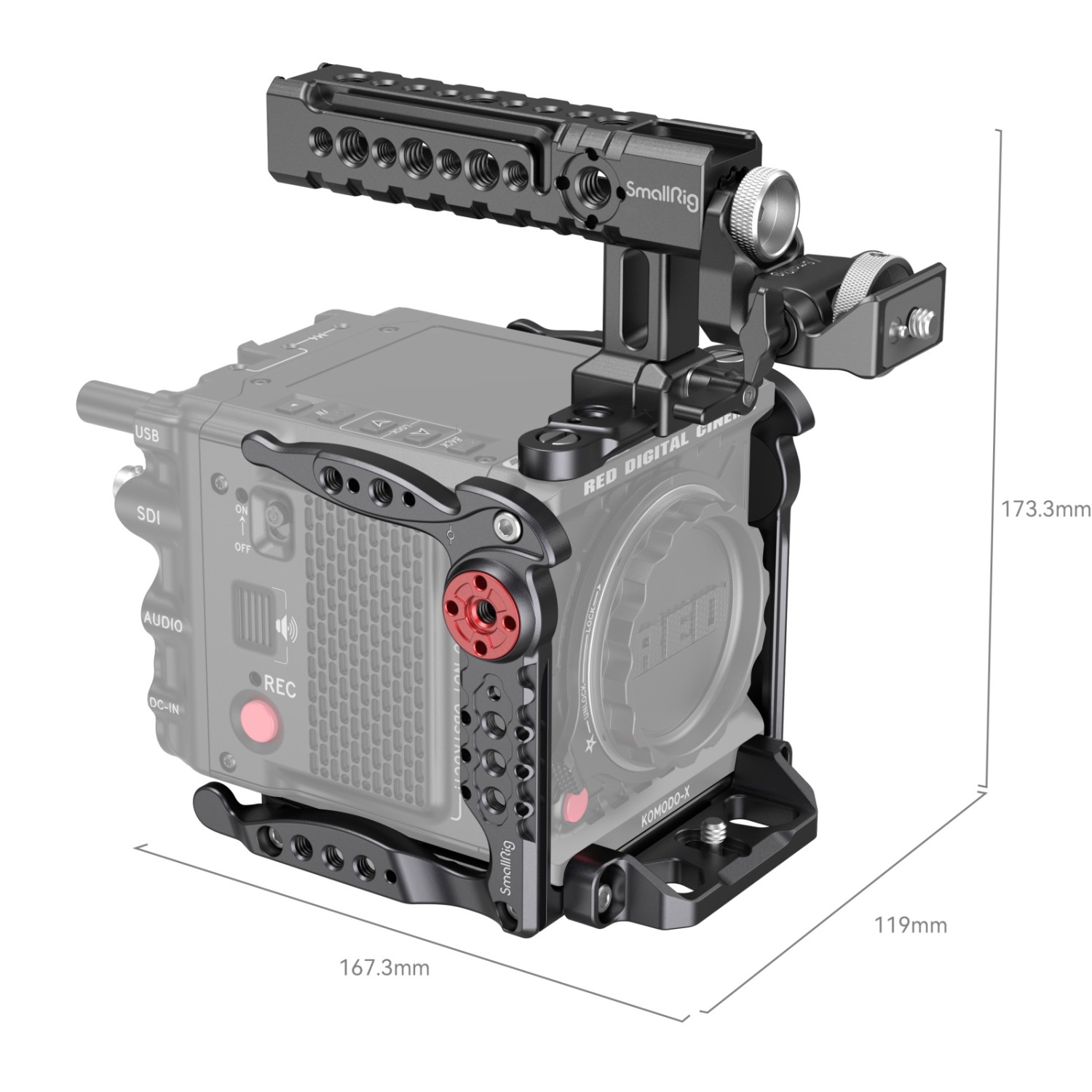

Product Dimensions: 167.3 x 119.0 x 173.3mm
Package Dimensions: 277.5 x 147.3 x 58.0mm
Product Weight: 534.0 ± 5.0g
Package Weight:650.7 ± 5.0g
Material(s): Aluminum Alloy, Stainless Steel
