SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B

+8
  • LAST PIECE
SKU: 3204B

A V-mount battery plate that clamps onto a 15 mm LWS rod system. It distributes power over USB-C (65 W), USB-A (36 W), D-Tap and three DC outputs (8 V and 2× 12 V), so one battery runs the camera, a monitor and a transmitter at once.

More information

177 € with VAT 146.28 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: 02. 11.
In stock 1 pcs
Praha 1 pcs
SKU:
3204B
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

A V-mount battery plate that clamps onto a 15 mm LWS rod system. It distributes power over USB-C (65 W), USB-A (36 W), D-Tap and three DC outputs (8 V and 2× 12 V), so one battery runs the camera, a monitor and a transmitter at once.

V-mount battery plate for 15 mm rods

A V-mount battery plate that clamps onto a 15 mm LWS rod system.

Advanced V-Mount Battery Mount Plate with Adjustable Arm

Six ports from one battery

From a V-mount battery you can power a camera, monitor and transmitter via USB-C 65 W, USB-A 36 W, D-Tap and three DC outputs.

USB-C PD 65 W

Input and output over PD; USB-A with QC up to 36 W.

D-Tap and DC

D-Tap 14.8 V, one DC 8 V and two DC 12 V.

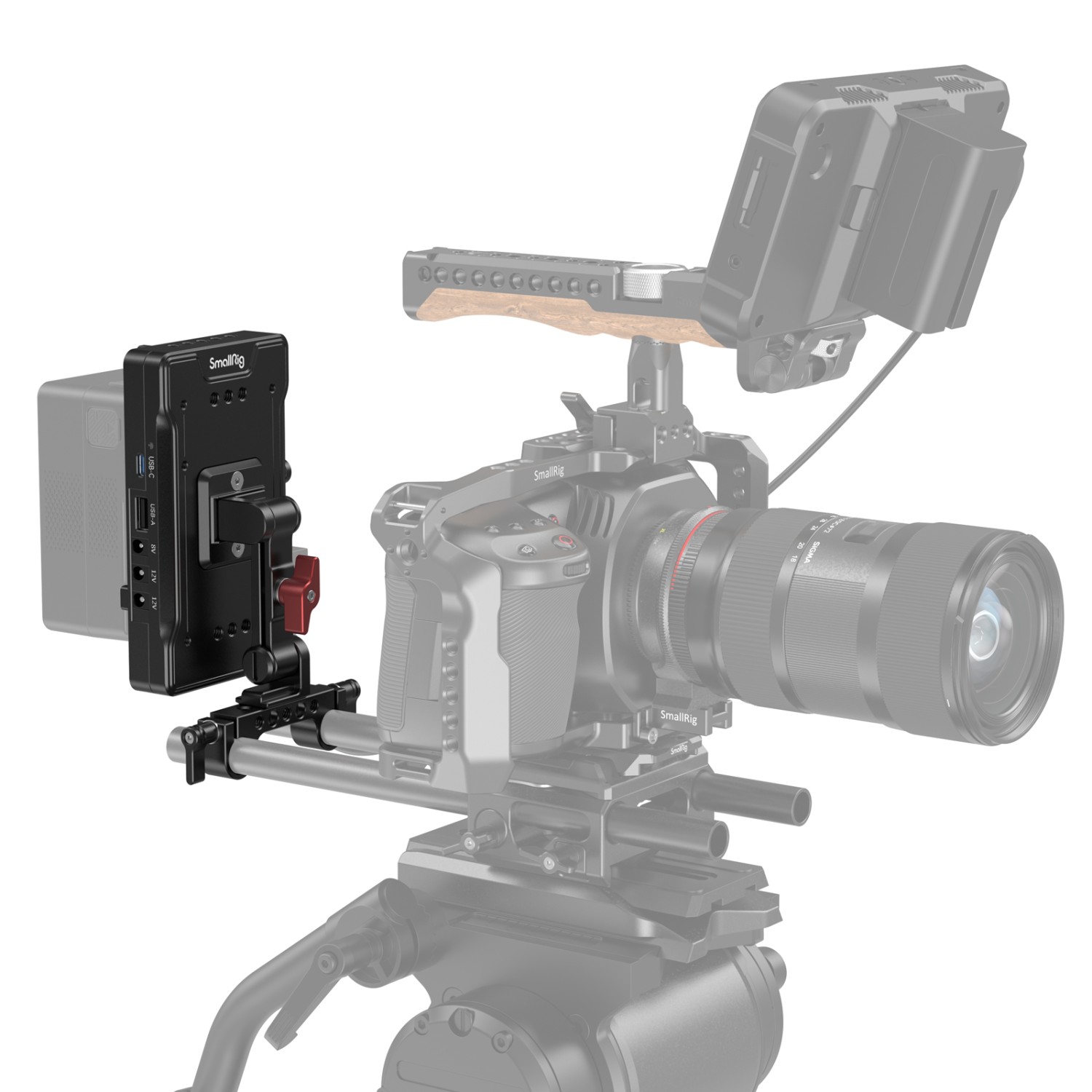

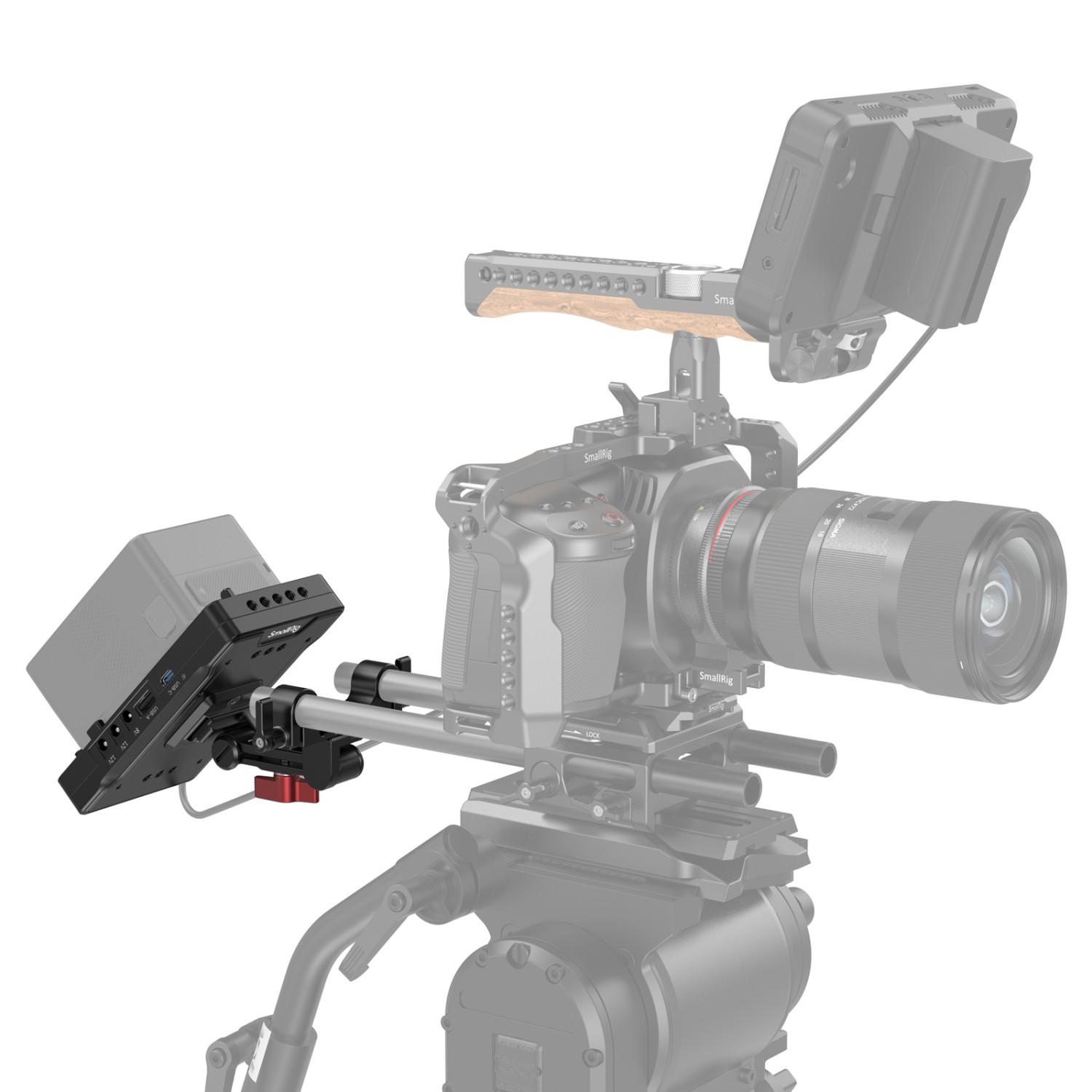

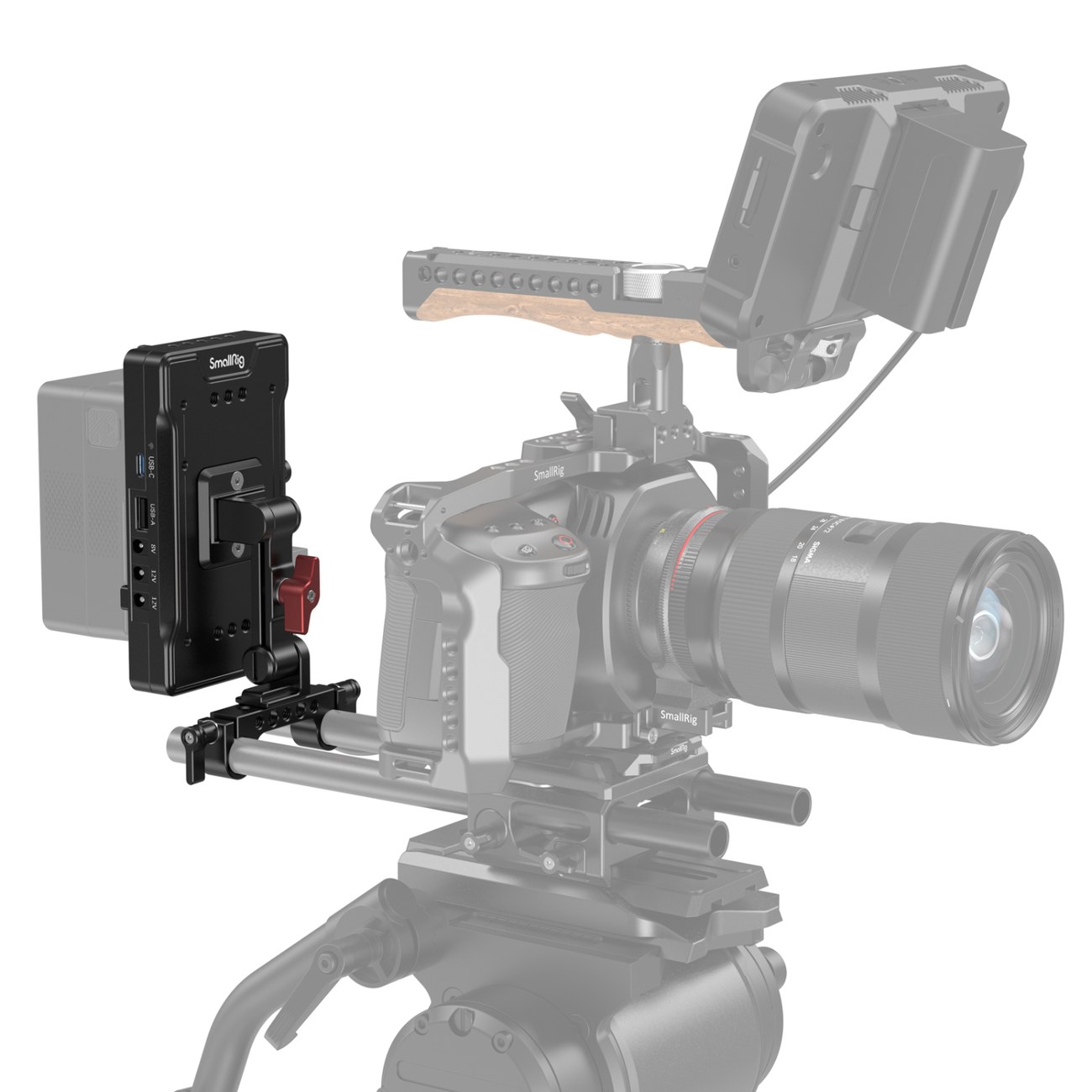

15 mm LWS rods

Quick mounting on the 15 mm LWS rod system.

Threads

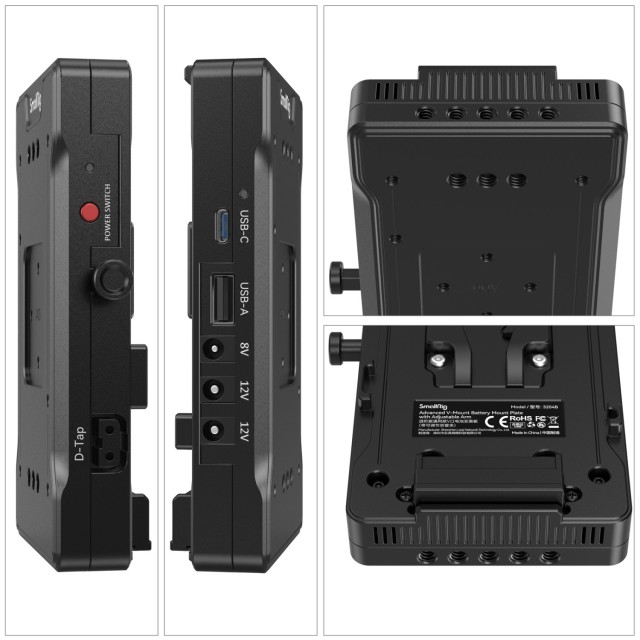

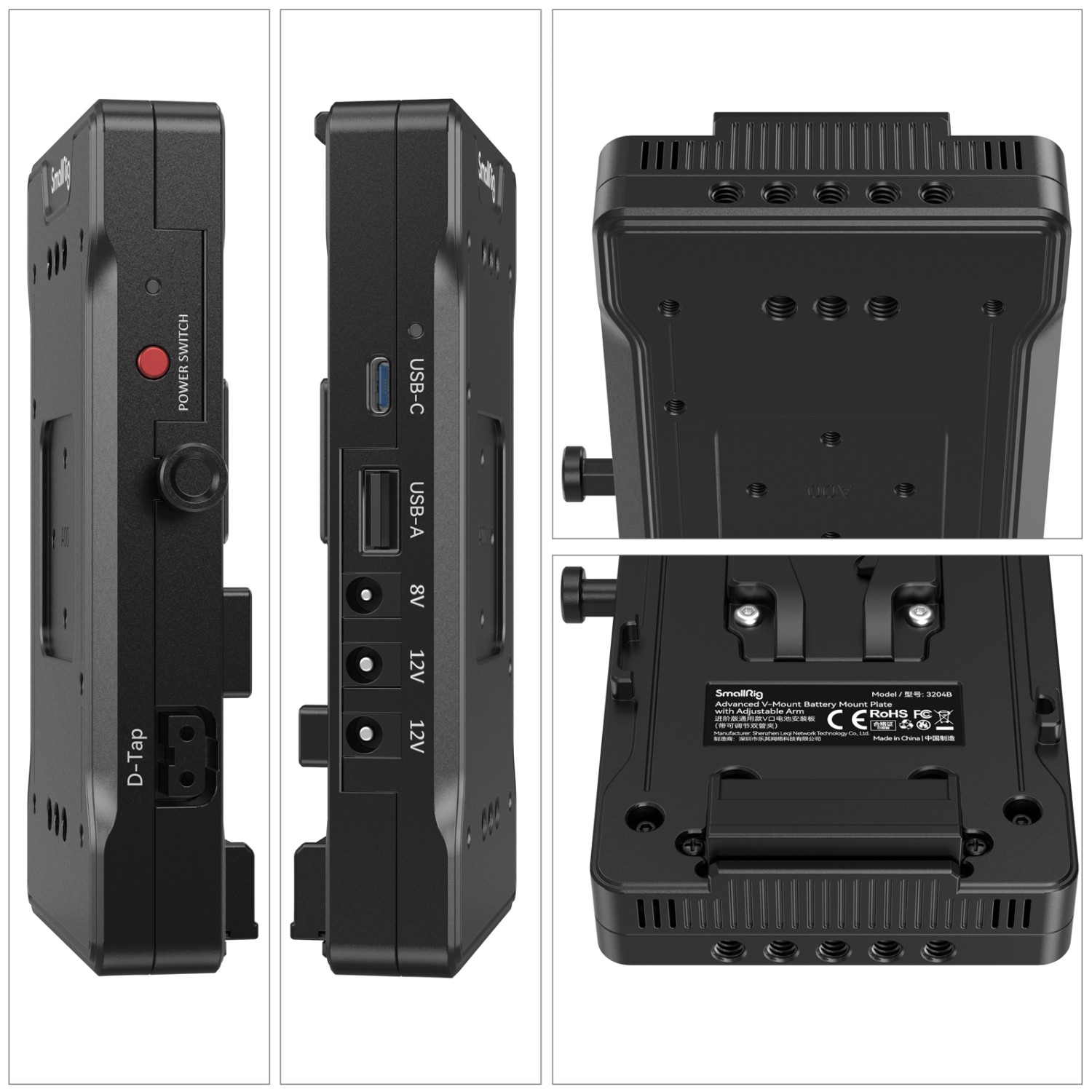

Six 1/4"-20 and ten M4 holes at the back, five 1/4"-20 on top and on the bottom.

1. Standard V-mount, compatible with most V-mount batteries.
2. PD protocol compatible USB-C input/output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.
3. D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port.
4. Quickly mounts onto 15mm LWS rod system.
5. Quickly reposition the V-mount battery.

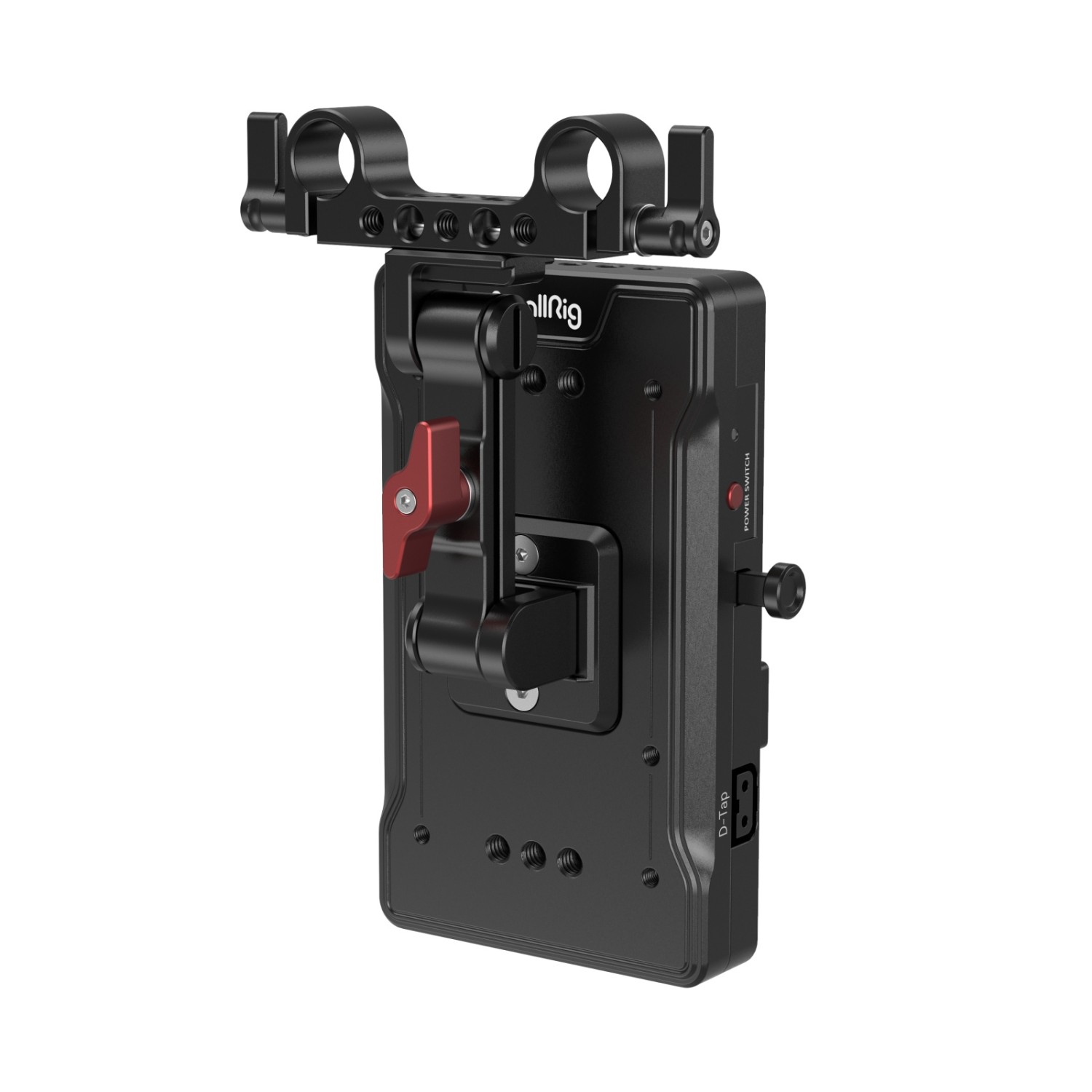

Advanced V-Mount Battery Mount Plate with Adjustable Arm
Advanced V-Mount Battery Mount Plate with Adjustable Arm

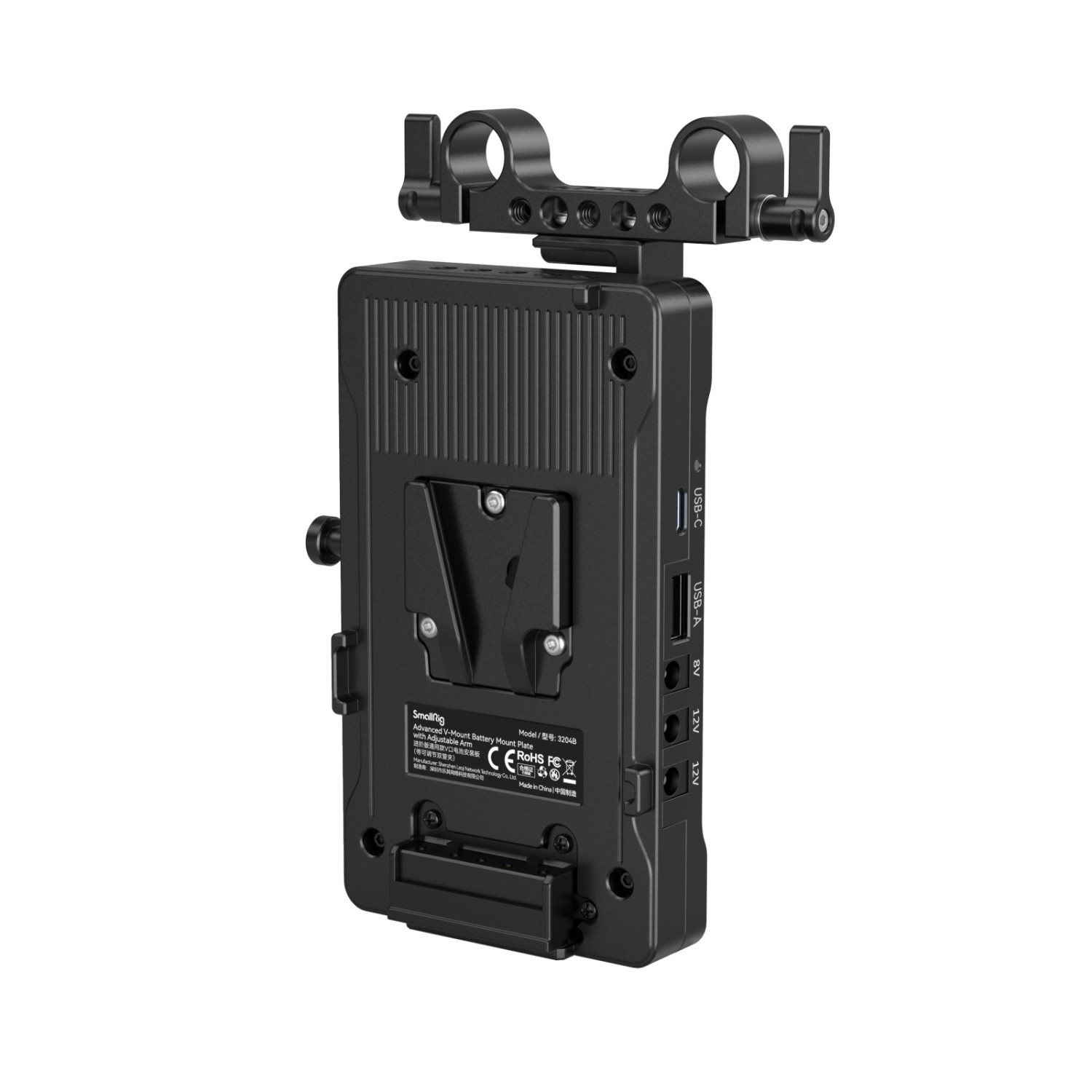

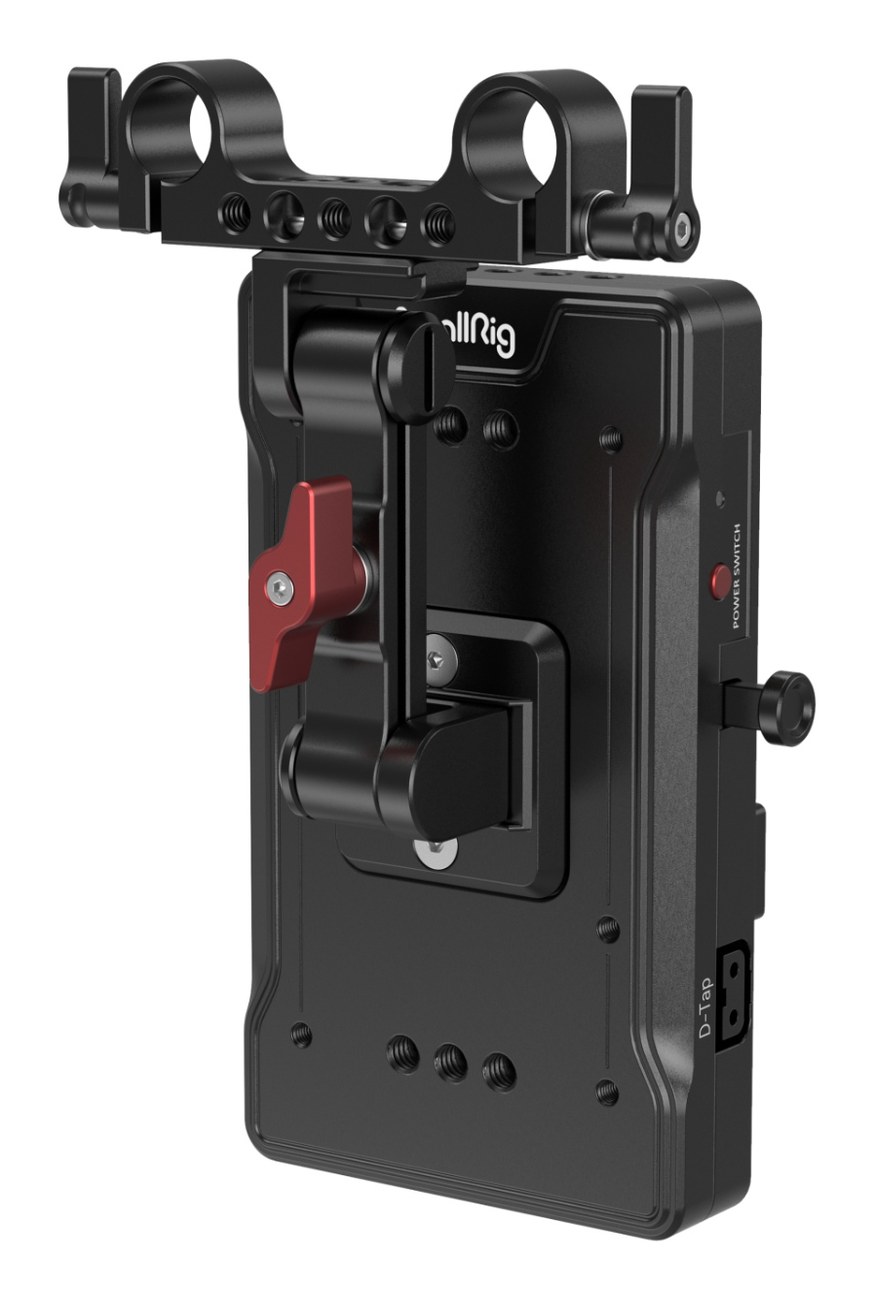

SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B can quickly mount onto a 15mm LWS rod system. This item features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support dual rod clamp and many other accessories. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) port; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicate working status and fast/slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.

Certification: Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED

Note: Product weight and dimensions may have measurement errors.

Functions Description:

Charging / Discharging: USB-C charging

Indicator Light: orange light—slow charging/discharging, ice blue light—fast charging/discharging

Power Indicator Light:

Light on—powered on

light off—powered off

light flashing—working temperature exceeds 65℃

Power on / off Button:

Power on—tap the button; power off—long press the button for 2 seconds

D-Tap, USB-A, and DC output are unavailable after powering off

D-Tap input and USB-C input/output available after powering off

Key Features

Warning:
1. Do not use it in a damp environment to avoid short circuits.
2. When the indicator light keeps blinking, it means the working temperature exceeds 65℃. Please suspend its use.
3. Please do not drop the product, or use it under high temperatures or when a short circuit occurs.

Compatible With V-Mount Battery

PACKAGE CONTENT

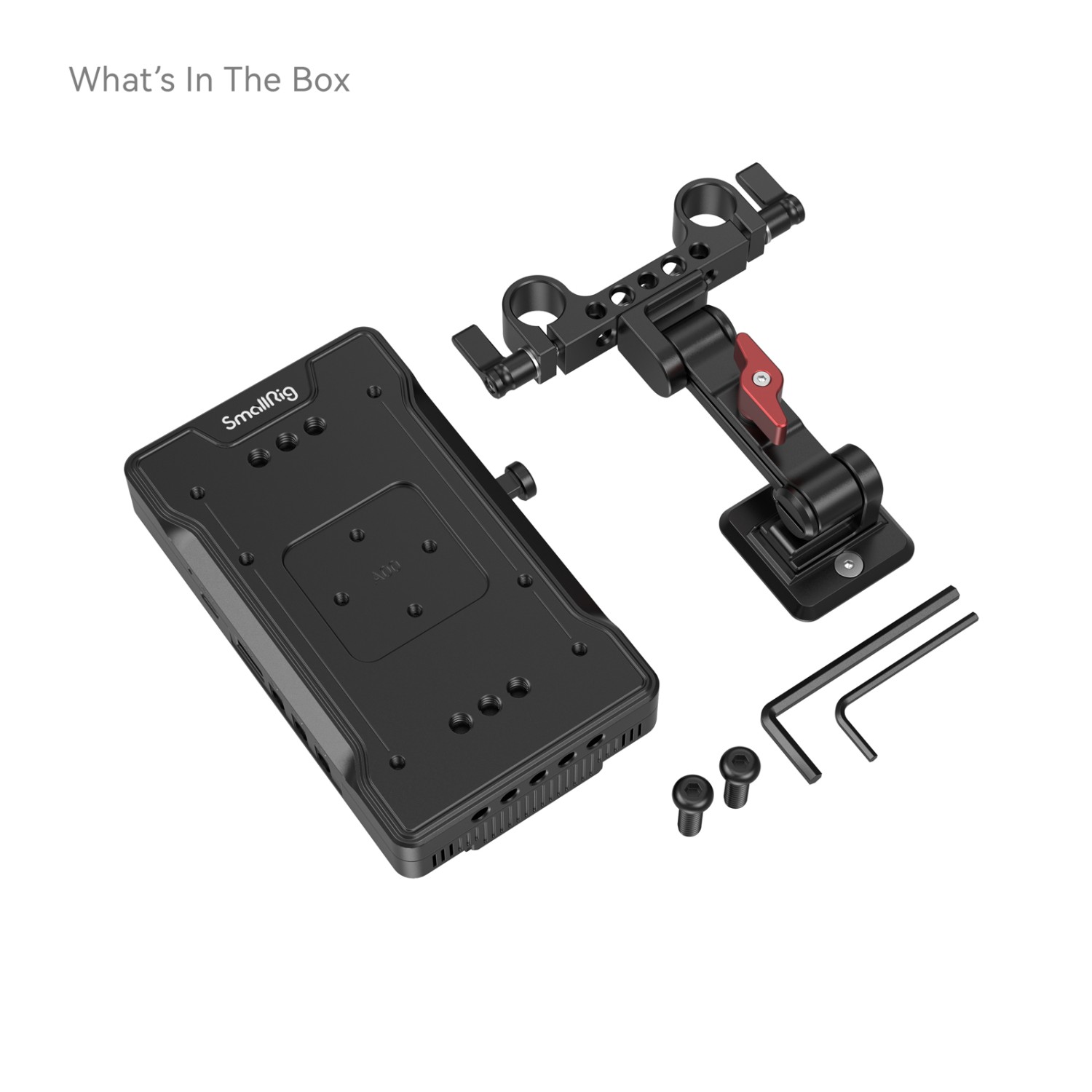

1× Advanced V-Mount Battery Adapter Plate
1× Dual Rod Clamp with Adjustable Arm
2× Hex Spanner
2× Screw
1× User Manual

SPECIFICATIONS

Battery Compatibility: V-Mount Battery
Dual Rod Diameter: 15 mm (for 15 mm LWS rod system)
Battery Voltage: 11.0 V~16.8 V
Battery Rated Capacity: 3500 mAh~20000 mAh / 14.8 V
Cut-off Voltage: 11.0 V
Input Voltage (Max.): 16.8 V
Working Power (Max.): ≤ battery power (subject to battery capacity)
Total Maximum Power: Discharging: 271 W (Max.)
D-Tap Rated Input / Output Current: 5 A
D-Tap Input / Output Current (Max.): 10 A (subject to power adapter)
D-Tap Input Voltage: 11.0 V~16.8 V
USB-A Output Power: 36 W (Max.)
USB-A Output Protocol: QC2.0 / QC3.0 / AFC / DCP-1.5 A / APPLE-2.4 A
USB-C Input Power: 65 W (Max.)
USB-C Output Power: 65 W (Max.)
USB-C Input / Output Protocol: PD3.0 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5 A / APPLE-2.4 A
DC1 Output: 8.0 V / 3 A (Max.)
DC2 Output: 12 V / 3 A (Max.)
DC3 Output: 12 V / 3 A (Max.)
DC Overcurrent Protection: ≥4.1 A
Product Dimensions: 14.2 cm×15 cm×9.3 cm
Package Dimensions: 17.1 cm×13.3 cm×8.3 cm
Product Weight: 399 g±5 g
Package Weight: 517 g±5 g
Material(s): Aluminum Alloy
Parameters

Parameters

Manufacturer: SmallRig
Category: Power battery plates

Main parameters

Battery Type / MountingV-Mount
Outputs and InterfacesD-Tap / P-Tap · USB-C PD · USB-A · DC 5521 (8V) · DC 5525 (12V)
Mounting / Installation15mm LWS Rod Clamp (tyče) · 1/4"-20 / 3/8"-16 závit
CompatibilityUniverzální
For batteryV-Mount
