SmallRig Advanced Cage Kit for RED KOMODO-X 4335

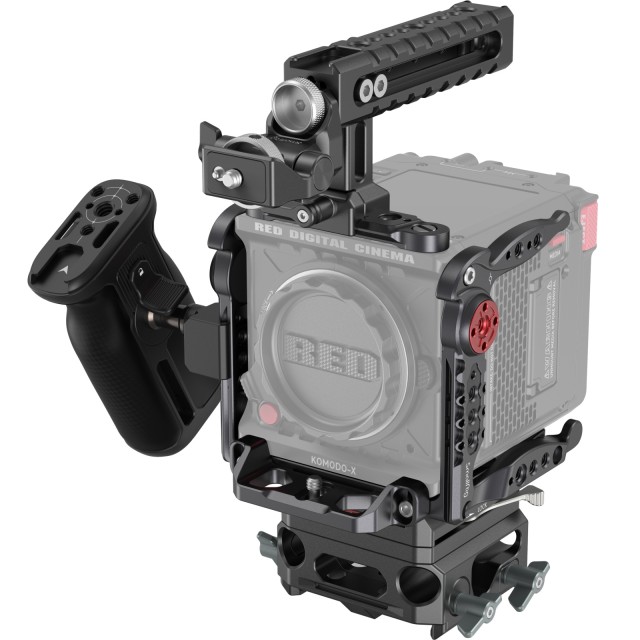

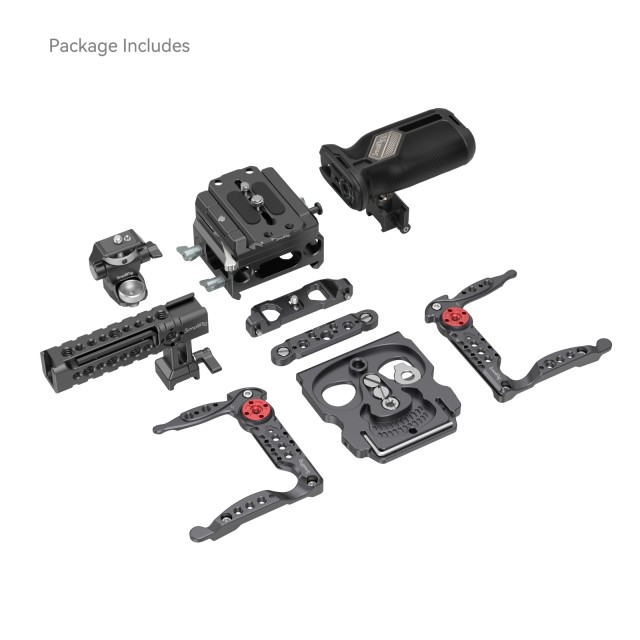

SmallRig Advanced Cage Kit for RED KOMODO-X 4335 is designed to facilitate handheld shooting, provide accessories to expand the interface and protect the camera body. The kit includes a cage (top plate + left side plate + right side plate + baseplate), lens mount adapter support, top handle, monitor mount, Manfrotto mount plate kit, and rotating side handle. The monitor mount can install the monitor, support tilt 180 °, 360 ° panning adjustment, and convenient monitoring. The top handle can be installed through the NATO clamp, which is easy to disassemble and install; it can be adjusted back and forth after being loosened by the Allen wrench to facilitate the use of the LCD screen on top of the camera.

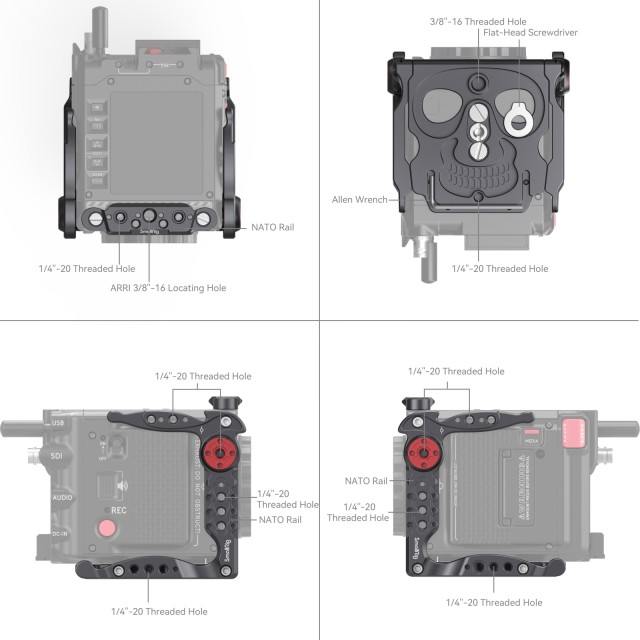

The side handle is available for the left and right hand, is ergonomic and carbon fiber material, featuring a lightweight and comfortable grip; supports one button for rotating adjustment, easy to maintain a comfortable grip and camera operation. The cage with modular design, the top plate, and the baseplate can be used independently; After disassembling the top plate, it can be compatible with KOMODO OUTRIGGER HANDLE and DSMC3 RED TOUCH 7.0". The kit has built-in 1/4"-20 threaded holes, ARRI 3/8"-16 threaded holes, 3/8"-16 threaded holes, NATO rails, cold shoe mounts, and other interfaces, convenient to install 15mm rod clamp 3598, microphone, magic arm 3873, and other accessories. The front of the cage can be expanded to lens mount adapter support, by fixing the Metabones mount adapter, to protect the camera lens mount, to enhance shooting stability. After the bottom installation of 15mm rods can be expanded to Follow Focus 3850, Matte Box 3645, lens support BSL2680, etc. A Built-in flat-head screwdriver and an Allen wrench for easy disassembly and assembly.

1. Protect the camera body, easy to install the monitor, magic arm, and other accessories.
2. Top Handle is easy to disassemble, convenient for low-angle shooting, supports front and rear adjustment, and full access to the top LCD screen.
3. Ergonomic carbon fiber rotatable side handle, featuring a lightweight and comfortable grip, for smooth camera movement.
4. Monitor mount supports 180 ° pitch, 360 ° panning adjustment, and convenient monitor monitoring.

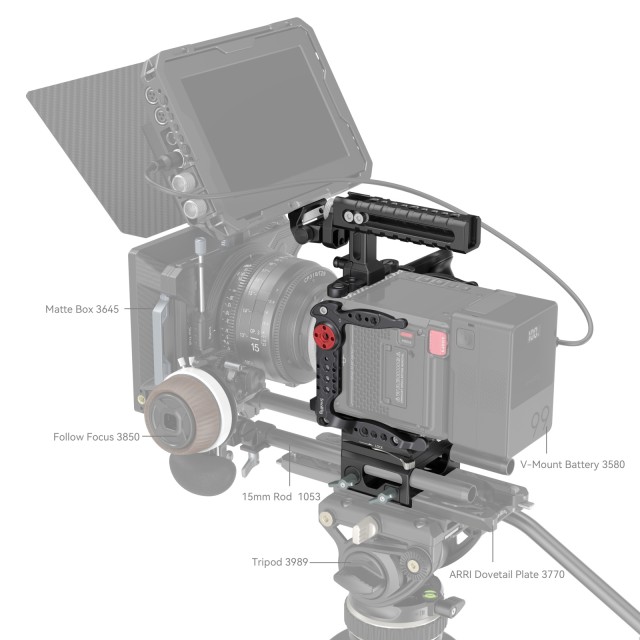

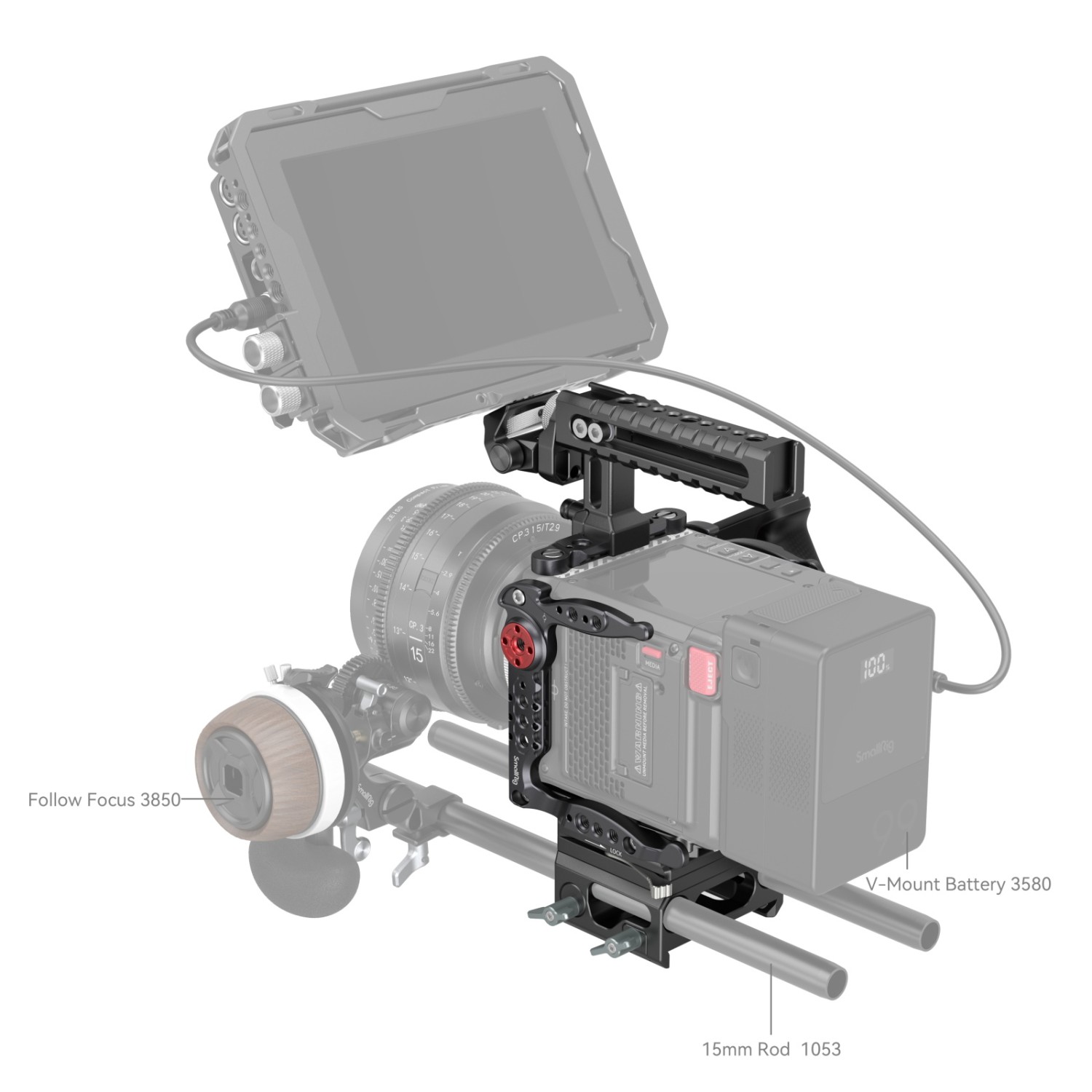

5. Built-in 15mm rod clamps, can be installed after the 15mm rods to attach the focus, matte box, lens support, and other accessories.

Mount Adapter Support Compatibility:
Metabones ARRI PL Lens to Canon RF-Mount T Cine Speed Booster ULTRA 0.71x (EOS-R)
Metabones Canon EF Lens to RF-Mount T CINE Speed Booster Ultra 0.71x Adapter (EOS-R)
