Sennheiser EW 500 G4-MKE2-GW (558 - 626 MHz)

SKU: EW500G4MKE2.GW

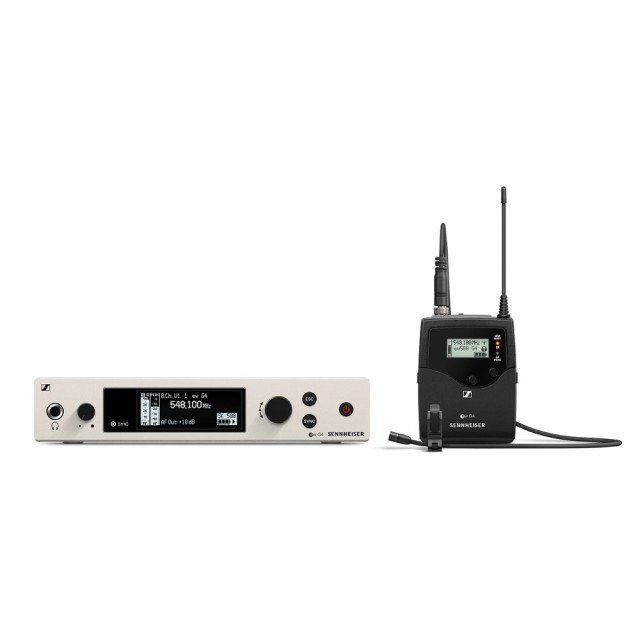

Rugged all-in-one wireless system for broadcasters and presenters. Set consists of 1 SK 500 G4 bodypack, 1 MKE 2 Gold Lavalier mic, 1 EM 300-500 rackmount receiver and 1 GA3 rack kit.

More information

Promotion: 962.1 €
1 140.08 € 962.1 € with VAT 795.12 € without VAT
Add to Compare Minimum 30 days: 960.58 €
Availability
on request
SKU:
EW500G4MKE2.GW
Add to Compare Minimum 30 days: 960.58 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Rugged all-in-one wireless system for broadcasters and presenters. Set consists of 1 SK 500 G4 bodypack, 1 MKE 2 Gold Lavalier mic, 1 EM 300-500 rackmount receiver and 1 GA3 rack kit.

The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups.
The pro‘s choice for impressive presentations. The professional MKE 2 Gold omni-directional condenser microphone resists the test of time on any big live stage and ensures a high speech intelligibility on any stage, indoors and outdoors.

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Up to 32 compatible channels

  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Products variants :

  • EW 500 G4-MKE2-AW+ (470 - 558 MHz)
  • EW 500 G4-MKE2-BW (626 - 698 MHz)
  • EW 500 G4-MKE2-DW (790 - 865 MHz)
  • EW 500 G4-MKE2-GBW (606 - 678 MHz)
  • EW 500 G4-MKE2-GW (558 - 626 MHz)

Compatible Products :

  • EW 500 G4-935EW 500 G4-945
  • EW 500 G4-945EW 500 G4-965
  • EW 500 G4-965EM 300-500 G4
  • EM 300-500 G4EW 500 G4-Ci1
  • EW 500 G4-Ci1MKE 2
  • MKE 2MKE 1
  • MKE 1HSP 2
  • HSP 2HSP 4
  • HSP 4ACA 3
  • ACA 3WSM
  • WSMME 2
  • ME 2MM 435
  • MM 435MM 445
  • MM 445MMD 42-1
  • MMD 42-1MMD 835 BK
  • MMD 835 BKMMD 845
  • MMD 845MMD 935
  • MMD 935MMD 945
  • MMD 945MME 865
  • MME 865MMK 965
  • MMK 965MMK 965
  • MMK 965ASA 214
  • ASA 214ADP UHF ANTENNA
  • ADP UHF ANTENNAAD 3700
  • AD 3700BA 2015
  • BA 2015

PACKAGE CONTENT

  • EM 300-500 G4 true diversity receiver

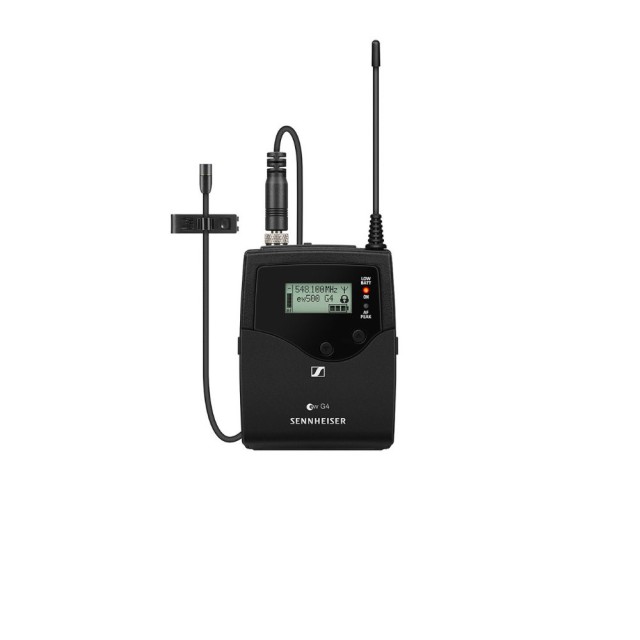

  • SK 500 G4 bodypack transmitter
  • MKE 2 clip-on microphone
  • GA 3 rackmount set
  • 2 AA batteries
  • 2 rod antennas
  • power supply
  • quick guide
  • safety guide
  • manufacturer declaration sheet

SPECIFICATIONS

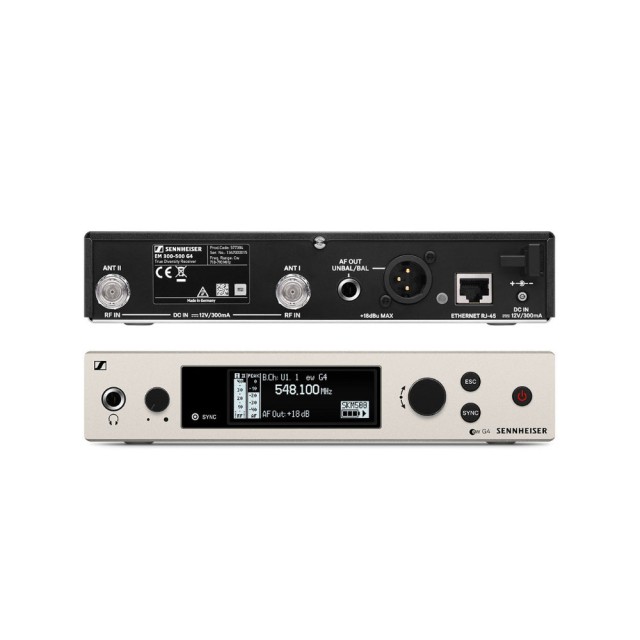

EM 300-500 G4 -true diversity receiver

Frequency range:  Gw: 558 - 626 MHz

Dimensions: Approx. 202 x 212 x 43 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight:  Approx. 980 g

Audio output: 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu

Signal-to-noise ratio: ≥ 115 dBA

Switching bandwidth : up to 88 MHz

Peak deviation : ±48 kHz

Nominal deviation: ±24 kHz

Modulation :Wideband FM

Power supply: 12 V DC

Antenna connector: 2 BNC sockets

Current consumption : 350 mA

Adjacent channel rejection: Typically ≥ 75 dB

Intermodulation attenuation: Typically ≥ 70 dB

Receiving frequency : Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

RF sensitivity : < 2.5 μV for 52 dBA eff S/N

Squelch: 5 to 25 dBμV in steps of 2 dB

Temperature Range : -10 °C to +55 °C

Receiver Principle: True diversity

Blocking : ≥ 75 dB

Equalizer:

  • Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)



SK 500 G4 - bodypack transmitter

Dimensions:  Approx. 82 x 64 x 24 mm

Compander:  Sennheiser HDX

THD, total harmonic distortion : ≤ 0.9 %

Weight:  (incl. batteries) approx. 160 g

Signal-to-noise ratio : ≥ 115 dBA

RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth : up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time : Typically 8 h

Modulation : Wideband FM

Power supply:  2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption :

at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA

Input impedance: 40 kΩ, unbalanced / 1 MΩ

Max. Input voltage: 3 Veff

Powering :  3 V battery / 2.4 V rechargeable battery

Transmission frequency :
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF frequency response:  Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz

Temperature Range : -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

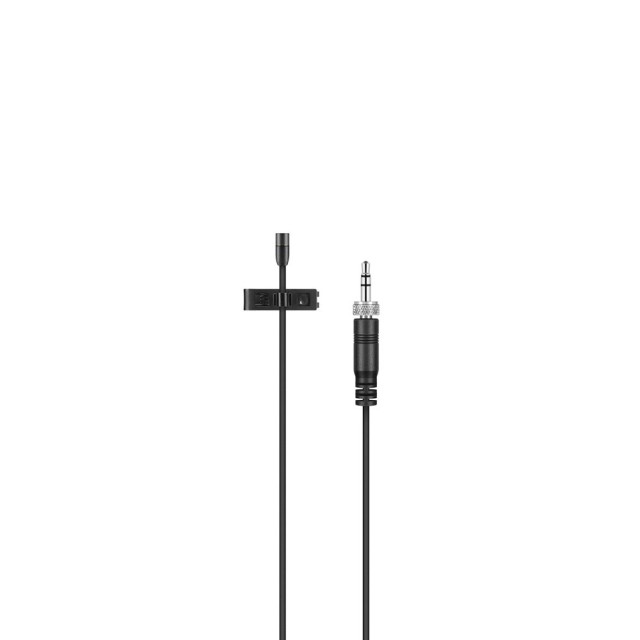

MKE 2 - clip-on microphone

Connector : 3.5 mm jack

Frequency response: 20 to 20.000 Hz ± 3 dB

Max. sound pressure level : 142 dB

Cable length: approx. 1.60 m

Transducer principle : pre-polarized condensor microphone

Pick-up pattern :omni-directional

Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB

Equivalent noise level: 26 dB

Equivalent noise level weighted as per CCIR: 39 dB



Parameters

Parameters

Manufacturer: Sennheiser
Category: Wireless systems

Main parameters

Number of audio channels1

Other parameters

Frequency range558 - 626 MHz
