Sennheiser EW 100 G4-Ci1 Wireless Guitar System (G: 566 to 608 MHz)

This product is no longer offered. Please select from the alternatives below.

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Sennheiser EW 100 G4-Ci1 is an easy-to-set-up rackmount wireless system that brings reliable high-quality, wireless sound to guitar and bass players performing in small to medium-sized venues including concert stages, houses-of-worship, theaters, and clubs.

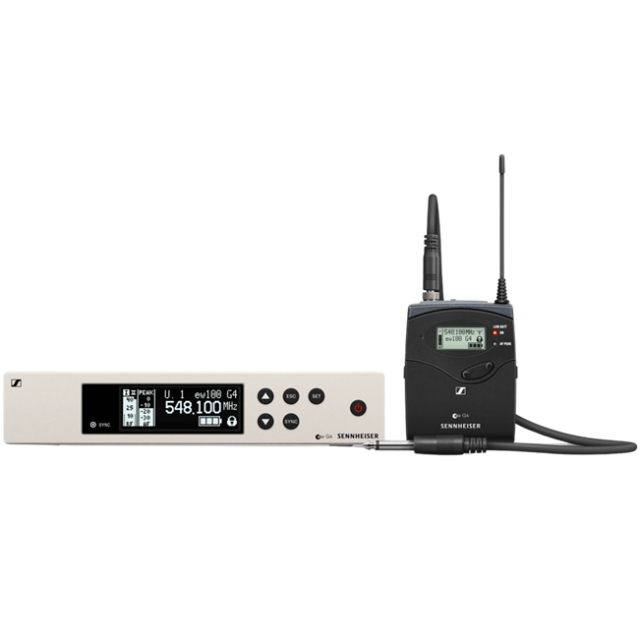

The EW 100 G4-Ci1 features a true diversity, half-rack receiver housed in a rugged, full-metal chassis. The receiver's auto-scan function searches a wide 42 MHz UHF tuning range with 1680 selectable frequencies available, seeking out a clean, interference-free channel for your audio transmission. The onboard guitar tuner is an added convenience for musicians.

This system includes a Ci 1 cable that connects your instrument to the lightweight bodypack transmitter. The transmitter provides up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330'. Up to 12 wireless channels can operate simultaneously in the same space, with the receivers linked together for fast, multi-channel frequency setup.

The EW 100 G4-Ci1 is backward-compatible with previous evolution systems. You can mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 300/500 systems.

The receiver's auto-scan feature scans a wide 42 MHz UHF tuning range with 1680 available selectable frequencies and searches for a clear, interference-free channel for your audio transmission. A built-in guitar tuner is an added convenience for musicians.

This system includes a Ci 1 cable to connect your instrument to a lightweight bodypack transmitter. The transmitter provides up to 8 hours of operation on two AA batteries, with a solid 30mW RF output power and a transmission range of up to 330'. Up to 12 wireless channels can operate simultaneously in the same space, with receivers linked together for quick multi-channel frequency setup.

The EW 100 G4-Ci1 is backward compatible with previous evolution systems. You can combine G4/G3/G2/G1 receivers or bodypack, handheld and plug-in transmitters. It is also compatible with EW 300/500 systems.



PACKAGE CONTENT



Package Contents:

  • EM 100 G4 true diversity receiver
  • SK 100 G4 bodypack transmitter
  • Ci 1 instrument cable
  • rack mounting kit
  • power supply
  • 2 AA batteries
  • 2 rod antennas
  • rJ 10 cable



SPECIFICATIONS



  • Wireless transmission: analog UHF
  • Number of RF channels: 1680
  • Frequency band RF G: 566 to 608 MHz
  • RF bandwidth: 42 MHz
  • Frequency Step Size: 25 kHz
  • Maximum working range: 330' / 100.6 m (line-of-sight)
  • Maximum number of systems per setup: 20
  • Number of audio channels: 1
  • Network input/output 2 x RJ10
  • Network protocols Manual IP
  • Approximate RF sensitivity 2.5 µV
  • Adjustable attenuation, 5 to 25 dBµV
  • Adjacent channel isolation >65 dB
  • Power requirements: AC/DC power adapter
  • Power Adapter: AC/DC 12 V DC at 300 mA (included)
  • AC input power 100 to 240 VAC, 50/60 Hz at 0.2 A
  • Audio input level 3 V RMS
  • Gain range 60 dB (3 dB increments)
  • Frequency response 80 Hz to 18 kHz (microphone)
  • Battery type 2 x AA (included)
  • Approximate battery life 8 hours (alkaline)
  • Operating temperature 14 to 131 °F / -10 to 55 °C
  • Dimensions 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
  • Weight 5.6 oz / 160 g (with batteries)
