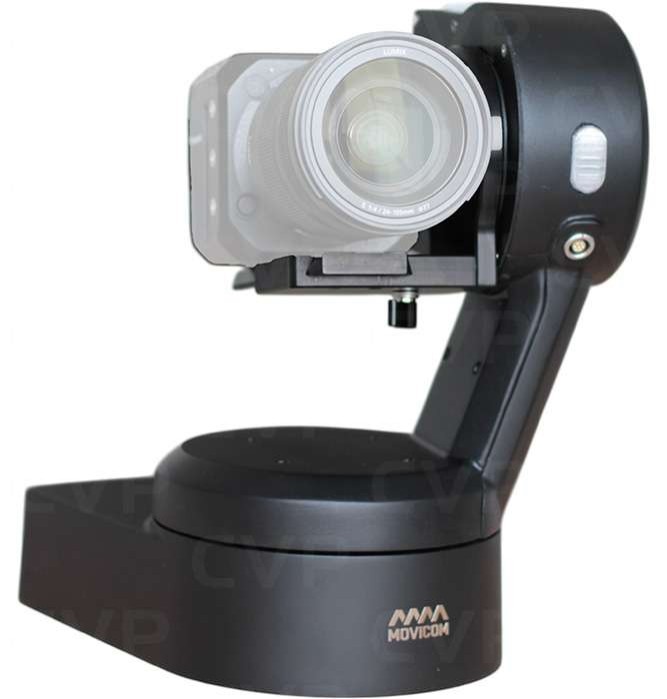

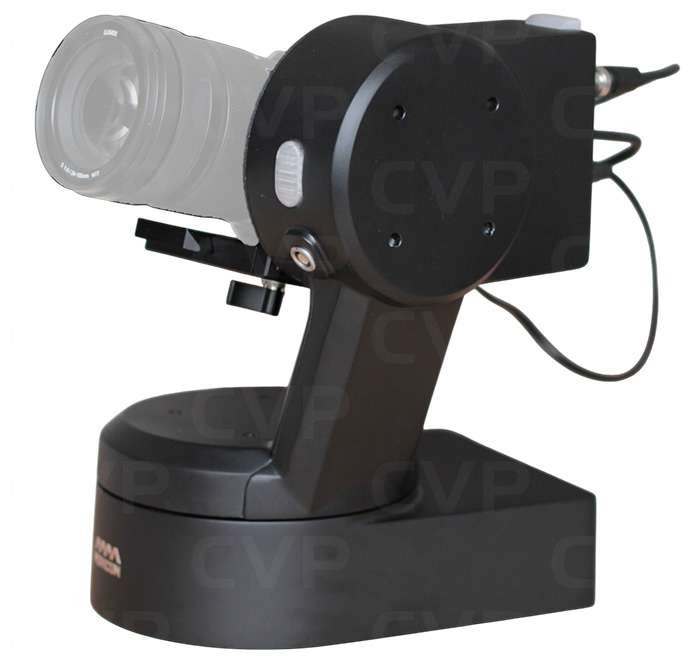

Robyhead D2

Designed for the Panasonic AW-UB50 and Panasonic AW-UB10 4K box-style multifunction cameras, the RobyHead D2 offers full pan , tilt , and zoom capabilities, as well as full compatibility with the Panasonic AW-RP150GJ remote control unit via IP protocol.

The RobyHead D2 offers the advantage of precise remote camera positioning in a compact design , allowing for precise control of the camera’s field of view without the need for physical adjustments. This allows for full camera control from any distance, making it ideal for applications where you need to capture a specific area or track movement with minimal space requirements—such as sports broadcasts, studio productions, conference rooms, events, and other situations that require a compact size without compromising on quality or control.

Key benefits of the compact RobyHead D2 motorized pan-tilt head:

• Precise control and smooth movement: Motorized movements allow for fine-tuning of the camera’s direction for precise framing and tracking of subjects. The direct-drive technology operates almost silently, allowing the camera to move even during live broadcasts or interviews.
• Remote control: The camera’s pan and tilt functions can be controlled from virtually any distance using a remote or software, without the need for manual intervention. The camera can thus be installed and operated from anywhere. Thanks to the pan and tilt capabilities, a single camera position can cover a larger area while maintaining full control over all camera functions.

The RobyHead D2 is specially designed to fit even in very confined spaces and perfectly complements the compact dimensions of the AW-UB50 and AW-UB10 cameras.

Key Features:

• Sleek design
• Direct-drive motors
• Completely silent operation
• Weight: 3.7 kg
• Dimensions: 295 × 210 × 255 mm (H × W × D)
• Support for external lens motors (Tilta)
• Zero backlash
• Power supply: 12 V / 100 W
• Maximum load capacity: 5 kg
• Integrated HDMI to 12G HD-SDI converter
• Optional internal precision compass for tracking (FreeD protocol)
• Can be installed in both suspended and inverted positions (overslung / underslung)
• Control via Panasonic control panels (AWRP150, KAIROS, etc.)
