RGBlink MSP 221

The RGBlink MSP 221 is an EDID and HDCP manager that sits between the source and the display. It takes an HDMI or VGA signal and sends it to a DVI or VGA output while reporting the same EDID to the source even when displays are swapped, unplugged or switched off. It can capture and store EDID from a display, set it with the front-panel buttons, or over USB from an Android or Windows app.

A small helper for installations with projectors and monitors where the source changes its output resolution or stops sending a picture after a display is swapped or switched off. The MSP 221 keeps a consistent display identification towards the source and also helps resolve HDCP conflicts when outputting to DVI or VGA.

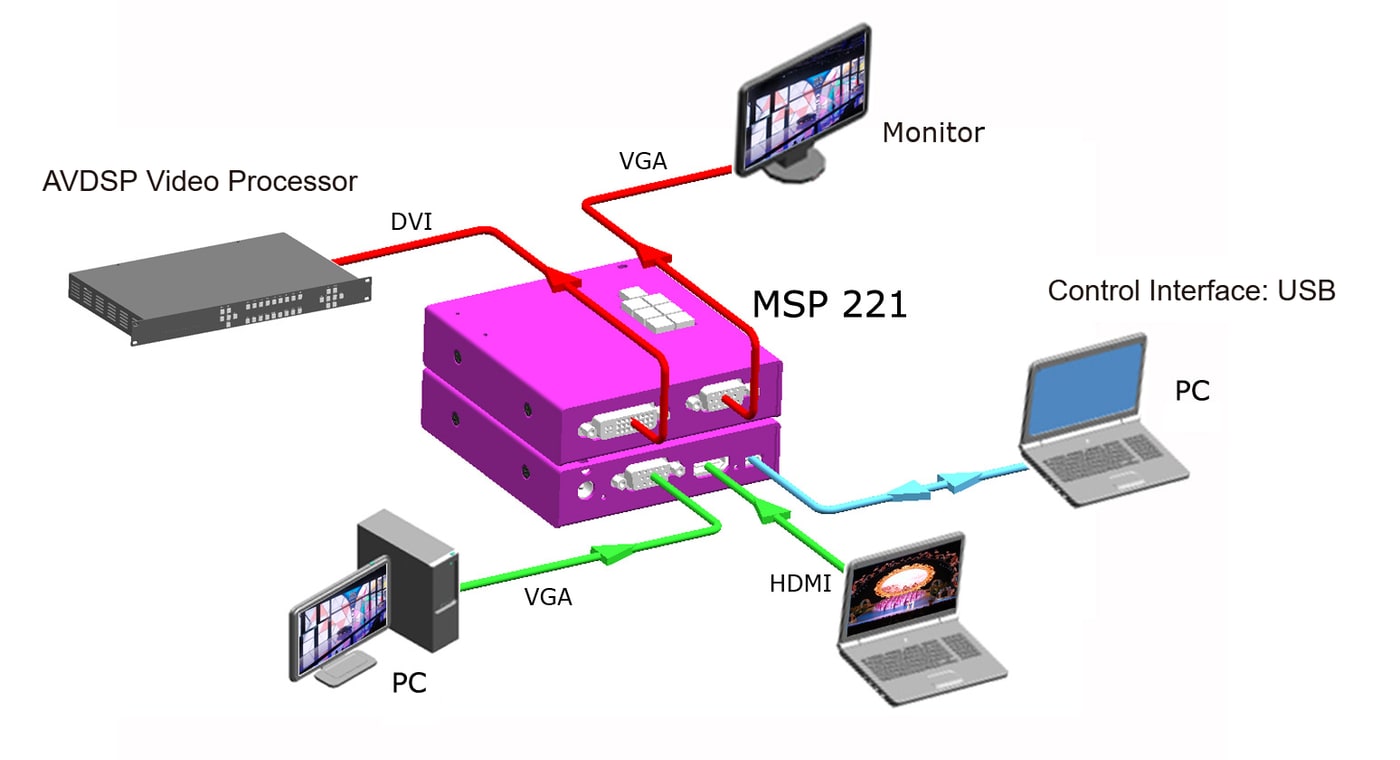

Typical setup

An HDMI source (laptop) or VGA source (computer) connects to the input of the MSP 221, the DVI output feeds, for example, a video processor and the VGA output a monitor. The manager is controlled from a computer over the USB interface.

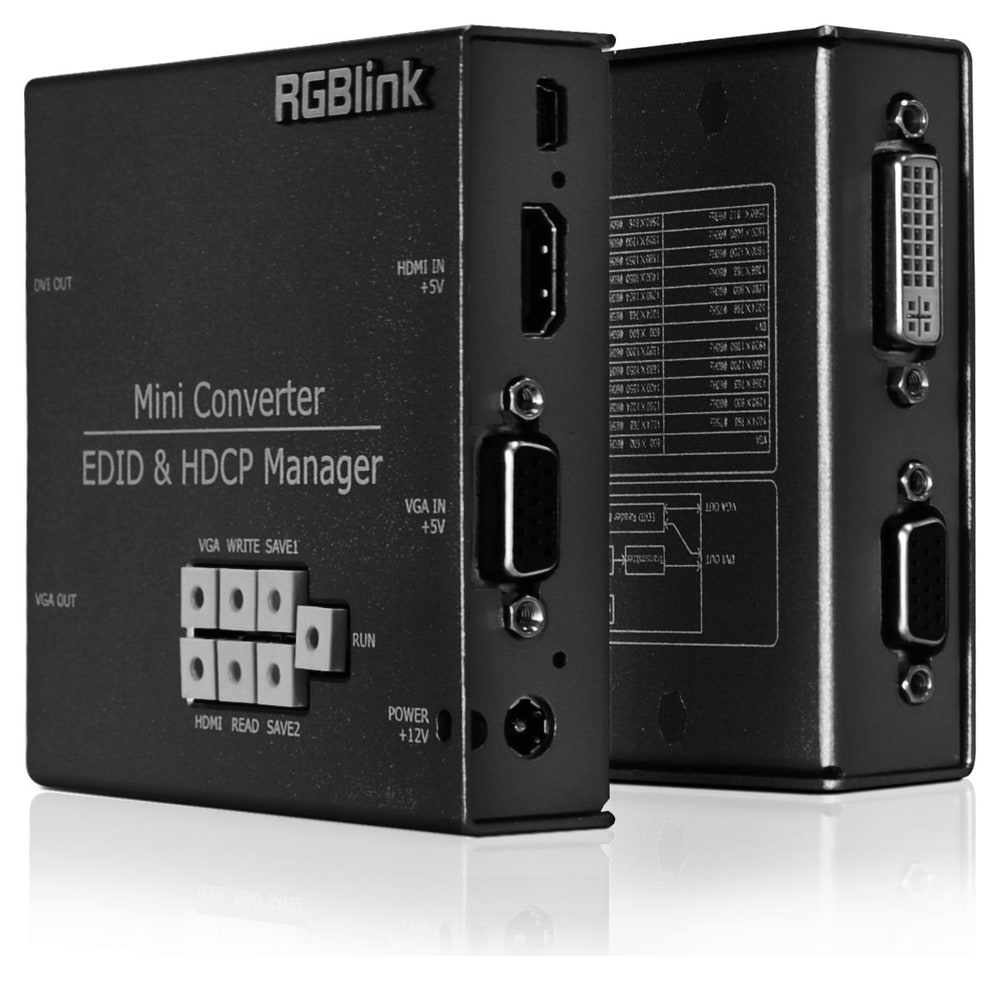

Buttons and indicators

Seven buttons with indicators on the front panel are used to capture EDID from a display, write it to two memory slots for both HDMI and VGA, and restore the factory setting. EDID can also be loaded from a file over USB.

More information

The RGBlink MSP 221 is a compact EDID and HDCP manager designed to simplify multi-display setups. Supporting HDMI and VGA inputs with DVI and VGA outputs, the MSP 221 enables automatic EDID detection, read/copy/write functions, and USB-based configuration. It supports output resolutions up to 2560×816, ensuring compatibility with a wide range of professional displays.

The RGBlink MSP 221 is a versatile EDID and HDCP management tool ideal for AV integrators, video production setups, and digital signage applications. With inputs for HDMI and VGA, and outputs for DVI and VGA, it allows seamless signal routing between devices while maintaining proper display communication. The device automatically identifies EDID settings, supports reading EDID files from USB, and allows copying or writing configurations directly from the front panel or via USB interface.

Supporting both SMPTE and VESA standards, the MSP 221 accommodates resolutions ranging from standard HD up to 2560×816 for custom display formats. HDCP is fully supported, ensuring secure video playback for protected content. Seven intuitive front-panel buttons with LED indicators allow fast configuration and operation, while Android and Windows remote apps provide flexible control options. Its compact and lightweight design (98×92.9×23.5 mm, 0.18 kg) with a lock/latch hole makes it easy to integrate in racks or portable setups.

This device is perfect for installations requiring consistent EDID management, HDMI-to-DVI/VGA conversion, or reliable HDCP handling, ensuring professional-grade video output for multiple display environments.

Key Features

• HDMI and VGA inputs with DVI and VGA outputs
• Automatic EDID detection and management
• Read, copy, and write EDID functions from USB or front panel
• Supports HDCP for secure content playback
• Output resolutions up to 2560×816
• Supports both SMPTE (PAL/NTSC/HD) and VESA standards
• Front-panel control with 7 buttons and LED indicators
• Remote control via Android or Windows apps
• Compact, lightweight, and portable with lock/latch support
