RED V-RAPTOR Top Handle w/ Extensions

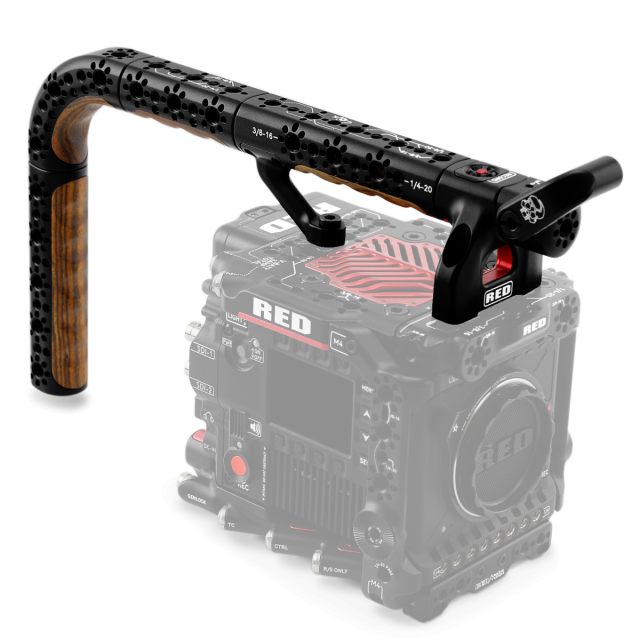

RAPTOR™ Top Handle w/ Extensions kit provides a complete modular Top Handle solution for V-RAPTOR™ allowing for light-weight or extended wrap around style configurations.

V-RAPTOR™ Top Handle features a dedicated Start/Stop Button, ergonomic Bocote wood inlays, and multiple 3/8-16 and 1/4-20 mounting points. Additionally, includes 1”, 3” and 5” Top Handle Extension pieces, Elbow piece and a 15mm Monitor Mount.


NOTES:

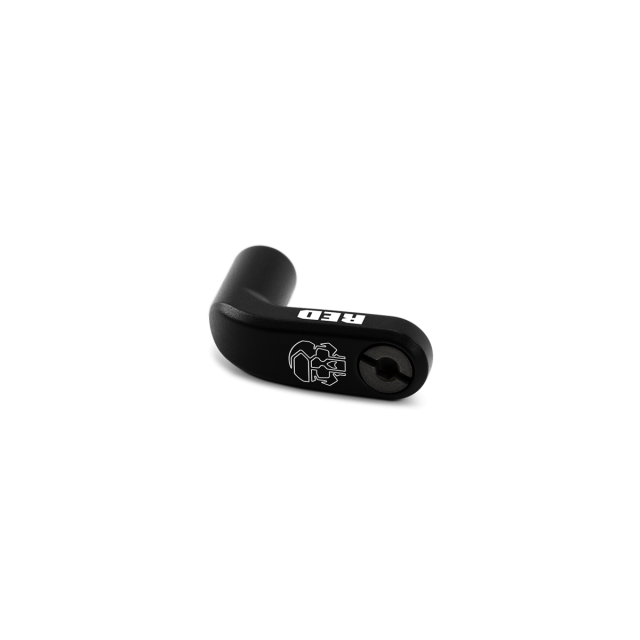

    V-RAPTOR™ Tactical Top Plate is required to secure Top Handle Support Arm to the camera.
    For issues or troubleshooting, contact support@cs.inc

COMPATIBILITY: The V-RAPTOR Top Handle is not compatible with DSMC®, DSMC2®, RED RANGER® or KOMODO® camera systems.

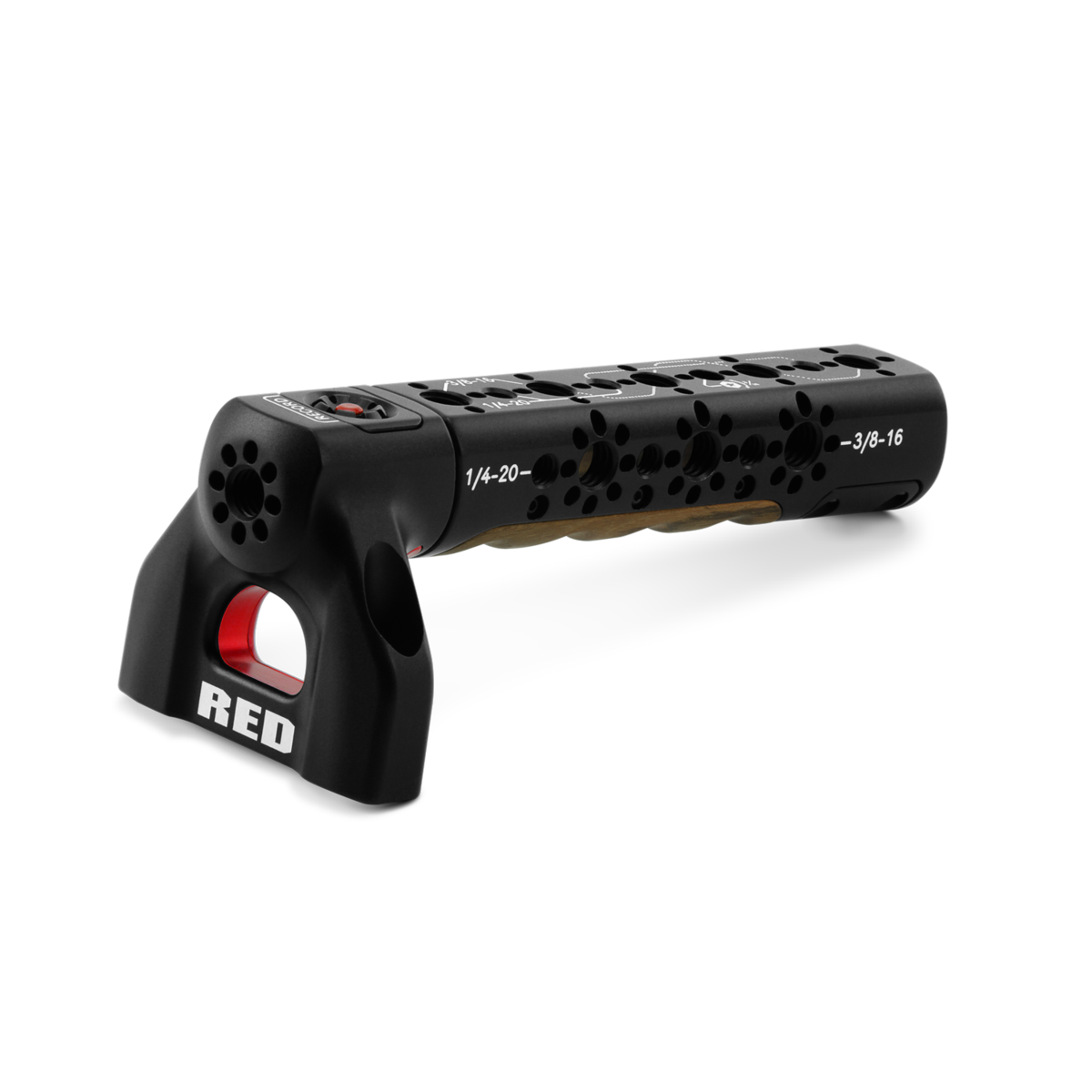

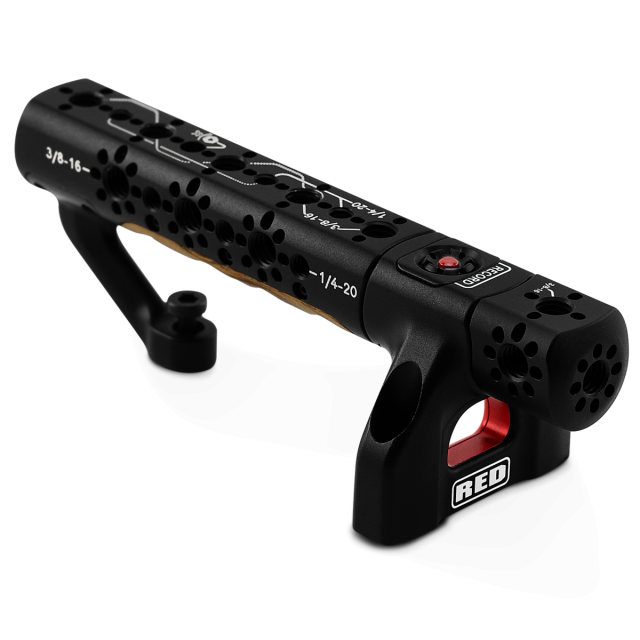

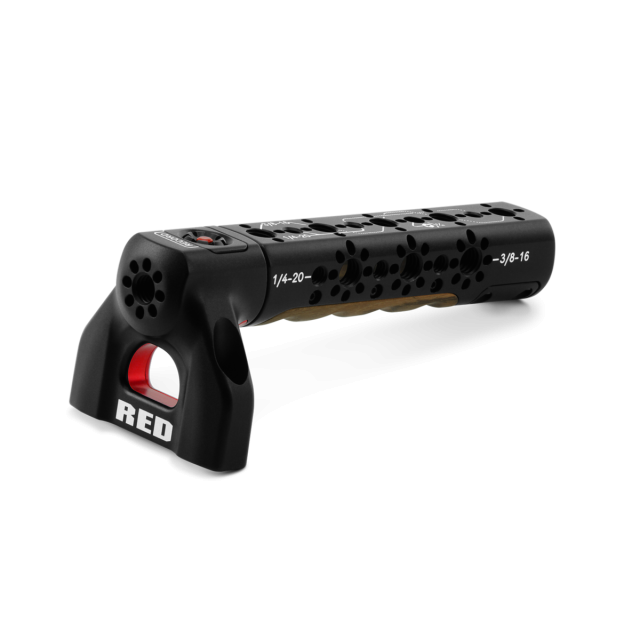

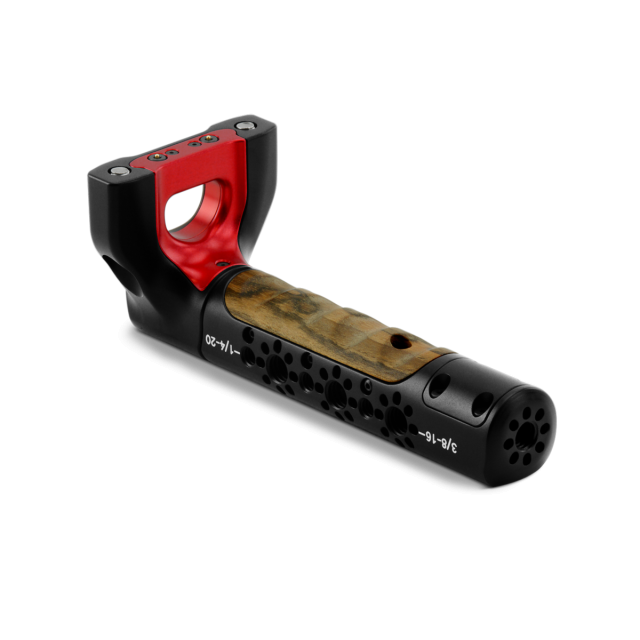

V-RAPTOR TOP HANDLE
DIMENSIONS     Height: 2.36 in (60 mm)​
Width: 6.28 in (159.5 mm)​
Depth: 2.63 in (66.8 mm)​
WEIGHT​     Approximately 0.54 lbs (245.93 g)​​​​
MATERIALS​     Aluminum & Bocote Hardwood
MOUNTING TO V-RAPTOR​​     2x 1/4-20 Captive Mounting Screws plus optional rear 1/4-20 support arm when used with V-RAPTOR Tactical Top Plate​​​​
CONTROLS     Run/Stop
OPERATING TEMPERATURE     0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE     –20°C to 50°C (–4°F to 122°F)

Tech specs reflect both current and projected information. Everything is subject to change.

    1x V-RAPTOR Top Handle

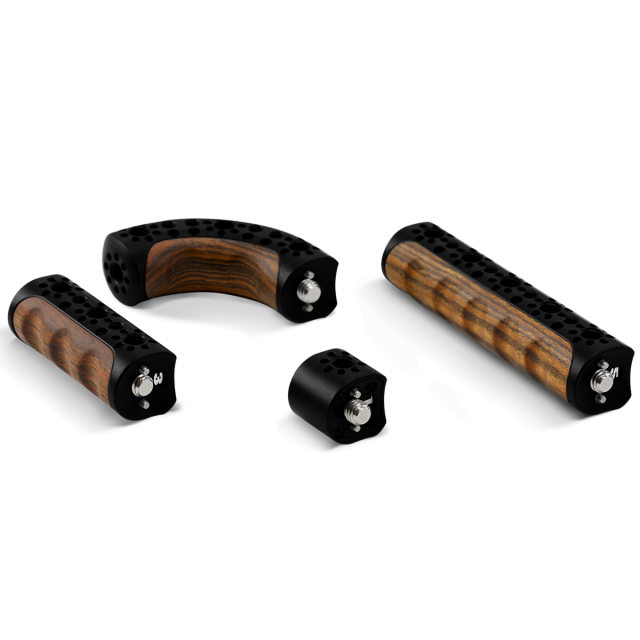

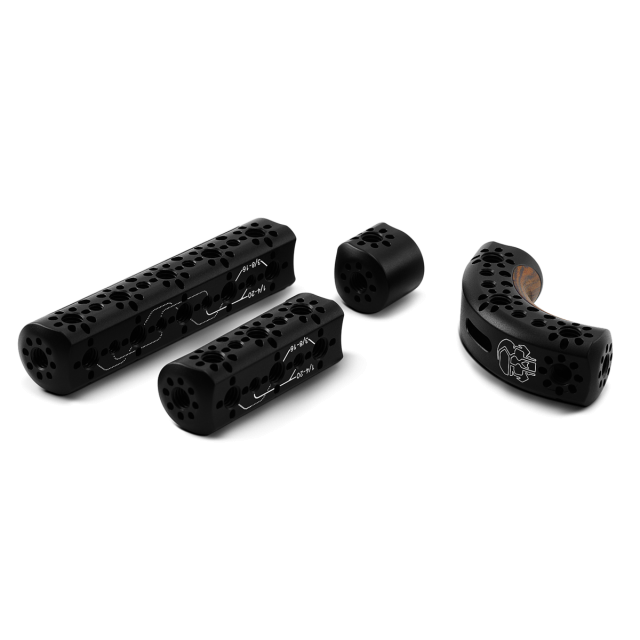

    1x 1" Top Handle Extension Piece
    1x 3" Top Handle Extension Piece
    1x 5" Top Handle Extension Piece
    1x Elbow Piece
    1x 15mm Monitor Mount
