Blackmagic Design Power Supply - URSA 12V100W

SKU: PSUPPLY/XLR12V100

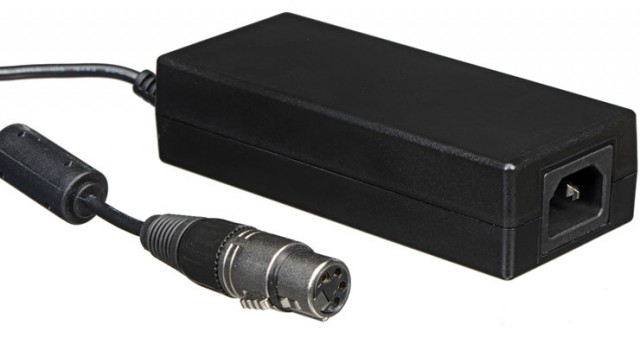

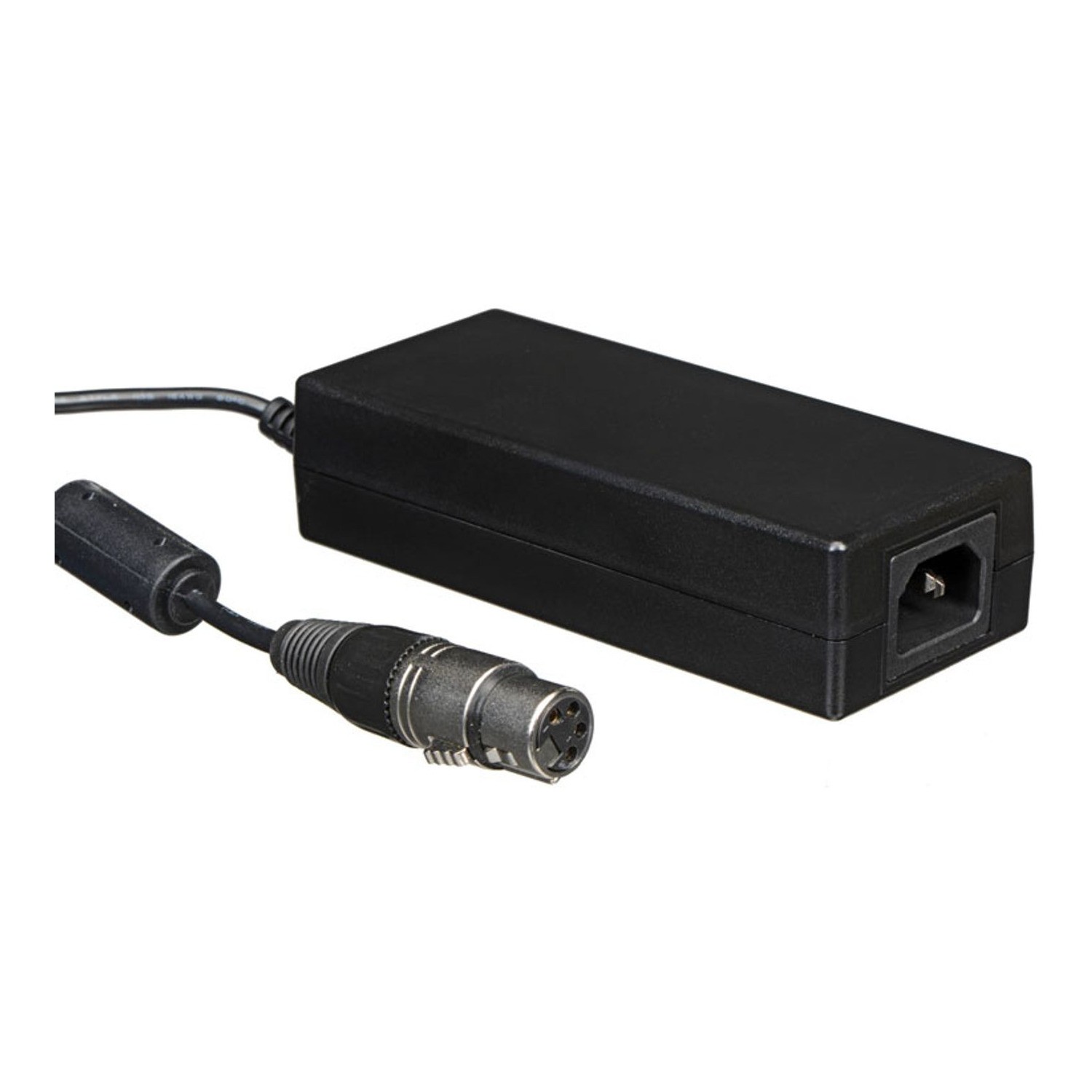

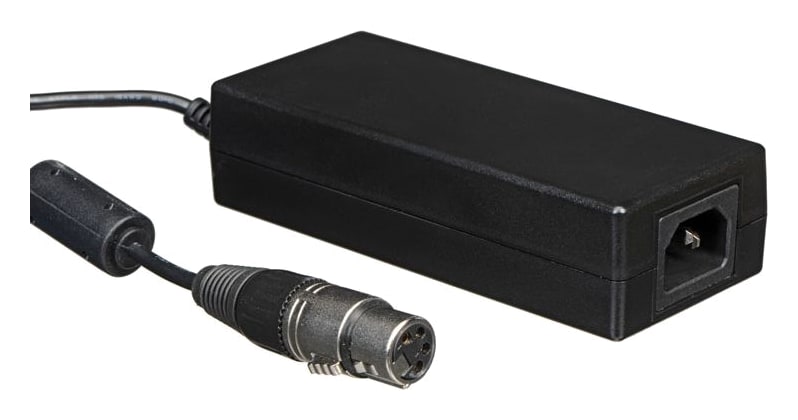

The external Blackmagic URSA 12 V / 100 W power supply runs URSA cameras from the mains at 100–240 V ~ 50/60 Hz. On the camera side it connects with a 4-pin XLR connector, and the input of the supply has an IEC C14 connector. The same power supply is included with the URSA Broadcast G2 camera – on its own you can buy it as a replacement or for another wor…

More information

160 € with VAT 132.23 € without VAT
Add to Compare Price history
Availability
on request
SKU:
PSUPPLY/XLR12V100
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The external Blackmagic URSA 12 V / 100 W power supply runs URSA cameras from the mains at 100–240 V ~ 50/60 Hz. On the camera side it connects with a 4-pin XLR connector, and the input of the supply has an IEC C14 connector. The same power supply is included with the URSA Broadcast G2 camera – on its own you can buy it as a replacement or for another workstation.

12 V / 100 W mains power supply for URSA cameras

Power an URSA camera from a wall socket: 12 V DC, 100 W output, 4-pin XLR.

12 V / 100 W100–240 V ~4-pin XLR

Power from the mains

The power supply converts the mains voltage of 100–240 V ~ (50/60 Hz) to 12 V DC at 100 W. The input of the supply has an IEC C14 connector.

XLR connection

The URSA Mini Pro and URSA Broadcast G2 cameras have a 4-pin XLR input for external power or a battery. The power supply connects to it with a 4-pin XLR connector.

PACKAGE CONTENT

  • Blackmagic URSA 12 V / 100 W power supply

SPECIFICATIONS

  • Type: mains power supply
  • Output voltage: 12 V DC
  • Output power: 100 W
  • Input: 100–240 V ~, 50/60 Hz, IEC C14 connector
  • Output connector: 4-pin XLR
  • Intended for: Blackmagic URSA cameras (included with the URSA Broadcast G2 camera)
  • Order number: PSUPPLY/XLR12V100
Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Power supplies

Main parameters

Power supply output4 pin XLR · 12 V output · 100W
