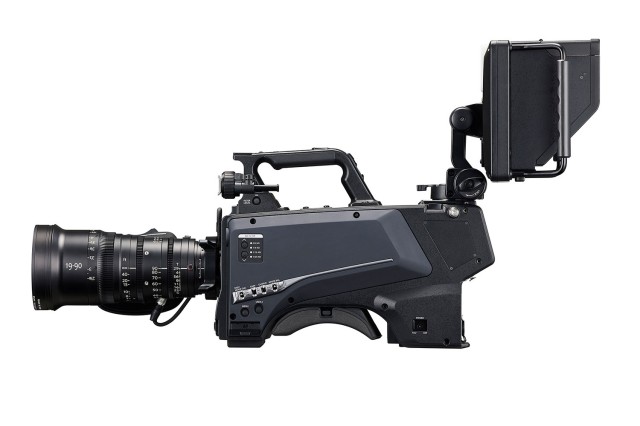

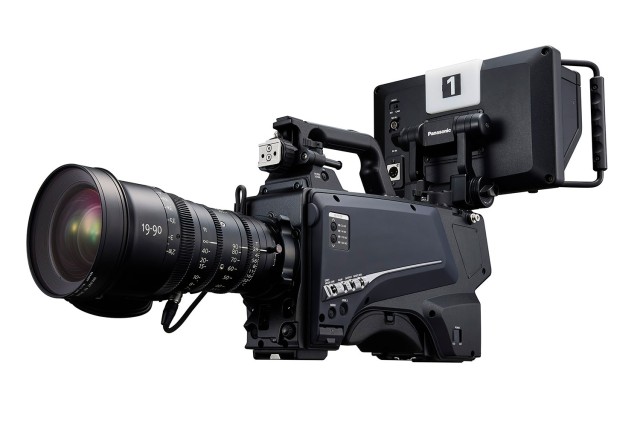

Panasonic AK-PLV100G 4K PL-mount Studio Camera

Panasonic’s AK-PLV100GSJ is a high-end 4K studio camera with a 5.7K Super 35 mm sensor and PL mount to accommodate cinema lenses for a shallow-depth look, inheriting the design concept of Panasonic VariCam camera line. The AK-PLV100GSJ is a fully-enabled system camera, and is compatible with the AK-HCU250 and AK-UCU600 camera control units, making it a companion…

More information

40 535 € with VAT 33 500 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS

Product description

Panasonic’s AK-PLV100GSJ is a high-end 4K studio camera with a 5.7K Super 35 mm sensor and PL mount to accommodate cinema lenses for a shallow-depth look, inheriting the design concept of Panasonic VariCam camera line. The AK-PLV100GSJ is a fully-enabled system camera, and is compatible with the AK-HCU250 and AK-UCU600 camera control units, making it a companion to existing B4 mount camera systems. To capture cinematic video, simply swap the existing camera head with the AK-PLV100GSJ! The camera also leverages Panasonic's expertise IP-based live production. It outputs 12G-SDI signals from the camera head and can interface with return, control and other communications directly, or through ST 2110 when used without a CCU. With this combination of features, the AK-PLV100GSJ gives media and entertainment professionals flexibility & control, that doesn't sacrifice production quality.

To support production studios moving towards more connected, IP-based workflows, this camera features SMPTE2110 compatibility. This will enable more streamlined connection to the KAIROS IT/IP platform, which gives professionals unlimited control to deliver rich content to multiple screens and streams. SMPTE ST2110 input/output is possible directly from the AK-PLV100GSJ camera head without connecting to a CCU (planned feature), enabling IP-based live production with just the camera, doing away with the need for complicated systems. It is also possible to output 12G-SDI signals directly from the camera head, allowing for flexible system construction and wide-ranging operations.

SPECIFICATIONS

  • 35mm PL Mount, S35mm 17.25 million pixels MOS Sensor
  • Dual Native ISO for high sensitivity and low noise
  • Simultaneous HLG/ITU-R BT.2020 (4K mode) and
    SDR/ITU-R BT.709 (HD mode)
  •  V-Log output for wide dynamic range and rich color gamut
  • HD mode: Uncompressed SMPTE ST2110 input/output standard, 4K mode: SMPTE ST2110 output with JPEG-XS compression standard
  • 12G-SDI output standard
  • Output formats: 3840x2160/59.94p/50p/29.97p/25p/23.98p, 1920x1080/59.94p/50p/59.94i/50i/29.97p/29.97PsF/25p/25PsF/23.98p/23.98p over 59.94i, 720/59.94p/50p
  • Horizontal resolution: 2000 TV lines (4K, center)
  • S/N: 62 dB or above
  • Capture frame rate is switchable to Cinematic 24p/30p on 60p system, so can easily switch
    between a 24p/30p look and a standard broadcast 60p look.
  • Digital extender with signal-processing circuitry for 2x image magnification
  • Remote switching of motorized ND filter
  • Focus assist (Focus in Red/MAG/Focus Square) for fast, accurate focusing
  • Fine adjustment of saturation and hue separately using 12-axis color correction and linear matrix
  • Beautiful, natural-looking skin thanks to wrinkle and tone correction
  • Shockless gain smooths out images during gain changes
  • Terminals: 1x 12G-SDI, 1x 3G-SDI, 1x AUX, 1x OPT (LEMO)
Parameters

Parameters

Manufacturer: Panasonic
Category: Broadcast

Main parameters

Camera Sensor sizeSuper35
Resolution4K
Type of bayonetPL
Output12G SDI
Output3G SDI

Other parameters

Versionon the shoulder
Versionstudio
FPS4K 60fps
FPS4K 24fps
FPS4K 30fps
FPS1080P 60fps
Other featuresHDR
Other featuresDual ISO
Other featuresND filter
