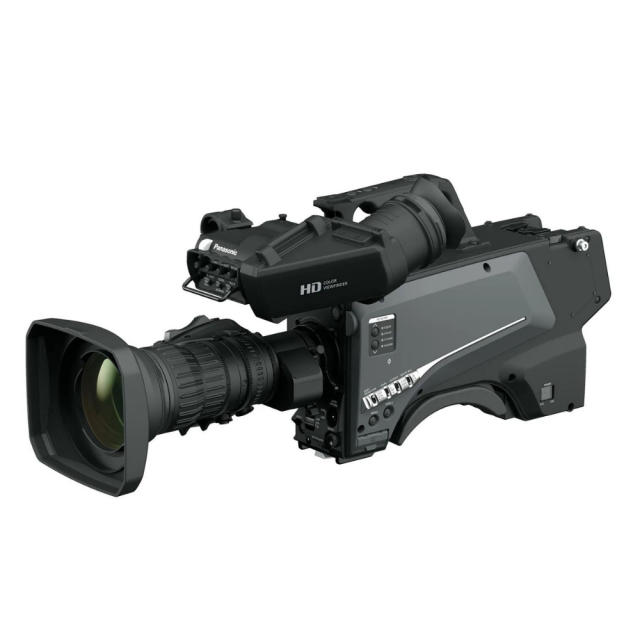

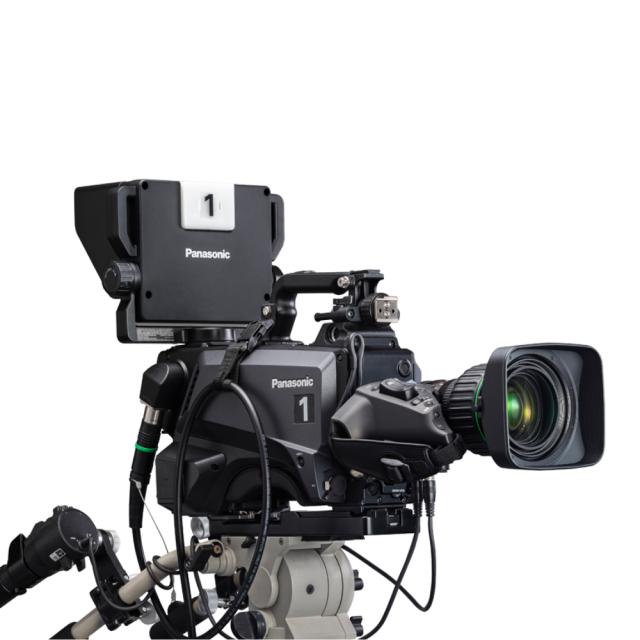

Panasonic AK-HC3900GJ

Successor to the popular AK-HC3800 studio camera, the AK-HC3800 brings new HDR features, expanded format support (1080: 59.94p, 50p, 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF; 720: 59.94p/50p), and the option of a future upgrade to 4K 60p/50p. Camera body. Option with LEMO connector. On sale from Q4/2020.

More information

19 902.08 € with VAT 16 448 € without VAT
-+
Availability
on request

Show all accessories

Product description

Product description

Successor to the popular AK-HC3800 studio camera, the AK-HC3800 brings new HDR features, expanded format support (1080: 59.94p, 50p, 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF; 720: 59.94p/50p), and the option of a future upgrade to 4K 60p/50p. Camera body. Option with LEMO connector. On sale from Q4/2020.

The affordable AK-HC3900GJ/GSJ studio cameras (with Tajimi and LEMO connectors, respectively) are a complete system for 1080p HDR production, with optional upgrades to 4K 60p/50p! The HC3900 follows in the footsteps of its successful predecessor, the AK-HC3800, which reigned supreme in professional, affordable studio solutions for nearly a decade.

New features of the AK-HC3900G include simultaneous HDR/SDR support, expanded standards support (1080: 59.94p, 50p, 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF; 720: 59.94p/50p), and the option of a future upgrade to 4K 60p/50p and guarantees a resolution of 2000 TV lines in the event of a future upgrade to 4K. The camera also boasts high sensitivity (F10 at 59.94 Hz, 2,000 lx) and a signal-to-noise ratio of 62 dB. A motorised ND filter tray is standard.

The new CCU and ROP unit models are launched simultaneously with the new AK-HC3900 studio camera. The AK-HCU250PJ/PSJ/EJ/ESJ CCU unit allows - in combination with the new AK-HRP250GJ control panel - to transmit the uncompressed camera signal via fiber optics or hybrid SMPTE cabling (along with power supply). The CCU supports all HC3800 features including simultaneous HDR/SDR output, extended format support and 4K upgrade. New features include 3G Trunk and 3G Prompter; new ROP panels support PoE power for easier installation. An interesting new feature of these CCUs and ROP units is also an SD slot allowing device settings to be stored (or firmware upgraded).

There are several color EVFs to choose from, a 9" AK-HVF100GJ model, a 7" AK-HVF75G LCD viewfinder or a 3.45" AJ-CVF25GJ.

  • High sensitivity F10 (2000 lx) and low noise (S/N 62 dB) thanks to a large CMOS sensor with High Sense mode
  • Multi-format support including 1080/59.94p, 59.94i and 23.98PsF
  • Chromatic Aberration Compensation (CAC) function for correcting lens colour defects
  • Fast 1/100s readout to compensate for geometric distortion
  • Dynamic Range Stretcher (DRS) function for good reproduction even at the extremes of the brightness spectrum
  • Digital extender x2
  • Supports HDR/BT.709 in HD and HDR/BT.2020 in 4K mode
  • 4K upgrade allowing 4K video output with a horizontal resolution of 2,000 TV lines
  • SD card slot used for firmware upgrade
Parameters

Parameters

Manufacturer: Panasonic
Category: Broadcast

Main parameters

ResolutionFull HD
Type of bayonetB4 2/3"

Other parameters

Versionstudio
FPSHD 60fps
Other featuresHDR
